Taking your child out for a spin, only to have a crucial brake component fail, can be a worrying experience. The 'pipe' or 'noodle' popping out of its 'folded steel retainer' on your five-year-old's Frog 43 bike is a clear sign that the braking system needs immediate and high-quality attention. This issue, where the cable guide channel on the brake arm has splayed open, highlights the importance of understanding the mechanics of V-brakes, particularly their arm length, to ensure optimal performance and safety, especially for a bike that's seeing significant use with 15+ mile rides.
When it comes to V-brakes, often referred to as linear-pull brakes, their effective operation hinges on several factors, with the arm length being a critical one. Unlike traditional cantilever brakes, V-brakes offer superior stopping power and are widely adopted on mountain bikes, hybrid bikes, and indeed, many children's bicycles due to their reliability and straightforward design. But what constitutes a 'normal' length, and how does it apply to a smaller bike like the Frog 43?
Understanding V-Brake Arm Lengths
V-brake arm length refers to the distance from the centre of the pivot bolt (where the brake arm attaches to the frame or fork) to the centre of the brake cable attachment point. This measurement directly influences the mechanical advantage of the brake system, affecting both stopping power and modulation – the ability to finely control braking force. Your measurement of 108mm centre-to-centre is an excellent starting point for finding a suitable replacement.
Common V-Brake Arm Lengths Explained:
V-brakes come in various lengths, each with distinct characteristics:
- Mini V-Brakes (typically 85mm-90mm): These are often found on cyclocross bikes or road bikes converted to use V-brakes, primarily because they can be paired with short-pull road brake levers, offering a quick, powerful bite. They provide good tyre clearance on these specific setups but might offer less power than longer arms if used with standard V-brake levers.
- Standard/Mid-Length V-Brakes (around 100mm-110mm): This range, which includes your measured 108mm, is arguably the most common and versatile. It strikes an excellent balance between stopping power and modulation, making it suitable for a wide array of bikes, from adult mountain bikes to many larger children's bikes. The 108mm length you measured is very much within this 'normal' and highly effective range.
- Long-Arm V-Brakes (115mm-120mm+): These brakes provide maximum stopping power due to their increased leverage. They are often found on bikes where absolute stopping force is prioritised, such as touring bikes carrying heavy loads or some older mountain bikes. While powerful, they can sometimes offer less fine control (modulation) compared to shorter arms.
For your Frog 43, the 108mm arm length is not only normal but also highly appropriate. It indicates that the original brake system was designed to provide ample stopping power for a young rider while still allowing for reasonable control. There's no inherent need to seek out V-brakes 'specifically made for a kids bike' in terms of arm length if 108mm was the original fit. The key is to find a quality replacement that matches or is very close to this length.
Choosing Quality Replacements: More Than Just Length
Your desire to avoid cheap, low-quality replacements is commendable and crucial for safety. A good quality V-brake system will offer consistent performance, better durability, and easier adjustment, all of which are paramount for a child's bike that's seeing significant mileage.
Key Components of a Quality V-Brake System:
- Brake Arms: Look for robust construction, often aluminium alloy, that resists flexing under load. The pivot points should be smooth, and the spring mechanism should be strong and easily adjustable. The cable guide channel, where your noodle failed, should be sturdy and well-formed.

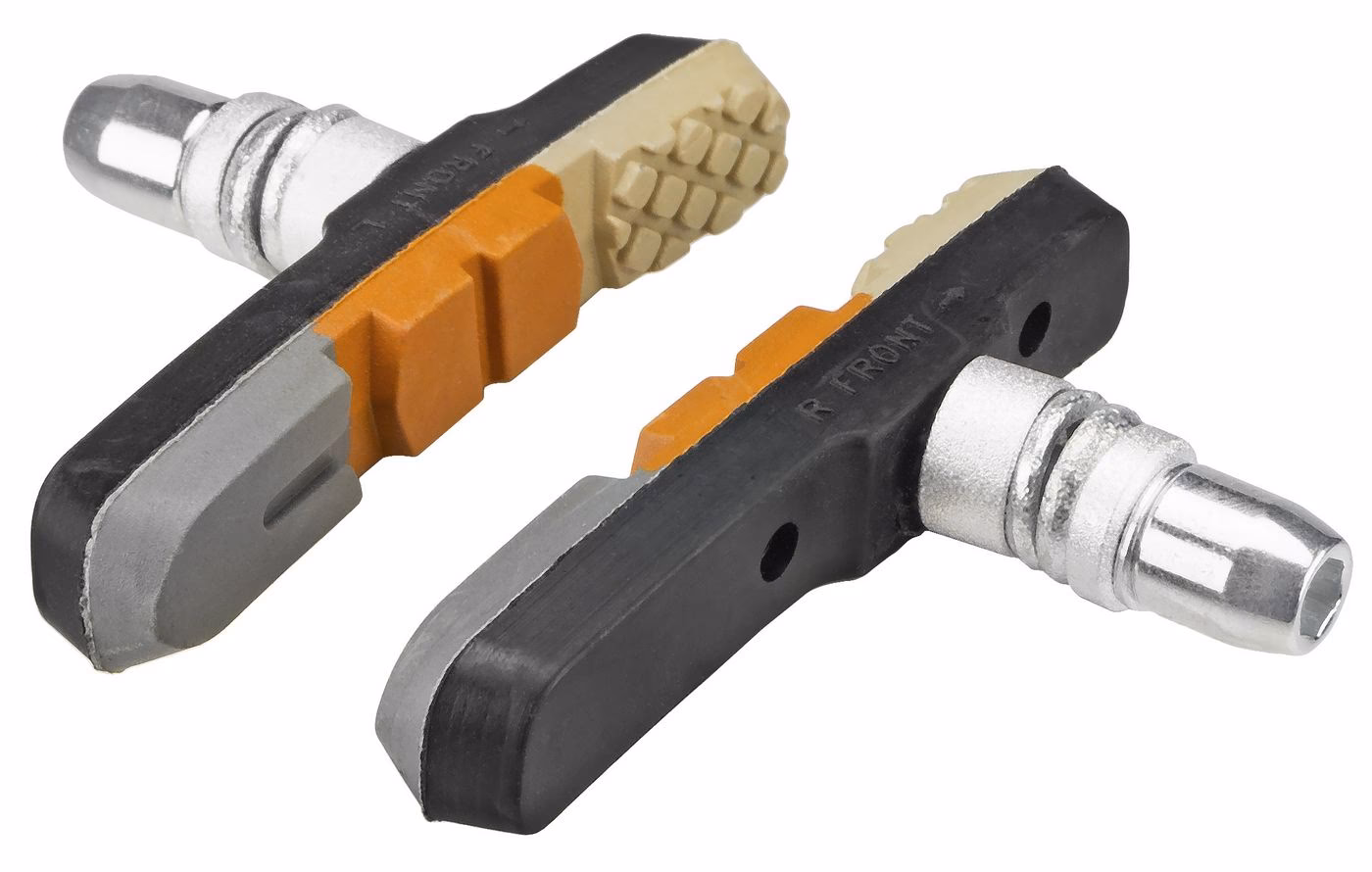

- Brake Pads: High-quality V-brakes usually come with decent pads, but this is also an area where upgrading can make a significant difference. Look for pads made from a durable compound that performs well in both wet and dry conditions. Brands like Kool-Stop or Aztec are renowned for their aftermarket pads. Different pads are designed for different rim materials, but for standard aluminium rims, a good all-weather compound is ideal.
- Brake Noodle (Cable Guide Pipe): This small, curved metal tube guides the inner brake cable smoothly from the lever to the brake arm. It often comes with a rubber boot to protect the cable from dirt and water. Ensure the replacement noodle is robust and fits securely into the brake arm's housing. A flimsy noodle or splayed housing is a recipe for repeat failure.
- Brake Levers: While your immediate issue is with the brake arms, don't overlook the importance of the brake levers. For a child's bike, it's vital that the levers are 'short-reach' and ideally have 'reach adjust' screws, allowing them to be positioned closer to the handlebars for small hands. Even the best V-brakes are ineffective if the rider can't comfortably reach and apply the levers. Ensure your existing levers are 'long-pull' compatible, which is standard for V-brakes.
Why Quality Matters on a Child's Bike:
A child's safety is paramount. High-quality brakes provide:
- Reliable Stopping Power: Crucial for emergency stops and navigating traffic.
- Consistency: Predictable braking performance in all conditions builds confidence.
- Durability: Components withstand regular use and adverse weather, reducing the likelihood of unexpected failures like the one you experienced.
- Easier Maintenance: Better quality parts tend to be easier to adjust and maintain, ensuring they stay in top condition.
Recommended Brands and UK Availability
You're on the right track thinking about Shimano. They are a global leader in bicycle components, known for their reliability and performance across various price points. For a child's bike where you want reliability without excessive cost, their mid-range offerings are often perfect.
Shimano V-Brake Series (UK Context):
When looking for Shimano V-brakes, consider the following series, which are widely available in the UK:
- Shimano Alivio (e.g., BR-T4000): This series offers an excellent balance of performance, durability, and value. It's a significant step up from basic OEM (Original Equipment Manufacturer) parts and would be a superb choice for your child's bike. They typically come with good quality brake pads.
- Shimano Deore (e.g., BR-T610): A step up from Alivio, Deore components are known for their enhanced durability and slightly better finish. While perhaps a bit overkill for a child's bike, they would certainly provide long-lasting, reliable performance.
- Shimano Acera/Altus: These are entry-level mountain bike groupsets. While functional, they might be closer to the 'cheap/low quality' you want to avoid compared to Alivio or Deore, but still better than unbranded components.
Other reputable brands that produce quality V-brakes include Tektro. Tektro often manufactures brakes for many bike brands as OEM parts and also offers good aftermarket options. When purchasing, check the arm length specifications carefully; most online retailers will list this. For UK-based purchases, large online cycling retailers (e.g., Wiggle, Chain Reaction Cycles, Tredz) and local bike shops are your best bet for finding these brands.
Installation and Maintenance Tips
Once you've sourced your new V-brakes, proper installation and ongoing maintenance are key to ensuring their longevity and performance.
Installation Considerations:
- Clean Mounts: Ensure the frame/fork brake bosses are clean and free of rust or old grease.
- Grease Threads: Apply a thin layer of grease to the pivot bolts before installation to prevent seizing and allow for smooth rotation.
- Spring Tension: Most V-brakes have a spring tension adjustment screw on each arm. After installation, adjust these screws so that both brake arms move equally and the pads clear the rim evenly when the brake is released.
- Cable Routing: Ensure the brake cable runs smoothly, without sharp bends, from the lever, through the noodle, and into the brake arm's cable anchor.
- Pad Alignment: Align the brake pads so they contact the rim fully and squarely, without touching the tyre or going above the rim. A slight toe-in (front of the pad touching first) can help reduce squealing.
Ongoing Maintenance:
- Regular Cleaning: Keep brake arms, pads, and rims clean. Dirt and grit can reduce braking efficiency and prematurely wear pads and rims.
- Pad Inspection: Regularly check brake pads for wear. Replace them when the wear lines are no longer visible or if the pad material is very thin. Also, check for embedded debris (like small stones) that can damage rims.
- Cable Check: Inspect the inner and outer brake cables for fraying, rust, or stiffness. Replace them if they show signs of wear or if braking feels sluggish.
- Pivot Lubrication: Occasionally apply a drop of light lubricant to the brake arm pivot points to ensure smooth operation.
- Lever Feel: If the brake lever feels spongy or stiff, it might indicate cable issues or a need for adjustment.
Comparative Table: V-Brake Arm Lengths
| Arm Length (Approx.) | Characteristics | Typical Use Cases | Pros | Cons |
|---|---|---|---|---|
| 85-90mm (Mini V) | Shorter leverage, quicker engagement | Cyclocross, Road bike conversions | Lightweight, good tyre clearance, compatible with short-pull levers | Less power than longer arms, can be 'grabby' |
| 100-110mm (Standard/Mid) | Balanced leverage, good power & modulation | MTB, Hybrid, Larger Kids' Bikes (like Frog 43) | Versatile, excellent balance of power and control, ample tyre clearance | None significant for intended use |
| 115-120mm+ (Long Arm) | High leverage, maximum power | Touring bikes, older MTBs, cargo bikes | Maximum stopping power, good for heavy loads | Less fine modulation, can feel 'on/off' |
Frequently Asked Questions (FAQs)
Q1: Can I use brake levers designed for cantilever brakes with V-brakes?
No. V-brakes require 'long-pull' brake levers. Cantilever brakes use 'short-pull' levers. Using the wrong type of lever will result in either very weak braking (short-pull lever with V-brake) or an overly stiff, unmodulationable brake (long-pull lever with cantilever).
Q2: My new V-brakes are squealing loudly. What's wrong?
Squealing is a common issue and can be caused by several factors: improper pad alignment (often lacking 'toe-in'), dirty rims or pads, worn pads, or vibration. Ensure pads are clean, properly aligned with a slight toe-in, and that the rim is free from oil or debris. Sometimes, simply scuffing the pad surface with sandpaper can help.
Q3: Do V-brakes need special rims?
No, V-brakes work with standard bicycle rims designed for rim brakes. They require a smooth, clean braking surface on the rim sidewalls. They are not compatible with disc-brake-specific rims, which lack this braking surface.
Q4: How do I know when to replace my brake pads?
Most brake pads have wear indicator lines or dimples. When these are no longer visible, or the rubber compound is very thin (typically less than a few millimetres), it's time to replace them. Also, replace them if they feel hard, glazed, or have significant cracks.
Q5: Is it worth upgrading to higher-end V-brakes for a child's bike?
While top-tier V-brakes might offer marginal improvements, for a child's bike, the sweet spot is usually mid-range options like Shimano Alivio or Deore. These provide a significant leap in performance and durability over basic components without the premium price of high-end parts. The quality of the brake pads and proper setup often have a greater impact than subtle differences between higher-end brake arms.
By understanding the nuances of V-brake arm lengths and focusing on quality components, you can ensure your child's bike is equipped with a reliable and safe braking system. The 108mm measurement you have is a standard and effective length, so concentrate on finding a reputable brand like Shimano Alivio and ensuring proper installation for worry-free riding.
