Your Guide to MOT Bay Types for Garages

Setting up or upgrading an MOT testing station is a significant investment for any garage in the UK. The heart of this operation is the MOT bay itself – a dedicated area equipped to perform the mandatory annual safety and emissions checks on vehicles. Understanding the various types of MOT bays available for sale is crucial for making an informed decision that aligns with your business goals, target clientele, and available space. This guide will walk you through the landscape of MOT bay options, helping you identify the best fit for your garage's needs.

An MOT bay is more than just a space; it's a meticulously designed and equipped area approved by the Driver and Vehicle Standards Agency (DVSA) for conducting MOT tests. It houses specialized equipment necessary to assess a vehicle's roadworthiness, ensuring it meets the stringent safety and environmental standards required by law. From checking brakes and lights to emissions and structural integrity, a compliant MOT bay facilitates a thorough examination, culminating in either a pass or a fail.

Understanding MOT Bay Types by Vehicle Class

The first major distinction when considering MOT bays is the class of vehicles they are certified to test. The DVSA categorises vehicles, and your MOT bay must be equipped and approved for the specific classes you intend to service.

Class 4 MOT Bays

Class 4 is arguably the most common and versatile MOT bay type, designed for the majority of vehicles on UK roads. This includes:

• Cars (up to 8 passenger seats)
• 3-wheeled vehicles (over 450kg unladen weight)
• Motor caravans
• Quads (over 400kg unladen weight or 800kg if designed for goods)
• Dual-purpose vehicles
• Private passenger vehicles and ambulances (9-12 passenger seats)
• Goods vehicles (up to 3,000kg Design Gross Weight - DGW)

Most general repair garages opt for a Class 4 bay due to the sheer volume of these vehicles. The equipment required is standard and widely available, making it a popular choice for new ventures or expanding existing services. A Class 4 bay typically includes a roller brake tester, headlamp aligner, emissions testing equipment, and either a vehicle lift or an inspection pit.

Class 7 MOT Bays

Class 7 MOT bays are designed for larger commercial vehicles. While Class 4 covers goods vehicles up to 3,000kg DGW, Class 7 specifically caters for:

• Goods vehicles (over 3,000kg up to 3,500kg DGW)

Many garages choose to install a combined Class 4 and Class 7 bay. This allows them to test a broader range of light commercial vehicles, significantly expanding their potential customer base. A Class 7 bay requires more robust and often wider equipment, particularly the roller brake tester and vehicle lift/pit, to accommodate the heavier and larger dimensions of these vehicles.

Classes 1 & 2 MOT Bays

These classes are dedicated to motorcycles:

• Class 1: Motorcycles (up to 200cc)
• Class 2: Motorcycles (over 200cc, including sidecars)

A motorcycle MOT bay requires specialised equipment tailored to two-wheeled vehicles. This includes a motorcycle-specific headlamp aligner, a brake tester (often a plate brake tester or a roller brake tester with motorcycle adaptors), and appropriate lifting equipment. While some multi-class stations exist, many motorcycle MOT bays are standalone, catering to dedicated bike enthusiasts.

Class 5 MOT Bays

Class 5 MOT bays are for larger passenger vehicles, including:

• Private passenger vehicles and ambulances (13-16 passenger seats)
• Private passenger vehicles and ambulances (over 16 passenger seats)

These bays are less common and typically found at larger commercial garages or bus depots due to the significant space and heavy-duty equipment required. The vehicle lifts or pits for Class 5 vehicles are substantially larger and more robust than those for Class 4 or 7, reflecting the weight and dimensions of minibuses and coaches.

Operational Types of MOT Bays: ATL vs. MTL

Beyond vehicle classes, MOT bays are also categorised by their operational method, primarily distinguishing between manual and automated systems.

Manual Test Lane (MTL) MOT Bay

The Traditional Approach

A Manual Test Lane (MTL) is the traditional setup for an MOT bay. It typically requires two people to perform a full test: the MOT tester and an assistant. The assistant is crucial for tasks such as operating the brake pedal during a brake test, or helping to check lights and other components from outside the vehicle while the tester operates controls from inside.

Key characteristics of an MTL:

• Two-person operation: Requires an assistant, impacting labour costs.
• Separate equipment: Components like the brake tester, headlamp aligner, and emissions tester may be standalone units, requiring manual data input.
• Space requirements: Often requires more space due to the need for vehicle movement and assistant access.
• Cost: Generally has a lower initial equipment cost compared to an ATL.

MTLs are still widely used, especially in smaller garages or those with existing equipment that predates widespread ATL adoption. They offer flexibility in terms of equipment choice and can be a good entry point for new MOT stations with budget constraints.

Automated Test Lane (ATL) MOT Bay

The Modern, Efficient Solution

An Automated Test Lane (ATL) is designed for single-person operation, significantly improving efficiency. This is achieved through integrated and automated equipment that allows the MOT tester to control all aspects of the test from a remote console or within the test lane itself, often without leaving the vehicle.

Key characteristics of an ATL:

• Single-person operation: Reduces labour costs and improves efficiency.
• Integrated equipment: Features include a computer-controlled roller brake tester with automatic weight sensing, automated play detectors, and sometimes integrated headlamp alignment.
• Precision and consistency: Automation often leads to more consistent and accurate test results.
• Data management: Test results are automatically recorded and sent to the DVSA system, minimising manual errors.
• Initial cost: Generally a higher upfront investment due to the sophisticated and integrated equipment.

The core of an ATL is its connectivity and automation. For example, an ATL brake tester will automatically weigh the vehicle and guide the tester through the braking sequence, displaying results on a screen that can be viewed from the driver's seat. Similarly, automated play detectors allow the tester to identify suspension and steering component wear without assistance. The efficiency gains and labour savings make ATLs an increasingly popular choice for new and established MOT centres.

One-Person Operated Test Lane (OPTL) MOT Bay

This term is often used interchangeably with ATL. An OPTL essentially describes the operational benefit of an ATL – the ability for a single MOT tester to conduct a full test independently. While some subtle technical differences might exist in specific equipment configurations, for practical purposes, when you hear OPTL, think ATL.

Key Components of a Complete MOT Bay

Regardless of the class or operational type, a complete MOT bay requires a suite of essential equipment to perform the necessary tests. While specific models and features vary, the core components remain consistent:

• Roller Brake Tester (RBT): Essential for measuring braking efficiency and balance across axles. For ATLs, these are often integrated with automatic weight sensing and display.
• Headlamp Aligner: Used to check the aim, intensity, and pattern of vehicle headlamps. Automated versions for ATLs can guide the tester through the alignment process.
• Emissions Testing Equipment:
• Gas Analyser: For petrol vehicles, measuring carbon monoxide (CO), hydrocarbons (HC), carbon dioxide (CO2), oxygen (O2), and lambda.
• Smoke Meter: For diesel vehicles, measuring the opacity of exhaust gases.
• Vehicle Lift or Inspection Pit:
• Two-Post Lift: Common for Class 4, offers good underbody access.

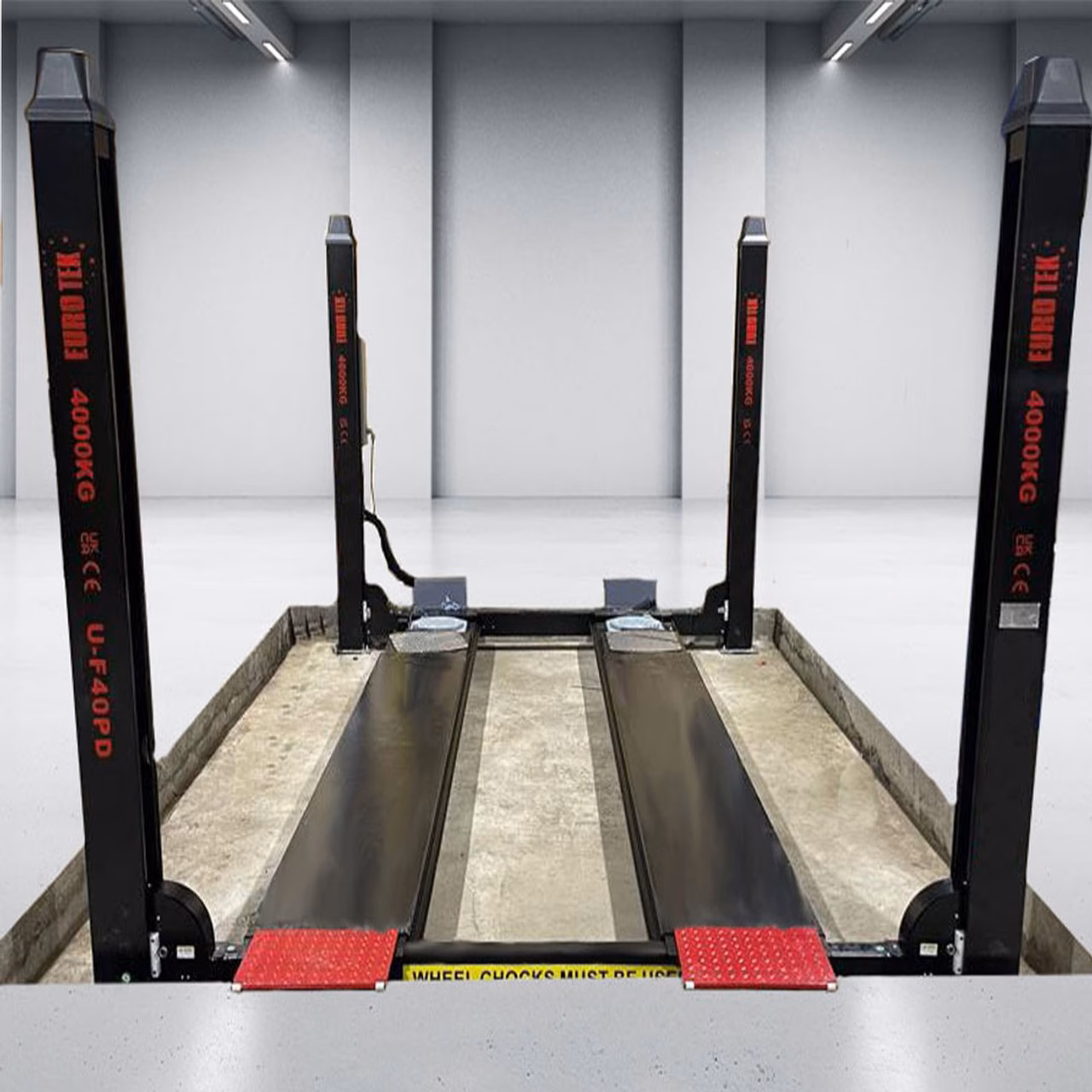

• Four-Post Lift: Provides a flat platform for vehicles, often preferred for ATLs as it keeps the vehicle level for accurate brake testing.
• Scissor Lift: Compact, offers good underbody access, and can be recessed into the floor.
• Inspection Pit: A traditional solution, offering excellent underbody access without the need for a lift. Requires careful planning for drainage and lighting. Often preferred for Class 7 or 5 due to vehicle weight.
• Jacking Beam: Used in conjunction with a lift or pit to raise individual axles for wheel bearing and suspension checks.
• Play Detectors (Shaker Plates): Used to identify excessive play in steering and suspension components. Can be manual (operated by foot pedal) or automated (remote control or integrated into ATL system).
• Approved Diagnostic & Software System: A computer system running DVSA-approved software for recording test results and communicating with the DVSA database.
• Hand Tools & Ancillary Equipment: Torque wrenches, tyre pressure gauges, tread depth gauges, mirrors, and other general workshop tools.

Choosing the Right MOT Bay for Your Business

Selecting the ideal MOT bay involves considering several critical factors:

1. Budget: New equipment vs. reconditioned, MTL vs. ATL. While ATL has a higher upfront cost, the long-term labour savings can offer a superior Return on Investment (ROI).
2. Space Availability: The physical footprint of the bay, including access for vehicles, equipment, and working space around lifts or pits. Lifts require vertical clearance, while pits require specific ground conditions.
3. Vehicle Classes: Which types of vehicles do you currently service, and which do you intend to attract? Starting with Class 4 is common, with potential for future expansion to Class 7 or 1&2.
4. Efficiency Goals: Do you prioritise throughput and single-person operation (ATL), or is a more traditional, lower-cost setup (MTL) acceptable?
5. Future Expansion: Consider if the chosen bay type allows for future upgrades or additions without requiring a complete overhaul.
6. Installation & Servicing: Ensure you have a reliable supplier and installer. Proper installation is paramount for DVSA approval and long-term reliability. Regular calibration and servicing are also mandatory.

Many suppliers offer comprehensive packages, including the equipment, installation, and even assistance with the DVSA application process. They can also advise on garage equipment finance options, helping you tailor payments to suit your business requirements, transforming your concept into a fully operational MOT station.

Beyond the equipment, remember that certified MOT testers are a legal requirement. Ensure your staff undergo the necessary MOT courses and qualifications to operate legally and competently. This training is as crucial as the physical bay itself.

Comparison: ATL vs. MTL

Frequently Asked Questions (FAQs)

What is the most popular MOT bay type in the UK?

The Class 4 MOT bay is by far the most popular, as it covers the vast majority of cars and light commercial vehicles on the road. Automated Test Lanes (ATL) are also increasingly becoming the preferred operational type due to their efficiency and single-person operation.

Can I test all vehicle classes with one MOT bay?

No, not typically. While some bays can be certified for multiple classes (e.g., Class 4 & 7 combined, or Class 1 & 2), a single bay cannot test all classes (1, 2, 4, 5, 7) due to vastly different equipment requirements, especially for heavy goods vehicles or motorcycles. You would need separate, appropriately equipped bays for different broad categories of vehicles.

How long does it take to install an MOT bay?

Installation time varies significantly based on the complexity of the bay (MTL vs. ATL), whether it's a new build or a refurbishment, and the specific equipment. Typically, a complete installation can take anywhere from 1 to 4 weeks, excluding groundwork or building modifications. Planning and DVSA approval processes can add several months to the overall timeline.

What are the ongoing costs of running an MOT bay?

Ongoing costs include regular calibration of equipment (mandatory), servicing and maintenance, utility costs, tester wages, consumables (e.g., printer paper for test certificates), and DVSA fees for each test conducted. Investing in reliable equipment and proper maintenance can help mitigate unexpected repair costs.

Do I need planning permission for an MOT bay?

Potentially, yes. If you are constructing a new building, making significant structural alterations to an existing one, or changing the use of a building to an MOT station, you will likely require planning permission from your local council. It's always advisable to consult with planning authorities early in your project.

What training do I need to become an MOT tester?

To become an MOT tester, you need to meet specific eligibility criteria set by the DVSA, including having a minimum of 4 years full-time experience in vehicle repair, hold a relevant qualification (e.g., NVQ Level 3), and complete the DVSA MOT Tester training course and assessment. Continuous professional development (CPD) is also required annually.

Choosing the right MOT bay is a strategic decision that impacts your garage's profitability, efficiency, and future growth. By carefully considering the vehicle classes you wish to serve, the operational model that best suits your team, and the essential equipment needed, you can make an informed investment that will serve your business for years to come. Always consult with reputable suppliers and installation specialists to ensure compliance with DVSA standards and to bring your MOT testing station concept to a successful completion.
