Semi-Metallic Pads on 'Resin Only' Rotors?

When it comes to maintaining your bicycle, few components are as critical as the braking system. The choice of brake pads, in particular, can significantly impact not only your stopping power but also the longevity and health of your rotors. It's a common scenario: your trusty resin pads have worn down, and you're offered semi-metallic alternatives, but your rotors are clearly marked 'Resin Only'. This situation often leaves riders scratching their heads, wondering if the bike shop's assurance is enough to override the manufacturer's warning. Let's delve into the intricacies of brake pad materials, rotor compatibility, and the potential implications for your ride, especially when mineral oil hydraulic systems are involved.

Understanding the fundamental differences between brake pad compounds is the first step in making an informed decision. Bicycle brake pads generally come in three main types: organic (resin), semi-metallic, and metallic (sintered). Each type possesses distinct characteristics that dictate their performance, durability, and compatibility with various rotor materials.

The Different Brake Pad Compounds

Resin (Organic) Pads: Often factory-fitted, resin pads are made from a mixture of organic materials, binders, and a small amount of metallic fibres. They are known for providing excellent initial bite, meaning they grab the rotor quickly and effectively from the moment you apply the brakes. They are also typically quieter than metallic pads and are generally kinder to rotors, causing less wear. However, their downsides include faster wear, especially in wet or muddy conditions, and a tendency to experience brake fade (a reduction in braking power) under prolonged heavy braking due to their lower heat resistance. For casual riding and general commuting, resin pads are often the preferred choice due to their smooth operation and quiet performance.

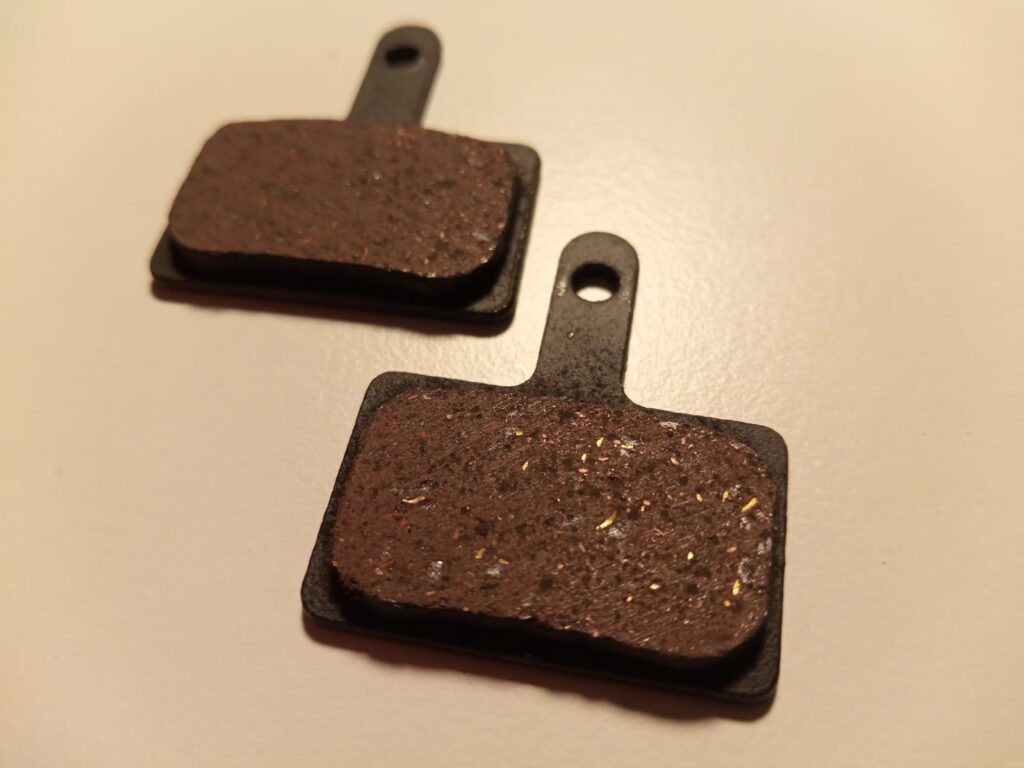

Semi-Metallic Pads: As the name suggests, these pads combine organic materials with a significant proportion of metallic compounds, usually copper, iron, or steel, mixed into the friction material. This blend is designed to offer a balance between the characteristics of resin and full metallic pads. Semi-metallic pads boast superior durability and better performance in wet or adverse conditions compared to resin pads. They also offer greater heat resistance, making them less prone to fade during long descents or aggressive riding. The trade-off, however, is that they tend to be noisier, particularly when cold or wet, and are considerably more abrasive, leading to increased rotor wear.

Metallic (Sintered) Pads: These are the most aggressive and durable pads available, made by compressing metallic powders at high temperatures. They offer the highest levels of braking power and fade resistance, excelling in extreme conditions, such as downhill mountain biking or very wet weather. However, they are the noisiest, require a higher operating temperature to perform optimally, and are the harshest on rotors, leading to the fastest rotor wear. They are generally not recommended for rotors not specifically designed for metallic compounds.

Decoding the 'Resin Only' Rotor Marking

When your rotor is stamped with 'Resin Only', it's a clear warning from the manufacturer. This isn't just a suggestion; it's a recommendation based on the material composition and design of the rotor. Rotors designed for resin-only pads are typically made from a softer grade of stainless steel or have a thinner profile, which makes them more susceptible to damage from the abrasive nature of semi-metallic or metallic pads. The primary concerns when using a harder pad on a 'Resin Only' rotor are:

• Accelerated Rotor Wear: Semi-metallic pads are designed to be more abrasive to provide better bite and durability. When paired with a softer 'Resin Only' rotor, this increased abrasiveness will cause the rotor to wear down much faster than intended. This means your rotors will need replacing more frequently, incurring additional costs and potentially leading to premature failure.
• Heat Generation and Dissipation: Semi-metallic pads generate more heat during braking. 'Resin Only' rotors might not be designed with the same heat dissipation capabilities as rotors intended for metallic pads. Excessive heat can lead to a range of problems, including rotor discolouration, warping, and a significant reduction in braking performance due to brake fade. Warped rotors can cause pulsing at the lever, uneven pad wear, and a general feeling of instability when braking.
• Noise: The combination of a harder pad and a softer rotor can often lead to increased noise, such as squealing or grinding, which can be quite irritating and indicates a less-than-optimal interface.
• Compromised Braking Performance: While semi-metallic pads offer stronger braking, using them on an incompatible rotor can paradoxically lead to inconsistent performance. The rotor might not be able to handle the heat or friction effectively, leading to unpredictable braking, especially under demanding conditions.

The BR-M486 Hydraulic System and Heat Concerns

Your Shimano BR-M486 hydraulic brake system, which uses mineral oil, adds another layer to this discussion regarding heat. Mineral oil, while excellent for maintenance and less corrosive than DOT fluid, has a lower boiling point. This means that under conditions of excessive heat – which semi-metallic pads are more prone to generate – the mineral oil can boil. When brake fluid boils, it creates gas bubbles within the hydraulic system. Gas is compressible, unlike liquid, so when you squeeze your brake lever, instead of directly transferring force to the caliper, you'll be compressing these gas bubbles. This results in a spongy, unresponsive lever feel and a severe loss of braking power, a phenomenon known as brake fade. It's not that the brake will "seize up" in the sense of physically locking, but rather that its ability to provide effective stopping power will diminish significantly, which is a serious safety concern.

For a BR-M486 system, pushing it to generate excessive heat with semi-metallic pads on 'Resin Only' rotors is a risky proposition. The system's design, including the caliper's heat management capabilities and the fluid's boiling point, is optimised for the heat generated by resin pads. Introducing a higher heat-generating pad type without upgrading the entire system (rotors, and potentially considering a more robust caliper design) can lead to performance degradation and, more critically, safety hazards.

Comparing Pad and Rotor Combinations

Should You Trust the Bike Shop's Assurance?

While the bike shop staff member likely has good intentions and experience, their assurance that semi-metallic pads "won't do any damage" to a 'Resin Only' rotor requires careful consideration. It's true that the pads won't instantly destroy your rotor upon first use. However, the term "damage" can be subjective. Accelerated wear, increased noise, and a higher risk of brake fade due to excessive heat are indeed forms of damage or, at the very least, significant compromises to performance and longevity. For a casual rider doing short, flat commutes, the impact might be minimal in the short term. But for someone who rides frequently, in varied terrain, or requires reliable braking performance, these compromises can quickly become problematic and potentially unsafe.

It's possible the bike shop was simply trying to provide a solution with available stock, or perhaps their definition of "damage" is limited to catastrophic failure rather than accelerated wear and diminished performance. However, as a responsible rider, it's always best to err on the side of caution and adhere to manufacturer recommendations or understand the precise implications of deviating from them.

Recommendations and Alternatives

Given the information, here are your options and their implications:

1. Stick to Resin Pads: This is the safest and most recommended option if you wish to preserve your 'Resin Only' rotors and maintain the intended performance characteristics of your BR-M486 system. While they wear faster, they are gentler on your rotors, quieter, and align with the system's design. You might need to order genuine Shimano B01S or compatible resin pads online if your local bike shop doesn't have them in stock.
2. Use Semi-Metallic Pads with Extreme Caution (Short-Term/Low Demand): If you absolutely must use the semi-metallic pads due to immediate necessity and cannot source resin pads, do so with the understanding that you are accelerating your rotor's wear. Avoid long descents, heavy braking, or aggressive riding. Monitor your rotors frequently for signs of excessive wear (thinning, discolouration, warping) and be highly vigilant for any signs of brake fade. This should be considered a temporary solution until you can acquire appropriate pads or upgrade your rotors.
3. Upgrade Your Rotors: This is the ideal long-term solution if you desire the benefits of semi-metallic or even full metallic pads. Replace your 'Resin Only' rotors with rotors explicitly designed to be compatible with metallic pads. These rotors are typically made from a harder, more heat-resistant steel alloy and often feature better designs for heat dissipation (e.g., larger braking surfaces, drilled or vented designs). This upgrade allows your entire braking system to perform optimally with the more aggressive pad compounds, ensuring both performance and longevity. Remember that while you upgrade the rotors, your BR-M486 system still uses mineral oil, so extreme heat management is still a factor, but the new rotors will at least be able to handle the increased friction better.

Frequently Asked Questions

Can semi-metallic pads really damage my 'Resin Only' rotor?

Yes, absolutely. While they won't explode, they will cause significantly accelerated wear, leading to premature thinning, potential warping, and discolouration. This is a form of damage that compromises the rotor's integrity and performance.

What are the signs that my rotor is being damaged or wearing excessively?

Look for a reduction in rotor thickness (many rotors have a minimum thickness etched on them), visible grooves or scoring marks on the braking surface, discolouration (blueing or browning from heat), or a pulsating feeling at the brake lever, which often indicates a warped rotor.

How often should I inspect my rotors if I use semi-metallic pads on a 'Resin Only' rotor?

Much more frequently than with resin pads. At a minimum, inspect them before every ride, paying close attention to thickness and any signs of warping or discolouration. Consider checking thickness with calipers every few weeks, depending on your riding frequency and style.

Will using semi-metallic pads void my brake warranty?

It's unlikely to void the entire brake system warranty, but any warranty claims related to rotor wear or damage would almost certainly be rejected if you've used incompatible pads. Manufacturers design their components to work optimally together, and deviating from their recommendations is usually at your own risk.

Is brake fade with mineral oil a serious concern?

Yes, it is a very serious concern. When the mineral oil boils, your brake lever will become spongy, and you will lose significant or even all braking power. This can happen suddenly during a descent and poses a direct safety risk. While the brake itself won't seize, your ability to stop safely will be severely compromised.

What's the best way to clean my rotors?

Always use a clean cloth and a dedicated brake cleaner or isopropyl alcohol. Avoid using any oil-based lubricants or cleaners, as contamination can severely degrade braking performance and cause persistent squealing.

In conclusion, while a bike shop might assure you that semi-metallic pads will "do no damage" to your 'Resin Only' rotors, it's crucial to understand the nuances. The term 'damage' can encompass accelerated wear, increased noise, and a higher risk of brake fade due to excessive heat, especially with a mineral oil system like your BR-M486. For optimal performance, safety, and component longevity, adhering to the manufacturer's recommendations or upgrading your rotors to be compatible with more aggressive pad compounds is always the wisest course of action. Your safety on the road or trail should always be the priority.
