Understanding Mesh Distance Fields

In the realm of computer graphics and computational geometry, representing and manipulating 3D shapes efficiently is paramount. One innovative and increasingly popular technique for achieving this is the use of Mesh Distance Fields (MDFs). Unlike traditional methods that rely solely on explicit geometric primitives like polygons, MDFs offer a powerful, implicit way to describe surfaces and their proximity to points in space. This article will explore what Mesh Distance Fields are, how they are constructed, their diverse applications, and the advantages they bring to various fields, from game development to scientific visualisation.

What Exactly Are Mesh Distance Fields?

At its core, a Mesh Distance Field is a data structure that represents the signed distance from any point in space to the nearest surface of a given 3D mesh. The 'signed' aspect is crucial: points inside the mesh have a negative distance, points outside have a positive distance, and points exactly on the surface have a distance of zero. This continuous representation of the mesh's boundary provides a wealth of information about the geometry that explicit mesh representations often lack.

The Concept of Signed Distance Fields (SDFs)

MDFs are a specific type of Signed Distance Field (SDF). An SDF, in general, is a scalar field where the value at any given point in space is the shortest distance to a specified surface. The sign of this distance indicates whether the point is inside or outside the surface. This concept is incredibly versatile and forms the basis for many advanced rendering and simulation techniques.

How are Mesh Distance Fields Constructed?

The construction of an MDF from an explicit mesh is a non-trivial process. It typically involves discretising space into a grid or using a more adaptive approach. For each point in this discretised space, the algorithm needs to calculate the shortest distance to the nearest point on the input mesh. Several algorithms exist for this purpose:

• Voxelisation-based methods: The 3D mesh is rasterised into a grid of voxels. For each voxel, the distance to the nearest surface is computed. This can be done efficiently using algorithms like the Fast Marching Method or by propagating distances from the surface outwards.
• Point-based methods: A set of points is sampled on the surface of the mesh. The distance field is then computed by determining the closest sampled point for every point in space. Techniques like k-d trees can accelerate the nearest neighbour search.
• Analytic methods: For simpler geometric primitives, it's sometimes possible to derive analytic equations for the distance field, avoiding discretisation altogether. However, this is not practical for complex arbitrary meshes.

The accuracy and resolution of the MDF are directly related to the resolution of the discretisation (e.g., voxel grid size) or the density of sampled points. Higher resolution generally leads to more accurate representations but also increases memory requirements and computation time.

Applications of Mesh Distance Fields

The continuous and implicit nature of MDFs makes them incredibly useful in a wide array of applications:

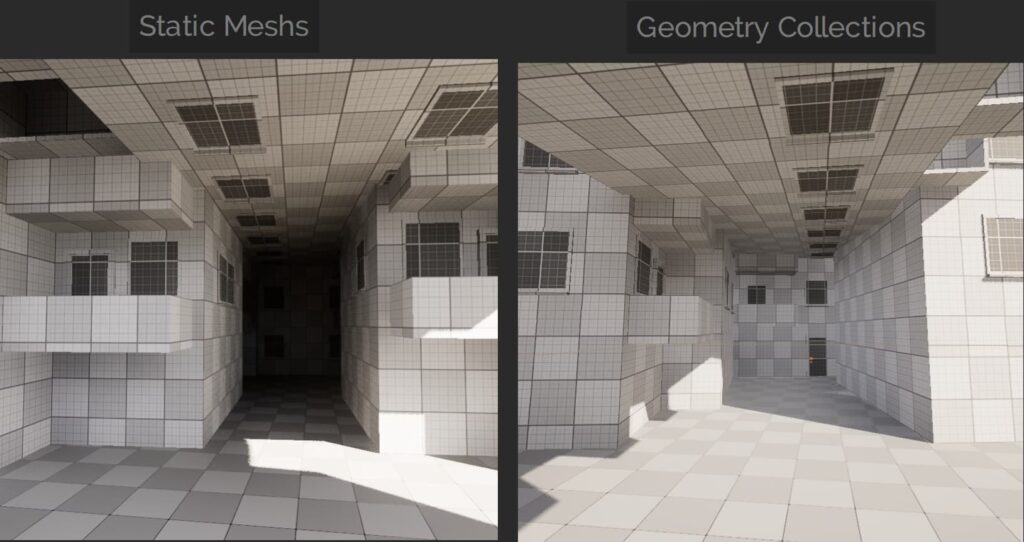

1. Real-time Rendering

One of the most significant applications of MDFs is in modern real-time rendering, particularly for achieving high-quality effects with limited computational resources. By using an MDF, renderers can:

• Perform ray marching: Instead of casting rays and checking for intersections with individual triangles, ray marching algorithms can traverse the MDF. In each step, the algorithm can take a step forward equal to the distance value at the current point. This allows for efficient rendering of complex surfaces and volumetric effects.
• Generate soft shadows: MDFs can be used to approximate the penumbra regions of shadows, creating softer and more realistic shadow edges.
• Implement ambient occlusion: By querying the MDF, it's possible to estimate how much ambient light is blocked by nearby geometry, resulting in more realistic shading.
• Screen-Space Ambient Occlusion (SSAO): While traditionally based on depth buffers, MDFs can offer an alternative or complementary approach to SSAO, potentially providing more accurate results.

2. Collision Detection and Physics Simulation

MDFs are excellent for collision detection, especially in scenarios involving complex or dynamic geometry. The signed distance value directly indicates the penetration depth between two objects. This information can be used to:

• Determine if objects are colliding: If the minimum distance between two MDFs is less than or equal to zero, a collision has occurred.
• Resolve collisions: The distance value can guide the physics engine in pushing colliding objects apart, reducing interpenetration.
• Approximate contact points: The point with the minimum distance often corresponds to a contact point.

3. Procedural Content Generation

MDFs can be combined and manipulated to generate complex and organic shapes procedurally. Operations like:

• Boolean operations (union, intersection, subtraction): These can be performed efficiently by combining the distance values of different SDFs (e.g., `distance_union(d1, d2) = min(d1, d2)`).
• Blending and smoothing: Similar to Boolean operations, smooth blending can be achieved by using `min` with an offset.
• Fractals and L-systems: MDFs can be used to represent and render fractals, allowing for detailed and intricate geometric structures.

4. 3D Printing and Manufacturing

In manufacturing, MDFs can be used to represent tool paths or the shape of objects being machined. The distance information can be crucial for controlling the precision of the manufacturing process.

5. Medical Imaging and Scientific Visualization

Representing complex anatomical structures or scientific data as MDFs can aid in visualisation and analysis. For instance, the boundary of a tumour could be represented by an MDF, allowing for easy measurement of its distance to surrounding tissues.

Advantages of Using Mesh Distance Fields

The adoption of MDFs in various industries is driven by several key advantages:

Challenges and Considerations

Despite their advantages, MDFs are not without their challenges:

• Memory Consumption: High-resolution MDFs, especially voxel-based ones, can require significant amounts of memory. Techniques like sparse voxel octrees or adaptive sampling are used to mitigate this.
• Construction Time: Generating an MDF from a complex mesh can be computationally intensive and time-consuming.
• Precision: The accuracy of the MDF is limited by its discretisation resolution. Achieving very fine geometric details might require extremely high resolutions.
• Normals: While the gradient of an SDF approximates the surface normal, obtaining perfectly accurate normals can sometimes require additional processing or specific construction methods.

Frequently Asked Questions (FAQs)

Q1: What is the difference between a distance field and a signed distance field?

A distance field only stores the magnitude of the distance, while a signed distance field also stores the sign, indicating whether a point is inside or outside the surface.

Q2: Can MDFs represent concave shapes?

Yes, MDFs can accurately represent both convex and concave shapes. The signed distance property naturally handles concavities.

Q3: Are MDFs better than traditional polygon meshes?

It depends on the application. For real-time rendering, complex simulations, and procedural generation, MDFs offer significant advantages in efficiency and simplicity of operations. For tasks requiring direct manipulation of surface vertices or very fine-grained control over topology, polygon meshes might still be preferred.

Q4: How are normals calculated from an MDF?

The normal at a point P can be approximated by the gradient of the distance field at P, normalised: `Normal(P) ≈ normalize(∇d(P))`. More accurate normal computation might involve analysing the distances in neighbouring grid cells.

Q5: What is ray marching?

Ray marching is a rendering technique where a ray is advanced iteratively through a scene. In the context of SDFs, the ray is advanced by the distance value at its current position, allowing efficient traversal of complex implicit surfaces.

Conclusion

Mesh Distance Fields represent a powerful and elegant approach to describing and interacting with 3D geometry. By transforming explicit mesh data into an implicit, continuous representation of distance, they unlock new possibilities for efficient rendering, robust simulations, and creative procedural content generation. As computational power continues to grow and algorithms become more sophisticated, we can expect to see MDFs playing an even more prominent role in the future of computer graphics and related fields. Understanding their principles and applications is becoming increasingly valuable for anyone working with 3D data.
