Unleash Your 4WD: The Power of Diesel Tuning

In the world of 4x4s, the performance of your vehicle isn't just about the engine size or the tyres you run; it's profoundly influenced by how meticulously its diesel fuel injection system is tuned. A well-executed tune can unlock significant improvements in fuel economy, enhance raw power, boost crucial torque, and, perhaps most importantly, safeguard the long-term reliability of your beloved machine. The scope of what can be achieved varies widely, often limited only by your budget, with a spectrum of services available from minor adjustments to comprehensive overhauls.

You might consider anything from subtle tweaks to existing fuel pumps, to the installation of larger injectors, upgraded intercoolers, replacement turbochargers, or sophisticated electronic remaps. The list is extensive, and each modification aims to optimise your vehicle's performance for specific needs. My own journey into the intricate world of diesel tuning began when my vehicle, an 80 Series Land Cruiser, signaled it needed a 'tickle', prompting a deep dive into the myriad of diesel tuning options available, particularly focusing on reputable companies.

The 80 Series Land Cruiser's Initial Challenge

My 80 Series Land Cruiser, equipped with the robust 4.2-litre turbo diesel engine (the 1HDT), is renowned for its commendable balance of economy, power, and torque. However, these engines also carry a reputation for being somewhat conservatively tuned, especially before the turbocharger fully spools up. This characteristic was certainly evident in my vehicle.

My average fuel consumption hovered around 15-18 litres per 100 kilometres. While acceptable for a vehicle of its stature, this figure escalated dramatically during demanding trips. For instance, a journey down south to Yeagarup saw consumption hit 18L/100km, and a staggering 31L/100km when tackling the soft sands and challenging dunes of the beach. Beyond the fuel figures, I frequently received comments about excessive smoke at lower RPMs, and a noticeable lack of power before the turbo engaged. These symptoms were clear indicators that the vehicle was not performing optimally, prompting me to seek professional intervention.

Unlike modern Common Rail Diesel (CRD) engines, which typically feature a more standardised 'factory tune', mechanically injected vehicles like my 80 Series can be set up in countless ways. This variability means there's often significant room for improvement through expert tuning, tailoring the engine's performance to specific driving conditions and owner preferences.

United Fuel Injection: A First Step Towards Optimisation

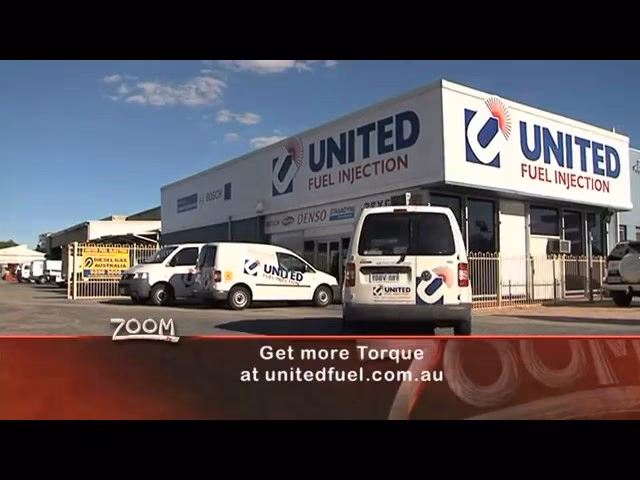

After thorough research across various online forums and communities, one name consistently emerged with a strong reputation for mechanical diesel tuning: United Fuel Injection. With over 40 years of experience in the diesel and turbo industry, they boast a comprehensive understanding of everything from standard diesel engines to high-performance competition 4x4s and heavy commercial vehicles. Their facility includes a quality Bosch dyno tune machine, crucial for precise and repeatable tuning results, coupled with the expertise to tailor a vehicle's performance to an owner's exact requirements.

I contacted Matt at United Fuel Injection and promptly booked the Land Cruiser in. The objective was clear: reduce the low-RPM smoke and improve the pre-turbo power delivery. I dropped the vehicle off during a lunch break, anticipating a noticeable, yet perhaps not radical, improvement.

The Initial Results: A Tangible Improvement

Just a few hours later, I returned to collect my dyno-tuned turbo diesel. The cost for this service was a reasonable £180 (approximately $220 AUD at the time). The results were immediately apparent and highly satisfying. The engine's power output increased from 121kW to 126kW, and crucially, the torque saw a healthy bump from 348Nm to 374Nm, both achieved at lower RPMs than before. This meant the vehicle felt more responsive and powerful across the entire rev range, making it a much more enjoyable and capable machine to drive.

For context, these engines typically produce around 115kW from the factory. My vehicle already featured a 3-inch exhaust system and a Safari intercooler, and the engine itself had been rebuilt approximately 70,000km prior, suggesting a solid mechanical foundation for the tuning work. The improvement in driveability was profound; the vehicle felt less sluggish off the mark, and the reduction in smoke was a welcome bonus.

My overall review of United Fuel Injection was overwhelmingly positive. The work performed by Matt was swift, professional, and delivered tangible benefits to my vehicle's performance and efficiency. It was a worthwhile investment that significantly enhanced the driving experience of my 80 Series.

Gturbo: Taking Performance to the Next Level

Fast forward a year, and my diesel pump developed a significant leak. After extensive research, I decided to take the vehicle to Gturbo for the repair. While the pump was being addressed, I seized the opportunity to upgrade the turbocharger with one of Gturbo's aftermarket units. The results of this more comprehensive upgrade were nothing short of astounding, transforming the vehicle's power delivery to an exhilarating degree.

The power increase was addictive, but it came with a significant caveat. Eventually, the increased stress led to a blown head gasket. Not long after, I made the decision to sell the 80 Series and move to an Isuzu D-Max. This experience with Gturbo highlights an important aspect of high-performance tuning: while the gains can be immense, pushing an engine beyond its designed limits, especially without corresponding strengthening of other components, can lead to reliability issues.

A Nuanced Comparison: United Fuel Injection vs. Gturbo

It's crucial to understand that directly comparing the services of United Fuel Injection and Gturbo, based on my experiences, isn't entirely fair. United Fuel Injection performed a sophisticated dyno tune, optimising the existing mechanical setup for improved efficiency and power within its original design parameters. Gturbo, on the other hand, went a step further, installing an aftermarket turbocharger and undertaking a more extensive performance upgrade that fundamentally altered the engine's capabilities.

Generally, those who prefer the more conservative, yet effective, optimisation offered by tuners like United Fuel Injection might not necessarily align with the aggressive performance goals of Gturbo, and vice versa. Both companies have their proponents and detractors, with good and bad reviews for both. The 'best' choice ultimately depends on your specific needs, budget, and appetite for performance versus long-term reliability.

Finding Your Ideal Diesel Tuning Specialist in the UK

While my experiences were based in Perth, Australia, the principles of finding a reputable diesel tuning specialist are universal. If you're looking to unleash the full potential of your diesel 4x4 in the UK, here's what you should consider:

What to Look For in a Diesel Tuning Company:

1. Experience and Reputation: Seek out companies with a long track record and strong positive reviews. Online forums, social media groups dedicated to specific 4x4 models, and word-of-mouth recommendations are excellent resources.
2. Equipment: A reputable tuner should have access to a modern rolling road (dyno) for precise tuning and accurate power/torque measurements. This ensures the tune is tailored to your specific vehicle and not just a generic file.
3. Expertise: Inquire about their specialisation. Do they have extensive experience with your specific engine type (e.g., mechanical vs. common rail)? Do they understand the demands placed on 4x4 engines, especially for off-road use or heavy towing?
4. Services Offered: Beyond basic tuning, do they offer related services like injector testing, turbocharger upgrades, intercooler installations, or exhaust system modifications? A comprehensive service provider can offer a more holistic solution.
5. Warranty and Support: Understand their warranty policy on the work performed. What happens if you encounter issues post-tune? Good after-sales support is invaluable.
6. Transparent Communication: A good tuner will clearly explain the process, the expected outcomes, and any potential risks. They should be willing to answer all your questions thoroughly.

Common Diesel Tuning Options:

• ECU Remapping (Software Tune): This is the most common method for modern Common Rail Diesel (CRD) engines. The vehicle's Engine Control Unit (ECU) software is reprogrammed to optimise fuel delivery, boost pressure, and injection timing for improved power, torque, and efficiency. This is often referred to as a remap.
• Tuning Boxes/Chips: These external modules plug into the engine's wiring harness and modify signals to the ECU. While they offer a quick power boost, they are generally less precise than a full remap and may not offer the same level of optimisation or safety features.
• Mechanical Pump Tuning: For older, mechanically injected diesels (like my 1HDT), tuning involves physical adjustments to the fuel injection pump to alter fuel delivery and timing. This requires highly skilled technicians.
• Hardware Upgrades: This includes larger injectors, upgraded turbochargers, intercoolers, and exhaust systems, often done in conjunction with software or mechanical tuning to support higher power outputs.

Frequently Asked Questions About Diesel Tuning

Here are some common questions prospective 4x4 owners have about diesel tuning:

Is diesel tuning safe for my engine?

When performed by a reputable and experienced tuner, using quality equipment and a custom tune tailored to your specific vehicle, tuning can be safe. However, aggressive tunes that push the engine beyond its mechanical limits without supporting hardware upgrades can significantly increase wear and tear and lead to premature component failure. Always discuss your goals and your vehicle's condition with the tuner.

How much does diesel tuning typically cost?

The cost varies widely depending on the type of tuning (chip, remap, mechanical tune, or hardware upgrades), the complexity of the job, and the specific tuner. A basic ECU remap might cost anywhere from £300-£700, while more extensive mechanical tuning or hardware upgrades can run into thousands of pounds.

What are the main benefits of tuning my diesel 4x4?

The primary benefits include increased power and torque (making towing and off-roading easier), improved fuel economy (due to more efficient combustion), reduced turbo lag, and a generally more responsive and enjoyable driving experience.

Can tuning void my vehicle's warranty?

Yes, in most cases, modifying your vehicle's engine management system or installing aftermarket performance parts can void your manufacturer's warranty, especially on new vehicles. It's crucial to understand this risk before proceeding with any modifications. Some tuners offer their own limited warranties on their work, but this is separate from the manufacturer's warranty.

How do I choose the best diesel tuner for my vehicle?

Start by researching companies known for specialising in your particular make and model of 4x4. Look for tuners with a strong reputation, positive customer reviews, a physical workshop with a dyno, and transparent communication. Don't base your decision solely on price; quality and expertise are paramount for long-term reliability and satisfaction.

Will tuning affect my vehicle's emissions or MOT?

A properly performed tune should not drastically affect emissions to the point of failing an MOT, especially if it's designed for efficiency. However, very aggressive tunes, particularly those that remove or disable emissions control systems (like DPFs or EGRs, which is illegal in the UK for road use), will cause your vehicle to fail the MOT and can lead to fines and penalties.

Conclusion: Empowering Your Diesel 4x4

The world of diesel tuning offers exciting possibilities for enhancing your 4x4's performance. Whether you're seeking to improve daily driveability, boost towing capabilities, or simply get better fuel economy, a professional tune can make a substantial difference. My journey with the 80 Series Land Cruiser, from a conservative factory tune to a highly responsive machine through the hands of United Fuel Injection and later Gturbo, underscores the transformative impact that expert tuning can have.

The key lies in understanding your specific needs and choosing a reputable specialist who can deliver results safely and reliably. Do your research, ask the right questions, and prepare to experience your diesel 4x4 like never before. The game has certainly changed for modern vehicles, with unichips, remaps, and all sorts of electronic wizardry going into these vehicles, but the core principle remains: unlocking the true potential of your engine for a more fulfilling driving adventure.
