In an increasingly urbanised world, where every square metre counts and vehicle security is a growing concern, the concept of an underground car park has transcended from a luxury to a practical necessity. Whether you're a homeowner with a cherished vehicle collection or a business aiming to provide optimal parking for clients, underground solutions offer an ingenious way to reclaim valuable surface space while simultaneously fortifying the protection of your assets. With over 100,000 vehicles stolen annually in the UK and countless others subjected to vandalism, safeguarding your vehicles has never been more paramount. This article delves into the multifaceted reasons why an underground car park is not just a convenience, but a strategic investment for peace of mind and efficient space utilisation.
Why Go Underground? The Dual Pillars of Space and Security
The primary drivers behind the increasing demand for underground car parks are the critical needs to maximise space and provide enhanced security. In bustling urban environments, where real estate is at a premium, building downwards is often the only viable option to accommodate a growing number of vehicles without compromising valuable surface land. For residential properties, an underground car park can preserve garden space, maintain the aesthetic appeal of the property, or even allow for additional recreational areas above ground. Imagine a beautiful landscaped garden or an outdoor living space, all while your vehicles are safely tucked away beneath.
Beyond spatial efficiency, the security aspect is perhaps even more compelling. The alarming statistics on vehicle theft and break-ins across the UK underscore the vulnerability of vehicles parked in open, exposed areas. Underground car parks offer a formidable layer of protection. They provide a discreet, out-of-sight location, significantly reducing the visibility of your vehicles to potential criminals. Access is typically controlled, often via secure gates, key fobs, or advanced entry systems, meaning only authorised individuals can enter. This physical barrier, coupled with a lack of exposure to the elements and reduced opportunities for opportunistic crime, creates a highly secure environment. For high-value vehicles or extensive collections, this peace of mind is invaluable, ensuring your assets are protected from both theft and vandalism.
Designing for Durability and Efficiency: Key Considerations
While seemingly straightforward, the design and construction of an underground car park involve a complex array of requirements, ranging from structural integrity to sophisticated security measures. These projects demand meticulous planning to ensure they are not only functional but also safe, compliant, and cost-effective.
Planning and Layout: Crafting the Optimal Flow
The initial phase of any underground car park project begins with a thorough assessment of the number of vehicles to be accommodated versus the available space. This directly influences the scale of excavation and construction, with cost constraints being a significant factor. Consideration must also be given to vehicle flow rates, especially for commercial properties like shopping centres or hospitals, where peak demand dictates the number of spaces and the fluidity of traffic movement.
Multi-storey and underground car parks generally adopt one of several basic layout types:
- Flat Deck: Simple, level parking areas.
- Split Level: Utilises half-level changes, often connected by short ramps.
- Sloping Deck (or 'Ramped Floor'): The entire floor gently slopes, serving as both a parking area and a ramp.
Vehicle access to these parking areas can be achieved through various methods, including external or internal ramps, end or centre ramps, or a combination thereof. For highly compact designs or where space is at a premium, vehicle lifts offer an ingenious solution, albeit with higher operational costs. Similarly, vehicle circulation within the car park can be organised for combined or separate entry/exit points, and either one-way or two-way traffic flow, each having implications for congestion and safety.
The primary generator of the car park's layout is the size and constraints of the vehicles it will serve. While cars and motorcycles are standard, provisions for larger vehicles like fire appliances or ambulances are crucial for safety and accessibility. Geometrical requirements such as turning circles, swept paths, and ramp gradients must be meticulously calculated to ensure ease of navigation and prevent accidents. Compliance with UK Building Regulations, including Part B (fire resistance and means of escape), Part K (accessibility and guardings), and Part M (accessibility), is paramount. Industry standards, such as those found in the New Metric Handbook and publications from the Institution of Structural Engineers, provide essential guidance. Furthermore, practical usage matters like payment methods (pay machines, pay-by-phone) and grace periods after payment must be integrated into the design for a seamless user experience.
Safety and Security: Beyond the Basics
Crime prevention and user safety are at the core of underground car park design. The 'Park Mark Safer Parking Scheme' provides comprehensive guidelines for designers and operators, emphasising robust design principles and operational obligations under UK legislation like the Health & Safety at Work Act and the Occupiers Liability Act 1957.
- Boundaries and Perimeters: Underground car parks inherently benefit from being less exposed, but secure perimeter walls and structures, along with anti-climb measures where appropriate (e.g., near hospitals), are vital.
- Lighting: Even, bright lighting is crucial to eliminate shadows and enhance visibility, deterring criminal activity and improving user comfort. White or light-coloured walls, floors, and ceilings can maximise light reflection, reducing the number of luminaires needed. Lighting must conform to BS 5489-1:2013 and BS EN 12464-1:2011, with anti-vandal cabling and carefully sited columns to prevent their use as climbing aids.
- Management Practice: Accessibility to attendants via phones, kiosks, or AV links, and the provision of panic alarms, contribute significantly to user safety. Anti-vandalism measures like anti-graffiti coatings and easy-clean surfaces, along with the strategic use of climbing plants to deter unwanted access, are also important. Subscription to schemes like the Safer Parking Scheme ensures ongoing adherence to best practices.
- Parking Areas and Decks: A robust access control system is critical, particularly for private residential underground car parks. Inward-opening automatic gates or roller grilles/shutters, certified to high security standards (e.g., LPS 1175 SR2 or WCL 2 BR2), are recommended. Rough surfaces on ramps can deter skateboarding, while one-way circulatory traffic, clear direction arrows, and speed restrictors optimise safety and flow. Clearly defined pedestrian routes and anchor points for motorcycles and bicycles enhance user convenience and security. Payment machines should be sited in high-traffic, visible areas for safety.
- Vehicular and Pedestrian Access: Ideally, entry and exit points should be close together but separate to avoid bottlenecks. Height restrictors are common, though they must be capable of override for emergency or maintenance vehicles. Pedestrian access points should feature vandal-resistant lifts and glazed lobby doors to improve visibility. Long, isolated passageways should be avoided, and perforated or transparent balustrades aid natural surveillance.
- Signage and Surveillance: Clear, visible, pictorial, and colour-coded signage is essential for intuitive navigation. Internationally recognised pictograms ensure clarity. Passive surveillance features, as recommended by 'Secured by Design' principles, should be integrated, minimising obstructions like columns. CCTV systems must comply with the CCTV Code of Practice and Data Protection Act 1998, with proper registration with the Information Commissioner if recording public areas.
- Landscaping: While seemingly minor, smart landscaping can enhance security. Spiky bushes can act as deterrents on boundaries, and low-growth plants (max 1m pruned size) prevent hiding spots. A planned maintenance regime is crucial to keep landscaping effective.
Structural Integrity: The Engineering Backbone
Multi-storey car parks are fundamental building structures with specific performance criteria. The overall structural form is heavily influenced by the adopted design geometry, and for underground car parks, it's often determined by the structure above, be it a multi-storey building or a public garden. The structural frame can be reinforced concrete (precast units or cast in-situ), steel, or a composite structure. Ribbed or coffered slabs are common for floor decks. Lightweight-aggregate concrete can significantly reduce overall loadings and offers better fire performance, though it may require smaller span-to-depth ratios and additional shear reinforcement.
Concrete must be designed for durability against chemical corrosion, especially in a car park environment. Non-slip finishes, particularly on ramps, are prudent to prevent skidding. While heated structures are possible for ramps to prevent ice, their effectiveness can be questionable in the UK climate. Vehicular loading of buildings is covered in Section 6 of BS EN 1991-1-1, with parapet loading (impact resistance) detailed in Annex B. Wind loads and vibration must also be factored into the design. For underground structures, particular attention must be paid to structural resistance to explosions, over and above fire resistance. Critically, underground car parks will need extensive retaining wall design, incorporating robust tanking (waterproofing) and efficient land drainage systems to manage groundwater and prevent ingress.
Mechanical and Electrical Systems: Essential Functionality
The hidden infrastructure of an underground car park is as crucial as its visible structure:
- Ventilation: Car parks utilise impulse ventilation to expel carbon monoxide and other pollutants. This system employs numerous small, high-velocity fans that direct airflow towards main extract fan intake points, operating on a tunnel ventilation principle, eliminating the need for bulky traditional ductwork. Noise control for air handling plant is vital in noise-sensitive areas.
- Drainage: All surface water must pass through a petrol interceptor before discharging into the main drainage system, preventing environmental contamination.
- Emergency Systems: A full emergency lighting system with backup supplies is essential for safety during power outages. A comprehensive fire detection and alarm system, possibly with sprinklers where a fire-engineered design is required, is also vital. Careful consideration must be given to the choice and location of flame suppressants, especially given the risk of vehicle fuel or electrical fires.
- Electric Vehicle Charging: With the rise of hybrid and electric cars, the provision of electrical charging points is becoming a standard expectation and a key feature for future-proofing car parks.
- Underfloor Heating: Sometimes used on vehicle ramps to prevent skidding in icy conditions, although its overall effectiveness can be a subject of debate.
While offering significant benefits, managing multi-storey and underground car parks presents unique challenges that require expert solutions. Key areas of focus include:
- Operational Efficiency: Achieving optimal traffic flow, reducing congestion, and ensuring maximum space utilisation are paramount. This involves sophisticated layout planning and traffic management strategies.
- User Experience and Revenue Maximisation: A well-designed car park enhances user experience, which in turn can boost revenue. This is achieved through the implementation of advanced technology, intelligent layout optimisation, and personalised management plans that cater to the specific needs of the users.
- Customised Solutions: Recognising that every car park is unique, a one-size-fits-all approach is ineffective. Tailored plans are essential, considering the property's specific requirements, user demographics, and operational goals.
Underground vs. Surface Car Parking: A Comparison
To further illustrate the benefits, here's a quick comparison:
| Feature | Underground Car Park | Surface Car Park |
|---|---|---|
| Space Utilisation | Maximises valuable surface space, ideal for urban areas or preserving landscapes. | Consumes significant surface area, often impacting aesthetics or green space. |
| Security Level | High; controlled access, out of sight, protected from elements and opportunistic crime. | Lower; more exposed to theft, vandalism, and environmental factors. |
| Aesthetics | Discreet; maintains property's visual appeal, allows for landscaping above. | Can be an eyesore; impacts property value and surrounding environment. |
| Initial Cost | Higher due to excavation, waterproofing, and complex engineering. | Lower initial construction costs. |
| Environmental Impact | Reduces urban heat island effect, less storm water runoff on surface. | Contributes to urban heat island, significant storm water runoff. |
| User Comfort | Protected from weather extremes, often better lit and ventilated. | Exposed to sun, rain, snow; can be hot in summer, icy in winter. |
Frequently Asked Questions (FAQs)

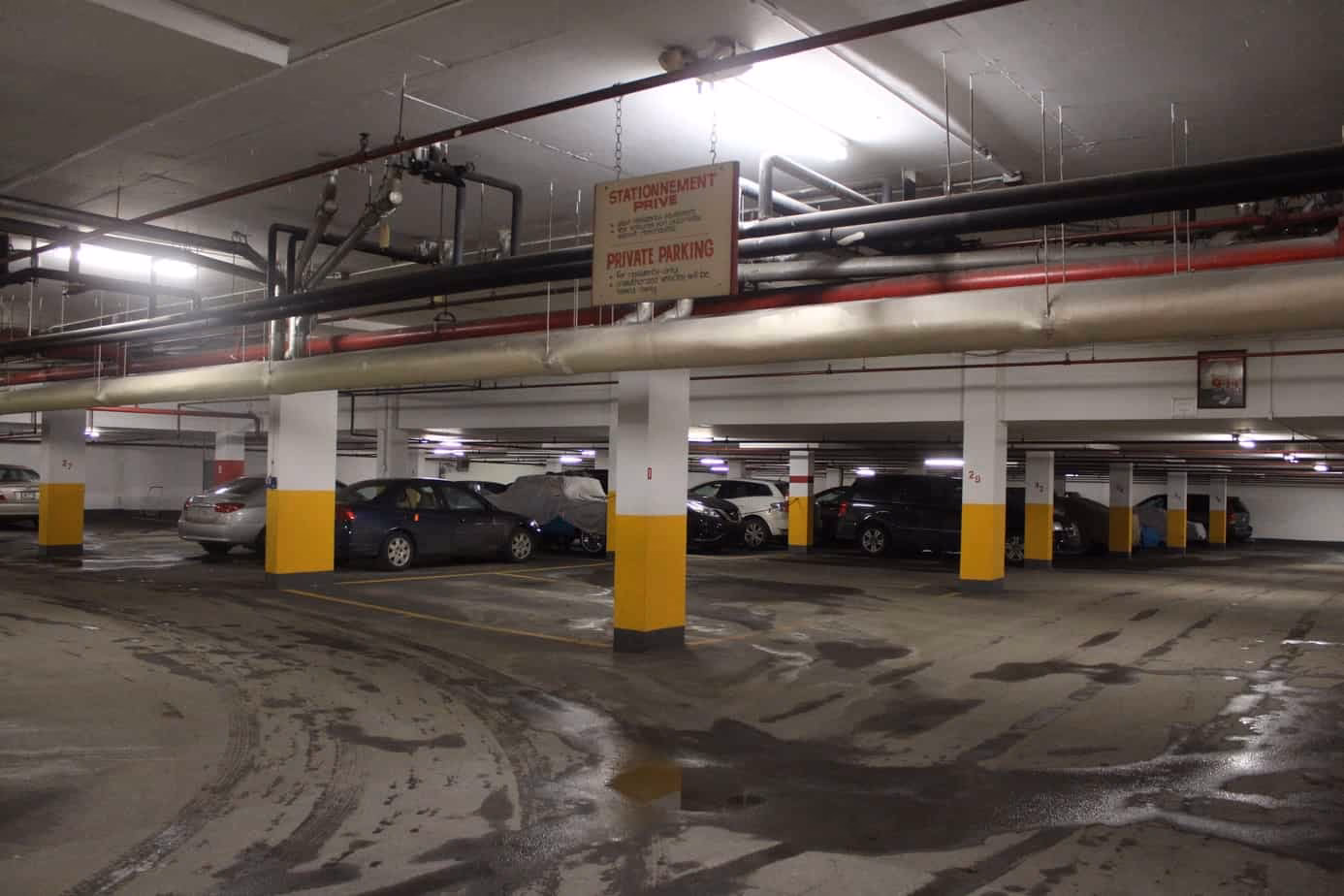

Do underground car parks need a retaining wall?
Yes, absolutely. Underground car parks require extensive retaining wall design to hold back the surrounding earth and prevent collapse. This is a critical structural element, often incorporating waterproofing (tanking) and land drainage systems to manage groundwater pressure and prevent water ingress into the parking levels.
Are underground car parks safe from flooding?
Modern underground car parks are designed with robust waterproofing (tanking) and sophisticated drainage systems, including petrol interceptors and often sumps with pumps, to manage groundwater and surface water runoff. While no system is entirely foolproof in extreme weather events, proper design significantly mitigates the risk of flooding.
How is ventilation managed in an underground car park?
Ventilation is managed through advanced impulse ventilation systems. These use high-velocity jet fans to create controlled airflow, pushing stale air, carbon monoxide, and other pollutants towards main extract fan intake points, effectively refreshing the air without extensive ductwork.
Can electric vehicles be charged in underground car parks?
Yes, it is increasingly common for modern underground car parks to include provisions for electric vehicle (EV) charging points. This requires careful planning for electrical infrastructure and safety considerations related to battery charging.
What are the main security features of an underground car park?
Key security features include controlled access systems (e.g., automated gates, key fobs, ANPR), comprehensive CCTV surveillance, ample and even lighting, clearly defined pedestrian routes, secure anchor points for motorcycles and bicycles, and robust physical barriers.
Conclusion
The decision to invest in an underground car park is a strategic one, offering a compelling blend of spatial efficiency and superior security. In an era where vehicle protection is paramount and surface space is a premium commodity, these subterranean solutions provide an intelligent answer. From their complex but rewarding design considerations, encompassing everything from structural engineering to advanced security protocols and efficient circulation, underground car parks deliver unparalleled peace of mind and operational benefits. For both residential property owners and commercial enterprises, an underground car park is not just a place to store vehicles; it's a future-proof investment that enhances property value, protects assets, and optimises the use of valuable land.
