Brake Rattling: What's That Knocking Sound?

Few sounds are as unsettling to a driver as an unexpected noise from their vehicle, especially when it originates from the braking system. Brakes are, without doubt, one of the most critical safety features in any car. Their proper functioning is paramount to the safety of everyone on the road. So, when you press the brake pedal and are met with a knocking or rattling sound, it's natural for a wave of concern to wash over you. Is it a minor annoyance, or a harbinger of a more significant, potentially dangerous, problem?

This article aims to demystify that unsettling knocking noise you might hear when braking. While it often stems from a relatively common issue – brake pads rattling within their brackets – understanding the underlying causes and knowing how to address them is crucial. We'll delve into why this sound occurs, when you should be genuinely worried, and, most importantly, provide comprehensive guidance on how to diagnose and rectify the problem, ensuring your braking system remains in optimal condition for maximum safety.

Understanding the Knocking Sound: Why Do Brake Pads Rattle?

When you hear a distinct knocking sound as you apply the brakes, particularly during deceleration, the most probable culprit is the movement of the brake pads within their mounting brackets or caliper. This phenomenon, often referred to as brake pad rattling, typically occurs when there's excessive play or clearance between the brake pad and its designated slot. While the brakes will generally still function, the noise indicates an underlying issue that warrants attention.

The brake pads are designed to fit snugly within the caliper, held in place by various hardware components such as clips, shims, and springs. When these components are worn, missing, or incorrectly installed, the pads can shift and vibrate, leading to that audible knocking. This movement is often more pronounced when the vehicle is slowing down, as the inertia of the car causes the pads to shift back and forth against the caliper.

Consider the intricate dance of components within your braking system. When you press the pedal, hydraulic pressure forces the caliper piston to push the brake pads against the spinning brake disc. This friction slows the wheel. If the pads aren't held firmly, even a slight change in direction of force or a small bump in the road can cause them to momentarily lift or slide, resulting in a knock as they resettle. It's a subtle but repetitive motion that, over time, can lead to wear on the pads, caliper, and even the disc itself.

Is a Knocking Brake Sound a Serious Concern?

This is often the first question that springs to mind for any driver experiencing such a noise. In many cases, particularly if it's a new occurrence and the braking performance remains otherwise normal (i.e., you still slow down effectively and the pedal feel is consistent), a knocking sound due to rattling brake pads is not an immediate, catastrophic safety hazard. The brakes will typically continue to engage and bring your vehicle to a stop.

However, it is crucial not to dismiss it entirely. While not always an emergency, ignoring persistent brake pad rattling can lead to more significant problems down the line. Excessive movement can cause premature wear on the brake pads themselves, leading to uneven wear patterns and reduced braking efficiency. It can also damage the caliper, the brake disc, and other vital components. In extreme cases, if the pads are significantly undersized or the hardware is completely missing, the pads could potentially skew sideways and become jammed in the caliper, leading to a sudden loss of braking effectiveness or severe damage to the system. Therefore, while not always an emergency, it's always an issue that needs to be addressed promptly to prevent escalation and ensure long-term vehicle safety.

Common Causes of Brake Pad Rattling

Understanding the root causes of brake pad rattling is the first step towards an effective solution. Several factors can contribute to this unsettling noise:

• Incorrect Brake Pad Size or Type: One of the most common reasons for brake pad rattling is simply using the wrong brake pads for your vehicle. Despite their similar appearance, brake pads come in precise dimensions. If the pads are slightly too small for the caliper bracket, they will have excessive play and rattle. Always ensure you purchase parts specifically designed for your car's make, model, and year.

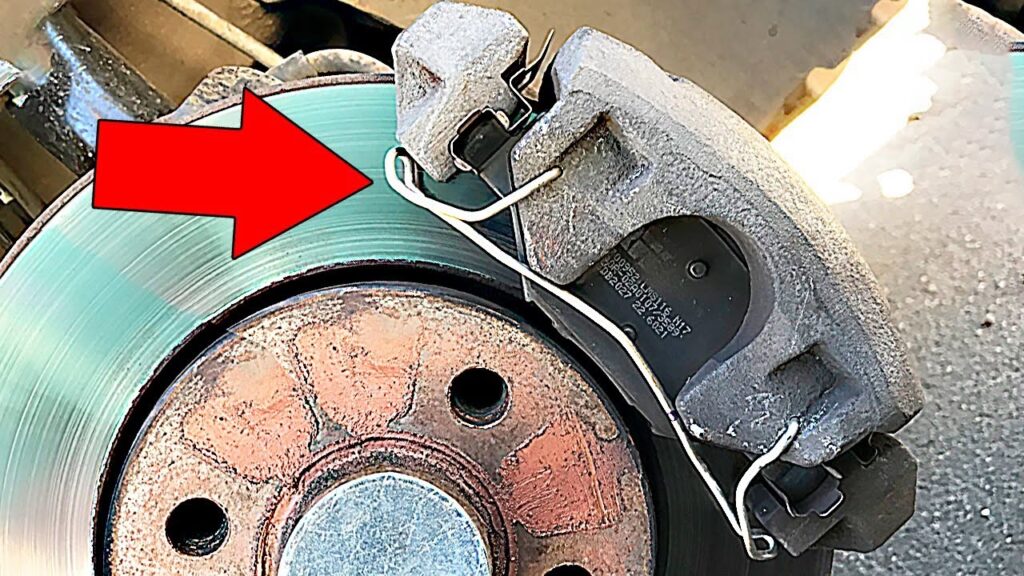

• Worn or Missing Brake Hardware: Brake pads rely on a set of small, but critical, components to hold them securely in place. These include anti-rattle clips, shims, and guide pins. Over time, these parts can corrode, wear out, or even fall off. When they fail, the brake pads lose their tight fit and can vibrate freely within the caliper. Often, new brake pads come with new hardware, but sometimes it's sold separately, or technicians might reuse old hardware to save time or cost, which is a false economy.
• Corrosion and Dirt Buildup: The brake caliper and its mounting points can accumulate dirt, rust, and road grime. This buildup can prevent the brake pads from seating correctly, leading to a tight fit in some areas and excessive play in others. Even a small amount of debris can disrupt the smooth movement of the pads, causing them to bind or rattle.
• Damaged or Worn Caliper Components: The caliper itself can be a source of the problem. Worn guide pins (also known as slider pins) that allow the caliper to move freely can cause uneven pad wear and rattling. If the caliper body or bracket is bent or damaged, it can also create improper clearance for the pads.
• Loose Suspension Components: While less common for direct brake pad rattling, a knocking sound that appears when braking can sometimes be confused with issues in the suspension system. Worn ball joints, tie rod ends, or control arm bushings can manifest as a clunking sound, especially when the vehicle's weight shifts during braking. It's important to differentiate between these sounds during diagnosis.
• Poor Installation: Even with the correct parts, improper installation can lead to rattling. Failing to adequately clean the caliper bracket, neglecting to install all necessary hardware, or applying too much or too little lubricant in the wrong places can all contribute to the problem.

Diagnosing the Issue: A Step-by-Step Guide

Accurately diagnosing the source of the knocking sound is crucial before attempting any repairs. Here’s a systematic approach:

1. Listen Carefully: Pay close attention to when the sound occurs. Does it happen only when braking? Is it consistent, or does it vary with speed or road conditions (e.g., potholes)? Does it come from a specific wheel?
2. Visual Inspection (Static): With the vehicle safely jacked up and supported, remove the wheel. Visually inspect the brake pads. Do they appear to be seated correctly? Is there any visible damage to the pads, caliper, or disc? Look for missing or damaged brake hardware (clips, shims). Check for excessive rust or dirt buildup around the caliper and pad mounting points.
3. Check for Play: Gently try to move the brake pads within the caliper by hand. Is there significant play? They should fit snugly with minimal movement. Also, check the caliper itself – does it slide freely on its guide pins? If it’s seized or stiff, it can cause issues.
4. Road Test (Controlled): If the visual inspection isn't conclusive, a controlled road test can help. Drive slowly and apply the brakes gently. Does the knocking happen every time? Does it change when you brake harder or lighter? Driving over a slightly rough patch of road or a speed bump can sometimes exaggerate the noise, helping to pinpoint the source.
5. Consider Suspension: If the knocking sound persists even when not braking, or if it feels more like a general clunk from the chassis, investigate suspension components. Rock the wheel top-to-bottom and side-to-side to check for play in wheel bearings or ball joints.

Rectifying the Rattle: How to Fix Knocking Brakes

Once you've identified the cause, fixing the brake pad rattling typically involves meticulous cleaning, correct part replacement, and proper reassembly. This is a task that requires a degree of mechanical aptitude and the right tools. If unsure, it’s always best to consult a qualified mechanic.

1. Ensure You Have the Correct Parts

Before you even begin, double-check that you have the exact brake pads and hardware kits specified for your vehicle. Using components that are even slightly off in size or design is a primary cause of rattling. New brake pads often come with new shims, but anti-rattle clips or other hardware might be sold separately. Always replace all associated hardware when replacing brake pads.

2. Clean All Contact Surfaces Thoroughly

This step is often overlooked but is absolutely critical. Remove the brake pads and all existing hardware. Using a wire brush and brake cleaner, meticulously clean all surfaces where the brake pads make contact with the caliper bracket, as well as the caliper guide pins and their bores. Remove any rust, dirt, or old grease buildup. A clean surface ensures the new pads and hardware can seat properly and move freely.

3. Replace Worn or Missing Hardware

This is where the anti-rattle clips and shims come into play. These small, often stainless steel, components are designed to create tension and prevent the pads from vibrating. If your old pads had these and your new ones don't, or if the old ones are corroded or bent, they must be replaced with new, compatible ones. Never reuse damaged hardware. Some pads use rubberized shims; ensure you only use one type – either metal or rubber, not both, as this can lead to pads being too thick and dragging.

4. Proper Lubrication

While working on brakes, the general rule is "less is more" when it comes to lubrication, and it must be applied in the correct places. Apply a thin, even coat of high-temperature, silicone-based brake lubricant (often called brake grease or anti-seize) to the following areas:

• The guide pins (slider pins) that allow the caliper to move.
• The ears of the brake pad backing plate where they slide within the caliper bracket and contact the anti-rattle clips.
• The back of the brake pad where the shims sit (if applicable).

Crucially, never get any lubricant on the friction material of the brake pads or the surface of the brake disc, as this will severely impair braking performance and create a safety hazard.

5. Correct Reassembly

Install the new brake pads and hardware carefully, ensuring everything is oriented correctly and seated snugly. The pads should slide into place without excessive force but should not have significant side-to-side play once installed. Reinstall the caliper, ensuring it slides freely on its pins. Torque all bolts to the manufacturer's specified settings.

6. Bed-In New Pads (If Applicable)

After any brake pad replacement, it's good practice to "bed-in" the new pads. This process involves a series of controlled stops that help transfer an even layer of friction material from the pads to the brake disc, optimising performance and reducing noise. Consult your brake pad manufacturer's instructions for the specific bed-in procedure.

Preventative Measures for a Quieter Ride

Regular maintenance is key to preventing brake rattling and ensuring your braking system remains quiet and effective:

• Routine Brake Inspections: Have your brakes inspected regularly, ideally at every service interval or at least once a year. This allows mechanics to spot worn pads, corroded hardware, or seized calipers before they become noisy problems.
• Use Quality Parts: Always opt for high-quality brake pads and hardware from reputable manufacturers. Cheap, ill-fitting components are a common source of noise and premature wear.
• Replace Hardware with Pads: Make it a rule to replace all brake hardware (clips, shims, pins) whenever you replace your brake pads. These components are inexpensive compared to the hassle and potential damage caused by rattling.
• Clean During Pad Changes: When changing pads, take the time to thoroughly clean all caliper and bracket contact points. This simple step can prevent future issues.
• Proper Lubrication: Ensure that appropriate, high-temperature brake lubricant is applied correctly during installation.

Frequently Asked Questions (FAQs)

Q1: Can brake pad rattling cause brake failure?

While direct brake failure from rattling is uncommon, persistent rattling can lead to accelerated wear of the brake pads and other components like the caliper and disc. In extreme cases, if the pads are significantly undersized or the hardware is completely missing, the pads could potentially skew and become jammed, which could severely impair braking effectiveness. It's always best to address the issue promptly.

Q2: Is it safe to drive with rattling brake pads?

If the rattling is minor and your braking performance feels normal, it might be safe for a short period. However, it's not advisable to ignore it. The rattling indicates a problem that needs attention, and continuing to drive with it can lead to more significant wear, increased noise, and potentially compromise your braking system over time. Prioritise getting it checked and fixed.

Q3: Why does the knocking sound only happen when I brake lightly?

Often, brake pad rattling is more noticeable during light braking or when coming to a slow stop. This is because harder braking applies more consistent pressure, which can temporarily hold the pads more firmly in place, masking the rattling. During light braking, there's less pressure, allowing the pads more freedom to move and vibrate.

Q4: Do all new brake pads come with new hardware?

Not always. While many quality brake pad sets include new shims and some clips, it's not guaranteed that all necessary anti-rattle clips or guide pin boots will be included. Always check the contents of your new brake pad box and purchase a separate hardware kit if needed. It's highly recommended to replace all hardware when changing pads.

Q5: Can cold weather make brake pads rattle more?

Cold weather can sometimes exacerbate brake noises, including rattling. Materials contract in the cold, which might slightly increase clearances, or the lubricant on moving parts might become stiffer, leading to more resistance and potential noise. However, if the rattling is significant, it's likely due to underlying mechanical issues rather than just the temperature.
