16/12/2016
The condition of your vehicle's tyres is paramount, not just for optimal performance and fuel efficiency, but crucially, for your safety and the safety of others on the road. Worn tyres can significantly impair a vehicle's handling, braking, and grip, particularly in adverse weather conditions. In the UK, there are strict legal requirements regarding tyre tread depth to ensure a minimum level of safety. Understanding these regulations and knowing how to check your own tyres is a fundamental aspect of responsible car ownership.
The Legal Tyre Tread Depth in the UK

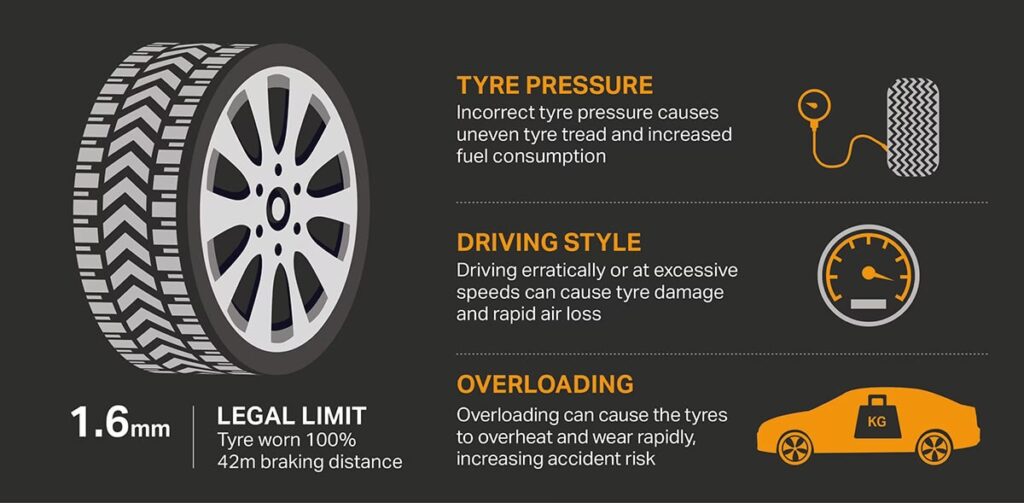

In the United Kingdom, the legal minimum tread depth for car tyres is 1.6 millimetres. This minimum depth must extend across the central three-quarters of the breadth of the tread band. It's not enough for just a small section of the tyre to meet this requirement; the entire contact surface needs to be within the legal limits.
Driving with tyres that fall below this minimum tread depth is a serious offence. It can result in a fixed penalty notice, which typically includes a fine and penalty points on your driving licence. For each tyre found to be below the legal limit, you can receive up to three penalty points and a fine of up to £2,500 per tyre. This highlights the importance of regular tyre checks.
How to Conduct a Tyre Tread Check: A Step-by-Step Guide
Checking your tyre tread is a straightforward process that doesn't require specialist equipment for a basic assessment. However, for accuracy, a dedicated tool is recommended.
1. Visual Inspection: The First Line of Defence
Begin with a thorough visual inspection of each of your tyres. Turn your steering wheel to allow yourself clear access to the entire surface of the tread. As you look, pay close attention to:
- Uneven Wear Patterns: Look for any areas where the tread appears more worn than others. This could indicate issues with wheel alignment, tyre pressure, or suspension. Common patterns include wear on the outer edges (under-inflation), the centre of the tread (over-inflation), or on one side (misalignment).
- Damage: Check for cuts, cracks, bulges, or embedded objects like nails or screws. Any significant damage to the tyre wall or tread should be addressed immediately by a professional.
2. Using Tread Wear Indicators (TWIs)
Most modern tyres are manufactured with built-in Tread Wear Indicators, often referred to as TWIs. These are small, raised areas located within the main tread grooves, typically spaced evenly around the tyre.
What are TWIs? TWIs are projections within the tread grooves designed to give a visual indication of the degree of wear. Premium tyre manufacturers meticulously mould TWIs into the design of the tyre's tread pattern. They are usually identifiable as small bars or blocks situated at the bottom of the main circumferential grooves.
How to Spot Them: TWIs are typically made up of six or more small bars across the bottom of the main tread grooves. These bars are usually positioned 1.6mm to 2mm above the base of the groove.
When to Replace: The legal limit of 1.6mm is reached when the tyre is worn down to the level of these tread wear indicators. As soon as the tread is level with the TWI in any of the main grooves, the tyre is considered illegal and should be replaced immediately. This is a quick and easy way to gauge if your tyres are nearing the legal limit.
3. Using a Tread Depth Gauge: The Accurate Method
While TWIs provide a good indication, the most accurate and reliable way to measure your tyre tread depth is by using a dedicated tread depth gauge. These tools are inexpensive and readily available from most automotive parts retailers and can be easily kept in your car's glovebox for regular checks.
How to Use a Tread Depth Gauge:
- Ensure the tyre is clean and free from debris.
- Insert the probe of the tread depth gauge into one of the main tread grooves.
- Press the gauge firmly against the base of the groove.
- Read the measurement displayed on the gauge.
- Repeat this process in several different grooves around the tyre to ensure an even reading.
- Crucially, check the tread depth on all four tyres.
- Don't forget to check the inner, centre, and outer sections of each tyre's tread, as wear can be uneven.
Many digital tread depth gauges will give you a reading in millimetres, making it easy to compare against the legal limit.
Why is Tread Depth So Important?
The tread on your tyres is not just for show; it serves several vital functions:
- Grip: The grooves in the tread allow water to be channelled away from the contact patch between the tyre and the road. This is essential for maintaining grip, especially in wet conditions. As tread depth decreases, the tyre's ability to disperse water is significantly reduced, increasing the risk of aquaplaning.
- Braking: Adequate tread depth is crucial for effective braking. Shorter braking distances are achieved when there is sufficient tread to provide friction and grip. Worn tyres can drastically increase stopping distances, putting you and others at risk.
- Handling: The tread pattern contributes to a tyre's stability and responsiveness, influencing how well your car steers and corners.
Tyre Wear Patterns: What They Tell You
Observing how your tyres wear can provide valuable insights into your vehicle's mechanical condition. Here's a quick guide to common wear patterns:
| Wear Pattern | Possible Cause | Action Required |
|---|---|---|
| Even wear across the tread | Correct tyre pressures and regular rotation. | Continue regular checks. |
| Wear on both outer edges | Under-inflation. | Check and adjust tyre pressures regularly. |
| Wear on the centre of the tread | Over-inflation. | Check and adjust tyre pressures regularly. |
| Wear on one edge (inner or outer) | Incorrect wheel alignment or suspension issues. | Seek professional alignment check. |
| Cupping or scalloping (patchy wear) | Wheel balancing issues or suspension problems. | Get wheels balanced and suspension checked. |
Frequently Asked Questions
Q1: What is the legal minimum tyre tread depth in the UK?
A1: The legal minimum tyre tread depth for cars in the UK is 1.6 millimetres across the central three-quarters of the tread width.
Q2: How often should I check my tyre tread depth?
A2: It's recommended to check your tyre tread depth at least once a month and before long journeys. Also, check them if you suspect any issues or notice unusual wear patterns.
Q3: Can I use a 2p coin to check my tyre tread?
A3: Yes, you can use a 2p coin as a rough guide. If you place the coin into a tread groove with Queen Elizabeth II's head facing you, and you can see the top of her head, your tread depth is likely below the legal limit of 1.6mm. However, a tread depth gauge is much more accurate.
Q4: What happens if my tyres are below the legal tread depth?
A4: Driving with tyres below the legal tread depth is an offence and can lead to a fine of up to £2,500 per tyre and three penalty points on your driving licence for each illegal tyre.
Q5: Does the legal tread depth apply to all tyres on my vehicle?
A5: Yes, the 1.6mm legal minimum tread depth applies to all tyres on your vehicle, including the spare tyre if it's a full-size tyre intended for regular use.
Conclusion
Maintaining the correct tyre tread depth is a non-negotiable aspect of road safety. By understanding the legal requirements and performing regular, thorough checks using visual inspections, TWIs, or a tread depth gauge, you can ensure your vehicle remains safe, legal, and performs optimally. Don't underestimate the importance of your tyres – they are your vehicle's only point of contact with the road.
