Diesel Engine Components Explained

Diesel engines are renowned for their robustness, fuel efficiency, and impressive torque, making them a popular choice for everything from heavy-duty trucks and agricultural machinery to passenger cars and generators. But what exactly makes these engines tick? While the overall concept of internal combustion is shared with petrol engines, diesel powerplants have distinct characteristics and components that enable their unique operational principles. At their heart, diesel engines are fundamentally divided into two primary functional systems, each crucial for the successful conversion of fuel into mechanical energy. Understanding these two core areas provides a solid foundation for appreciating the complexity and ingenuity of diesel technology.

The Two Pillars of Diesel Power

While a diesel engine is a complex assembly of many parts, for the purpose of understanding its fundamental operation, we can broadly categorise its key functions into two main areas: the fuel system and the air intake and combustion system. These two systems work in close harmony, with the precise timing and interaction of their components dictating the engine's performance, efficiency, and emissions.

The Diesel Fuel System: Precision Pumping and Injection

The fuel system in a diesel engine is a marvel of engineering, responsible for storing, filtering, and delivering diesel fuel at extremely high pressures to the combustion chamber. Unlike petrol engines that rely on spark plugs to ignite the fuel-air mixture, diesel engines use the heat generated by compressing air to ignite the injected fuel. This process, known as compression ignition, places stringent demands on the fuel system's precision and durability.

Key Components of the Diesel Fuel System:

• Fuel Tank: The reservoir for the diesel fuel. Modern tanks often incorporate baffles to prevent fuel sloshing and may include return lines for excess fuel.
• Fuel Filter(s): Diesel fuel can contain impurities, such as water and particulate matter, which can damage the delicate components of the injection system. Therefore, a robust filtration system is essential. This typically includes a primary filter to remove larger contaminants and a secondary filter for finer particles. Water separators are also commonly integrated.
• Fuel Pump(s): Diesel engines require fuel to be delivered under significant pressure. This is achieved through a series of pumps. A low-pressure lift pump, often electric, draws fuel from the tank and supplies it to the high-pressure injection pump. The high-pressure injection pump is the heart of the system, generating the immense pressures needed for injection.
• Injection Pump: This is a critical component responsible for metering the exact amount of fuel required for each combustion cycle and delivering it at the correct time and pressure. Various types exist, including rotary, inline, and common rail systems.
• Injectors: Also known as fuel injectors or atomisers, these devices spray the high-pressure fuel into the combustion chamber in a fine mist. The spray pattern and droplet size are critical for efficient combustion. Modern injectors are electronically controlled, allowing for precise management of fuel delivery.
• Glow Plugs (in some systems): While not strictly part of the fuel delivery itself, glow plugs are essential for cold starting. They are electric heating elements that pre-heat the combustion chamber, aiding in the ignition of fuel when the engine is cold.

The Evolution of Diesel Fuel Injection:

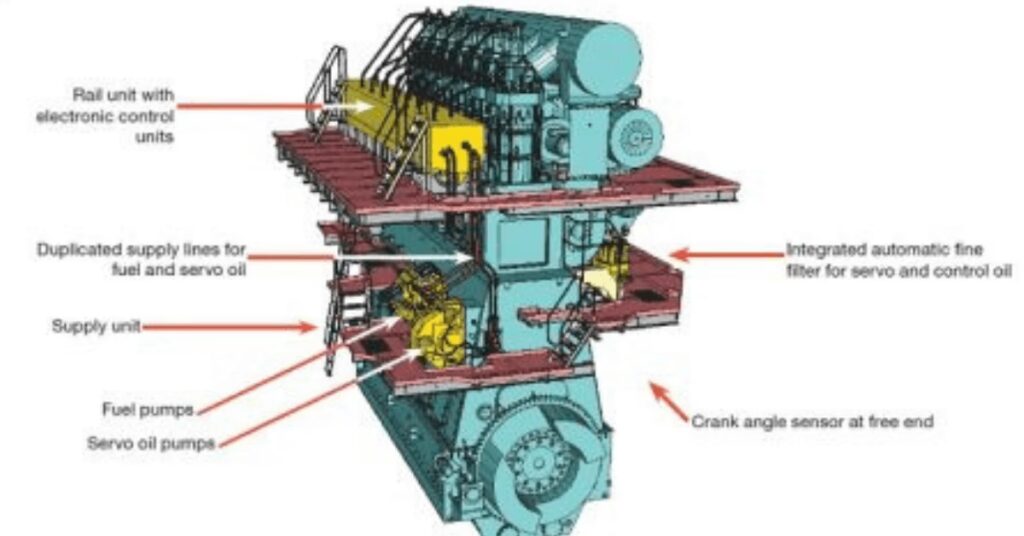

The method of fuel injection has evolved significantly. Early diesel engines used mechanical injection systems, where the injection pump directly controlled the timing and pressure. These systems were robust but less precise. Later, electronic unit injection (EUI) and pump-nozzle systems offered improved control. The most advanced and prevalent system today is the common rail system. In a common rail system, a single, high-pressure pump supplies fuel to a "common rail" – a pressurised accumulator – which then distributes fuel to all the injectors. Electronic control units (ECUs) manage the injectors, allowing for multiple, precisely timed injections per combustion cycle, leading to significant improvements in power, efficiency, and emissions reduction.

The Air Intake and Combustion System: Breathing and Burning

The second critical system of a diesel engine is responsible for drawing in air, preparing it for combustion, and managing the resulting exhaust gases. This system is where the magic of compression ignition truly takes place.

Key Components of the Air Intake and Combustion System:

• Air Filter: Similar to the fuel filter, the air intake must be free of dust and debris to prevent wear on internal engine components like pistons and cylinder walls.
• Turbocharger (very common): To achieve the high levels of compression needed for ignition and to increase power output, most modern diesel engines utilise a turbocharger. A turbocharger uses exhaust gases to spin a turbine, which in turn drives a compressor. The compressor forces more air into the cylinders, allowing for more fuel to be injected and thus more power to be generated. This process is known as forced induction.
• Intercooler: When air is compressed, its temperature increases. Hot air is less dense, meaning it contains less oxygen. An intercooler cools the compressed air from the turbocharger before it enters the cylinders, making it denser and improving combustion efficiency.
• Cylinder Block and Cylinder Head: These form the main structure of the engine. The cylinder block houses the pistons, while the cylinder head contains the valves, injectors, and in some cases, glow plugs.
• Pistons: These move up and down within the cylinders, compressing the air. The design of the piston crown is crucial for directing the injected fuel and promoting efficient mixing with the compressed air.
• Valves (Intake and Exhaust): Controlled by the camshaft, these open and close to allow air into the cylinders and exhaust gases out.
• Exhaust System: Manages the expulsion of burnt gases from the engine. Modern diesel exhaust systems often include complex after-treatment systems like diesel particulate filters (DPFs) and selective catalytic reduction (SCR) to reduce harmful emissions.

The Combustion Process in Detail:

The process begins with the intake stroke, where the piston moves down and the intake valve opens, drawing a cylinder full of air into the combustion chamber. During the compression stroke, both valves close, and the piston moves up, compressing the air to very high pressures and temperatures – typically between 700-900°C (1290-1650°F). At or near the top of the compression stroke, the fuel injector sprays a precisely metered quantity of diesel fuel into this superheated air. The intense heat of the compressed air causes the atomised fuel to spontaneously ignite and burn rapidly. This combustion creates a rapid expansion of gases, forcing the piston down during the power stroke. Finally, during the exhaust stroke, the exhaust valve opens, and the piston moves up, expelling the burnt gases.

Conclusion: A Symphony of Precision

In essence, the two primary parts of a diesel engine – the fuel system and the air intake/combustion system – are inextricably linked. The effectiveness of the entire engine hinges on the precise interplay between these two systems. From the high-pressure delivery of fuel to the efficient management of air and its compression, every component plays a vital role in delivering the power and efficiency that diesel engines are known for. Understanding these fundamental elements provides a deeper appreciation for the engineering prowess behind these workhorse powerplants.

Frequently Asked Questions

Q1: What is the main difference between a diesel engine and a petrol engine?

The primary difference lies in the ignition method. Petrol engines use spark plugs to ignite a pre-mixed fuel-air mixture, while diesel engines use the heat generated by compressing air to ignite the fuel, which is injected directly into the combustion chamber.

Q2: Why are diesel engines more fuel-efficient than petrol engines?

Diesel fuel has a higher energy density than petrol. Additionally, the higher compression ratios used in diesel engines lead to greater thermal efficiency, meaning more of the fuel's energy is converted into mechanical work.

Q3: What does a turbocharger do in a diesel engine?

A turbocharger uses exhaust gases to spin a turbine, which drives a compressor. This compressor forces more air into the engine's cylinders, allowing for more fuel to be injected and thus increasing power and efficiency.

Q4: What is a common rail system?

A common rail system is an advanced diesel fuel injection technology where a high-pressure pump supplies fuel to a shared "common rail" that distributes it to all injectors. This allows for very precise control over fuel injection timing and quantity.

Q5: Are glow plugs always necessary in diesel engines?

Glow plugs are primarily used to aid in cold starting. They heat the combustion chamber to help ignite the fuel when the engine is cold. Modern engines with advanced injection systems and higher compression ratios may require them less frequently, but they remain crucial for reliable starting in colder climates.
