Unveiling Diesel Fuel Injection Systems

The diesel engine, a marvel of engineering, relies on a sophisticated and highly efficient fuel injection system to deliver its renowned power and torque. Often considered the very heart of a diesel engine, this intricate system is responsible for precisely controlling the delivery of fuel, ensuring optimal combustion. It comprises several critical components: a fuel injection pump, high-pressure pipes, injection nozzles (or injectors), a feed pump, and a fuel filter. The fundamental principle involves pressurising and injecting fuel into highly compressed air within the combustion chamber, leading to auto-ignition. Beyond merely feeding fuel, the system meticulously adjusts the quantity of fuel, fine-tunes injection timing, and atomises the fuel into a fine mist for efficient burning. Understanding the nuances of these systems is paramount for anyone involved with diesel vehicles, from mechanics to everyday drivers.

The Core of Diesel Power: Fuel Injection Systems

At its essence, a diesel fuel injection system is an incredibly precise instrument designed to overcome the immense pressures within the engine's cylinders. Unlike petrol engines, which ignite a fuel-air mixture with a spark plug, diesel engines rely on the heat generated by compressing air to extremely high pressures. When fuel is injected into this hot, compressed air, it spontaneously ignites. This process, known as compression-ignition, demands highly accurate fuel delivery to ensure efficient combustion, minimise emissions, and maximise power output.

Each component plays a vital role. The feed pump draws fuel from the tank, sending it through the fuel filter to remove impurities that could damage delicate components. The fuel injection pump is then responsible for elevating the fuel pressure to incredibly high levels – sometimes thousands of bar – and accurately metering the amount of fuel for each combustion cycle. This highly pressurised fuel travels through robust high-pressure pipes to the injection nozzles. These nozzles are perhaps the most critical interface, as they are designed to atomise the fuel into a fine spray, ensuring it mixes thoroughly with the compressed air for rapid and complete combustion. The timing of this injection is equally crucial, needing to occur at precisely the right moment in the engine's cycle to achieve peak performance and efficiency.

Deep Dive into Diesel Injection Types

Over the decades, diesel fuel injection technology has evolved significantly, driven by demands for greater power, improved fuel economy, and, crucially, reduced emissions. While the core principles remain, the methods of achieving them have diversified. Let's explore the four primary types of diesel fuel injection systems that have shaped the automotive landscape.

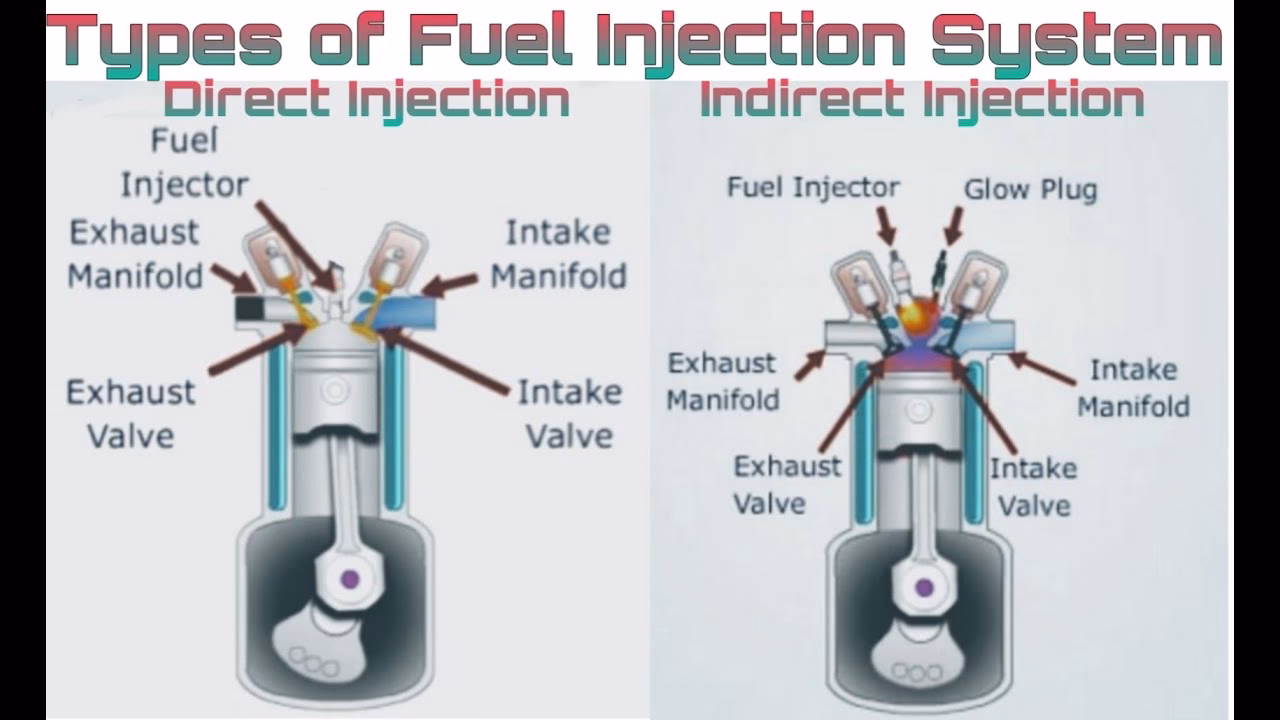

1. Direct Injection (DI)

Direct Injection is a foundational concept in diesel engine design and remains highly prevalent in modern systems, often in conjunction with other technologies. In a direct injection system, the fuel is pumped directly into the engine's combustion chamber, rather than into a pre-chamber or intake manifold. This method makes use of a powerful, positive displacement fuel pump which generates the necessary high pressure. The diesel fuel is then forced through injectors that are precisely mounted in the cylinder head, spraying directly into the highly compressed air within the cylinder.

The immediate benefit of direct injection is its efficiency. By injecting fuel directly into the main combustion space, the system promotes faster and more complete combustion. This leads to a more powerful engine response, often accompanied by a quieter operation compared to some indirect injection methods. The positive displacement pump is key to this system's success; it functions much like a miniature four-stroke engine itself, but instead of handling air and fuel, it precisely meters and pressurises liquid diesel fuel. This design ensures that the fuel pressure remains high and stable, which is absolutely essential for injecting fuel effectively against the immense compressive force exerted by the rising piston. The ability to inject fuel at such high pressures and directly into the cylinder allows for greater control over the combustion process, optimising fuel atomisation and mixing, which ultimately translates to superior engine efficiency and performance.

2. Throttle Body Injection (TBI)

While more commonly associated with petrol engines as an early electronic alternative to carburetion, Throttle Body Injection (TBI) systems had a brief and limited presence in some early diesel applications. This injection type operates somewhat like a carburettor, with many TBI units conceptually patterned after them. However, instead of relying on venturi vacuum to draw fuel, TBI employs a set of downward-facing injectors mounted within a central throttle body, which shoot fuel into the engine's intake manifold under pressure.

For diesel engines, TBI proved to be an obsolete approach relatively quickly. The fundamental issue lies in the nature of diesel combustion. Diesel engines require fuel to be injected directly into the compressed air within the cylinder for auto-ignition. Injecting fuel into the intake manifold, as TBI does, meant the fuel had to travel a distance and mix with air before entering the cylinder. This method offers far less control over injection timing and atomisation compared to direct injection, leading to less efficient combustion, higher emissions, and reduced power output in a diesel context. Furthermore, one of its significant disadvantages was its incompatibility or poor performance with turbocharging, a technology that rapidly became integral to modern diesel engine design for boosting power. As far better alternatives emerged that catered specifically to the demands of compression-ignition engines, TBI was swiftly phased out for diesel applications.

3. Multipoint Injection (MPI)

Multipoint Injection (MPI), much like TBI, found its primary success and widespread application in petrol engines. In these systems, a single or dual fuel pumps supply fuel to individual fuel injectors, which are mounted in the intake port for each cylinder. The injectors then spray fuel into the engine's intake valves, typically just upstream of the cylinder head.

While highly effective for petrol engines, where a homogeneous fuel-air mixture is desired before ignition, multipoint injection is rarely used on most diesel types and offers no real advantage for compression-ignition engines. The core reason for its unsuitable nature for diesels lies in the fundamental difference in combustion. As previously mentioned, diesel engines rely on injecting fuel into highly compressed, hot air for auto-ignition. Injecting fuel into the intake port means it enters the cylinder with the incoming air, rather than directly into the compressed charge at the precise moment of ignition. This method prevents the very high pressures and precise atomisation needed for efficient diesel combustion. It also makes it difficult to control the ignition process effectively, leading to poor cold starting, increased noise, and higher emissions. Developed after the more effective mechanical direct injection systems, MPI simply could not compete with the inherent advantages of direct cylinder injection for diesel applications and was quickly dismissed as a viable solution.

4. Common Rail Injection (CRI)

Common Rail Injection (CRI) represents a significant leap forward in diesel technology and is the dominant fuel injection system in virtually all modern diesel vehicles. It cleverly combines the benefits of direct injection with a highly sophisticated electronic control system, offering unprecedented control and flexibility. Conceptually, it works like a multi-port injection system in that it utilises a common fuel rail to feed multiple fuel injectors. However, the critical difference is that these injectors are direct-injection types, mounted directly into the cylinder head, injecting fuel straight into the combustion chamber.

The "common rail" itself is a high-pressure accumulator that stores fuel at extremely high pressures, independent of engine speed or load. A single, powerful fuel pump continuously supplies this rail, maintaining constant pressure. The actual injection event is then controlled electronically by the engine's Electronic Control Unit (ECU). This combination provides immense control and precision over the amount of fuel injected, the injection timing, and even the number of injection events per combustion cycle. Modern CRI systems can perform multiple injections within a single power stroke – a small pilot injection to reduce combustion noise, followed by the main injection for power, and even post-injections to aid in exhaust gas after-treatment for emissions reduction. This level of control results in significantly improved fuel economy, reduced noise and vibration, lower emissions, and enhanced engine performance compared to older mechanical systems. The single, powerful fuel pump, coupled with sophisticated electronic management, is the driving formula for CRI's ultimate success, making it the benchmark for modern diesel propulsion.

Comparing the Systems: A Quick Overview

To better understand the evolution and distinct characteristics of these diesel fuel injection systems, here's a comparative table highlighting their key features:

Frequently Asked Questions (FAQs)

What is the primary function of a diesel fuel injection system?

The primary function is to precisely meter, pressurise, and inject diesel fuel into the engine's cylinders at the correct time and in a finely atomised spray. This ensures efficient combustion, optimal power output, and minimised emissions.

Why is Common Rail Injection (CRI) considered superior to older systems?

CRI offers superior control over fuel injection parameters, including timing, quantity, and the number of injection events per cycle. This electronic precision leads to significant improvements in fuel economy, reduced exhaust emissions, lower engine noise, and enhanced performance, making it ideal for modern environmental and efficiency standards.

Can I convert my older diesel engine to a Common Rail system?

While theoretically possible, converting an older mechanical diesel engine to a Common Rail system is an extremely complex, costly, and generally impractical undertaking. It would involve replacing not just the injection system but also the engine's Electronic Control Unit (ECU), sensors, and potentially making significant mechanical modifications to the engine block and cylinder head. It is almost always more cost-effective to upgrade to a newer vehicle if modern diesel technology is desired.

What happens if a fuel injector fails in a diesel engine?

A failing fuel injector can manifest in various ways, including reduced engine power, rough idling, increased fuel consumption, excessive smoke from the exhaust (black, white, or blue), and a noticeable knocking sound. Due to the high pressures involved and the precision required, a faulty injector can quickly lead to more severe engine damage if not addressed promptly.

How often should I service my diesel fuel injection system?

Service intervals vary significantly depending on the vehicle manufacturer, model, and driving conditions. Generally, it's crucial to adhere to the manufacturer's recommended service schedule, which typically includes regular fuel filter replacements. High-quality fuel and periodic use of diesel fuel system cleaners can also help maintain the longevity and performance of the injection components.

Choosing the Right System for Your Diesel

As we've explored, the evolution of diesel fuel injection systems showcases a continuous drive towards greater efficiency, power, and environmental responsibility. From the foundational direct injection to the sophisticated Common Rail systems, each type has played a role in shaping the capabilities of diesel engines. While older systems like TBI and MPI proved unsuitable for the unique demands of compression-ignition, direct injection remains a core principle, refined and enhanced by electronic controls in modern Common Rail setups.

For anyone operating or maintaining a diesel vehicle, understanding the type of injection system at its heart is crucial. Modern vehicles overwhelmingly rely on Common Rail Injection for its unparalleled precision and performance. Regardless of the system, proper maintenance, including regular fuel filter changes and using high-quality diesel fuel, is paramount to ensuring the longevity and optimal performance of these complex and vital components. The fuel injection system truly is the pulse of your diesel engine, dictating its power, efficiency, and environmental footprint.
