The Heartbeat of Diesel Power: Understanding Injection Pump Types
Diesel engines have long been the workhorses of transportation and industry, prized for their robust nature and impressive fuel economy. At the core of every diesel engine's efficiency and performance lies a critical component: the injection pump. This intricate device is responsible for the precise delivery of fuel into the combustion chamber, dictating everything from power output to emissions control. Over the years, technology has transformed these pumps, evolving from simpler mechanical systems to sophisticated electronic common rail designs, all aimed at optimising the diesel engine's capabilities. This article delves into the various types of diesel engine injection pumps, explaining their fundamental operation and distinguishing characteristics.
What Exactly is a Diesel Injection Pump?
In essence, a diesel injection pump is the central nervous system of the fuel delivery process. Its primary role is to meter and deliver fuel under high pressure to the engine cylinders at precisely the right moment. This choreographed fuel delivery is paramount for ensuring the engine runs smoothly, efficiently, and powerfully. Think of it as the engine's heartbeat, regulating the rhythm and intensity of its operation. By meticulously controlling the timing and quantity of fuel injected, the pump ensures the engine performs at its peak. Significantly, unlike petrol engines that rely on spark plugs for ignition, diesel engines achieve combustion through the heat generated by highly compressed air, a process directly influenced by the injection pump's function.
The Mechanics of Diesel Fuel Injection
Both diesel and petrol engines operate on the principle of internal combustion, converting fuel into mechanical energy. They both mix air and fuel, which, when ignited, create an explosive force to propel a vehicle. However, the method of ignition is where they diverge dramatically. Diesel engines eschew spark plugs. Instead, they harness the immense heat produced by compressing air to extremely high pressures. The injection pump's role is to introduce atomised diesel fuel into this superheated compressed air, causing it to ignite spontaneously. This process, often referred to as compression ignition, is fundamental to diesel engine operation. During the power stroke, pressure remains relatively constant as the volume expands, driving the piston. Following ignition, as the engine completes its cycle, valves regulate the intake of air and the expulsion of exhaust gases, ensuring maximum fuel efficiency and minimal waste.
A Spectrum of Diesel Injection Pump Technologies
The functional diversity of diesel engines is mirrored in the variety of injection pumps employed. While all serve the overarching purpose of delivering fuel to the combustion chamber, their internal mechanisms and control strategies differ significantly. Understanding these distinctions is key to appreciating the nuances of diesel engine performance and maintenance. We will explore four primary categories of diesel injection pumps:

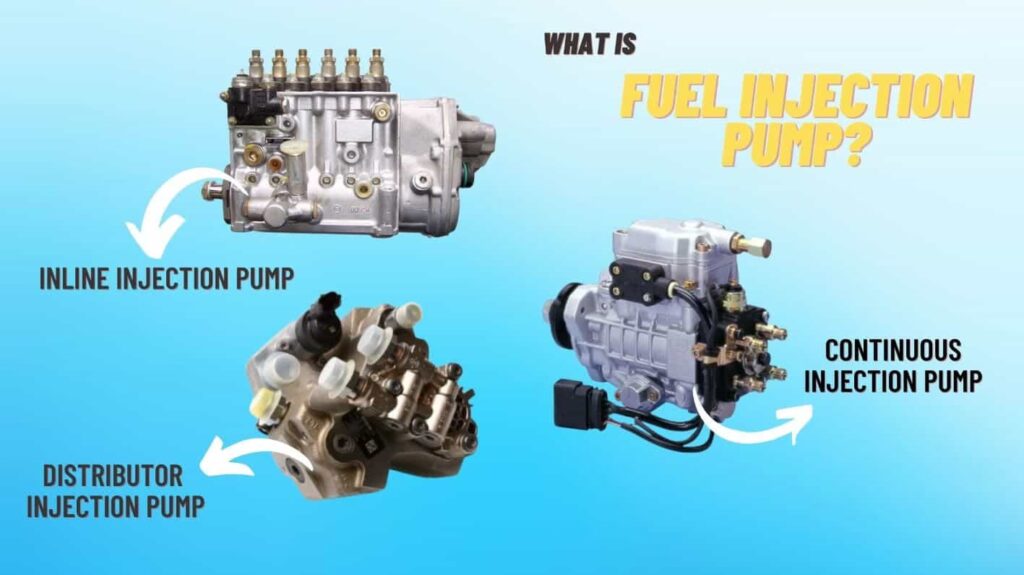

1. Distributor (Rotary) Fuel Injection Pump
Characterised by its compact, circular design, the distributor or rotary pump is one of the earlier, yet highly reliable, forms of diesel fuel injection. Its defining feature is a central rotating distributor that directs pressurised fuel from a single pump element to each injector in sequence. As the pump shaft rotates, a reciprocating plunger pressurises the fuel and routes it through internal passages to the appropriate injector at the correct timing. Modern rotary pumps often incorporate electronic control, managed by an Electronic Control Unit (ECU). The ECU receives data from various sensors, calculating optimal fuel delivery based on engine conditions. It then signals an actuator to precisely control the timing and volume of fuel injected, thereby enhancing efficiency and reducing emissions. The durability and proven track record of rotary pumps make them a popular choice in many applications.
2. Inline Injection (Jerk) Fuel Pump
In contrast to the rotary pump's centralised distribution, the inline injection pump features a series of individual pumping elements, each dedicated to a specific engine cylinder. These pumps are arranged in a line, hence the name, and are directly driven by the engine's camshaft. Each pumping element consists of a plunger that reciprocates within a barrel. As the plunger moves downwards, it draws fuel into the barrel. On its upward stroke, it pressurises the fuel and forces it through a delivery valve and high-pressure line to the corresponding injector. The 'jerk' action of the plunger is what gives this pump type its alternative name. Inline pumps are renowned for their robustness and are commonly found in larger diesel engines, such as those used in heavy-duty trucks, buses, and industrial machinery. Their mechanical simplicity contributes to their reliability under demanding conditions.
Comparison of Inline and Rotary Pumps:
| Feature | Inline Injection Pump | Distributor (Rotary) Pump |
|---|---|---|
| Fuel Distribution | Individual pump element per cylinder | Single pump element with a distributor |
| Complexity | More complex, more parts | Simpler, fewer parts |
| Size | Larger, longer | More compact |
| Application | Medium to large engines, heavy-duty vehicles | Smaller to medium engines, passenger cars |
| Control | Primarily mechanical, some electronic control | Increasingly electronic control |
3. Continuous Pump (Often part of Common Rail Systems)
While the term 'continuous pump' can sometimes refer to older, less common designs, in modern contexts, it is often associated with the high-pressure fuel pump found in Common Rail diesel systems. These pumps are engineered to generate and maintain extremely high fuel pressures, typically ranging from 30,000 to 40,000 PSI (pounds per square inch), and sometimes even higher. Their primary function is to supply a constant, high-pressure flow of fuel to a shared 'rail' (the common rail), from which individual injectors draw fuel as commanded by the ECU. These pumps are compact and highly efficient, playing a crucial role in the precise atomisation of fuel required for modern emissions standards and fuel economy. The efficiency of these pumps is a key enabler of modern diesel technology.
4. High-Pressure Common Rail (HPCR) Pump
The High-Pressure Common Rail system represents the pinnacle of modern diesel fuel injection technology. The HPCR pump is the heart of this system, responsible for generating the immense fuel pressure that is stored in the common rail. Unlike inline or rotary pumps where pressure is generated and delivered directly to the injector for each injection event, the HPCR pump pressurises fuel and feeds it into a reservoir – the common rail. This rail acts as a high-pressure accumulator, ensuring that fuel is available at a consistent, elevated pressure to all injectors. The injectors themselves are electronically controlled solenoid or piezoelectric devices, capable of multiple injections per combustion cycle. The ECU precisely dictates when and how much fuel each injector delivers, allowing for unparalleled control over combustion, leading to significant improvements in performance, fuel efficiency, and a dramatic reduction in noise and emissions. The precision offered by HPCR systems is transformative.
Key Features of Common Rail Systems:
- High and Stable Fuel Pressure: Achieved by the dedicated HPCR pump.
- Common Rail: A high-pressure accumulator storing pressurised fuel.
- Electronically Controlled Injectors: Allow for multiple, precisely timed injections per cycle.
- ECU Control: Manages all aspects of fuel delivery for optimal performance and emissions.
Choosing the Right Injection Pump
The selection and maintenance of the appropriate injection pump are critical for the optimal operation of any diesel engine. The type of pump employed directly influences the engine's power delivery characteristics, its fuel consumption, its environmental impact, and its overall lifespan. While traditional inline and rotary pumps continue to offer dependable service, particularly in less regulated or older applications, the advancements in common rail and other electronically managed systems have set new benchmarks for efficiency and emissions control in contemporary diesel powertrains. Understanding the intricacies of each system allows for informed decisions regarding maintenance, repair, and vehicle selection.
Frequently Asked Questions
Q1: What is the main difference between a rotary and an inline injection pump?
A1: A rotary pump uses a single pump element to distribute fuel to all cylinders, while an inline pump has a dedicated pump element for each cylinder.
Q2: Are common rail systems more efficient than older diesel injection systems?
A2: Yes, common rail systems generally offer superior fuel efficiency and lower emissions due to their precise control over fuel delivery and higher injection pressures.
Q3: Do diesel engines need spark plugs?
A3: No, diesel engines rely on compression ignition. The heat generated by compressing air ignites the injected fuel, eliminating the need for spark plugs.
Q4: What PSI can a common rail pump generate?
A4: Common rail pumps can typically generate pressures ranging from 30,000 to over 40,000 PSI.
Q5: Which type of injection pump is most common in modern diesel cars?
A5: High-Pressure Common Rail (HPCR) systems are the most prevalent in modern diesel passenger cars and light commercial vehicles due to their efficiency and emissions benefits.
Conclusion
Injection pumps are the undisputed heroes of the diesel engine's fuel system, orchestrating the precise delivery of fuel that unlocks the engine's power, efficiency, and smooth operation. From the robust simplicity of inline pumps to the sophisticated control of common rail systems, each design plays a vital role. As technology continues to evolve, the focus remains on maximising performance while minimising environmental impact, making the injection pump a constant area of innovation in the diesel world. Whether you're a seasoned mechanic or a curious enthusiast, grasping the functions and differences between these pump types provides invaluable insight into the enduring strength and adaptability of diesel power.
