Understanding Automotive Diagnostic Tools

The Crucial Role of Diagnostic Devices in Automotive Maintenance

In the realm of automotive mechanics, the ability to accurately diagnose issues is paramount. Modern vehicles are sophisticated marvels of engineering, packed with complex electronic systems that control everything from engine performance to safety features. When a problem arises, pinpointing the exact cause can be a daunting task without the right equipment. This is where automotive diagnostic devices come into play. These sophisticated tools are the eyes and ears of the modern mechanic, allowing them to peer into the inner workings of a vehicle and identify faults with precision. Without them, troubleshooting would be a matter of guesswork, leading to wasted time, unnecessary part replacements, and ultimately, dissatisfied customers.

While the term "diagnostic devices" can encompass a broad range of equipment across various industries – from medical and environmental to IT and industrial applications – our focus here is squarely on the tools that keep our cars, vans, and trucks running efficiently and safely. These devices are not just for professional garages; as vehicles become more complex, even the dedicated home mechanic can benefit immensely from understanding and utilising these essential pieces of kit.

Classifying Automotive Diagnostic Devices

To truly appreciate the scope and function of automotive diagnostic devices, it's helpful to understand how they are categorised. While a single device might perform multiple functions, they can generally be grouped based on their primary purpose, the type of data they collect, and the technology they employ. We can broadly classify them into the following categories:

1. On-Board Diagnostics (OBD) Scanners

Perhaps the most ubiquitous and essential automotive diagnostic tools are OBD scanners. These devices interface directly with a vehicle's On-Board Diagnostics system, a computerised network that monitors various components and systems for malfunctions. The OBD system generates Diagnostic Trouble Codes (DTCs) when it detects a problem, which are then read by the scanner.

Types of OBD Scanners:

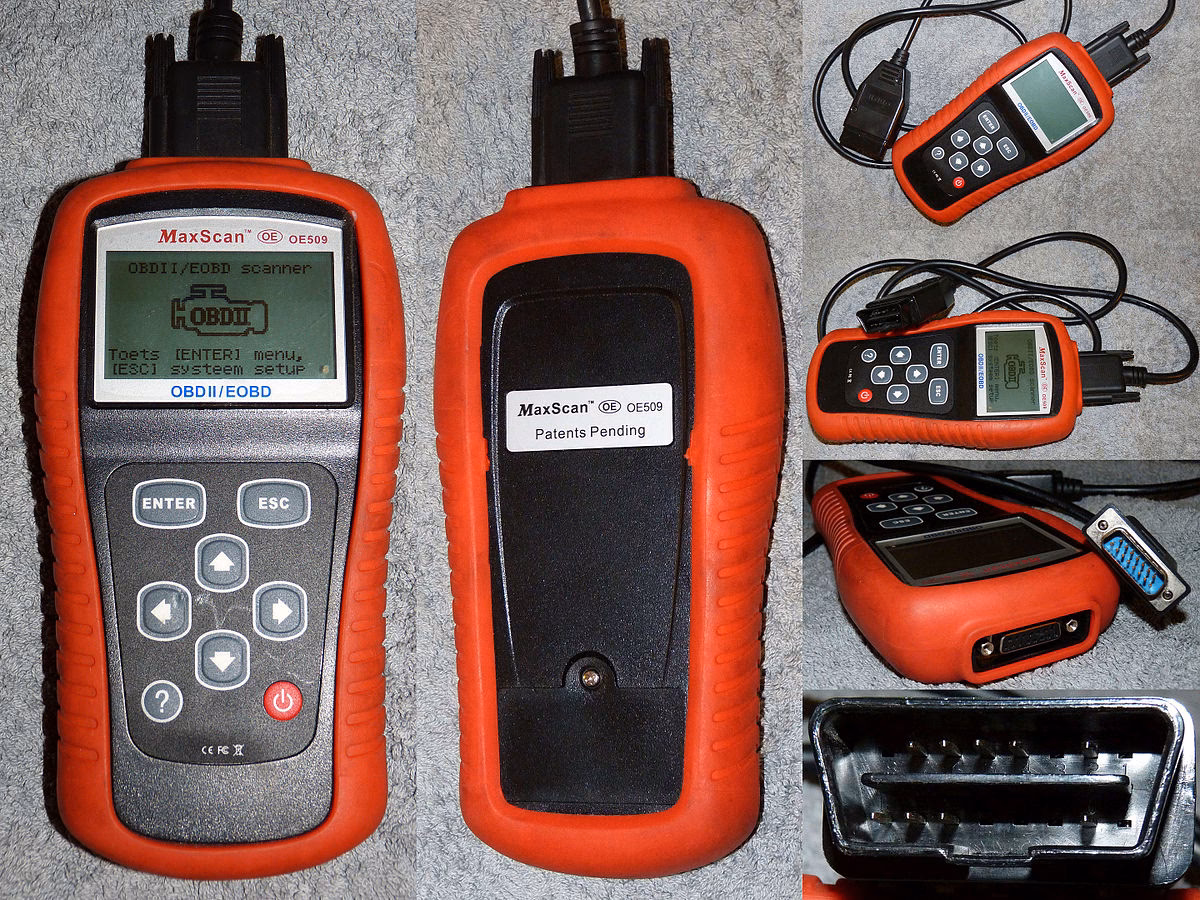

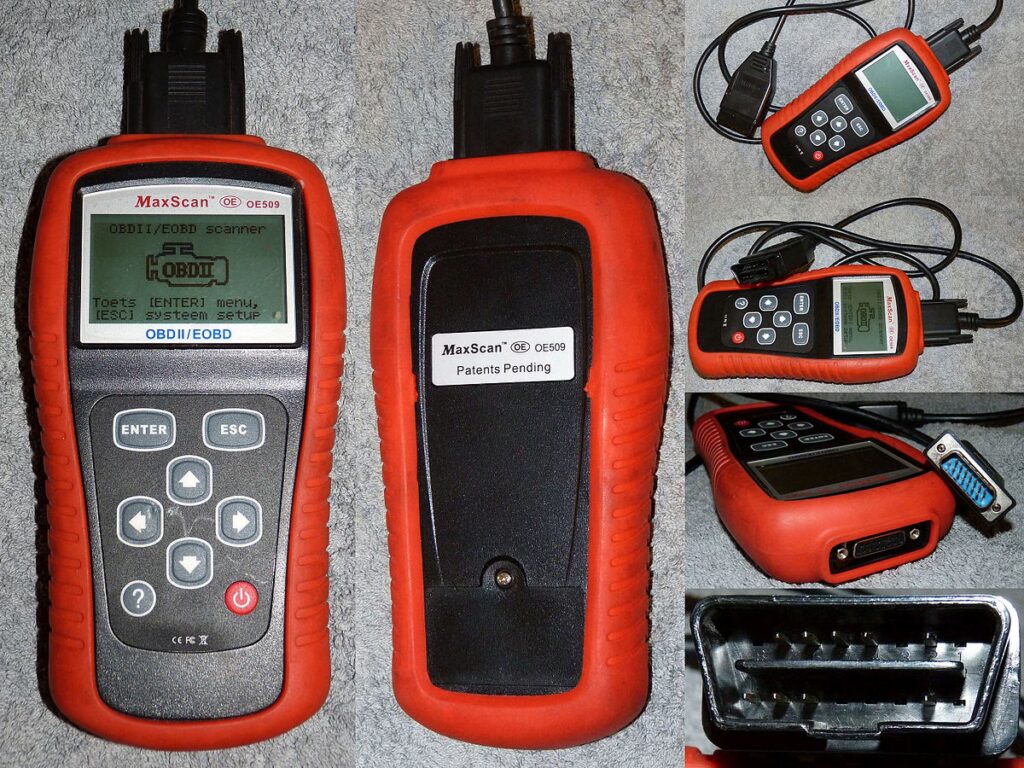

• OBD-II Scanners: The standard for vehicles manufactured since 1996. They connect via the OBD-II port, usually located under the dashboard. These scanners can read DTCs, freeze frame data (a snapshot of sensor readings at the time of the fault), and live data streams.
• Professional Diagnostic Scan Tools: These are more advanced, often tablet-based or laptop-connected systems, used by mechanics. They can access a wider range of vehicle modules (engine, transmission, ABS, airbags, etc.), perform bi-directional control (commanding components to operate), re-learn procedures, and access manufacturer-specific PIDs (Parameter IDs).
• Bluetooth/Wi-Fi OBD Adapters: These smaller devices plug into the OBD-II port and transmit data wirelessly to a smartphone or tablet app. They offer a more affordable entry point for DIY diagnostics but typically have fewer advanced features than professional tools.

What They Measure/Diagnose:

• Engine performance issues (misfires, fuel trim, oxygen sensor readings)
• Transmission faults
• ABS and brake system warnings
• Airbag system faults
• Emissions-related problems
• And much more, depending on the tool's capability.

2. Multimeters and Electrical Testers

While OBD scanners tell you *what* the car's computer thinks is wrong, multimeters and other electrical testers help you understand *why* by verifying electrical signals and component integrity. Electrical faults are a common cause of vehicle issues, and these tools are indispensable for diagnosing them.

Common Electrical Testing Tools:

• Multimeters: The workhorse of electrical diagnostics. They can measure voltage (V), current (A), and resistance (Ω). Essential for checking battery voltage, continuity of wires, and current draw of components.
• Circuit Testers/Test Lights: Simple tools used to detect the presence of voltage in a circuit.
• Clamp Meters: A type of multimeter that measures current by clamping around a wire, avoiding the need to break the circuit. Useful for checking parasitic draws or current consumption of specific components.
• Oscilloscopes: Advanced tools that display electrical signals as waveforms over time. Crucial for diagnosing complex electrical issues, such as faulty sensors, ignition system problems, and communication bus issues.

What They Measure/Diagnose:

• Battery health and charging system output
• Continuity and integrity of wiring harnesses
• Voltage and current supplied to components
• Sensor signal integrity
• Grounding issues
• Short circuits and open circuits

3. Pressure and Vacuum Gauges

Many automotive systems rely on precise pressure and vacuum levels to function correctly. Diagnostic gauges allow mechanics to measure these critical parameters.

Types of Gauges:

• Fuel Pressure Gauges: Measure the pressure of fuel delivered to the engine. Incorrect fuel pressure can lead to poor performance, stalling, or starting issues.
• Vacuum Gauges: Measure the vacuum created by the engine's intake manifold. Vacuum readings can indicate engine health, timing issues, or leaks.
• Coolant Pressure Testers: Used to pressurise the cooling system to check for leaks in hoses, the radiator, or the water pump.
• Tyre Pressure Gauges: Essential for maintaining correct tyre inflation, impacting safety, fuel economy, and tyre wear.

What They Measure/Diagnose:

• Fuel delivery system health
• Engine mechanical condition (compression, valve sealing)
• Cooling system integrity
• Intake system leaks
• Tyre condition and safety

4. Smoke Machines

Smoke machines are specialised devices that introduce a dense, visible vapour (typically mineral oil-based smoke) into various vehicle systems, most commonly the intake or exhaust. Leaks in these systems are notoriously difficult to find visually, but the smoke makes them immediately apparent.

Applications:

• Intake Leak Detection: Finding vacuum leaks in the intake manifold, hoses, and throttle body, which can cause rough idling and poor performance.
• EVAP System Leak Detection: Identifying leaks in the evaporative emission control system, crucial for passing emissions tests.
• Exhaust Leak Detection: Locating leaks in the exhaust system before the catalytic converter, which can affect emissions and sound.

5. Compression Testers

A compression tester measures the pressure built up inside each cylinder of an internal combustion engine during the compression stroke. This is a vital test for assessing the mechanical health of the engine.

What They Measure/Diagnose:

• The condition of piston rings, valves, and cylinder head gaskets.
• Low compression in one or more cylinders can indicate worn rings, leaking valves, or a blown head gasket, leading to power loss and poor fuel economy.

6. Fluid Analysis Kits

While not strictly electronic devices, fluid analysis kits are diagnostic tools that help assess the condition of vital vehicle fluids like engine oil, transmission fluid, and coolant.

What They Measure/Diagnose:

• Oil Analysis: Can detect wear metals (indicating internal engine wear), contamination (fuel, coolant), and fluid degradation.
• Coolant Analysis: Checks for proper antifreeze concentration, pH, and the presence of contaminants like oil or exhaust gases.

7. Tyre Diagnostic Equipment

Beyond simple pressure gauges, specialised equipment helps assess tyre health more comprehensively.

Types:

• Tyre Tread Depth Gauges: Measure the remaining tread depth, critical for safety and legal compliance.
• Tyre Pressure Monitoring System (TPMS) Tools: Used to diagnose TPMS faults, reset sensors after tyre changes, and programme new sensors.

Table: Common Automotive Diagnostic Tools and Their Primary Function

Frequently Asked Questions (FAQ)

Q1: What is the most important automotive diagnostic tool?

A1: For modern vehicles, an OBD-II scanner is arguably the most important starting point for diagnostics. It provides direct insight into what the vehicle's computer is detecting as a fault.

Q2: Can I diagnose most car problems with just a multimeter?

A2: A multimeter is essential for electrical diagnostics, but it won't tell you about engine timing, fuel mixture, or transmission logic. You'll often need an OBD scanner in conjunction with a multimeter for comprehensive diagnosis.

Q3: How often should I check my tyre pressure?

A3: It's recommended to check your tyre pressure at least once a month and before long journeys. Temperature changes can significantly affect tyre pressure.

Q4: What does a "P0300" code mean?

A4: A P0300 code typically indicates a "Random/Multiple Cylinder Misfire Detected." This suggests a problem affecting multiple cylinders, which could be due to fuel delivery issues, ignition problems, or vacuum leaks.

Q5: Are expensive diagnostic tools always better?

A5: Not necessarily. While professional tools offer more advanced features, a good quality OBD-II scanner and multimeter can handle the vast majority of common diagnostic tasks for most vehicles. The best tool depends on your specific needs and the complexity of the vehicles you work on.

Conclusion

The landscape of automotive diagnostics has been revolutionised by the development and widespread availability of specialised tools. From the fundamental OBD scanners that interpret a vehicle's internal computer language to the precise electrical testers and pressure gauges that verify physical parameters, these devices empower mechanics and owners to maintain vehicles effectively. Understanding the different types of diagnostic equipment, their functions, and how to use them is key to efficient troubleshooting, preventing costly repairs, and ensuring the longevity and safety of your vehicle. As automotive technology continues to advance, so too will the diagnostic tools required to service it, making continuous learning and investment in the right equipment a necessity for anyone serious about car care.
