FK8 Civic Type R Brake Upgrades: A Deep Dive

The Honda Civic Type R FK8 is, without a doubt, a phenomenal machine straight from the factory. Its turbocharged engine, advanced suspension, and aerodynamic wizardry make it a formidable hot hatch. Equipped with a robust braking system as standard, featuring Brembo 4-piston calipers gripping 350mm ventilated discs at the front, many owners might wonder if upgrading the brakes is truly necessary. While the stock setup is more than adequate for spirited road driving and occasional track use, pushing the car to its limits, especially on track days, can reveal the system's inherent limitations. This article delves into why you might consider upgrading your FK8's brakes, what options are available, and how to choose the right setup for your driving needs.

Why Consider a Brake Upgrade for Your FK8?

Even with its impressive factory brakes, there are compelling reasons why an FK8 owner might look to enhance their braking system. The primary motivator for most is performance under extreme conditions.

• Track Day Performance: The most common reason. On a circuit, repeated hard braking generates immense heat. While the stock Brembos are good, they can eventually suffer from fade – a reduction in braking efficiency due to overheating of pads, fluid, or discs. Upgraded components can manage this heat more effectively, providing consistent, reliable stopping power lap after lap.
• Increased Power Output: If you've tuned your FK8 for more horsepower and torque, the increased speed and acceleration put greater demands on the braking system. More power often necessitates more stopping power to maintain balance and safety.
• Improved Pedal Feel and Modulation: Some drivers desire a firmer, more responsive brake pedal, allowing for finer control over braking force. Upgrades can significantly enhance pedal feel and modulation.
• Longevity and Durability: Performance brake components are often designed to withstand more abuse, leading to longer life under demanding conditions compared to standard parts.
• Aesthetics: Let's be honest, a set of high-performance calipers and larger discs can look incredibly purposeful behind your wheels, adding to the aggressive aesthetic of the Type R.

Understanding the FK8's Stock Braking System

It's important to appreciate what the FK8 comes with. At the front, you have 4-piston Brembo calipers clamping onto 350mm vented discs. The rear typically features single-piston calipers with 305mm solid discs. This setup is a significant step up from many other hot hatches and is designed for high-performance road use. However, the weakest links often emerge under sustained high-temperature conditions:

• Brake Pads: OEM pads are a compromise between performance, noise, dust, and longevity. They work well on the road but can quickly overheat and lose effectiveness on track.
• Brake Fluid: Standard DOT 4 fluid has a lower boiling point compared to performance fluids, making it susceptible to boiling under extreme heat, leading to a spongy pedal.
• Discs: While large, the OEM discs can struggle with heat dissipation during prolonged track sessions, contributing to fade and potential warping over time.

Levels of Brake Upgrades

Brake upgrades for the FK8 can range from simple, cost-effective swaps to comprehensive, high-performance systems. It's crucial to match the upgrade level to your driving style and intended use.

Level 1: Pads, Fluid & Lines – The Essential First Step

This is often the most impactful and cost-effective upgrade for drivers experiencing initial fade on track. It addresses the primary culprits of heat-related issues.

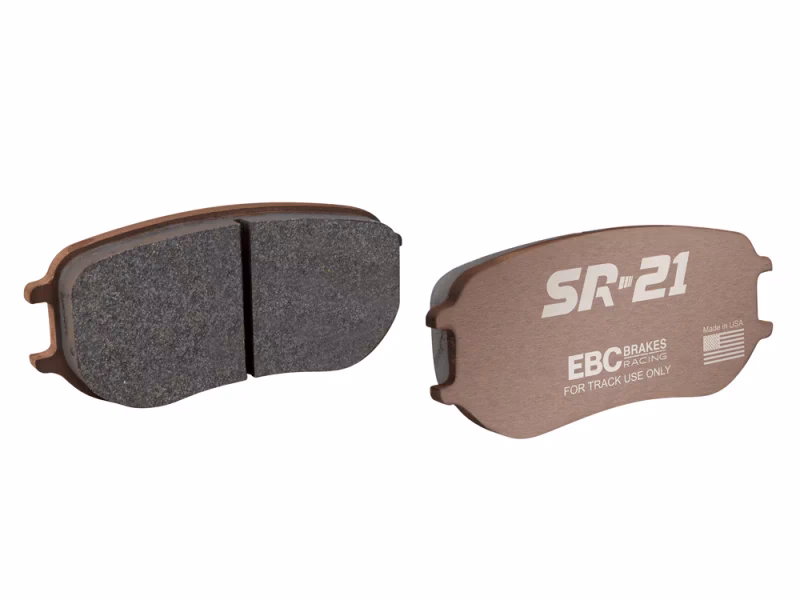

• Performance Brake Pads: Swapping out the OEM pads for performance-oriented ones is usually the first port of call. These come in various compounds:
• Street Performance Pads: Offer better initial bite and higher temperature resistance than OEM, with minimal increase in noise or dust. Ideal for spirited road driving and occasional light track use.
• Track Day Pads: Designed for higher operating temperatures, providing superior bite and fade resistance on track. They often generate more dust and noise, and may require some heat to work optimally, making them less ideal for daily street driving.
• Full Race Pads: Extreme temperature resistance and aggressive bite. Not suitable for road use due to poor cold performance, high noise, and extreme wear on discs.
• High-Performance Brake Fluid: Upgrading to a DOT 5.1 or a dedicated racing fluid (often DOT 4 based but with much higher dry and wet boiling points) is critical. This prevents the fluid from boiling under extreme heat, which causes a spongy pedal and loss of braking. Remember to flush your system thoroughly.
• Stainless Steel Braided Brake Lines: OEM rubber lines can expand under pressure, leading to a slightly spongy pedal feel. Stainless steel braided lines resist this expansion, providing a firmer, more consistent pedal feel and improved responsiveness. They don't increase stopping power but enhance the driver's connection to the brakes.

Level 2: Disc Upgrades – Enhancing Heat Management

Once pads and fluid are sorted, discs are the next logical step, especially if you're still experiencing heat issues or warping.

• Grooved/Drilled Discs: While visually appealing, drilled discs can be prone to cracking under extreme track use. Grooved (slotted) discs are generally preferred for performance, as they help to de-gas the pad surface and sweep away debris, maintaining consistent bite. They typically offer better heat dissipation than plain discs.
• Two-Piece Discs: These are a significant upgrade. They consist of a cast iron rotor ring bolted to an aluminium hub (bell).
• Benefits: Reduced unsprung weight (improving handling and ride quality), better heat dissipation (as the aluminium bell acts as a heat sink), and lower replacement costs (you only replace the outer ring when worn). They often feature a 'floating' design allowing the rotor to expand and contract freely, reducing stress and warping.
• Size: Two-piece discs can often be found in OEM sizes (350mm) or slightly larger, designed to work with the stock Brembo calipers.

Level 3: Big Brake Kits (BBK) – The Ultimate Upgrade

For those who demand the absolute maximum from their braking system, a full Big Brake Kit is the answer. This is typically for dedicated track cars or highly tuned FK8s.

• Components: A BBK replaces the entire front braking system (and sometimes the rear) with larger, multi-piston calipers (e.g., 6-piston), significantly larger and thicker two-piece discs (e.g., 365mm, 380mm), and high-performance brake pads designed specifically for the kit.
• Benefits: Dramatically increased thermal capacity, superior stopping power, exceptional fade resistance, and often improved pedal feel due to stiffer calipers and larger pad area.
• Considerations:
• Cost: BBKs are a substantial investment.
• Wheel Clearance: Larger calipers and discs often require specific wheel designs or spacers to clear. Always check compatibility.
• Unsprung Weight: While some BBKs can be lighter than stock due to advanced materials and design, others might increase unsprung weight depending on the specific kit. Research carefully.
• Brake Bias: It's crucial that a BBK maintains or improves the car's brake bias (the front-to-rear distribution of braking force). A reputable manufacturer will design their kit to integrate properly with the FK8's ABS and EBD systems.

Key Considerations Before Upgrading

Before you commit to any brake upgrade, ask yourself these questions:

• What is my primary driving use? Daily driver, spirited road car, occasional track days, dedicated track machine? This will dictate the level of upgrade needed.
• What is my budget? Brake upgrades can range from a few hundred pounds for pads and fluid to several thousands for a full BBK.
• Do my wheels clear the new components? Essential for BBKs.
• Am I prepared for potential downsides? Performance pads can be noisy and dusty, especially when cold. More aggressive setups require more frequent maintenance.
• Who will install them? While some upgrades are DIY-friendly, others, especially BBKs, should be installed by experienced professionals to ensure safety and proper function.

Brake Upgrade Comparison Table

This table provides a general comparison of different brake upgrade stages for the FK8 Civic Type R. Costs are approximate and can vary widely.

Frequently Asked Questions (FAQs)

Is a Big Brake Kit (BBK) necessary for street driving on an FK8?

Generally, no. The stock FK8 braking system, especially with upgraded pads and fluid, is more than sufficient for spirited road driving. A BBK offers performance benefits that are truly realised only under sustained, heavy braking on a race track. For street use, a BBK can be overkill, potentially leading to increased noise, dust, and higher running costs without significant real-world benefit.

Will upgrading my brakes void my warranty?

It depends on the specific warranty terms and the dealership. Minor upgrades like pads and fluid are generally less likely to cause issues. However, significant modifications like a full Big Brake Kit could potentially be cited by a dealership if a brake-related warranty claim arises. It's always best to check with your dealership beforehand.

How often should brake fluid be changed in an FK8, especially with performance fluid?

For standard road use, Honda typically recommends changing brake fluid every 2-3 years. If you've upgraded to a high-performance or racing fluid and regularly track your car, it's advisable to change the fluid much more frequently – often before or after every few track days, or at least annually. High-performance fluids absorb moisture over time, which lowers their boiling point.

What's the difference between drilled and grooved (slotted) brake discs? Which is better?

Drilled discs have holes drilled through the rotor surface. They look aggressive and can help dissipate heat and gasses. However, the holes can be stress points, making them prone to cracking under extreme track use. Grooved (slotted) discs have channels cut into the rotor surface. These grooves effectively sweep away gasses and debris from the pad face, maintaining consistent bite and reducing brake fade, often with better structural integrity than drilled discs for sustained track use. For pure performance and durability on track, grooved discs are generally preferred over drilled.

Can I just upgrade brake pads without changing the fluid?

While you can, it's not recommended if you're aiming for improved track performance. Performance pads generate more heat, and if your brake fluid's boiling point isn't high enough, it will still boil and cause a spongy pedal, negating some of the pad upgrade's benefits. For optimal performance and safety, always upgrade fluid when moving to more aggressive pads for track use.

What are the signs of brake fade?

Brake fade manifests as a noticeable reduction in braking effectiveness. Common signs include a spongy or soft brake pedal that goes further to the floor, a need to press the pedal harder to achieve the same braking force, and an acrid smell from the brakes. If you experience these symptoms, it's crucial to cool your brakes down immediately by driving gently without heavy braking or pulling over to let them cool.

Conclusion

The FK8 Civic Type R is a truly capable car, and its stock braking system is a strong foundation. However, for those who push their cars to the limit on track or demand the absolute best in stopping power and consistency, brake upgrades are a worthwhile investment. Start with the basics: high-performance pads, fluid, and braided lines will provide a significant improvement for most enthusiasts. Progress to two-piece discs for better heat management and reduced unsprung weight. Only consider a full Big Brake Kit if you're a dedicated track enthusiast or have heavily modified your FK8 for extreme performance. Always match your upgrades to your specific driving needs, ensuring safety, performance, and enjoyment from your incredible machine.
