VW Type 1 Engines: From Classic to Custom Power

The Volkswagen Type 1, affectionately known globally as the Beetle or Bug, holds a special place in automotive history, largely due to its distinctive and incredibly robust engine. This article delves into the specifics of the original VW Type 1 engine and then explores the exciting possibilities of upgrading its performance through specialised engine rebuild kits, allowing enthusiasts to tailor their classic rides for everything from daily driving to competitive racing.

The Heart of the Beetle: The Original VW Type 1 Engine

At the core of many beloved classic Volkswagens, including the iconic Beetle, lies a masterpiece of engineering: the original VW Type 1 engine. Specifically, many models were equipped with a 1493cc unit, a powerhouse that delivered a respectable 44bhp at 4,000rpm. This particular engine is widely celebrated as one of the finest air-cooled engines ever produced by Volkswagen, earning its reputation for exceptional strength, unwavering reliability, and consistent power delivery across the entire rev range. Its distinctive twin air intakes on the oil bath air cleaner are a visual cue to its identity.

The air-cooled design, a hallmark of early VW engineering, eschewed the complexities of a liquid cooling system, relying instead on a fan to push air over cooling fins on the cylinders and heads. This design contributed significantly to the engine's simplicity, light weight, and legendary durability, making it incredibly resilient in various climates and conditions. While perhaps not delivering blistering horsepower by modern standards, its robust nature and ease of maintenance made it an ideal choice for millions of motorists worldwide, ensuring that these vehicles could be kept running with minimal fuss for decades.

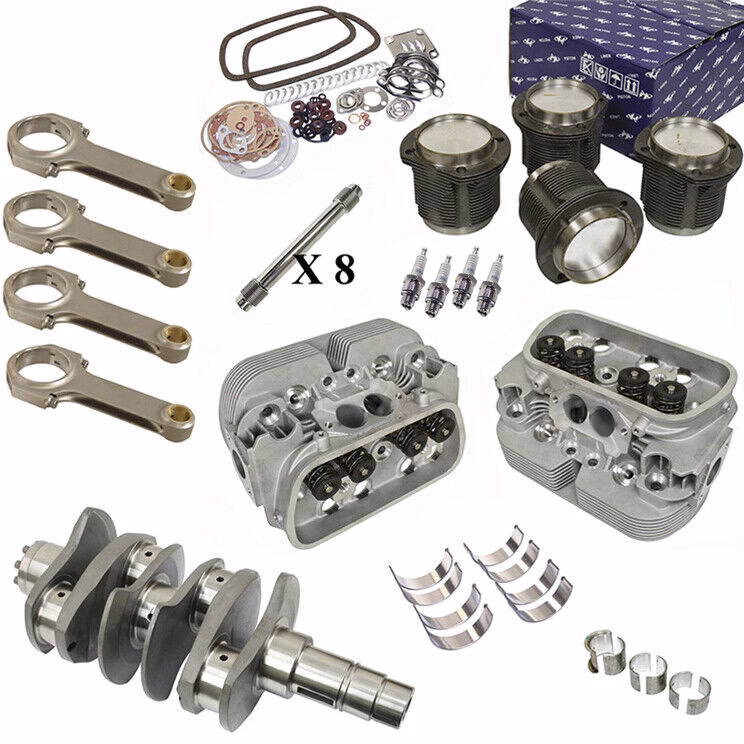

Unleashing Potential: What is a Performance Engine Kit?

For enthusiasts looking to inject new life and significantly more power into their classic VW Type 1, a performance engine kit offers an ingenious solution. Unlike simply replacing worn components with standard parts, a performance kit provides a curated collection of upgraded internals designed to increase displacement, improve efficiency, and ultimately boost power output. These kits transform the humble air-cooled engine into a true performance unit, capable of meeting the demands of modern driving, whether it's for spirited weekend cruises, off-road adventures, or even drag strip dominance.

These kits are typically comprehensive, addressing key areas such as the crankshaft, connecting rods, pistons, and cylinders. The beauty of a well-designed performance kit lies in its ability to offer a significant leap in performance with a carefully matched set of components, often requiring minimal machine work for certain configurations. This makes the dream of a more powerful classic VW accessible to a wider range of builders, from experienced mechanics to passionate DIY enthusiasts.

Deep Dive: The VW Type 1 Performance Rebuild Engine Kit

Our standard Performance engine kit is meticulously designed to provide a straightforward path to building a high-performance engine tailored to your specific needs. This versatile kit allows for a remarkable range of engine sizes, from a practical 1600cc all the way up to a formidable 2275cc. Each kit is thoughtfully assembled with the necessary parts, prioritising minimal machine work while offering maximum options for customisation.

It's important to note that main bearings are not included in the kit due to the various line bore sizes encountered in different engine cases; these should be selected separately to match your specific requirements. The core of this kit features several high-quality, durable components engineered for enhanced performance and longevity:

• New Chromoly 4140 Counter weighted Crankshaft: This is the backbone of your engine's rotational assembly. Chromoly 4140 steel is renowned for its strength and resistance to fatigue, making it ideal for increased power. The counter-weighting helps to balance the rotating assembly, reducing vibrations and improving engine smoothness at higher RPMs.
• New Chromoly I Beam Rods 5.4" Length: Connecting the pistons to the crankshaft, these I-beam rods, made from strong Chromoly steel, are designed to withstand the increased stresses of a performance engine. Their 5.4-inch length is a common choice for various stroker applications.
• New Lightweight Flywheel: A lighter flywheel reduces the rotational inertia of the engine, allowing it to rev up more quickly and freely. This translates to a more responsive throttle feel, particularly beneficial for performance driving.
• AA Hypereutectic Piston & Cylinder kit: Hypereutectic pistons are cast with a higher silicon content, making them stronger and more resistant to thermal expansion than standard cast pistons. Paired with precision-machined cylinders, this kit ensures optimal compression and sealing for increased power and efficiency.
• Chromoly 36mm Gland Nut with H.D. Washer: This robust gland nut secures the flywheel to the crankshaft, a critical connection in any engine, especially one producing more power. The Chromoly material and heavy-duty washer provide superior clamping force and durability.
• High Quality Rod Bearings: Essential for the smooth operation and longevity of the connecting rods, these high-quality bearings are designed to withstand increased loads and temperatures associated with performance engines.
• High Quality Cam Bearing Set: Supporting the camshaft, these bearings ensure proper lubrication and smooth rotation, crucial for precise valve timing and overall engine health.
• High Quality Complete Gasket set with Red Silicone Main Seal: A comprehensive gasket set ensures all engine seals are tight, preventing leaks and maintaining proper compression. The red silicone main seal offers superior sealing properties and durability compared to standard seals.

Tailoring Your Power: Engine Sizes and Machine Work Requirements

One of the key considerations when embarking on a performance engine build is understanding the necessary machine work, which varies significantly depending on your desired engine displacement. The beauty of these kits is their adaptability, allowing for a spectrum of power outputs.

No Machine Work Required

For those seeking a modest yet noticeable upgrade without delving into extensive engine machining, certain configurations can be achieved directly. Engine sizes such as 1600cc, 1641cc, and 1688cc typically fall into this category. This means you can often assemble these larger displacements using the kit components with your existing engine case and heads, provided they are in good condition and within original specifications. This is an excellent option for a first-time builder or someone looking for a straightforward power bump for their daily driver.

Machine Work Required * (Case and Heads)

Stepping up in displacement often necessitates some precise machining. For engine sizes including 1776cc, 1835cc, 1915cc, 1904cc, 1968cc, and 2054cc, both your engine case and cylinder heads will need to be opened to the appropriate bore size. ‘Opening’ refers to the process of precisely machining the bore of the case and heads to accommodate the larger diameter pistons and cylinders supplied in the kit. This ensures a perfect fit and seal, which is crucial for maintaining compression and preventing oil leaks. This level of machine work requires specialist equipment and expertise.

Machine Work Required ** (Case, Heads, and Stroker Clearance)

For the truly ambitious builds, aiming for maximum power and displacement, more extensive machine work is required. Engine sizes such as 1955cc, 2020cc, 2109cc, 2006cc, 2073cc, 2164cc, 2058cc, 2126cc, 2220cc, 2110cc, 2180cc, and 2275cc fall into this category. Not only will the case and heads need to be opened to the appropriate bore size, but the engine case will also need to be ‘stroker clearanced’ for the larger crankshaft. Stroker clearancing involves machining away material from the inside of the engine case to provide adequate clearance for the increased swing of a longer-stroke crankshaft and the connecting rods. Without this crucial step, the crankshaft or rods would foul the case, leading to catastrophic engine failure. This level of machining is complex and must be performed with utmost precision.

Beyond the Basics: Performance Engine Upgrades

Beyond the core kit, several optional upgrades can further enhance your engine's performance, reliability, and longevity:

• EK 002 003CR: Upgrade the 4140 Crank to a 4340 Crank: For builds demanding the absolute maximum in strength and durability, upgrading from a 4140 Chromoly crank to a 4340 Chromoly crank is highly recommended. 4340 steel offers superior tensile strength and fatigue resistance, making it ideal for high-RPM and high-performance applications. This upgrade is typically available with 74mm, 78mm, 80mm, and 82mm cranks.
• EK 002 420 XXB: Add New Set of Dual Port Performance Heads 40x35.5 with Stainless Steel Push-rod Tubes: The cylinder heads are critical for airflow and combustion efficiency. Upgrading to performance dual-port heads with larger 40mm intake and 35.5mm exhaust valves significantly improves the engine's breathing capabilities, leading to more power. The stainless steel push-rod tubes offer enhanced durability and resistance to corrosion. These heads are available for 85.5mm, 92mm, or 94mm bore sizes.
• EK 002 88KL, EK 002 92KL, EK 002 92ML: Upgrade Liners to Thick-Wall Liners: For certain bore sizes, upgrading to thick-wall liners (88K, 92K, 92M) provides greater cylinder stability and strength, particularly important in high-output engines. For example, the 88K Liner is designed for 92mm bore heads and 85.5mm bore cases, while the 92K and 92M Liners are for 94mm bore heads and 92mm or 94mm bore cases respectively. These thicker liners help prevent cylinder distortion under extreme conditions.

Choosing the Right Combo: Daily Driver, Weekend Warrior, or Racer?

When selecting your engine kit and potential upgrades, it's crucial to consider how you plan to use your vehicle. Is it a reliable daily driver, a spirited weekend warrior, a dedicated drag-racing machine, or an off-road beast? Your intended use will dictate the ideal combination of components and the level of machine work required.

• Daily Driver: For reliability and good street manners, a 1641cc or 1776cc build with minimal machine work might be perfect, offering a noticeable power boost without sacrificing fuel economy or requiring excessive maintenance.
• Weekend Warrior/Fast Street: Engines in the 1904cc to 2054cc range, perhaps with upgraded heads, strike a great balance between streetability and exciting performance, ideal for spirited driving and occasional track days.
• Drag Racing/Off-Roading: For maximum customisation and extreme power, larger displacements like 2164cc or 2275cc with all the available upgrades (4340 crank, performance heads, thick-wall liners) are necessary to withstand the immense stresses of competition.

Don't hesitate to consult with experts who can guide you to the best possible combination to match your specific needs and driving style.

Your Trusted Partner: Aircooled Hut UK

When it comes to sourcing quality parts and expert advice for your VW air-cooled engine project, finding a reliable specialist is paramount. Aircooled Hut UK, based in Mansfield, United Kingdom, stands as a dedicated home for everything VW air-cooled. They specialise in precision-built air-cooled engines, high-quality engine parts, and performance upgrades designed to ensure your classic Volkswagen runs at its absolute best for years to come.

Whether you're in search of performance air-cooled engine upgrades, rare replacement parts, or long-lasting maintenance solutions, Aircooled Hut UK prides itself on delivering quality and expertise you can trust. Their passion for classic VW engineering means they stock only the best products, from complete engine builds to the smallest performance components, making them an ideal partner for your next restoration or project. They proudly serve both local enthusiasts and VW owners nationwide, ensuring that expert service and top-tier products are accessible across the UK.

Comparative Table: Original vs. Performance Engine Kit Features

Frequently Asked Questions (FAQs)

What makes the original VW Type 1 engine so reliable?

The original VW Type 1 engine's reliability stems from its simple, robust design. Being air-cooled eliminates the need for a complex water pump, radiator, and hoses, reducing potential failure points. Its flat-four "boxer" configuration provides inherent balance, leading to less vibration and wear. Additionally, Volkswagen engineered these engines with generous tolerances and high-quality materials for their era, ensuring they could withstand long periods of operation under various conditions. Regular oil changes and valve adjustments are often all that's needed to keep them running for hundreds of thousands of miles.

Is a performance engine kit suitable for a beginner?

While a performance engine kit can be a rewarding project, it's generally not recommended for a complete beginner with no prior engine building experience. The process involves precise measurements, careful assembly, and in many cases, professional machine work. However, if you have some mechanical aptitude, are willing to learn, and have access to detailed guides or an experienced mentor, it can be a fantastic learning experience. Starting with a "No Machine Work Required" kit (like a 1641cc) would be the most accessible entry point.

What is "stroker clearancing" and why is it needed?

Stroker clearancing is a machining process performed on the engine case to create additional space for a longer-stroke crankshaft and its connecting rods. When you increase the stroke of the crankshaft to achieve a larger engine displacement, the ends of the connecting rods and/or the counterweights of the crankshaft can foul or hit the inside walls of the engine case. Stroker clearancing involves carefully grinding away small amounts of material from specific areas within the case to ensure there's adequate clearance for the rotating assembly. Without proper stroker clearancing, the engine would seize or suffer catastrophic damage the moment it's started.

How do I choose the right engine size for my VW?

Choosing the right engine size depends entirely on your intended use for the vehicle. For a reliable daily driver that maintains good fuel economy and is easy to maintain, a 1600cc to 1776cc build is often ideal. If you're looking for spirited street performance or occasional track use, stepping up to a 1915cc or 2054cc might be more suitable. For dedicated racing, drag strips, or extreme off-roading, larger displacements like 2275cc are designed to deliver maximum power. Consider factors like your budget, the amount of machine work you're comfortable with, and the overall reliability you desire.

Are there any downsides to upgrading to a performance engine?

While performance upgrades offer significant benefits, there can be some downsides. Increased power often leads to higher fuel consumption. More aggressive engine builds might require more frequent maintenance, such as valve adjustments or oil changes, and can put greater stress on other drivetrain components like the gearbox and axles, potentially requiring upgrades there too. Additionally, the increased vibration or noise associated with some high-performance components might alter the "classic" feel of the car. It's a balance between power and practicality that each owner must weigh.

In conclusion, the VW Type 1 engine, whether in its original, dependable form or transformed into a high-performance beast with a rebuild kit, continues to be a testament to robust engineering and the enduring appeal of air-cooled motoring. With the right components and expertise, your classic Volkswagen can offer a driving experience that’s truly tailored to your desires, blending heritage with exhilarating modern power.
