Unlocking Your KX450: Twisted Development Vortex ECU

For many off-road enthusiasts and competitive riders, the quest for optimal engine performance is a continuous journey. While modern motorcycles are engineering marvels straight from the factory, there's always room for enhancement, especially when it comes to tailoring the power delivery to individual riding styles and track conditions. This pursuit often leads riders to explore aftermarket Engine Control Units (ECUs) and specialised tuning services. Among the most revered names in this high-performance niche is Twisted Development, whose expertise in optimising Vortex ECUs has become legendary. If you're looking to elevate your machine's capabilities, particularly your Kawasaki KX450, understanding the impact and cost of a Twisted Development-tuned Vortex ECU is absolutely crucial.

A Vortex ECU, a product of Vortex Ignitions, stands as a market leader in aftermarket engine management systems. It's essentially the 'brain' of your bike's engine, controlling vital functions like fuel injection and ignition timing. While Vortex ECUs are powerful in their own right, their true potential is unlocked through expert custom mapping. This is where Jamie Ellis of Twisted Development comes into play. His company has carved out an unrivalled reputation for developing bespoke maps that dramatically transform a bike's performance, making these tuned Vortex ECUs a hot commodity among riders seeking a competitive edge.

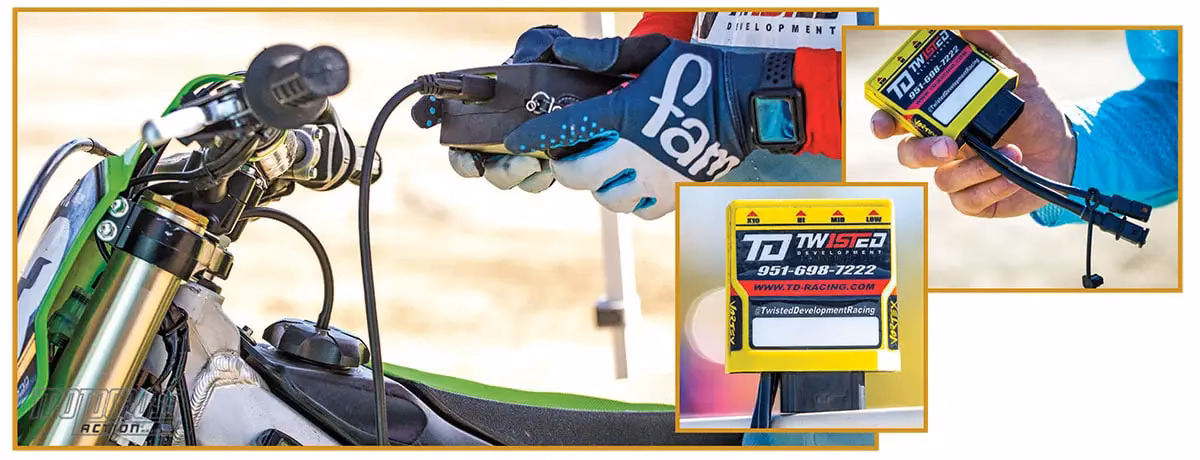

The Cost of Unleashed Power: Twisted Development Vortex ECU Pricing

Investing in a Twisted Development-tuned Vortex ECU is a commitment to superior performance, and the pricing reflects the advanced technology and expert customisation involved. Here’s a breakdown of what you can expect:

• New Vortex X10 ECU plus Custom Mapping: £1059.99
• Re-map an existing Vortex ECU: £400.00

The initial cost of £1059.99 secures you a brand-new Vortex X10 ECU, pre-loaded with ten of Twisted Development’s custom-programmed maps. These maps are meticulously crafted based on your specific bike setup and riding needs, ensuring a truly personalised performance upgrade. Should you already own a Vortex ECU, Twisted Development offers a re-mapping service for £400.00, allowing you to update your unit with their latest, optimised maps.

Transforming the Kawasaki KX450: A Case Study

The 2024–2025 Kawasaki KX450 presents an interesting scenario for performance tuning. Unlike its 2019–2023 predecessors, which were praised for their sharp throttle response, the newer KX450, despite respectable dyno numbers (58.01 horsepower), has been described by riders as feeling mellow and lacking excitement on the track. Many have likened its on-track feel to a Japanese 350. Furthermore, while Kawasaki introduced its Rideology smartphone app for map adjustments, the parameters available are quite limited, making it challenging to achieve significant performance gains through the app alone.

This is precisely where the Vortex X10 ECU tuned by Twisted Development shines. It's designed to overcome these factory limitations and unleash the KX450's true potential. Our test riders reported a profound transformation, with one exclaiming, “Well, third gear is back in the party.” This statement highlights a common issue with the stock KX450: its struggle to pull third gear effectively out of corners due to a relatively long second gear. With the Vortex ECU, third gear becomes readily available in corners, even with the stock gearing. We did, however, find that adding one tooth to the rear sprocket (making it a 51-tooth) further eased the use of third gear in these crucial sections.

The Science of Vortex Tuning: Precision at Your Fingertips

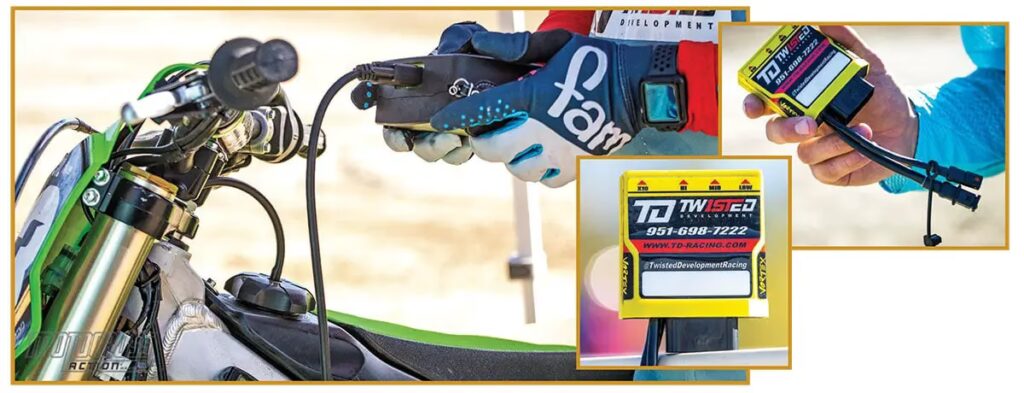

The Vortex X10 ECU offers an extensive array of parameters, allowing for incredibly precise fine-tuning of both fuel and ignition timing. The unit’s X10 dial provides access to ten different pre-loaded maps, giving riders options for various conditions or preferences. Beyond this, the ECU features 'Lo', 'Mid', and 'Hi' fuel trim adjusters. These clickers allow for minute modifications to the fuel supplied to the engine via the EFI system, adding or subtracting 2.5 percent of fuel per click.

• Lo Adjuster: Functions similarly to a pilot jet on a carburettor, fine-tuning throttle character from 5 to 25 percent.
• Mid Adjuster: Comparable to a needle jet, adjusting fuel delivery between 33 and 66 percent throttle.
• Hi Adjuster: Acts like a main jet, controlling fuel at 75 to 100 percent throttle.

These granular adjustments enable riders and tuners to dial in the perfect fuel delivery. For instance, with the stock exhaust on our KX450, we initially leaned the Vortex out to 'two' across all ranges. However, upon installing a Pro Circuit Ti-6 exhaust system, we enriched the fuel to 'four' across the board to match the new exhaust’s flow characteristics. It's highly recommended to specify your chosen exhaust system when ordering your Vortex ECU from Twisted Development to ensure the maps are optimally tailored from the outset.

On-Track Performance: A Revelation

The impact of the Twisted Development-tuned Vortex ECU on the KX450's performance was most noticeable right off the crack of the throttle and through the bottom end. Overall, it delivered a remarkable 20-percent more power. When combined with the Pro Circuit exhaust, the KX450's engine character transformed, drawing comparisons to the refined yet potent power delivery of a stock KTM 450SXF. The bike remained easy to ride, delivering robust power without feeling overwhelming or prone to ripping out of the rider's hands. Furthermore, the mapping resulted in cleaner power delivery across the entire RPM range and noticeably reduced engine vibration.

Value Proposition: Why a Vortex ECU is a Smart Investment

While you can save money by having Twisted Development re-map your stock ECU, the Vortex offers significant long-term advantages. The parameters for power adjustment on a stock ECU are inherently tighter, limiting the extent of optimisation. Crucially, a Vortex ECU represents a transferable investment. In most cases, once you purchase a Vortex unit, it can be re-mapped for different models and even different manufacturers in the future, simply by paying the £400.00 re-map fee. The primary exception to this is Yamaha, which typically requires a specific Vortex model. This transferability makes the initial outlay more palatable, as you can carry your performance upgrade from bike to bike, unlike a stock ECU remap.

Compared to an aftermarket exhaust system, the Vortex ECU often boosts more power, doesn't require ongoing maintenance, and offers superior transferability. It’s an investment that pays dividends in performance and longevity.

The Minor 'Squawk'

The only minor limitation with the Vortex ECU is that you cannot change maps while actively riding. However, this is a minor inconvenience, as the stock handlebar switch will flash to indicate which map you are currently using. For example, if you're on map six, it will flash six times, providing clear feedback.

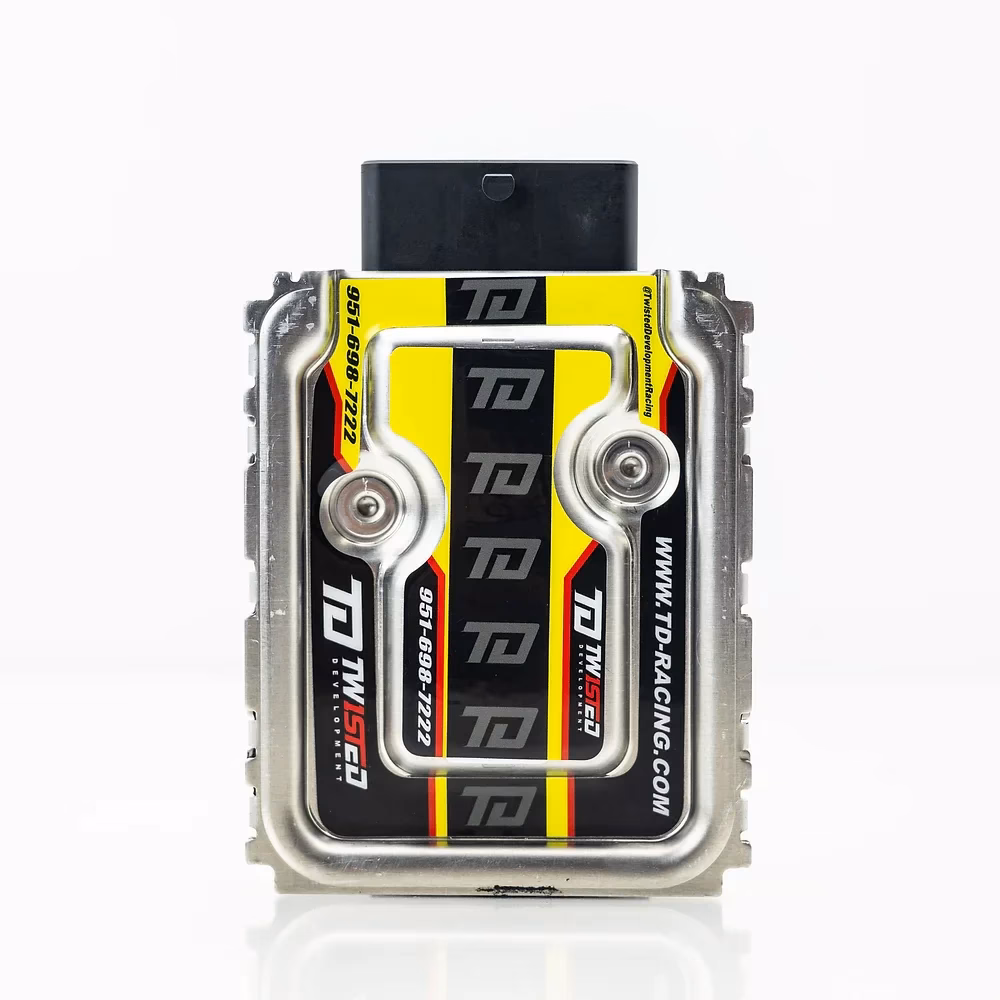

Twisted Development's Comprehensive Services

Beyond their renowned ECU tuning, Twisted Development offers a full suite of services aimed at optimising your dirt bike’s performance. They specialise in:

• Expert Dyno Tuning: Precisely measuring and adjusting engine parameters for maximum power and efficiency.
• Precise Camshaft Degreeing: Ensuring camshafts are timed perfectly for optimal valve lift and duration.
• High-Quality Cerakoting: A durable ceramic-based finish for engine components, offering protection and aesthetic enhancement.

Their dedicated team is committed to providing top-tier enhancements and customisations, ensuring your bike consistently performs at its best.

Unlocking Your Stock ECU: Remapping Services

For those looking for a more economical entry into performance tuning, Twisted Development also offers a stock ECU remapping service. This allows you to bypass factory limitations and unlock additional power by improving fuel injection performance. It's a simple yet effective upgrade that can significantly enhance your riding experience.

To utilise this service, you need to print and send the ECU form from their website along with your stock ECU. It is absolutely critical that the form accompanies the ECU, as they will be unable to reprogram your unit without it.

Compatible ECU's (NO STREET LEGAL BIKES):

• KTM SXF 16-20
• KTM SXF 2022.5-25
• KTM XCF 16-20
• KTM XCF 23-25
• HUSQ FC 16-20
• HUSQ 23-25
• CRF 250 17-24
• CRF 450 17-24
• KX 250 19-24
• KX 450 19-23

Non-Compatible ECU's:

• RMZ's (all years/models)
• YZ's (250-450, all years/models)

Please note that this service is exclusively for off-road competition bikes and does not extend to street-legal motorcycles.

Comparative Overview: Stock KX450 vs. Twisted Development Tuned KX450

To further illustrate the benefits, here’s a quick comparison:

Vortex ECU vs. Stock ECU Remap: Which is Right for You?

Frequently Asked Questions (FAQs)

Q1: Can I install the Twisted Development-tuned Vortex ECU myself?

A1: Yes, installing a Vortex ECU is generally a straightforward process that many riders can do at home with basic tools. It typically involves swapping out the stock ECU. However, for optimal performance and to take full advantage of the custom maps, understanding the fuel trim adjustments and how they interact with your bike's setup (e.g., exhaust system) is beneficial. If you're unsure, consulting with a professional mechanic or Twisted Development directly is always recommended.

Q2: Will a Twisted Development-tuned Vortex ECU void my bike's warranty?

A2: Installing an aftermarket ECU like the Vortex can potentially affect your bike's manufacturer warranty, particularly concerning engine-related components. Manufacturers often state that any non-standard modifications may void parts of the warranty. It's advisable to check your specific warranty terms or speak with your dealership if this is a concern. Many riders, however, prioritise the performance gains over warranty considerations for competition use.

Q3: How do I know which of the 10 custom maps to use?

A3: Twisted Development provides these custom maps based on your bike's setup and your specified riding needs. They will often recommend a starting map for your specific configuration (e.g., map six for the Pro Circuit exhaust mentioned earlier). Experimentation on the track in a controlled environment is key. Start with the recommended map, and then try others to see which best suits your riding style, track conditions, and personal preference for power delivery. The Lo, Mid, and Hi fuel trim adjusters allow for further fine-tuning within each map.

Q4: What if I change my exhaust system after getting my Vortex ECU tuned?

A4: If you change your exhaust system or make other significant engine modifications, it's highly recommended to adjust your Vortex ECU's fuel trim settings or consider a re-map by Twisted Development. Different exhausts have varying flow characteristics that affect air-fuel ratios. Twisted Development can provide guidance on adjusting your current maps or, for a more comprehensive solution, offer their re-mapping service to create new maps specifically tailored to your updated setup for £400.00.

Conclusion

For any serious rider looking to extract maximum performance from their KX450, the Twisted Development-tuned Vortex ECU stands out as arguably the best investment you could make. Priced at £1059.99 for a new unit with custom mapping, it delivers a transformative riding experience, boosting power, enhancing throttle response, and making the bike significantly more capable on the track. Its superiority over an aftermarket exhaust in terms of power gains, zero maintenance, and crucial transferability to future models or even different brands (for a £400.00 re-map) solidifies its value. Whether you opt for a full Vortex ECU or a stock ECU remap, Twisted Development offers the expertise to unlock your bike's true potential, ensuring you don't just ride, but dominate every twist of the throttle.
