Twin Cam Oil Change: Finding the Drain Plug

Twin Cam Oil Change: A Comprehensive Guide

The Harley-Davidson Twin Cam engine is a powerhouse, renowned for its robust performance and distinctive rumble. However, like any engine, it requires regular maintenance to ensure its longevity and optimal operation. One of the most fundamental and crucial maintenance tasks is the oil change. Many Twin Cam owners, especially those new to the platform or undertaking the task themselves for the first time, often inquire about the location of the drain plug. This article will demystify the process, focusing on the specificities of the Twin Cam engine, and provide a thorough understanding of how to effectively change your motorcycle's oil.

Locating the Twin Cam Drain Plug

Unlike many other motorcycle engines, the Harley-Davidson Twin Cam does not have a traditional drain plug at the lowest point of the engine crankcase. Instead, the oil drainage system is integrated into the oil tank. This design choice is a significant factor in how the oil is managed and changed on these V-twin engines. The oil tank is typically located on the right side of the motorcycle, often beneath the rider's seat or integrated into the frame. To drain the oil, you will need to access the drain plug on the oil tank itself. This plug is usually found at the bottom of the oil tank. It's essential to have a suitable oil drain pan ready to catch the old oil. Remember to always ensure the engine is warm before attempting to drain the oil, as this allows the oil to flow more freely, carrying away more contaminants.

The Oil Change Procedure: Step-by-Step

Changing the oil on a Twin Cam involves a few distinct steps due to its oil tank design. Here's a breakdown of the process:

1. Warm Up the Engine: Start your motorcycle and let it run for a few minutes until the engine reaches its normal operating temperature. This is crucial for effective oil drainage.
2. Locate and Prepare the Oil Tank Drain Plug: Position your drain pan beneath the oil tank. Locate the drain plug on the oil tank. It's usually a bolt that requires a specific size wrench (often 9/16" or similar).
3. Remove the Drain Plug: Carefully unscrew the drain plug. Be prepared for the hot oil to start flowing immediately. Allow the oil to drain completely. This might take several minutes.
4. Replace the Drain Plug: Once the oil has finished draining, clean the drain plug and its threads. Inspect the washer or O-ring for any damage and replace it if necessary. Screw the drain plug back into the oil tank and tighten it to the manufacturer's recommended torque specification. Overtightening can damage the threads, while undertightening can lead to leaks.
5. Remove the Oil Filter: The oil filter is typically located on the right side of the engine, often near the front cylinder. Use an oil filter wrench to remove the old filter. Be aware that some oil will likely spill out, so have your drain pan ready.
6. Prepare the New Oil Filter: Before installing the new oil filter, apply a thin film of new engine oil to the rubber gasket on the new filter. This helps to create a good seal and prevents the gasket from sticking when you remove it next time.
7. Install the New Oil Filter: Screw the new oil filter onto the engine by hand. Once the gasket makes contact with the engine casing, tighten it an additional 3/4 to one full turn by hand. Do not use an oil filter wrench to tighten it, as this can lead to overtightening and damage.

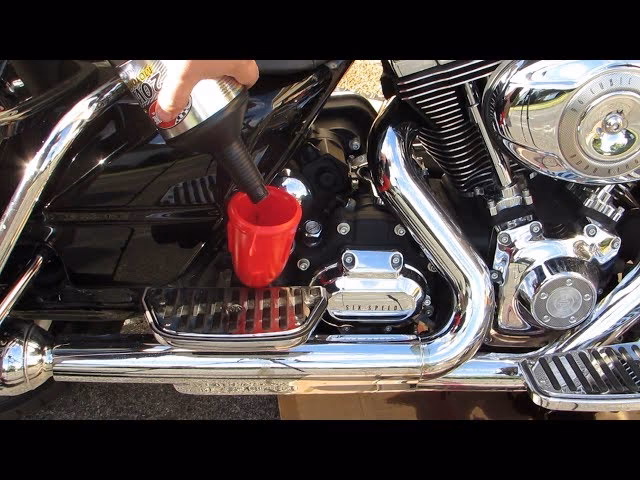

8. Add New Engine Oil: Refer to your owner's manual for the correct type and amount of engine oil. The Twin Cam typically requires a specific type of oil, often a high-quality synthetic or semi-synthetic motorcycle oil. You'll add the new oil through the oil filler cap, usually located on the right side of the engine case.
9. Check the Oil Level: Start the engine and let it run for a minute or two to circulate the new oil and fill the filter. Turn off the engine and wait a few minutes for the oil to settle back into the tank. Check the oil level using the dipstick or sight glass. Add more oil if necessary, ensuring you don't overfill.

The "Flush" Technique for Thorough Oil Changes

For those seeking an even more thorough oil change, particularly if the previous oil was neglected or a different type of oil was used, a "flush" technique can be employed. The suggestion provided is a practical approach:

Run the engine to warm the oil. Drain the oil from the tank as usual. Instead of refilling the tank to the full recommended capacity, add only about 2 quarts of new oil to the tank. Run the engine again for a few minutes. This circulates the new oil through the engine, mixing with and thinning out any remaining old oil. After this brief run, drain the oil from the tank once more. Then, proceed with the standard oil change procedure, filling the tank with the correct amount of new oil and replacing the filter. While this uses an extra 2 quarts of oil, it effectively removes a greater percentage of the old, potentially degraded oil, ensuring a cleaner system and optimal engine protection.

Important Considerations for Twin Cam Oil Changes

Here are some key points to keep in mind:

• Oil Type: Always use the oil type and viscosity recommended in your owner's manual. Using the wrong oil can lead to poor lubrication and potential engine damage.
• Oil Capacity: Ensure you add the correct amount of oil. Overfilling or underfilling can cause problems.
• Regular Intervals: Adhere to the recommended oil change intervals. Consult your owner's manual for specific mileage or time recommendations.
• Filter Quality: Use a high-quality oil filter designed specifically for your Twin Cam model. A good filter is crucial for trapping contaminants.
• Disposal: Dispose of used oil and filters responsibly. Many auto parts stores and service centres accept used oil for recycling.

Troubleshooting Common Issues

Q: My Twin Cam seems to be leaking oil. What could be the cause?
A: Leaks can often be traced to a loose drain plug, a damaged oil filter gasket, or a worn O-ring on the drain plug. Ensure all connections are secure and components are in good condition. Inspect the oil tank and surrounding areas for any signs of seepage.

Q: How often should I change the oil in my Twin Cam?
A: This depends on your riding habits and the specific model. Generally, it's recommended every 2,500 to 5,000 miles or annually, whichever comes first. Always refer to your owner's manual for the most accurate information.

Q: Can I use a different brand of oil filter?
A: While many aftermarket filters are available, it's best to stick with filters specifically designed for your Twin Cam. Using a poorly fitting or low-quality filter can compromise engine protection.

Q: Is it safe to perform an oil change myself?
A: Yes, with the right tools and by following the correct procedure, changing the oil on a Twin Cam is a manageable DIY task. Taking your time and double-checking each step is key to success.

By understanding the unique oil system of the Twin Cam engine and following these guidelines, you can confidently perform regular oil changes, ensuring your motorcycle remains a reliable and enjoyable ride for years to come. Regular maintenance is the cornerstone of motorcycle ownership.
