Ford Transit Brake Pad Replacement Guide

Worn brake pads are a common issue for any vehicle, and the Ford Transit, whether it's the robust Mk7 model (2006-2014) or the versatile Transit Custom (2012-2024), is no exception. Replacing your front brake pads is a crucial maintenance task that ensures your van stops safely and efficiently. While it might seem daunting, with the right tools and a bit of patience, you can tackle this job yourself. This guide will walk you through the process step-by-step, covering everything from identifying worn pads to resetting the brake wear indicator light.

Why Replace Your Brake Pads?

Brake pads are designed to wear down over time as they create friction to slow your vehicle. When they reach a critical thickness, they can no longer provide adequate stopping power, significantly compromising your safety and the safety of others on the road. Ignoring worn brake pads can also lead to damage to your brake discs (rotors), resulting in more expensive repairs down the line. Listen for any squealing or grinding noises when you apply the brakes, or visually inspect the pads if possible – these are clear indicators that a replacement is due.

Tools and Materials You'll Need

Before you begin, ensure you have the following tools and materials readily available:

• New front brake pads (ensure they are compatible with your specific Transit model and year)
• Jack and jack stands
• Lug wrench or socket set
• Socket wrench and appropriate-sized sockets (common sizes include 13mm, 14mm, 17mm, and 19mm, but check your specific model)
• C-clamp or brake caliper piston compressor tool
• Wire brush
• Brake cleaner
• High-temperature brake lubricant (grease)
• Torque wrench
• Gloves and safety glasses
• New brake wear sensor (if applicable to your model)

Step-by-Step Guide to Replacing Front Brake Pads

1. Prepare the Vehicle

Park your Ford Transit on a flat, level surface. Engage the parking brake firmly. If you have wheel chocks, place them behind the rear wheels for added security. Loosen the lug nuts on the front wheel you'll be working on, but do not remove them completely at this stage. This makes it easier to remove the wheel once the van is jacked up.

2. Jack Up the Van and Remove the Wheel

Locate the correct jacking point for your Transit model. Consult your owner's manual if you're unsure. Place the jack under the designated point and carefully raise the vehicle until the front wheel is off the ground. Place a sturdy jack stand under a strong point of the chassis or suspension to support the vehicle. Never rely solely on the jack. Once the vehicle is securely supported, fully remove the lug nuts and take off the front wheel.

3. Locate and Inspect the Brake Caliper

With the wheel removed, you'll see the brake caliper assembly. This is the component that houses the brake pads and squeezes them against the brake disc. You might also see a brake wear sensor plugged into one of the pads – this is what triggers the brake warning light.

4. Remove the Caliper Bolts

The brake caliper is typically held in place by two caliper bracket bolts, often located on the back of the caliper. Use your socket wrench and the appropriate socket to loosen and remove these bolts. You may need to hold the caliper bracket steady with another wrench to prevent it from spinning. Once the bolts are removed, you should be able to pivot the caliper upwards or slide it off the brake disc. If it's stuck, a gentle tap with a rubber mallet might help. Do not let the caliper hang by the brake hose; support it with a piece of wire or bungee cord.

5. Remove the Old Brake Pads

With the caliper out of the way, the old brake pads should now be accessible. They are usually held in place by clips or simply sit in the caliper bracket. Carefully slide or pry the old pads out. Note their orientation, as the new pads will need to be installed in the same way. If your Transit has a brake wear sensor, it will be attached to one of the old pads; carefully unplug it and remove the sensor.

6. Prepare the Caliper for New Pads

Before installing the new pads, you need to retract the caliper piston(s) to make room for the thicker new pads. Use a C-clamp or a brake caliper piston compressor tool to slowly and steadily push the piston back into the caliper body. As you do this, keep an eye on the brake fluid reservoir under the bonnet; if it's full, you may need to remove a small amount of fluid to prevent it from overflowing. Do not let the reservoir overflow. You may also want to clean the caliper bracket and the area where the pads sit using a wire brush and brake cleaner.

7. Install the New Brake Pads

Apply a thin layer of high-temperature brake lubricant to the back of the new brake pads where they contact the caliper piston and bracket. Also, apply a small amount to the pad mounting points (ears) to prevent future sticking. Install the new brake pads into the caliper bracket, ensuring they are seated correctly and in the same orientation as the old ones. If you removed a brake wear sensor, plug the new sensor into the new pad (if applicable) and ensure it's securely in place.

8. Reinstall the Caliper

Carefully slide the caliper back over the new brake pads and rotor. Ensure the brake hose is not twisted. Reinstall the caliper bracket bolts and tighten them to the manufacturer's specified torque. Refer to your Transit's service manual for the exact torque specifications. Over-tightening or under-tightening can lead to problems.

9. Reinstall the Wheel and Lower the Van

Place the wheel back onto the hub and thread the lug nuts on by hand. Snug them up with the lug wrench. Carefully lower the vehicle using the jack until the wheel is firmly on the ground. Now, use the torque wrench to tighten the lug nuts in a star pattern to the manufacturer's specified torque. This ensures the wheel is seated evenly.

10. Repeat for the Other Side

It is essential to replace brake pads in pairs, meaning you must replace both the left and right front brake pads simultaneously. Repeat steps 2 through 9 on the other side of the van.

11. Bed In the New Brake Pads

After replacing the pads, you need to 'bed them in'. This process helps the new pads mate correctly with the brake discs for optimal performance. Start the engine, and pump the brake pedal several times until it feels firm. This seats the caliper piston against the new pads. Drive the vehicle gently for the first few hundred miles, avoiding hard braking. If possible, perform a series of moderate stops from around 30-40 mph down to 10 mph, without coming to a complete stop. Allow the brakes to cool down between stops. This helps transfer a thin layer of pad material to the disc, creating a more uniform surface.

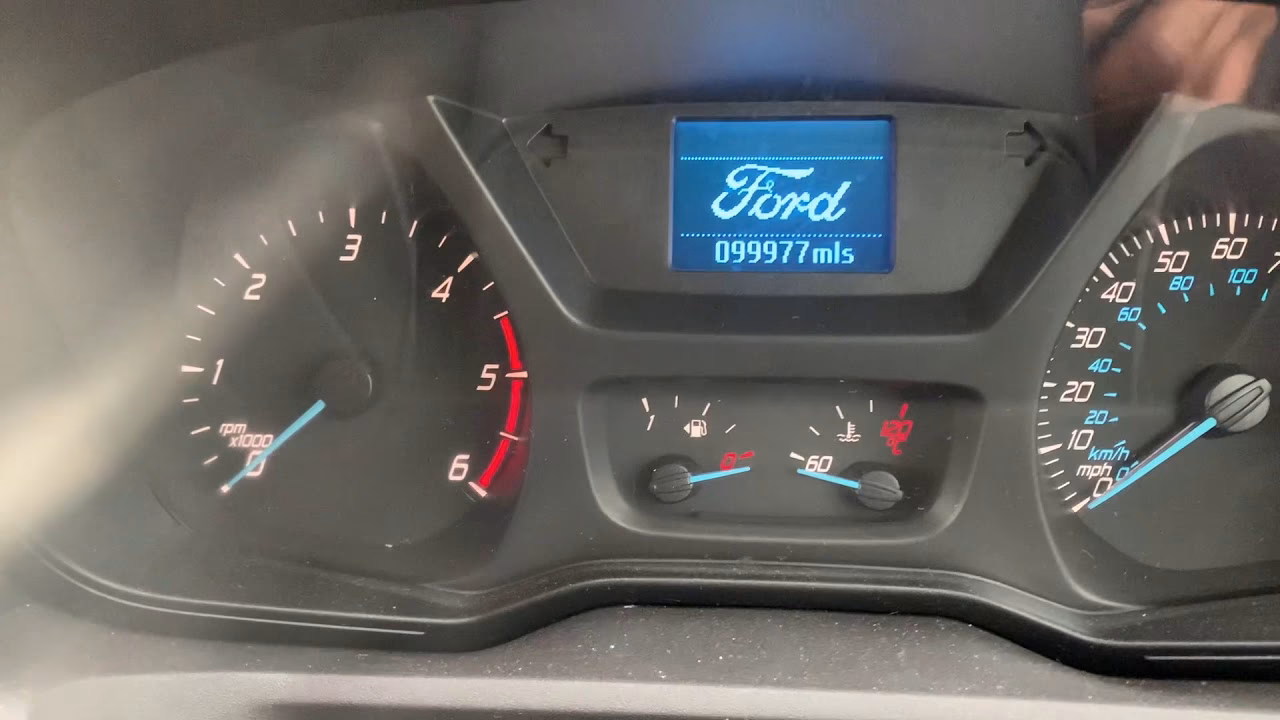

Resetting the Brake Wear Indicator Light on Ford Transit Custom

For the Ford Transit Custom (and many other modern vehicles), the brake wear indicator light on the dashboard illuminates when the brake wear sensor detects that the pads have reached a minimum thickness. To reset this light after replacing the pads, you typically need to replace the worn sensor as well. The process is as follows:

1. Replace the worn brake pads: As detailed in the steps above.
2. Replace the worn brake wear sensor: Locate the sensor on the old pad, unplug it, and remove it. Install the new sensor onto the new brake pad, ensuring it clicks into place.
3. Turn the ignition ON: With the engine off, turn the ignition key to the 'ON' position (without starting the engine).
4. Press and hold the brake pedal: Depress and hold the brake pedal down firmly for approximately 10-15 seconds.
5. Turn the ignition OFF: While still holding the brake pedal, turn the ignition key back to the 'OFF' position.
6. Release the brake pedal: Release the brake pedal.
7. Start the engine: Start the engine and check if the brake wear indicator light has gone out.

If the light remains illuminated, you may need to repeat the reset procedure or consult a professional. Some models might require a diagnostic tool to reset the service indicators.

Common Pitfalls and Tips

Don't mix pad types: Always replace pads in pairs on the same axle. Using different types of pads can affect braking performance.

Check brake fluid level: Ensure your brake fluid is at the correct level and is not contaminated. If it's low, inspect for leaks before topping up.

Inspect brake discs: While you have the wheels off, check your brake discs for excessive wear, scoring, or warping. If they are damaged, they should be replaced.

Torque is crucial: Always use a torque wrench to tighten caliper bolts and lug nuts to the manufacturer's specifications. This is vital for safety.

Listen to your brakes: Pay attention to any new noises or changes in pedal feel after the replacement. If you notice anything unusual, have them checked by a professional mechanic.

Frequently Asked Questions (FAQ)

Q: How often should I replace my Ford Transit brake pads?
A: This depends heavily on your driving style, load, and the conditions you drive in. A general guideline is every 20,000 to 50,000 miles, but regular inspection is key.

Q: Can I just replace one brake pad?
A: No, you must always replace brake pads in pairs (both front pads or both rear pads) to ensure even braking and prevent damage.

Q: My brake warning light is on, but my brakes feel fine. What should I do?
A: The brake warning light can indicate low brake fluid or a fault in the braking system, not just worn pads. Check your brake fluid level first. If it's correct, it's best to have the system inspected by a qualified mechanic.

Q: What happens if I don't replace my brake pads?
A: You risk significantly reduced braking performance, increased stopping distances, potential damage to your brake discs, and a safety hazard for yourself and others.

By following this comprehensive guide, you can confidently replace the front brake pads on your Ford Transit and ensure your van remains a safe and reliable workhorse. Regular maintenance is key to a long-lasting vehicle.
