TPI: Still a Viable Fuel Injection Option?

The world of automotive fuel delivery systems has seen significant advancements over the decades. While modern vehicles boast sophisticated electronic fuel injection (EFI) systems, many enthusiasts still hold a certain affection for older, yet capable, technologies. Among these, Tuned Port Injection (TPI) systems, particularly those found in GM vehicles from the 1980s and early 1990s, remain a topic of discussion. But in today's automotive landscape, are TPI units still a good option? This article delves into the capabilities, maintenance, and troubleshooting of TPI systems, offering insights for those considering their use.

Understanding Tuned Port Injection (TPI)

TPI is a sequential, multi-point fuel injection system. Unlike single-point injection (which essentially replaces a carburettor with a single injector or two), TPI delivers fuel individually to each cylinder's intake port. This precise delivery allows for better control over the air-fuel mixture, leading to improved performance, fuel economy, and emissions compared to carburetted systems of the same era. The 'tuned' aspect refers to the length and diameter of the intake runners, which are designed to optimise torque delivery within a specific RPM range.

The Advantages of TPI

TPI systems brought several benefits to the vehicles they were equipped with:

• Improved Fuel Economy: Compared to carburettors, TPI offers more precise fuel delivery, leading to better fuel efficiency.
• Enhanced Torque: The carefully tuned intake runners optimise airflow and fuel distribution, resulting in strong low- and mid-range torque, making vehicles feel more responsive in everyday driving.
• Better Cold Starts: Sequential injection provides a more consistent and reliable cold start compared to many carburetted systems. Some early TPI systems also featured a ninth injector for cold starts, though later systems integrated this function into the main eight injectors.
• Adaptability: TPI systems can adapt to changing atmospheric conditions like altitude, maintaining a more consistent air-fuel ratio.
• Performance Potential: While designed for a specific RPM range, TPI systems can be modified and tuned for higher performance applications, though they have inherent limitations at very high RPMs.

TPI Limitations and Considerations

Despite its advantages, TPI is not without its drawbacks, especially when compared to modern EFI systems:

• High-RPM Limitations: The TPI intake manifold, particularly its long runners, is primarily designed to maximise torque in the lower to mid-RPM range (typically up to around 5500 RPM). Beyond this, the system can become a restriction, limiting airflow and horsepower. For engines designed to rev higher, a TPI system might be a bottleneck.
• Complexity of Early Systems: Early TPI systems (especially 1985-1989 models) relied on Mass Air Flow (MAF) sensors, which are sensitive to dirt and damage. The 'burn-off' circuit in Bosch MAF sensors can also be a point of failure.
• Speed Density Transition: GM transitioned to Speed Density (MAP sensor-based) systems from 1990 onwards. While Speed Density systems can be more robust and are often preferred for their simplicity and upgradability, they infer airflow rather than measuring it directly, which can be less precise in some scenarios.
• Diagnostic Challenges: While scan tools can provide valuable diagnostic information, troubleshooting older TPI systems often requires a good understanding of the system's operation and the use of specific tools like fuel pressure gauges and multimeters.
• Availability of Parts: While many components are still available, some specific sensors or control modules might be harder to find for very early or late models.

Troubleshooting and Maintenance Essentials

Maintaining and troubleshooting a TPI system effectively requires a systematic approach and the right tools. Here are some key areas and common issues:

Fuel Pressure and Delivery

Consistent and correct fuel pressure is paramount for TPI operation. The factory specification for many TPI systems is typically between 38-42 PSI. Key checks include:

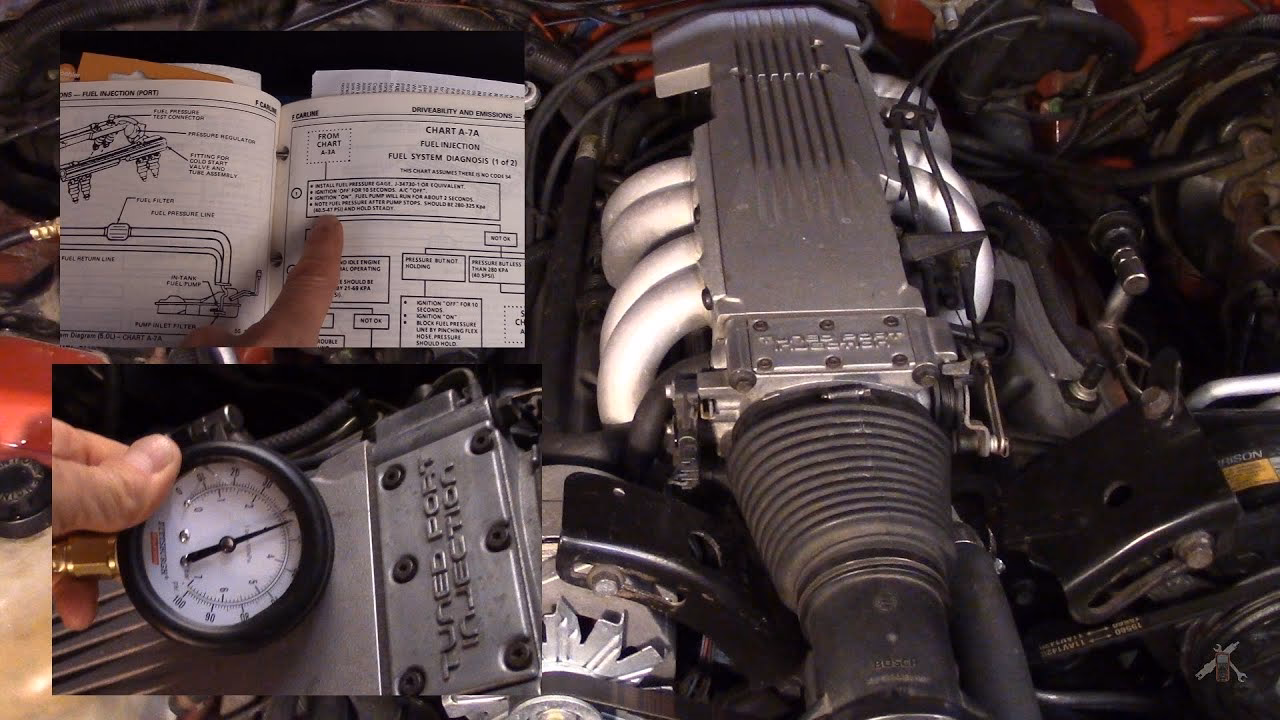

• Fuel Pressure Test: Using a fuel pressure test gauge is crucial. Connect it to the Schrader valve on the fuel rail (usually on the passenger side). Upon turning the ignition key to 'ON' (without starting the engine), the pump should prime and build pressure. It should reach at least 38-40 PSI and hold it for at least 5-10 minutes after the pump stops. A significant drop indicates a leak, likely from a faulty fuel pressure regulator or leaking injectors.
• Fuel Filter: A clogged fuel filter can restrict fuel flow and cause low fuel pressure. Regular replacement is recommended.
• Fuel Pump: An underperforming fuel pump won't maintain the required pressure.
• Fuel Pressure Regulator (FPR): The FPR maintains fuel pressure by returning excess fuel to the tank. A leaking diaphragm in the FPR can cause pressure drops or flooding. To test, block the fuel return line; pressure should increase if the FPR is faulty.
• Injectors: Leaking injectors are a common cause of pressure loss and can lead to hard starting or rough idling.

Vacuum Leaks

TPI systems are particularly sensitive to vacuum leaks, which can disrupt the carefully metered air-fuel mixture. Common leak points include:

• Intake manifold gaskets
• Vacuum hoses (e.g., to the brake booster, PCV system)
• Throttle body gaskets
• The throttle body itself

Diagnostic Tip: A common method to detect vacuum leaks is to carefully introduce unlit propane from a torch or carb cleaner around suspected areas while the engine is running. An increase in RPMs indicates a leak.

Sensors and Electronics

The Engine Control Module (ECM) relies on various sensors to manage fuel delivery and ignition timing. Key sensors include:

• Throttle Position Sensor (TPS): Crucial for determining throttle input. Incorrect voltage can lead to poor acceleration or idle issues.
• Manifold Absolute Pressure (MAP) Sensor (Speed Density): Measures intake manifold pressure.
• Mass Air Flow (MAF) Sensor (MAF systems): Measures the volume and temperature of air entering the engine. Keep these clean and ensure the electrical connector is secure.
• Oxygen (O2) Sensor: Monitors exhaust gas oxygen content to fine-tune the air-fuel mixture in closed-loop operation.
• Coolant Temperature Sensor (ECT): Informs the ECM about engine temperature, affecting fuel enrichment during warm-up.

Table: Common TPI Trouble Codes (Examples)

Torque Specifications for TPI Components

When working on TPI components, adhering to correct torque specifications is vital to prevent leaks and damage:

Table: TPI Torque Specifications

Is TPI Still a Good Option?

The answer depends heavily on your goals and the specific application.

• For Restoration and Period Correct Builds: If you are restoring a classic GM vehicle equipped with TPI or aiming for a period-correct modification, TPI is an excellent choice. It offers a significant upgrade over carburettors and maintains the authentic feel of the era.
• For Street Performance with Emphasis on Torque: TPI excels at providing strong, usable torque for street driving and cruising. Its responsiveness in the lower RPM range is a key advantage.
• For High-RPM, Max Horsepower Builds: If your primary goal is to achieve maximum horsepower at high RPMs (e.g., for drag racing or track use), TPI may become a limitation. In such cases, modern EFI systems like Holley Sniper, FiTech, or dedicated aftermarket EFI setups designed for high-flow might be more suitable. These systems often feature more advanced control and less restrictive intake designs.
• Cost-Effectiveness: Sourcing used TPI components can be relatively inexpensive, making it an attractive option for budget-conscious builds. However, the cost of rebuilding or upgrading components should be factored in.

Donor Vehicle Recommendations: For those looking to acquire TPI components, 1985-1992 F-bodies (Camaro, Firebird) and 1985-1991 Corvettes are common sources. Corvettes typically featured 350 cubic inch engines, while F-bodies offered both 305 and 350 options.

FAQs about TPI Systems

Q1: Can I use a TPI system on an engine that didn't originally have it?

A1: Yes, with the right supporting components (ECU, wiring harness, fuel system, sensors) and fabrication, a TPI system can be adapted to many engines. However, it requires a good understanding of the system's requirements.

Q2: How do I identify a 305 TPI unit versus a 350 TPI unit?

A2: Generally, 350 TPI units have larger throttle bodies and longer intake runners compared to 305 units. The injectors also differ in flow rate (e.g., 305s often used ~19.9 lb/hr, 350s ~21.9 lb/hr, LT1s ~24.9 lb/hr).

Q3: Can I upgrade my TPI system?

A3: Yes, upgrades can include larger throttle bodies, aftermarket runners, higher-flow injectors, improved fuel pumps, and tuning the ECM chip for specific engine modifications. Some also opt to convert to Speed Density for better long-term support and potential tuning advantages.

Q4: What is the 'ninth injector' and is it necessary?

A4: The ninth injector, found on some early TPI systems (approx. '85-'88), was an auxiliary injector used solely for cold starts to enrich the mixture. Later systems eliminated this, firing all eight injectors for cold starts. While not strictly necessary if using a later ECU or a well-tuned system, it was part of the original design for optimal cold starting.

Q5: How do I check for MAF sensor issues?

A5: Check for a clean MAF sensor element and a secure electrical connection. Faulty MAF sensors often trigger a Check Engine Light (CEL) with specific codes (e.g., Code 34 for low voltage on some systems). A scan tool is the best way to diagnose MAF sensor performance.

Conclusion

Tuned Port Injection systems, while dated by modern standards, remain a capable and effective fuel delivery method, particularly for vehicles where their original design intent aligns with the owner's goals. They offer a significant improvement over carburettors in terms of efficiency and drivability. However, for extreme high-RPM performance, their inherent limitations may necessitate exploring more modern EFI solutions. With proper maintenance, understanding of their operation, and a logical approach to troubleshooting, TPI systems can continue to provide reliable performance and a classic driving experience for years to come.
