TPI: The Long Runner EFI Revolution

The world of automotive performance is a constant quest for more power, better efficiency, and that elusive perfect torque curve. For decades, the choice for many enthusiasts revolved around carburetion versus early forms of fuel injection. However, one system, in particular, captured the imagination of many in the 1980s and early 1990s: Tuned Port Injection, or TPI. This electronically controlled fuel injection system, famously found in Corvettes and Camaros of the era, offered a unique approach to engine breathing, prioritising low-end torque through its distinctive long intake runners. But what exactly is TPI, and how does it stack up against more conventional induction systems, especially when it comes to pushing the boundaries of performance?

Understanding TPI: The Long Runner Philosophy

At its core, Tuned Port Injection is an electronic fuel injection system. Unlike carburettors, which mix fuel and air in a central unit before it enters the intake manifold, TPI delivers fuel directly to each cylinder's intake port via individual injectors. This precise fuel delivery, managed by an Engine Control Unit (ECU), allows for more accurate air-fuel ratios across a wider range of operating conditions, leading to improved efficiency and emissions compared to carburetted systems of the same era.

The defining characteristic of TPI, however, is its intake manifold design. The "tuned" aspect refers to the unusually long intake runners. These runners are meticulously engineered to exploit a phenomenon known as inertial supercharging. When an intake valve closes, it creates a pressure wave within the runner. The length of the runner is designed to synchronise with this wave, effectively ramming more air into the cylinder just as the intake valve opens again. This process is most effective at lower engine speeds, resulting in a significant boost in low-end torque. This design philosophy made TPI systems particularly well-suited for producing strong pulling power from a standstill, giving the impression of a larger, more powerful engine.

The Original TPI Package: Strengths and Limitations

General Motors (GM) initially developed the L98 TPI system for its mild 350 cubic inch (5.7L) small-block V8s, also finding its way into the smaller 305 (5.0L) engines. These systems were typically rated around 250 horsepower and were not primarily designed for extreme high-rpm power. The long runners, while excellent for torque, inherently create a restriction at higher engine speeds. This means that while a TPI-equipped car might feel incredibly strong off the line, the surge of power would often taper off significantly as the revs climbed.

Driving a classic TPI Camaro or Corvette often provided a unique experience: a massive surge of torque that felt like a big-block engine taking hold, followed by a rapid fall-off in acceleration as the engine approached its peak power output. This characteristic led to the common perception that TPI systems were great for street driving but limited for outright drag strip performance.

Pushing the Limits: Modifying TPI for More Power

The desire to extract more performance from existing TPI systems led to a thriving aftermarket. As demonstrated in tests, even a stock TPI system can be significantly improved with targeted modifications. For instance, upgrading to larger fuel injectors, such as 50-pounders, and employing an aftermarket engine management system like the FAST XFI allows for precise tuning to optimise the air-fuel mixture for a more powerful engine.

However, the primary bottleneck often remains the intake manifold itself. To overcome the inherent restrictions of the stock TPI manifold, modifications such as porting the lower intake manifold can yield substantial gains. Services like Extrude Hone can force abrasive media through the ports, increasing their flow rate by a significant margin. Furthermore, replacing the stock, thin-wall runners with larger, less restrictive aftermarket units, often made from materials like aluminium, can dramatically improve airflow. Complementing these changes with a ported upper plenum and a larger throttle body further enhances the system's breathing capabilities.

A Comparative Test: TPI vs. Carburetion

To illustrate the impact of induction system design, a direct comparison between a modified TPI system and a conventional carburetted setup on a more powerful engine provides valuable insight. Consider a healthy 383 cubic inch stroker engine, built with forged components, a performance camshaft (like the COMP XR288HR), and high-flowing cylinder heads (AFR 195s).

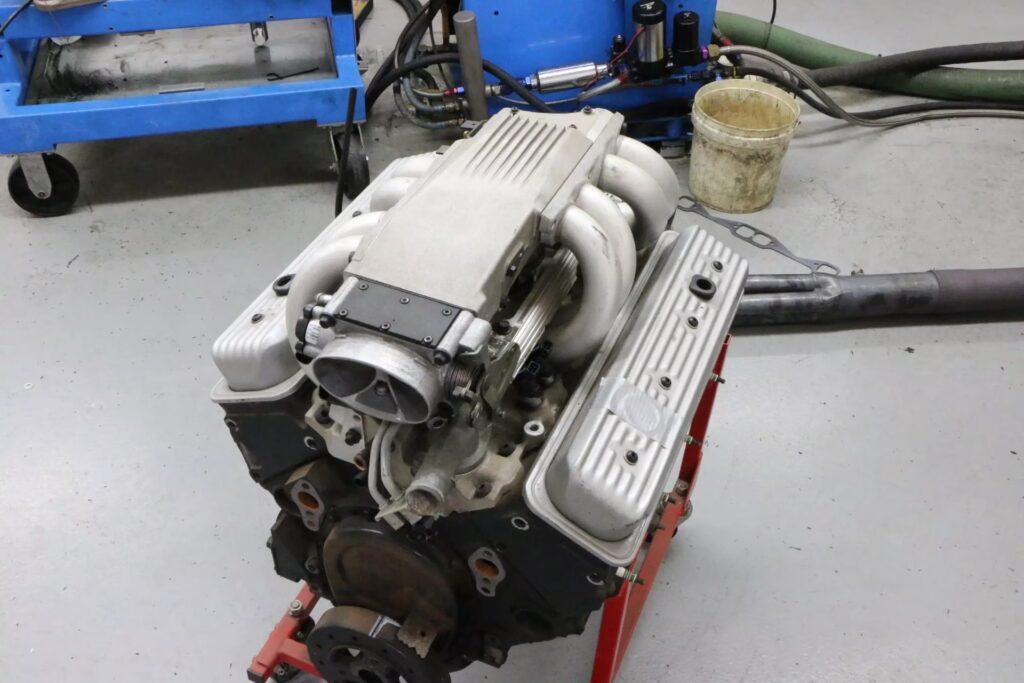

When this 383 was fitted with a stock L98 TPI system (albeit with upgraded 50lb injectors and a FAST XFI management system), it produced an impressive 501 lb-ft of torque at 3,900 rpm, showcasing the TPI's low-end grunt. However, peak horsepower was capped at 410 hp at 5,100 rpm, highlighting the runner length limitation.

Upon upgrading the TPI system with an Extrude Hone ported lower intake, TPIS big-tube runners, and a ported upper plenum with a dual 58mm throttle body, the peak numbers improved significantly. The modified TPI setup delivered 451 hp and 533 lb-ft of torque. Crucially, while the peak numbers increased, the overall shape of the torque curve remained similar, indicating that the fundamental runner length still influenced the powerband.

In contrast, when the TPI system was swapped for a conventional dual-plane intake manifold (Speedmaster Eliminator) topped with a Holley 750 HP carburetor, the results were markedly different. This carburetted setup produced a peak of 502 hp at 6,000 rpm, a substantial increase over the modified TPI. However, this peak power came at the cost of low-end torque, with the carburetted combination producing 493 lb-ft of torque, a drop of 35 lb-ft compared to the modified TPI, and significantly less torque below 4,800 rpm. This demonstrates the classic trade-off: the short runners of the dual-plane favoured top-end power, while the long runners of the TPI excelled at low-end torque.

Table: TPI vs. Carburettor Performance on a 383 Stroker

TPI Swapping and Considerations for Classic Builds

For enthusiasts looking to bring the benefits of TPI to their classic vehicles, the most straightforward method often involves sourcing a complete donor system from a compatible vehicle. This typically includes the engine, wiring harness, and ECU. While this requires careful integration to manage accessory drives, exhaust systems, and air intake configurations, it provides a complete, functioning TPI setup.

However, many opt to adapt TPI components to an existing carburetted engine. This is more labour-intensive and requires careful selection of TPI parts. It's important to note that TPI systems have variations between model years and engine displacements (305 vs. 350), so ensuring component compatibility is crucial to avoid costly mistakes. Scrounging parts from swap meets can be tempting, but the risk of missing or incompatible components is high.

Camshaft Selection for TPI

The "tuned" nature of TPI makes camshaft selection critical. Factory TPI cams typically feature around 205 degrees of intake duration with a 116-degree lobe separation angle. While it's tempting to go for aggressive cams with shorter durations and tighter lobe separation for a rougher idle, this can negatively impact TPI's performance. A good rule of thumb for TPI applications is to keep intake duration below 220 degrees at 0.050-inch lift and lobe separation angles no less than 112 degrees. Exceeding these parameters can disrupt the inertial supercharging effect and lead to poor driveability and reduced performance.

Performance camshaft manufacturers offer specific grinds designed for TPI. These are generally intended for hydraulic roller lifters. If adapting to a flat-tappet engine, ensure the chosen camshaft adheres to the aforementioned guidelines. Be cautious with solid lifter camshafts, as the increased valvetrain noise can be misinterpreted as detonation by the knock sensor, causing the ECU to retard ignition timing and hinder performance.

Beyond the Manifold: Other TPI Enhancements

Beyond the core induction system, several other components can be upgraded to further enhance TPI performance. Larger throttle bodies, with increased bore diameters or even a single larger opening, can improve airflow. Aftermarket intake runners, even those designed to work with the stock manifold, can offer improvements. For those seeking high-rpm power, aftermarket intake manifolds with shorter, larger runners are available, allowing for more aggressive camshaft profiles and a broader powerband.

The integration of TPI into a classic build also requires attention to supporting systems. This includes using an electric fuel pump capable of delivering the necessary fuel pressure and a return line for fuel recirculation. Essential sensors like an oxygen sensor, vehicle speed sensor (VSS), and knock sensor must be correctly installed and wired to the ECU. While this might sound complex, the aftermarket support and information available make it a manageable project for many enthusiasts.

The Verdict: Is TPI Still Relevant?

Tuned Port Injection, with its characteristic long runners, remains a fascinating and effective induction system for maximising low-end torque. While it may not be the optimal choice for all-out high-rpm drag racing, its ability to deliver impressive streetable torque is undeniable. The advent of aftermarket modifications, including ported manifolds, upgraded runners, and modern engine management systems, has proven that TPI can be significantly enhanced to produce more peak horsepower while retaining its low-end grunt.

For enthusiasts of classic American muscle cars, TPI offers a way to combine the benefits of electronic fuel injection with the distinctive power delivery that made these systems legendary. It’s a testament to clever engineering that, even decades later, the principles behind TPI continue to influence engine design and performance tuning.

Frequently Asked Questions (FAQ)

Q1: What is the primary advantage of TPI?
The primary advantage of TPI is its ability to generate significant low-end torque due to its long intake runners, which utilise inertial supercharging.

Q2: What are the limitations of a stock TPI system?
Stock TPI systems are typically limited in their ability to produce peak horsepower at high engine speeds due to the restrictive nature of the long runners.

Q3: Can TPI be modified for more horsepower?
Yes, TPI systems can be significantly improved with modifications such as porting the intake manifold, using larger aftermarket runners, upgrading the throttle body, and employing aftermarket engine management systems.

Q4: How does TPI compare to carburetion for performance?
Compared to carburettors with shorter intake runners, TPI excels in low-end torque production, while carburettors often achieve higher peak horsepower at higher RPMs.

Q5: What is the "tuned" aspect of TPI?
The "tuned" aspect refers to the length of the intake runners, which are specifically designed to optimise the engine's performance at certain RPM ranges through the phenomenon of inertial supercharging.
