Tuff Torq K46: Oil Change & Maintenance Guide

The Essential Guide to Tuff Torq K46 Oil Changes and Maintenance

Many lawn tractor owners find themselves wondering about the longevity and upkeep of their hydrostatic transaxles, particularly the widely used Tuff Torq K46. This unit, found in numerous garden tractors from various manufacturers, is a workhorse, but like any mechanical component, it requires attention to ensure optimal performance. A common question that arises is whether the oil within the Tuff Torq K46 transaxle needs to be changed. While Tuff Torq itself recommends oil changes, it's crucial to understand that some tractor manufacturers may seal these units, potentially negating the need for routine oil replacement. If you choose to proceed with an oil change, it's important to remember that this is undertaken at your own responsibility.

This article aims to demystify the process, address common concerns, and provide a comprehensive guide to maintaining your Tuff Torq K46. We'll delve into the 'why' and 'how' of an oil change, discuss typical issues encountered by owners, and offer insights into keeping your transaxle in top condition for years to come.

Why Consider an Oil Change for Your Tuff Torq K46?

The primary function of the oil in your transaxle is to lubricate moving parts, dissipate heat, and maintain hydraulic pressure for smooth operation. Over time, oil can degrade due to heat, contamination, and shear. Contaminants, such as fine metal particles from wear and tear, can circulate within the system, accelerating wear on critical components like gears and pumps. Old, degraded oil loses its viscosity and lubricating properties, leading to increased friction, heat, and a noticeable loss of power, especially under load or when the transaxle warms up.

The Tuff Torq K46, in particular, has been known to suffer from a loss of speed and torque, especially when climbing hills. While this can be attributed to various factors, degraded oil is a primary suspect. Regularly changing the oil, particularly with a high-quality synthetic oil, can significantly extend the life of the transaxle and restore lost performance.

When Should You Change the Oil?

Tuff Torq recommends changing the oil for the first time at approximately 50 hours of operation, and subsequently every 200 hours. However, this is a general guideline. Factors like operating conditions (e.g., frequent hill climbing, heavy loads, hot weather) can necessitate more frequent changes. If you notice a significant loss of power, particularly after the transaxle has been running for a while and is warm, it's a strong indicator that an oil change might be due.

The Oil Change Procedure: A Step-by-Step Breakdown

Changing the oil in a Tuff Torq K46 is not as straightforward as in some other automotive components, primarily because many manufacturers design them as 'sealed units' without an easily accessible drain plug. The process typically involves removing the transaxle from the tractor. Here’s a detailed breakdown:

1. Preparation and Safety First

Before you begin, ensure you have the necessary tools and materials. This includes:

• New Oil: Tuff Torq recommends 5W50 full synthetic oil. You will need approximately 1.85 litres, so purchasing two litres is advisable.
• Tools: Socket set, wrenches, screwdrivers, pliers, a container for draining old oil, a funnel, and potentially a torque wrench.
• Safety Equipment: Gloves, eye protection, and sturdy footwear.
• Lifting Equipment: Appropriate jacks and jack stands to safely lift and support the tractor. Never work under a tractor supported only by a jack.

2. Removing the Transaxle from the Tractor

• Safely raise the rear wheels of the tractor off the ground and support the rear of the tractor securely with jack stands.
• Remove the drive belt: You'll need to release the tension on the idler pulley to slide the belt off the transaxle pulley.
• Disconnect linkages: Carefully disconnect all control linkages, including the brake, forward/reverse pedal linkage, and the freewheeling rod from the transaxle. Taking photos as you go can be helpful for reassembly.
• Unscrew mounting bolts: Locate and unscrew the four bolts securing the transaxle to the tractor frame.
• With all connections and mounting bolts removed, you should be able to carefully manoeuvre the transaxle out from under the tractor.

3. Accessing the Fill Cap and Draining the Oil

Once the transaxle is out:

• Remove the fan pulley combo: This usually involves removing a snap ring.
• Locate and remove the fill cap: This is often a rubber plug. Tuff Torq suggests using a sharp knife or box cutter to carefully pry it open. Be gentle, as you will need to reuse this cap if it's not damaged.
• Remove the magnet: Underneath the fill cap, you’ll find a magnet designed to catch ferrous debris. Remove this magnet and inspect it for metal shavings. This is a good indicator of internal wear.
• Drain the transaxle: To drain the oil, you will need to turn the transaxle upside down. Ensure you have an adequately sized container to catch the old oil, as it can take several hours to drain completely.

4. Cleaning Internal Magnets (Optional but Recommended)

For a more thorough job, Tuff Torq recommends removing the lower casing to access and clean additional magnets. These are typically located near the final drive and the oil inlet of the hydraulic pump. Refer to your transaxle's specific parts diagram for exact locations.

5. Refilling the Transaxle

• Once drained, turn the transaxle right side up.
• Using a clean funnel, slowly pour in the new 5W50 synthetic oil.
• The transaxle requires approximately 1.85 litres. You may find that after adding about 1.5 litres, the oil fills more slowly as it reaches the correct level.
• Respect the fill mark: There will be a fill level indicator, often a small hole or mark, that you should aim for. Do not overfill.

6. The Bleeding Procedure (Crucial for Hydrostatic Transaxles)

After refilling, the hydrostatic system needs to be 'bled' to remove any air and ensure proper operation. You have two main options:

• On a Stand: If you have the means to mount the transaxle on a stand, you can use a power drill to turn the input shaft (simulating engine power) to run the internal pump. This allows you to cycle the forward and reverse pedals while the pump is engaged, helping to purge air. This method also allows you to check the oil level again after bleeding.
• Installed in Tractor: Reinstall the transaxle back into the tractor, reversing the removal steps. Once installed, you will perform the bleeding procedure with the engine running.

The Bleeding Procedure Steps (with tractor installed):

1. Start the tractor engine and let it idle at a slow speed.
2. While alternately depressing and releasing the forward and reverse pedals, engage and disengage the freewheeling lever.
3. Continue this for several minutes (it can take up to 10 minutes) until you observe the rear wheels beginning to rotate. This indicates the air is being purged.
4. Once the wheels are rotating, stop the engine.
5. Lower the tractor to the ground if it was still elevated.
6. With the control pedals in neutral, push the tractor forward and then backward manually to help rotate the internal motor components.
7. Start the engine again and run it at a fast idle.
8. Quickly depress and release the forward and reverse pedals multiple times until the tractor moves smoothly in both directions without hesitation.

Important Note: If your transaxle is still under warranty, opening it to change the oil or clean magnets will likely void that warranty. Always check your manufacturer's warranty terms before proceeding.

Common Issues and Troubleshooting

As mentioned, a common complaint with the Tuff Torq K46 is a loss of speed and torque, especially on inclines, often exacerbated by heat. This is frequently linked to the oil's condition. Using a lower-grade or incorrect viscosity oil (like 10W30 conventional oil, which thins significantly when hot) instead of the recommended 5W50 synthetic can contribute to this problem. Synthetic oils generally maintain their viscosity better under heat, providing more consistent lubrication and hydraulic performance.

Some users have reported issues with directional control after internal work, such as the forward pedal engaging reverse. This is often due to incorrect installation of internal components, like the motor housing or 'ramp,' which has a specific orientation critical for proper function. Comparing parts diagrams from different K46 variants (e.g., K46BN vs. K46AC) is essential, as slight differences in component orientation might exist, potentially influenced by tractor manufacturer specifications.

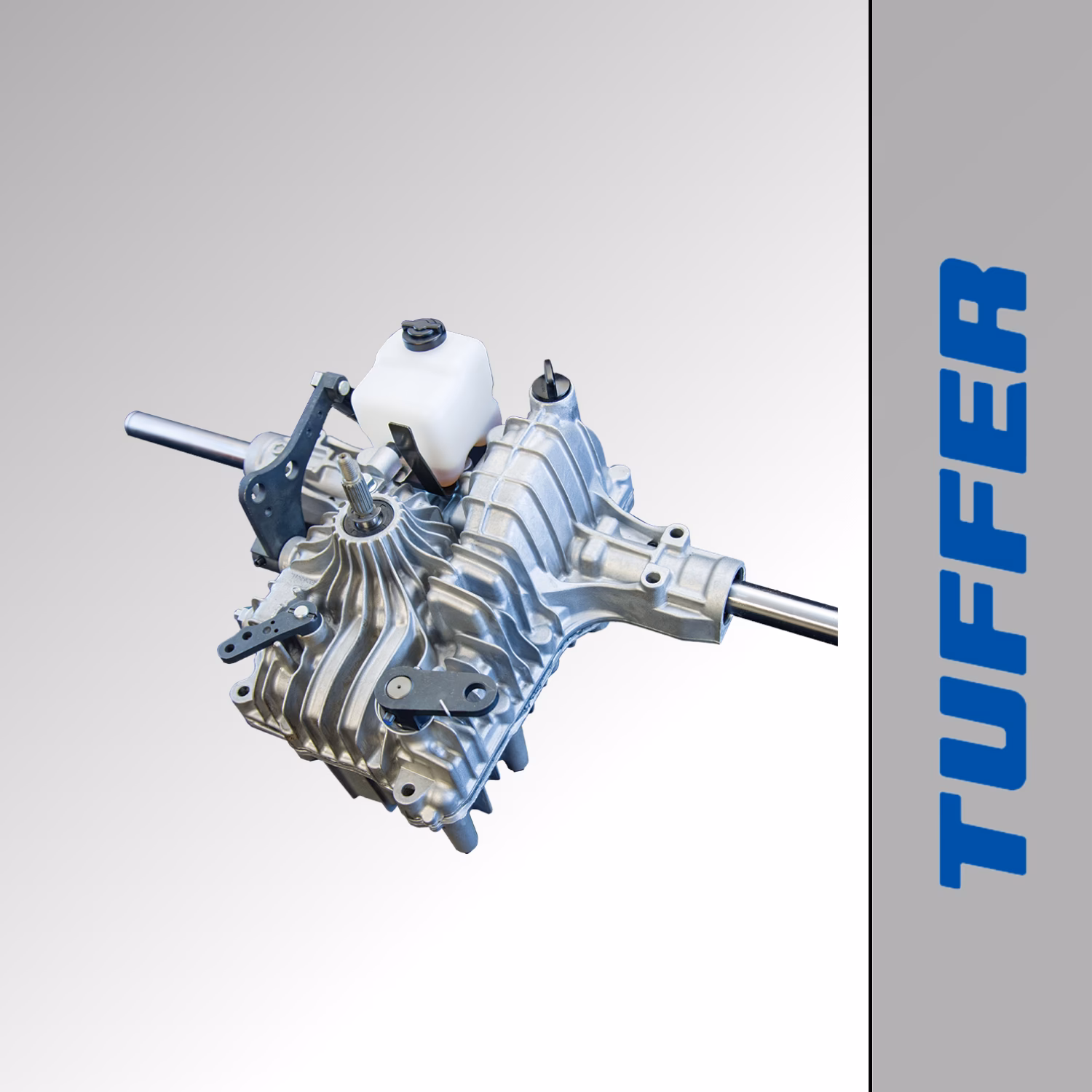

Tuff Torq K62 vs. K46: A Note on Drain Plugs

While the K46 often lacks a convenient drain plug, other Tuff Torq models, like the K62, may have a different design. The K62, for instance, apparently requires the removal of two drain bolts – one from the gear chamber and one from the hydrostatic chamber. Refilling also occurs through multiple points on the housing. This highlights the importance of consulting the specific service manual or parts diagrams for your particular transaxle model.

Frequently Asked Questions (FAQ)

Q1: My tractor manufacturer says the transaxle is a 'sealed unit' and not serviceable. Should I still change the oil?
A1: While some manufacturers may treat them as sealed, Tuff Torq, the manufacturer of the transaxle, does recommend oil changes. If your transaxle is performing poorly, especially with a loss of power when hot, an oil change is a common and often effective solution. However, be aware that performing maintenance not explicitly recommended by your tractor manufacturer may affect your warranty.

Q2: What type of oil is best for my Tuff Torq K46?
A2: Tuff Torq specifically recommends using 5W50 full synthetic oil for the K46. This type of oil offers excellent protection against heat and wear.

Q3: How much oil does the K46 take?
A3: The Tuff Torq K46 typically requires approximately 1.85 litres of oil. It's best to purchase a 2-litre container to ensure you have enough.

Q4: I'm experiencing a loss of power on hills. What could be the cause?
A4: The most common causes are degraded oil (due to age, contamination, or incorrect type) or overheating of the hydrostatic fluid. Changing to the recommended 5W50 synthetic oil and ensuring the cooling fan is clean and functioning correctly can resolve this.

Q5: Is it difficult to remove the transaxle?
A5: Removing the transaxle requires careful work and the use of proper safety equipment for lifting. Disconnecting belts and linkages needs attention to detail. While not overly complex, it does require mechanical aptitude and adherence to safety procedures.

Conclusion

Maintaining your Tuff Torq K46 transaxle with regular oil changes using the correct synthetic oil is a proactive step that can significantly enhance its performance and lifespan. While the process may seem daunting due to the lack of a drain plug, understanding the procedure and taking necessary safety precautions will allow you to tackle this maintenance task effectively. By keeping your transaxle properly lubricated and cool, you ensure your lawn tractor continues to perform reliably, especially when tackling those challenging inclines.
