Checking Direct Injection Fuel Pressure

Direct injection (DI) systems have revolutionised engine performance and fuel efficiency, offering precise fuel delivery directly into the combustion chamber. However, maintaining the correct fuel pressure is absolutely critical for the optimal operation of these advanced powertrains. Fluctuations or drops in direct injection fuel pressure can lead to a host of problems, from rough idling and poor acceleration to potential engine damage. This comprehensive guide will walk you through the process of checking your direct injection fuel pressure, ensuring your vehicle runs as smoothly and efficiently as intended.

Understanding Direct Injection Fuel Pressure

Unlike traditional port fuel injection systems that operate at relatively low pressures (around 30-60 PSI), direct injection systems demand significantly higher pressures, often ranging from 500 to over 3000 PSI, depending on the manufacturer and model. This high pressure is necessary to atomise the fuel effectively as it's injected directly into the high-pressure environment of the combustion chamber. The fuel pump responsible for generating this pressure is typically a mechanical pump, driven by the engine itself, and it works in conjunction with a high-pressure fuel rail and injectors.

Why is Checking Fuel Pressure Important?

Regularly checking your direct injection fuel pressure can help diagnose and prevent several common automotive issues:

• Poor Engine Performance: Insufficient fuel pressure can result in a lean fuel mixture, leading to hesitation, stumbling, and a noticeable loss of power.
• Misfires: Incorrect fuel delivery can cause the engine to misfire, particularly under load.
• Check Engine Light: Many vehicles will illuminate the 'Check Engine' light when fuel pressure deviates from the manufacturer's specifications.
• Fuel Pump Failure: Low fuel pressure can sometimes be an early indicator of a failing high-pressure fuel pump.
• Injector Issues: While less common, extremely low or erratic fuel pressure can sometimes point to problems with the direct injection injectors themselves.

Safety First! Essential Precautions

Working with high-pressure fuel systems requires utmost care and adherence to safety protocols. Fuel under pressure can cause serious injury. Always remember:

• Wear Safety Goggles: Always protect your eyes from any potential fuel spray.
• No Hot Components: Ensure the engine has cooled down sufficiently before beginning any work. Engine components can remain extremely hot long after the engine has been switched off.
• Secure Connections: Double-check that all connections are tight and properly seated before attempting to pressurise the system.
• Ventilation: Work in a well-ventilated area to avoid inhaling fuel vapours.
• Fire Hazard: Keep away from open flames, sparks, and smoking materials.

The information provided in your prompt is a critical reminder: "Do not touch engine components that are hot. No toque los componentes calientes del motor. Use gafas de seguridad." This cannot be stressed enough when dealing with automotive diagnostics.

Methods for Checking Direct Injection Fuel Pressure

There are primarily two methods to check direct injection fuel pressure:

1. Using a Scan Tool (Recommended Method)

This is the most common, safest, and often the most accurate way to check direct injection fuel pressure on modern vehicles. Modern cars are equipped with sophisticated On Board Diagnostics (OBD) systems that monitor various engine parameters, including fuel pressure. Here's how to do it:

Steps:

1. Connect the Scan Tool: Locate your vehicle's OBD-II port, typically found under the dashboard on the driver's side. Connect your compatible scan tool to this port.
2. Turn the Ignition On: With the engine off, turn the ignition key to the 'ON' position (without starting the engine). This powers up the vehicle's electronic systems.
3. Access Fuel Pressure Data: Navigate through the scan tool's menus. You'll typically find options like 'Live Data', 'Data Stream', or 'Parameters'. Look for a reading labelled 'Fuel Rail Pressure', 'Direct Injection Pressure', or similar.
4. Start the Engine: Once the scan tool is displaying the fuel pressure reading, start the engine.
5. Monitor the Pressure: Observe the fuel pressure reading on the scan tool as the engine idles. You can also check the pressure under different engine loads by gently increasing the engine speed.
6. Compare to Specifications: Consult your vehicle's service manual for the manufacturer's specified fuel pressure range. Compare the reading on your scan tool to these specifications.

Advantages of Using a Scan Tool:

• Safety: No direct contact with the high-pressure fuel lines is required.
• Accuracy: Reads data directly from the vehicle's sensors.
• Convenience: Can be done quickly and easily.
• Comprehensive Data: Scan tools often provide other valuable diagnostic information simultaneously.

2. Using a Mechanical Fuel Pressure Gauge (Less Common for DI)

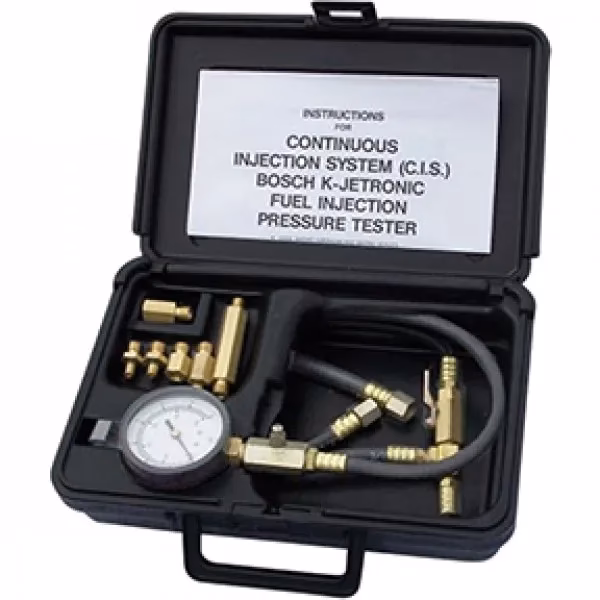

While traditional mechanical fuel pressure gauges are standard for port injection systems, they are less commonly used for direct injection due to the extremely high pressures involved and the specialised fittings required. If you choose this method, extreme caution is necessary, and you must ensure you have the correct adapter and gauge rated for the specific vehicle's high-pressure system. It is generally not recommended for DIY diagnostics unless you have extensive experience and the correct equipment.

General Steps (Use with extreme caution):

1. Identify the Fuel Rail: Locate the high-pressure fuel rail on your engine.
2. Locate a Test Port: Some systems may have a Schrader valve or a specific test port on the fuel rail. If not, a fitting will need to be installed in-line with the fuel rail. This is where specialized knowledge is crucial.
3. Connect the Gauge: Carefully connect the high-pressure fuel pressure gauge with the appropriate adapter to the test port or in-line fitting. Ensure all connections are secure.
4. Start the Engine: Start the engine and allow it to idle.
5. Read the Gauge: Observe the pressure reading on the mechanical gauge.
6. Compare to Specifications: Again, compare the reading to the manufacturer's specifications.

Disadvantages of Mechanical Gauges for DI:

• High Risk: Direct contact with high-pressure fuel lines poses a significant safety risk.
• Specialised Equipment: Requires specific adapters and gauges rated for very high pressures, which are not always readily available.
• Potential for Leaks: Improperly installed fittings can lead to dangerous fuel leaks.

Interpreting the Results

Once you have your fuel pressure reading, you need to compare it to your vehicle's service manual. Here's a general guide:

• Within Specification: If the fuel pressure is within the manufacturer's specified range, your high-pressure fuel system is likely functioning correctly.
• Low Fuel Pressure: If the pressure is consistently below the specified range, it could indicate a problem with the high-pressure fuel pump, a clogged fuel filter (if applicable to your DI system), a faulty fuel pressure sensor, or a leak in the fuel system.
• High Fuel Pressure: While less common, excessively high fuel pressure could point to a faulty fuel pressure regulator or a malfunctioning fuel pressure sensor.
• Erratic Pressure: If the fuel pressure fluctuates wildly, it could be a sign of an intermittent pump issue, a failing sensor, or an air leak in the fuel supply line.

Common Issues and Troubleshooting

Several components can affect direct injection fuel pressure:

Frequently Asked Questions (FAQs)

Q1: Can I check direct injection fuel pressure with a standard fuel pressure gauge?
A: No. Standard fuel pressure gauges are designed for much lower pressures (typically under 100 PSI). Direct injection systems operate at pressures of hundreds or even thousands of PSI, requiring specialised equipment.

Q2: What are the typical direct injection fuel pressure ranges?
A: The exact pressure varies significantly by manufacturer and model, but common ranges are between 500 PSI and over 3000 PSI.

Q3: How often should I check my fuel pressure?
A: It's not typically a routine maintenance item unless you are experiencing symptoms of poor performance or have a Check Engine Light related to the fuel system. However, if you suspect an issue, checking it can be very informative.

Q4: What does it mean if my fuel pressure is fluctuating?
A: Fluctuating fuel pressure can indicate an issue with the high-pressure fuel pump, a failing fuel pressure sensor, or an intermittent problem within the fuel delivery system.

Q5: Is it safe to drive with low direct injection fuel pressure?
A: Driving with low fuel pressure is not recommended. It can lead to poor engine performance, increased emissions, and potentially cause significant damage to engine components over time due to improper combustion.

Conclusion

Monitoring and understanding your vehicle's direct injection fuel pressure is a vital aspect of maintaining its performance and longevity. While the prospect of dealing with such high pressures might seem daunting, utilising the correct tools, like a diagnostic scan tool, makes the process manageable and, most importantly, safe. Always prioritise safety, consult your vehicle's specific service manual for accurate pressure specifications, and if you're ever in doubt, seek the assistance of a qualified mechanic. By keeping your direct injection fuel system in optimal condition, you ensure your engine runs efficiently, powerfully, and reliably.
