Honda TRX300EX Parts Explained

The 1997 Honda TRX300EX 4Trax is a popular choice for ATV enthusiasts, offering a blend of performance and reliability. To keep this iconic machine running at its best, understanding the available parts is crucial. Whether you're performing routine maintenance or embarking on a major restoration, knowing where to find the right components can make all the difference. This guide delves into the types of parts available for your TRX300EX, focusing on OEM (Original Equipment Manufacturer) and aftermarket options, and highlights key areas to consider when sourcing replacements.

Understanding Your Honda TRX300EX Parts

When it comes to maintaining your 1997 Honda TRX300EX, you'll encounter two primary categories of parts: OEM and aftermarket. Each has its own advantages and disadvantages, and the choice often depends on your budget, performance goals, and the specific component you need.

OEM Parts: The Original Choice

OEM parts are manufactured by Honda or by companies that supply parts directly to Honda. These are the parts that your TRX300EX would have come with from the factory. The primary advantage of OEM parts is their guaranteed fit and compatibility. They are designed to meet Honda's strict quality standards, ensuring that they will function precisely as intended. For critical components like engine internals, suspension parts, or braking systems, sticking with OEM can provide peace of mind regarding performance and longevity. However, OEM parts can often be more expensive than their aftermarket counterparts.

Aftermarket Parts: Customisation and Value

Aftermarket parts are produced by companies other than Honda. These parts can range from direct replacements that are virtually identical to OEM components to performance-enhancing upgrades. The aftermarket offers a vast array of options, allowing you to customise your TRX300EX or find more budget-friendly alternatives. Many reputable aftermarket manufacturers produce high-quality parts that can meet or even exceed OEM specifications. For example, you might find upgraded exhaust systems for increased horsepower, more durable suspension components, or custom bodywork. When choosing aftermarket parts, it's essential to research the manufacturer's reputation and read reviews to ensure you're getting reliable products.

Key Part Categories for Your TRX300EX

To help you navigate the world of parts, let's break down some of the most commonly replaced or upgraded components for the 1997 Honda TRX300EX:

Engine Components

The heart of your ATV is its engine. Regular maintenance and the availability of quality engine parts are vital for sustained performance. This includes:

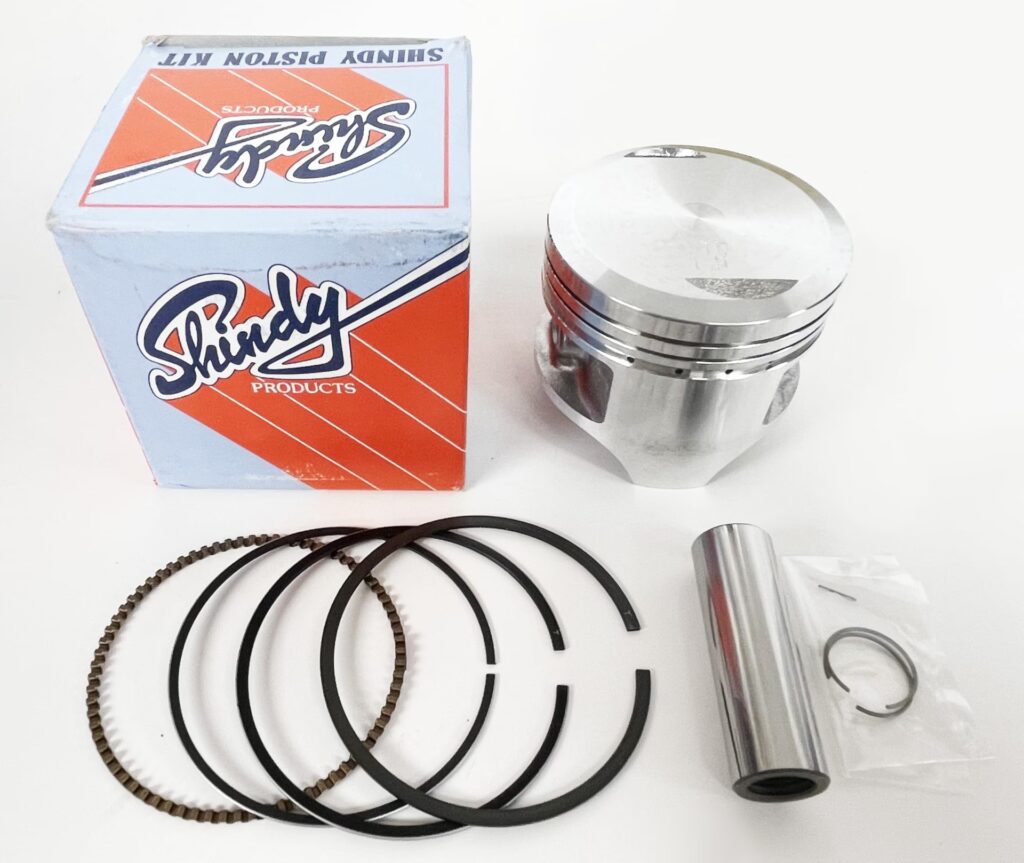

• Pistons and Rings: Essential for compression and power.
• Cylinders: The bore where the piston travels.
• Valves and Valve Springs: Control the flow of air and fuel into and exhaust gases out of the combustion chamber.
• Gaskets and Seals: Prevent leaks of oil, coolant, and combustion gases.
• Carburettor Parts: For optimal fuel-air mixture.
• Ignition Components: Spark plugs, coils, and CDI units.

When sourcing these, especially for internal engine work, OEM parts are often recommended for their precision and reliability. However, performance-oriented aftermarket pistons and camshafts can offer significant power gains.

Drivetrain and Transmission

The drivetrain transfers power from the engine to the wheels. Key parts here include:

• Clutch Components: Plates, springs, and baskets.
• Gears and Bearings: Within the transmission and final drive.
• Chains and Sprockets: For the final drive.
• CV Joints and Axles: For models with independent rear suspension (though the TRX300EX typically uses a solid rear axle with a chain drive).

A worn clutch can lead to slippage and loss of power, so having access to replacement clutch plates is important. Upgraded sprockets can alter the gearing for different riding conditions.

Suspension and Steering

A smooth and responsive suspension is crucial for comfortable riding and handling. Components include:

• Shocks and Struts: Front and rear.
• A-Arms and Bushings: For the front suspension.
• Tie Rods and Ball Joints: For steering.
• Wheel Bearings: Essential for smooth wheel rotation.

Aftermarket suspension upgrades can significantly improve handling, especially for aggressive riding. Replacements for worn bushings and ball joints are vital for maintaining steering precision.

Braking System

Reliable brakes are paramount for safety. Essential braking components include:

• Brake Pads: Front and rear.
• Brake Discs (Rotors): Front and rear.
• Brake Lines: For hydraulic systems.
• Brake Calipers and Master Cylinders: The hydraulic components.

Worn brake pads and discs significantly reduce stopping power. High-performance aftermarket brake pads can offer improved bite and fade resistance.

Electrical System

A functioning electrical system powers everything from the ignition to the lights.

• Battery: The primary power source.
• Stator: Generates electricity to charge the battery and power the system.
• Regulator/Rectifier: Manages the electrical output.
• Wiring Harness: Connects all electrical components.
• Lights: Headlights, taillights, and brake lights.

A faulty stator or regulator/rectifier can lead to battery charging issues or complete electrical failure.

Chassis and Bodywork

These are the structural and cosmetic parts of your ATV.

• Frame: The backbone of the ATV.
• Body Panels: Fenders, plastics, and covers.
• Seat: For rider comfort.
• Handlebars: For steering control.

Replacement body panels can restore the look of a faded or damaged TRX300EX. Upgraded handlebars can offer a more comfortable riding position.

Where to Find Parts for Your 1997 Honda TRX300EX

Sourcing parts for your specific model, the 1997 Honda TRX300EX 4Trax, involves checking with various suppliers. While some retailers might focus on specific brands, independent parts suppliers often carry a wide range of options, including both OEM and aftermarket parts for popular ATVs like the TRX300EX.

Independent Spare Parts Suppliers: Companies that specialise in supplying spare parts for various brands, including Honda, are excellent resources. These suppliers often have extensive catalogues that list parts by model and year, making it easier to find exactly what you need. For instance, CMS (Central Motorcycle Services) is an independent supplier that is not commercially linked to Honda, meaning they offer a broad selection of parts without being tied to a single manufacturer's pricing or availability.

Honda Dealerships: For guaranteed OEM parts, your local Honda dealership is the most direct route. They will have access to Honda's official parts databases and can order genuine components for your TRX300EX.

Online Retailers: Numerous online platforms specialise in ATV parts. These can be a great place to compare prices and find both OEM and aftermarket options. When using online retailers, always double-check the part number and ensure it is listed as compatible with the 1997 Honda TRX300EX 4Trax.

Part Numbers and Compatibility

When ordering parts, having the correct part number is essential. You can usually find these in your ATV's service manual or by consulting online parts diagrams for your specific model year. Cross-referencing part numbers between OEM and aftermarket suppliers can help you find suitable replacements.

Table: OEM vs. Aftermarket Parts Comparison

Here's a quick comparison to help you decide:

Frequently Asked Questions

Q1: How many parts lists are available for the Honda TRX300EX 4Trax 300EX 1997 (USA)?

While there isn't a single definitive number of "parts lists" that can be provided as it depends on how you define a list (e.g., an official Honda parts fiche, a retailer's catalogue, a specific repair manual), you can typically find comprehensive parts information through several avenues. These include official Honda service manuals, online OEM parts fiche providers, and catalogues from independent ATV parts suppliers. Each of these sources will break down the TRX300EX into its various systems (engine, chassis, electrical, etc.) and list the corresponding parts. Independent suppliers like CMS are key resources for accessing a wide array of parts for your 1997 model.

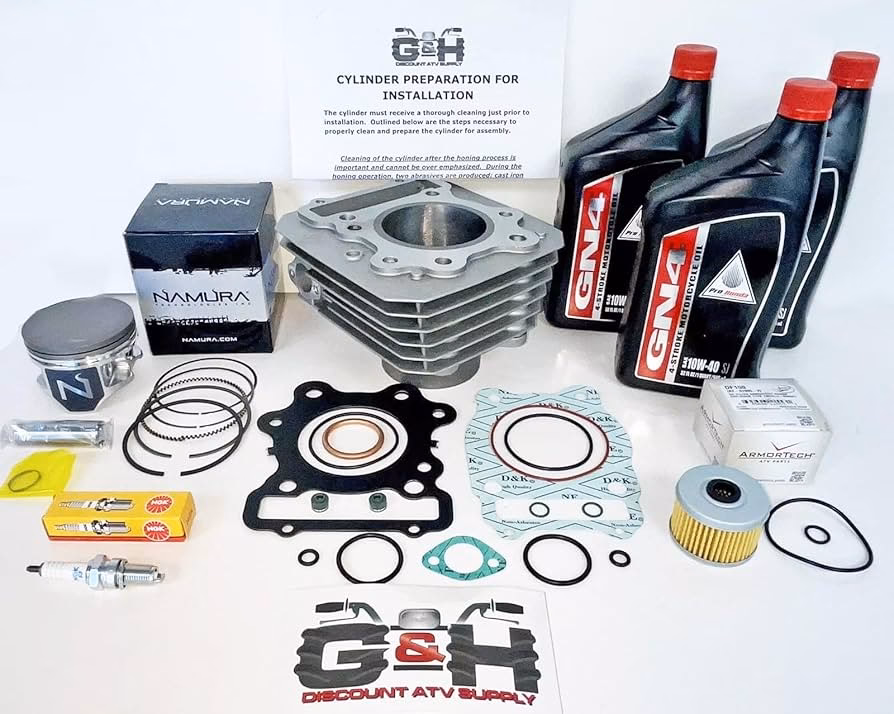

Q2: Does the Honda TRX300EX offer aftermarket ATV parts?

Yes, absolutely. The 1997 Honda TRX300EX 4Trax has a robust aftermarket presence. You can find a wide variety of aftermarket parts, ranging from replacement components that are equivalent to OEM, to performance upgrades such as exhaust systems, engine modifications, suspension kits, and more. The availability of aftermarket parts allows owners to customise their ATVs, improve performance, or find more cost-effective repair solutions.

Q3: What are the most common parts that need replacing on a 1997 TRX300EX?

Commonly replaced parts on any ATV of this age, including the 1997 TRX300EX, often include wear items such as brake pads, brake discs, chains and sprockets, wheel bearings, and spark plugs. Depending on usage and maintenance, other components like the battery, air filter, fuel filter, and clutch plates may also require periodic replacement.

Q4: Should I use OEM or aftermarket parts for my TRX300EX?

The choice between OEM and aftermarket parts depends on your priorities. For critical components where exact fit and guaranteed performance are paramount, OEM parts are often preferred. If you're looking for cost savings or performance enhancements, well-regarded aftermarket parts can be an excellent choice. It's always advisable to research the reputation of aftermarket brands before purchasing.

Q5: Where can I find a service manual for my 1997 Honda TRX300EX?

You can typically find service manuals for the 1997 Honda TRX300EX from Honda dealerships, specialised online motorcycle and ATV parts retailers, and through online auction sites. These manuals provide detailed information on maintenance, repair procedures, and parts diagrams.

Conclusion

Keeping your 1997 Honda TRX300EX 4Trax in peak condition requires attention to the quality and availability of its parts. Whether you opt for genuine Honda OEM components or explore the vast options offered by the aftermarket, understanding your needs and researching your suppliers is key. By staying informed about the available parts and their respective benefits, you can ensure your TRX300EX continues to provide reliable performance and enjoyment for years to come.
