Truck Wheel Alignment Explained

Understanding Truck Wheel Alignment

Truck wheel alignment is a critical aspect of vehicle maintenance, ensuring that your wheels are positioned correctly in relation to the road surface and each other. When your truck's wheels are properly aligned, it significantly impacts its handling, tyre wear, fuel efficiency, and overall safety. Misalignment, on the other hand, can lead to a host of problems, from premature tyre degradation to a compromised driving experience.

The concept is straightforward: alignment refers to the adjustments made to the angles of the wheels to meet the manufacturer's specifications. These angles, collectively known as wheel alignment angles, dictate how your truck interacts with the road. They are meticulously set during manufacturing and can be disturbed by various factors, including everyday driving, hitting potholes, or even the weight of heavy loads.

The Importance of Proper Alignment

Maintaining correct wheel alignment is paramount for several reasons:

• Tyre Longevity: This is perhaps the most visible benefit. When wheels are misaligned, they tend to drag or scrub against the road surface, causing uneven and accelerated tyre wear. This can manifest as 'feathering' or 'cupping' on the tyre tread, drastically reducing the lifespan of your expensive tyres. Proper alignment ensures that tyres wear evenly across their surface, maximising their mileage.
• Fuel Efficiency: Misaligned wheels create more rolling resistance. Imagine trying to push a shopping trolley with a wobbly wheel – it takes more effort. Similarly, misaligned truck wheels require the engine to work harder to maintain speed, leading to increased fuel consumption. Correcting alignment can contribute to better fuel economy.
• Handling and Steering: A truck with proper alignment will steer straight and true. You won't have to constantly fight the steering wheel to keep the vehicle on course. Misalignment can cause the truck to pull to one side, making the steering feel heavy or vague, and reducing driver comfort and control. This is especially important for heavy-duty trucks where stability is key.
• Reduced Stress on Suspension Components: When wheels are not aligned, it puts undue stress on various suspension and steering components, such as ball joints, tie rod ends, and bushings. Over time, this can lead to premature wear and failure of these parts, resulting in costly repairs.

The Wheel Alignment Process: A Closer Look

An expert wheel alignment service involves a precise and systematic process. It's not merely about adjusting the direction of the front wheels; it encompasses a range of measurements and adjustments to ensure all wheels are working in harmony.

Initial Inspection and Preparation

The process begins with a thorough inspection of the vehicle's suspension and steering system. This is a crucial first step that often gets overlooked in DIY attempts or less thorough services. As mentioned, the vehicle is raised to allow for comprehensive checks. This is where specialised equipment, like the Diesel Brothers truck wheel alignment mechanism and air jacks, prove invaluable. These tools enable technicians to:

• Check for Worn Components: Technicians meticulously inspect for any signs of wear or damage in critical suspension parts. This includes checking for worn pins, broken springs, baggy bearings, or shabby steering connections. Ignoring these issues before an alignment can render the entire process ineffective, as even a perfect alignment won't compensate for faulty hardware.
• Assess Tyre Condition: The condition of the tyres themselves is also examined. If tyres are already severely worn or damaged due to previous misalignment, they may need to be replaced before an alignment can be performed accurately.

Measuring Alignment Angles

Once the vehicle is confirmed to be in good mechanical condition, the actual alignment measurements begin. Modern alignment systems use sophisticated laser or camera-based equipment to measure the various angles of the wheels with extreme precision. The primary angles adjusted are:

• Camber: This is the inward or outward tilt of the top of the tyre from the vertical. Excessive positive camber (top tilted out) or negative camber (top tilted in) can cause rapid tyre wear on the inner or outer edges.
• Caster: This is the angle of the steering axis in relation to a vertical line when viewed from the side. Positive caster generally improves steering stability and helps the wheels self-centre after a turn.
• Toe: This refers to the angle of the tyres when viewed from above. 'Toe-in' means the front of the tyres are closer together than the rear, while 'toe-out' means the front is wider. Incorrect toe is a common cause of 'feathering' tyre wear and can make the vehicle wander.
• Setback: This measures if a wheel is set back or forward relative to the other wheel on the same axle.
• Included Angle: This is the sum of the camber and the kingpin inclination (KPI).

The measurements are compared against the manufacturer's specifications for that specific truck model. These specifications are often stored in the alignment machine's database.

Making the Adjustments

Based on the measurements, the technician will make the necessary adjustments to the steering and suspension components. This typically involves adjusting:

• Tie Rods: Adjusting the tie rods changes the 'toe' angle.
• Control Arms/Cam Bolts: These components are adjusted to set the 'camber' and 'caster' angles.

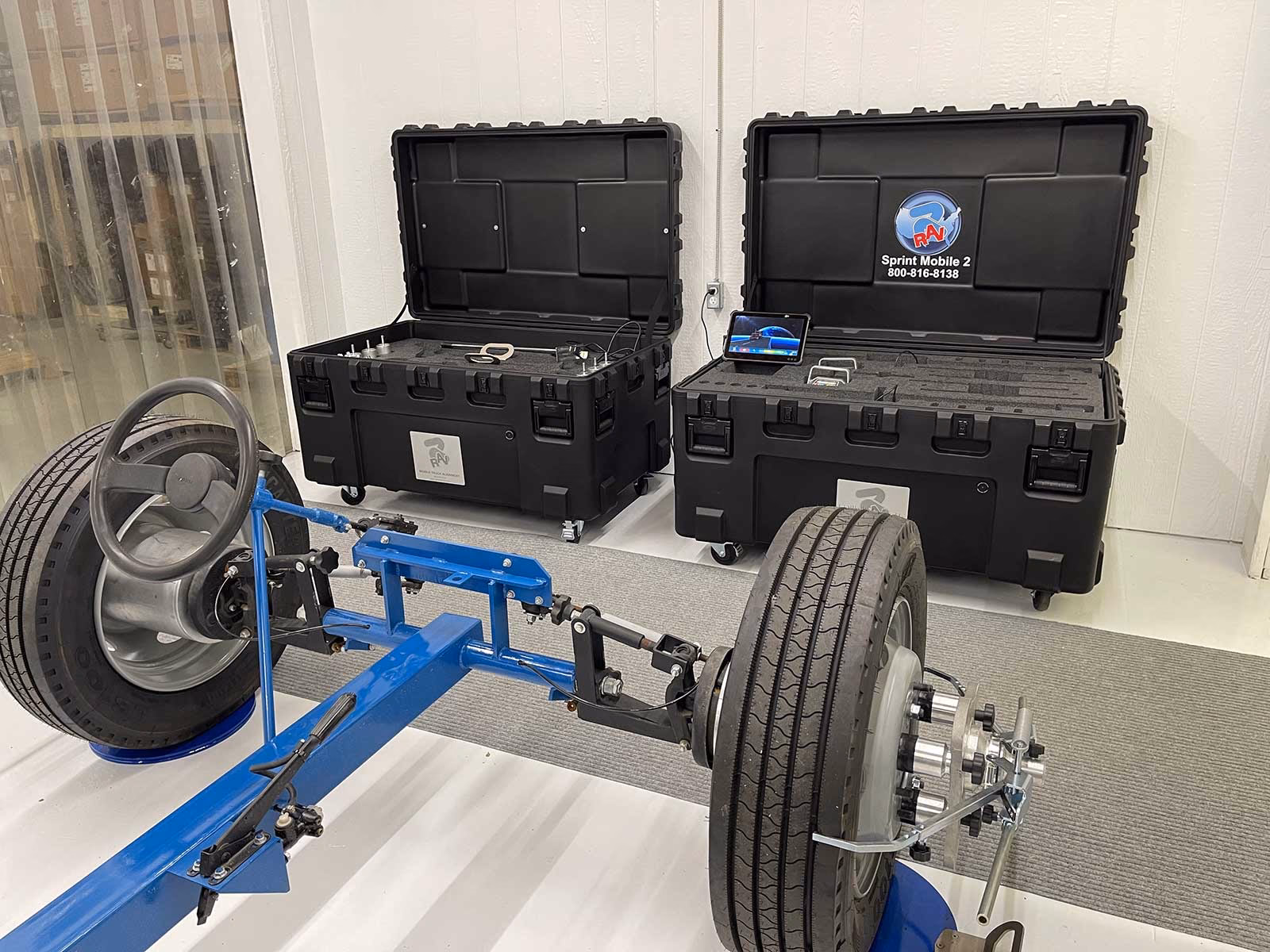

The process is iterative; adjustments are made, and then measurements are retaken to ensure the angles are within the specified tolerances. The latest aligner machines are highly advanced, often featuring multi-part systems that can be configured for various widths and lengths to accommodate different truck sizes. The use of air jacks is particularly useful for raising the front of the vehicle, providing easy access for adjustments and any necessary maintenance.

Common Causes of Misalignment

Several factors can contribute to a truck's wheel alignment going out of specification:

• Impacts: Hitting potholes, curbs, or road debris can jolt the suspension and knock the wheels out of alignment.
• Wear and Tear: Over time, suspension components naturally wear out. Bushings can become soft, ball joints can loosen, and springs can sag, all of which can affect wheel angles.
• Improper Loading: Uneven or excessive loading of a truck can put abnormal stress on the suspension and affect alignment.
• Accidents: Even minor fender benders can be enough to alter wheel alignment.
• Component Replacement: After replacing suspension or steering parts, it is almost always necessary to perform an alignment.

When to Get Your Truck Aligned

It's advisable to have your truck's wheel alignment checked regularly, typically as part of its routine servicing. However, you should seek an alignment if you notice any of the following:

• Uneven Tyre Wear: As discussed, this is a primary indicator.
• Vehicle Pulling to One Side: If the truck drifts to the left or right when you're driving on a straight, level road.
• Vibrations: Unusual vibrations felt through the steering wheel or the chassis.
• Steering Wheel Off-Centre: If the steering wheel isn't straight when the truck is driving straight.
• Recent Suspension Work: Following any repairs or replacements to suspension or steering components.

Benefits of Regular Alignment Checks

Investing in regular alignment checks and corrections offers significant long-term advantages:

• Saves Money: By extending tyre life and improving fuel economy, you save money on replacements and fuel costs.
• Enhances Safety: A properly aligned truck handles predictably, reducing the risk of accidents, especially in challenging driving conditions.
• Improves Driving Comfort: A smooth, straight ride reduces driver fatigue on long journeys.
• Protects Your Investment: By preventing premature wear on tyres and suspension parts, you help maintain the overall health and value of your truck.

Frequently Asked Questions (FAQs)

Q1: How often should I get my truck's wheel alignment checked?
It's generally recommended to have it checked annually or every 10,000-15,000 miles, but this can vary depending on your driving conditions and the manufacturer's recommendations. Always check your owner's manual.

Q2: Can I perform a wheel alignment myself?
While basic 'toe' adjustments might be possible with rudimentary tools, a proper wheel alignment requires specialised equipment and expertise to accurately measure and adjust all the critical angles (camber, caster, toe). For trucks, due to their size and complexity, professional alignment is highly recommended.

Q3: What is the difference between a front-end alignment and a four-wheel alignment?
A front-end alignment only adjusts the front wheels. A four-wheel alignment adjusts all four wheels, which is essential for modern trucks where rear-wheel steering and alignment can also affect handling and tyre wear.

Q4: My truck pulls to the right. Does this always mean it needs an alignment?
Not necessarily. A vehicle pulling to one side can also be caused by uneven tyre pressures, worn suspension components, or issues with the braking system. However, wheel alignment is a common culprit and should be checked.

Q5: How long does a truck wheel alignment take?
An alignment typically takes between 45 minutes to 1.5 hours, depending on the complexity of the vehicle and the condition of the suspension components.

Conclusion

Truck wheel alignment is far more than a routine maintenance task; it’s a fundamental aspect of ensuring your vehicle operates safely, efficiently, and economically. By understanding the process, recognising the signs of misalignment, and seeking professional service when needed, you can protect your tyres, save on fuel, and enjoy a more stable and comfortable driving experience. Regular checks and prompt adjustments are key to maximising the lifespan and performance of your truck.
