TRP Trail EVO Brake: A Comprehensive Review

The world of bicycle braking systems is vast and often technical, with manufacturers constantly innovating to provide riders with greater control, power, and reliability. Among the notable players in this arena is TRP (Tektro Racing Products), a brand known for its focus on performance-oriented components. The TRP Trail EVO brake system has garnered attention, particularly within the trail and electric mountain bike (e-MTB) communities. This article delves deep into what makes the Trail EVO brakes tick, examining their design, performance, setup, and overall user experience, drawing from rider feedback and technical specifications.

Understanding the TRP Trail EVO Braking System

The TRP Trail EVO is engineered with the demands of modern trail riding and the increased stresses of e-MTBs in mind. TRP claims that the development of this system has incorporated lessons learned from their World Cup Downhill (DH) brake designs. This heritage suggests a focus on robust construction and sustained performance, even under heavy use.

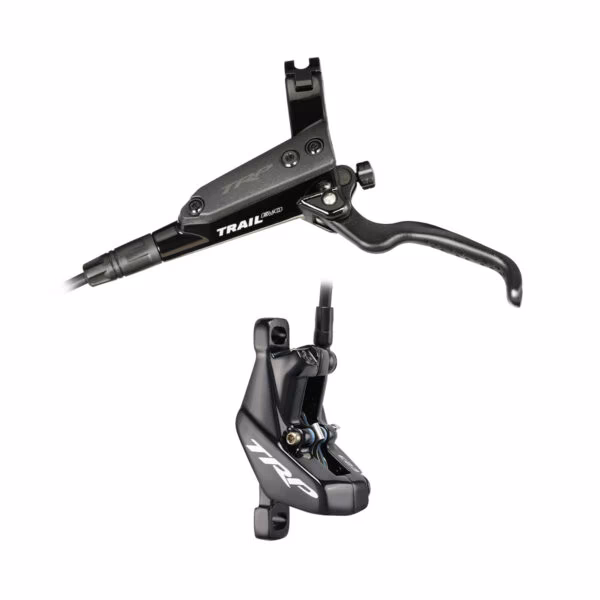

At the core of the system are the Trail EVO brake calipers. These calipers house four hybrid composite caliper pistons. The use of composite pistons is a key design choice, aimed at improving heat management. On longer descents or during demanding trail riding, brakes are subjected to significant heat build-up, which can lead to a phenomenon known as brake fade, where stopping power diminishes. The composite pistons, combined with TRP's thicker 2.3mm rotors, are intended to resist this heat buildup, ensuring consistent braking performance.

The lever architecture has also been redesigned. TRP has focused on user experience and compatibility, offering various mounting options. The levers can be configured for I-Spec EV, SRAM Matchmaker, and TRP's own shifter mounts, providing flexibility for riders looking to integrate their braking and shifting controls for a cleaner cockpit.

Key Features and Design Elements

Several features distinguish the TRP Trail EVO brakes:

• Four-Piston Caliper Design: The use of four pistons per caliper, with hybrid composite construction, is a significant factor in their power and heat resistance.
• Optimised for 2.3mm Rotors: Unlike many brakes that use 1.8mm or 2.0mm rotors, the Trail EVOs are designed to work optimally with TRP's 2.3mm-thick rotors. These thicker rotors offer greater stiffness and improved heat dissipation, contributing to overall braking stability and reduced fade.
• Advanced Hose Technology: TRP utilizes a new, stiffer 5mm-diameter hose. This design is touted to better handle temperature fluctuations and braking forces, while also facilitating easier cable routing through modern bike frames.
• Lever Ergonomics: The lever blade features a shape reminiscent of Shimano levers, with a flat middle section that includes dimpled texturing for grip, and an upturned end to keep the rider's finger in place.
• Tool-Free Reach Adjustment: A common feature on many high-end brakes, the Trail EVOs offer tool-free lever reach adjustment via a dial located between the lever and the handlebar. This allows riders to fine-tune the lever position to their preference.
• Hinged Clamp Design: The lever body attaches to the handlebar with a simple hinged clamp, which simplifies installation and allows for precise positioning alongside other controls like shifters and dropper seatpost levers.
• Adjustable Banjo Fittings: The hose connects to the caliper via an adjustable banjo, which is crucial for optimizing hose routing, especially on rear triangles with complex suspension linkages.
• Top-Loaded Pads: The caliper design allows for top-loading of brake pads, making pad replacement a straightforward process without needing to remove the wheel or caliper.

Setup and Installation: The EZ Plug System

One of the most frequently praised aspects of the TRP Trail EVO brakes is their ease of setup, largely thanks to TRP's EZ Plug System. This system allows the brakes to be shipped pre-bled from the factory. The hose, filled with mineral fluid, is connected to the caliper with a plugged barb. The lever end is also sealed. This means riders can route the brake hose through their frame without worrying about losing fluid or introducing air into the system.

The installation process typically involves:

1. Routing the brake hose through the frame.
2. Cutting the hose to the desired length.
3. Installing the olive, barb, and compression nut.
4. Connecting the hose to the lever after removing its plug.
5. Attaching the lever to the handlebar.
6. Installing the brake pads (TRP includes resin pads as standard, but metallic pads are an option for those seeking more power and bite).
7. Mounting the calipers to the frame using appropriate post-mount adapters if necessary (e.g., TRP's P23 adapter).
8. Mounting TRP's 2.3mm rotors.
9. Bedding in the brakes.

While the EZ Plug System minimises the need for bleeding, some users might still need to perform a bleed, especially if the hose routing or lever connection isn't perfect. The bleeding process is described as similar to Shimano's, requiring a specific TRP or Tektro bleed pot due to thread differences.

The bedding-in process for the Trail EVOs has been noted by some users to take longer than with other brake systems. This is speculated to be due to the thicker 2.3mm rotors and potentially the heat management characteristics of the system, which might reduce heat generation during the initial bedding phase.

Performance on the Trail

When it comes to performance, the TRP Trail EVO brakes aim to strike a balance between the aggressive bite of Shimano brakes and the modulated feel of SRAM brakes.

Stopping Power: Riders consistently report that the Trail EVOs offer impressive stopping power, often compared favourably to established benchmarks like SRAM Code or Shimano XT brakes. The four-piston design, coupled with the 2.3mm rotors, provides significant force to slow down even heavier riders and bikes, such as those on e-MTBs.

Modulation and Feel: The modulation is described as a strong point. While there's an initial, familiar 'on/off' feel similar to Shimano, there's also ample room for modulation, allowing riders to feather the brakes and control their speed precisely. This linear power delivery makes it easier to manage descents without abrupt, unexpected ramp-ups in braking force. The lever feel is generally considered solid, though perhaps not as firm as some top-tier Shimano offerings, but more substantial than some other brands.

Heat Management and Fade Resistance: Brake fade is a critical concern for long descents and heavy bikes. The Trail EVOs, with their composite pistons and thicker rotors, are designed to combat this. Reports suggest excellent heat management, with consistent power delivery even after extended downhill runs or in bike park situations where brakes are used frequently. Brake fade was described as non-existent in testing, with no unusual noises, vibrations, or shuddering.

Comparison to DH-R EVO: It's worth noting that while the Trail EVOs are powerful, some riders have found the DH-R EVO model to offer greater lever reach adjustability, allowing the levers to sit closer to the handlebar. For riders who prefer a very close lever position, this distinction might influence their choice, although the Trail EVOs' adjustment range is still considered adequate for the vast majority of riders.

Adjustability and Ergonomics: A Matter of Preference

Adjustability is a key area where user preferences can diverge.

Lever Reach: The tool-free reach adjustment is convenient. However, a common point of feedback is that even when adjusted to their closest setting, the levers may still sit further away from the handlebar than some riders prefer. For riders with smaller hands or those who like their levers very close to the bars, this could be a drawback. While most riders adapt quickly, it's an ergonomic consideration that might lead some to seek alternative lever designs.

Bite Point Adjustment: The Trail EVO brakes do not feature a bite-point adjustment. This is a feature found on some higher-end brakes, allowing riders to adjust the point at which the pads begin to engage. While not essential for all riders, it's a 'luxury' feature that some appreciate for fine-tuning their brake feel.

Lever Shape: The flat middle section and textured surface of the lever blade contribute to grip and control. The overall lever length is positioned between that of Hope Tech 4 and Shimano levers, offering a substantial feel.

Potential Drawbacks and Considerations

While the TRP Trail EVO brakes are highly regarded, a few points are worth considering:

• Lever Reach: As mentioned, the minimum lever reach might not be close enough for all riders.
• Lever Feel: Some users find the lever resistance to be higher than on other brakes, contributing to a feeling of increased effort on long descents.
• Weight: The brakes are noted to be relatively heavy.
• Lever Construction Finish: While the caliper is well-built, the finish on the lever construction might not feel as premium as some competitors in a similar price bracket.
• Bite Point Adjustment: The absence of bite-point adjustment could be a negative for riders who value this level of customization.

Pricing and Value

The TRP Trail EVO setup, including their 203mm RS01E rotors and necessary adapters, can represent a significant investment, potentially around $645 for a complete system. The brakes themselves are priced around $224.99 per brake, without rotors. Considering their performance, heat management, and ease of setup, many users find them to offer good value for money, particularly for aggressive trail riding and e-MTB applications where reliable, powerful braking is paramount.

Conclusion: Who are the TRP Trail EVOs For?

The TRP Trail EVO brakes are a compelling option for riders seeking robust, powerful, and consistent braking performance. They excel in heat management, making them suitable for long descents and demanding terrain. The ease of setup via the EZ Plug System is a significant advantage for those who may not be comfortable with complex bleeding procedures.

Their performance is often compared favourably to leading brands, offering a good blend of power and modulation. However, potential buyers should consider the lever reach and the absence of bite-point adjustment. If you prefer levers that sit very close to the bar or require fine-tuning of the bite point, you might want to explore other options or at least test these brakes if possible.

For the vast majority of riders, especially those on trail bikes and e-MTBs who value strong, reliable stopping power with good heat resistance, the TRP Trail EVO brakes are an excellent choice that won't disappoint. They deliver confidence-inspiring control, allowing you to push your limits on the trail.

Frequently Asked Questions (FAQs)

Q1: Are TRP Trail EVO brakes good for downhill riding?

A1: While designed for trail and e-MTB use, their robust construction and heat management capabilities make them suitable for many downhill applications. However, for extreme downhill racing, TRP's own DH-R EVO or other dedicated DH brakes might offer superior performance and adjustability.

Q2: Do I need to use TRP rotors with the Trail EVO brakes?

A2: TRP designs the Trail EVO brakes to work optimally with their 2.3mm-thick rotors. While other rotors might work, using the specified TRP rotors is recommended to achieve the intended performance and heat management characteristics.

Q3: How do TRP Trail EVOs compare to Shimano XT brakes?

A3: Both offer excellent power and reliability. The Trail EVOs are often described as having a feel that is between Shimano and SRAM, with a strong initial bite but good modulation. Shimano XT brakes are known for their consistent, powerful bite. The choice often comes down to personal preference regarding lever feel and modulation.

Q4: Can I use SRAM Matchmaker with TRP Trail EVO levers?

A4: Yes, TRP offers mounting options for SRAM Matchmaker, allowing for integrated shifter and brake lever mounting on your handlebar.

Q5: What kind of fluid do TRP Trail EVO brakes use?

A5: TRP Trail EVO brakes use mineral oil, similar to Shimano and many other hydraulic brake systems.
