Fixing Troy-Bilt Pony Tiller Transmission Woes

The Troy-Bilt Pony tiller is a dependable companion for any gardener looking to cultivate their plot with ease. Known for its robust performance, it simplifies the arduous task of breaking ground and preparing soil. However, even the most reliable machinery can encounter hiccups, and one of the most frustrating can be a problem with the transmission. When your tiller's locomotion is compromised, your gardening plans can quickly grind to a halt. Fortunately, many common transmission issues with the Troy-Bilt Pony are surprisingly straightforward to diagnose and rectify, often without needing a professional mechanic. Understanding the basics of how your tiller's transmission works and knowing the tell-tale signs of trouble can save you time, effort, and money. This comprehensive guide will walk you through the most prevalent transmission dilemmas faced by Troy-Bilt Pony owners and provide clear, actionable steps to get your tiller back in tip-top digging condition.

Understanding Your Troy-Bilt Pony Tiller's Transmission

At the heart of your Troy-Bilt Pony tiller's mobility lies its transmission system. This critical component is responsible for transferring power from the engine to the wheels and tines, controlling both their rotation and the tiller's forward or reverse movement. Most modern tillers, including the Pony, often utilise a hydrostatic transmission. Unlike traditional mechanical gearboxes, hydrostatic transmissions use hydraulic fluid under pressure to drive the system, offering smooth, variable speed control without traditional gears. While remarkably efficient, this reliance on fluid means that issues related to fluid levels, quality, or leaks can significantly impact performance. Understanding this fundamental operation is key to troubleshooting effectively.

Common Troy-Bilt Pony Tiller Transmission Problems & Solutions

1. The Case of the Missing Fluid: Hydrostatic Transmission Fluid Deficiency

One of the most common culprits behind a sluggish or non-moving Troy-Bilt Pony tiller is a lack of hydrostatic transmission fluid. This fluid is the lifeblood of your hydrostatic system; it lubricates components and transmits power. If the fluid level is too low, or if the fluid is old and degraded, the system may struggle to build sufficient pressure to turn the wheels or engage the tines properly. You might notice the tiller moving slowly, hesitantly, or not at all, even when the engine is running.

• Symptoms: Slow or no movement, difficulty engaging drive, unusual noises from the transmission area.
• Diagnosis: Locate the hydrostatic fluid reservoir (check your owner's manual for its exact position on your Pony model). Inspect the fluid level. If it's below the recommended mark, you've found a primary suspect. Also, check for any visible leaks around the transmission housing.
• Solution: Carefully top up the hydrostatic fluid to the correct level, using the specific type recommended in your Troy-Bilt Pony owner's manual. Do not substitute with other oils, as this can cause severe damage. If you detect a leak, it must be addressed promptly. Small leaks might be seals that can be replaced, but larger leaks may indicate a more serious issue requiring professional attention. It's also wise to replace the hydrostatic fluid filter if your model has one, as a clogged filter can restrict flow and pressure.

2. The Misaligned Drive: Unadjusted Control Arm or Linkage

Sometimes, the problem isn't internal to the transmission but lies with the external controls. The control arm or linkage connects your shift lever to the transmission, ensuring that when you select a gear (forward, neutral, reverse), the transmission responds accordingly. If this linkage becomes misadjusted or bent, the transmission might not fully engage, or it might remain partially engaged in neutral, causing the tiller to creep.

• Symptoms: Tiller creeps forward or backward when in neutral, difficulty shifting between gears, inconsistent drive engagement.
• Diagnosis: With the engine off and the tiller on a flat, secure surface, attempt to put it in neutral. If the wheels still try to move when you manually push the tiller, the linkage is likely out of adjustment. Visually inspect the control arm and its connection points for any signs of bending or looseness.
• Solution: The adjustment bolt on the control arm typically allows for fine-tuning. Consult your owner's manual for the precise adjustment procedure for your Troy-Bilt Pony model. The goal is to ensure that when the shift lever is in neutral, the transmission is truly disengaged, and when a gear is selected, it's fully engaged. If you're unsure or concerned about affecting your warranty, it's best to take your tiller to an authorised service centre.

3. The Accidental Override: Manual Bypass Lever Misuse

Many tillers, especially those with hydrostatic transmissions, feature a manual bypass lever. This lever is designed to disengage the transmission, allowing you to manually push or tow the tiller without resistance from the hydraulic system. It's incredibly useful for moving the tiller when the engine is off or if you need to push it up a slight incline. However, it's a common oversight to accidentally leave this lever engaged.

• Symptoms: Tiller will not move under its own power, even though the engine is running and controls are engaged. It feels like it's in neutral or free-wheeling.
• Diagnosis: Locate the manual bypass lever (again, your manual will show you exactly where). Check its position. It's usually a small lever or rod near the transmission.
• Solution: Simply deactivate the lever. Ensure it's in the 'engaged' or 'drive' position before attempting to operate the tiller. This is often a quick fix that many overlook!

4. The Stiff Gears: General Lubrication Deficiency

While distinct from hydrostatic fluid (which powers the system), other internal components of the transmission require proper lubrication to move freely and without excessive wear. If gears or shafts within the transmission become stiff due to a lack of lubrication, it can lead to grinding noises, difficulty shifting, or complete transmission failure over time. These lubricants are often referred to generally as transmission fluids or gear oils, depending on the specific design of your tiller's drivetrain.

• Symptoms: Grinding noises when shifting or operating, stiff controls, reduced efficiency, excessive heat from the transmission case.
• Diagnosis: This often requires a more in-depth check. Some tillers have separate fill points for gear oil in the gearbox housing. Check your manual. Look for signs of leaks around seals or gaskets.
• Solution: If your tiller has a separate gear oil reservoir, ensure it's filled to the correct level with the specified lubricant. If there's a persistent leak, it must be repaired to prevent future issues. Regular maintenance, including checking and changing transmission fluids as per the manufacturer's recommendations, is crucial for preventing this problem.

5. The Slipping Grip: Drive Belt Complications

The transmission itself relies on drive belts to transfer power from the engine. These belts can wear out, stretch, become glazed, or even break. A worn or slipping belt means that the engine's power isn't fully reaching the transmission, leading to a loss of drive power to the wheels or tines.

• Symptoms: Tiller moves slowly or intermittently, loss of power when under load, squealing noises, visible cracks or wear on the belt.
• Diagnosis: Visually inspect the drive belts (there may be more than one). Look for cracks, fraying, glazing (a shiny, hardened surface), or excessive slack. Ensure the belts are properly seated on their pulleys. A sticky or oil-soaked belt can also lose grip.
• Solution: In most cases, a worn or damaged drive belt needs to be replaced. This is a common maintenance task and often a straightforward DIY repair if you're comfortable working on your tiller. You'll need to purchase a new belt specific to your Troy-Bilt Pony model. If you're unsure, a local mechanic can quickly replace it for you. Ensure all pulleys are clean and spin freely.

6. The Mechanical Maze: Gear Complications

While hydrostatic transmissions reduce the reliance on traditional gears for speed changes, some tillers may still have gear components for forward/reverse selection or for the tines. Actual internal gear complications within the transmission are among the most serious problems and typically require expert intervention. Forcing gears can lead to costly and permanent damage.

• Symptoms: Grinding noises during operation or shifting, complete inability to select a gear, catastrophic failure of movement.
• Diagnosis: If you suspect internal gear damage, do not attempt to force anything.
• Solution: Immediately cease operation. Transmissions are sensitive and complex. Forcing a shift or continuing to operate with damaged gears can turn a repairable issue into a complete transmission replacement. It is highly recommended to take your Troy-Bilt Pony tiller to an authorised service technician or a skilled mechanic. They have the specialised tools and knowledge to diagnose and repair internal gear issues without causing further damage. Remember, Troy-Bilt mechanical repairs are often not as costly as you might fear, and some purchases may even include free service offers.

7. The User's Guide: Basic Operational Errors

Sometimes, what appears to be a transmission problem is simply a misunderstanding of the tiller's basic operation. Modern tillers have specific procedures for engaging drive and shifting, and ignoring these can lead to frustration or even premature wear.

• Symptoms: Tiller doesn't move as expected, seems unresponsive to controls, or shifts roughly.
• Diagnosis: Reflect on your operating procedure. Have you read the owner's manual? Are you following the recommended steps for starting, engaging, and shifting?
• Solution: Always consult your Troy-Bilt Pony owner's manual. For automatic models, ensure your shift lever is fully in the forward or reverse position, and the throttle is set to a fast position before attempting to move. For manual gear versions, always fully halt the tiller and depress the clutch (if applicable) when shifting between gears. Never force a gear change. A few minutes spent reviewing the manual can prevent many 'problems' that aren't truly mechanical faults.

Preventative Maintenance for Your Tiller's Transmission

Proactive maintenance is the best defence against transmission problems. Regular checks and timely fluid changes can significantly extend the life of your Troy-Bilt Pony tiller's transmission and ensure consistent performance.

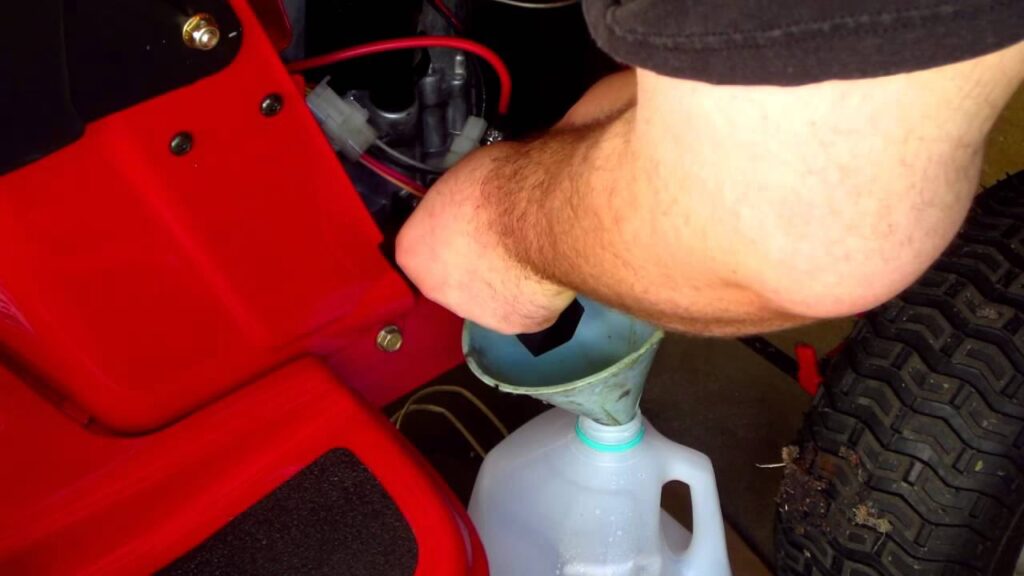

Engine Oil Type and Change Frequency

While separate from the transmission fluid, your tiller's engine oil is vital for overall performance. The type of oil depends on the ambient temperature you'll be operating in:

For models equipped with Briggs and Stratton 110000, 120000, 200000, or 210000 series engines (such as the Bronco and Super Bronco, which share similar engine types with the Pony), these oil guidelines are crucial. Always use a high-quality detergent oil with the specified American Petroleum Institute (API) rating to prevent engine damage.

As for how often to change your Troy-Bilt Pony tiller's engine oil, it largely depends on usage:

• Light Use (1-5 hours per month): Change the oil once or twice a year, ideally as a pre-season or post-season activity.
• Frequent or Heavy Use: If you use your tiller more often than 5 hours a month, it's wise to change the oil more frequently, perhaps every 25 operating hours or more than twice a year.

Regular oil changes keep your engine running smoothly and contribute to the overall health of your machine, indirectly supporting transmission function by ensuring consistent power delivery.

Troubleshooting Table: Quick Fixes at a Glance

Frequently Asked Questions (FAQs)

What causes hydrostatic transmission problems in a tiller?

Hydrostatic transmission problems can stem from various factors, broadly categorised into mechanical and operational issues. Mechanical causes often include low or contaminated hydrostatic fluid, internal leaks, worn pumps or motors, damaged seals, or a clogged fluid filter. Operational problems can involve accidentally leaving the bypass lever engaged, improper shifting techniques, or failing to perform regular maintenance like fluid checks and changes. Sometimes, it's simply a misadjusted control linkage. Identifying the exact cause usually starts with checking fluid levels and external controls.

How do you put a transmission belt on a Troy-Bilt Pony tiller?

Replacing a transmission belt on a Troy-Bilt Pony tiller typically involves a few steps, though the exact procedure can vary slightly by model. Generally, you'll need to disengage any tensioning idler pulleys, remove the old belt, and then meticulously route the new belt around the engine pulley, drive pulley(s), and any idler pulleys according to the diagram in your owner's manual. It's often easier to first place the belt around the larger pulleys and then work it onto the smaller, more difficult-to-reach ones. Once routed, re-engage the tensioning system. Always ensure the engine is off and the spark plug wire is disconnected for safety before attempting any belt work.

How often should I change the hydrostatic fluid in my Troy-Bilt Pony Tiller?

The frequency for changing hydrostatic transmission fluid varies depending on your tiller's usage and the manufacturer's recommendations. For typical home use, it's often advised to check the fluid level before each season and change it every 100-200 operating hours, or at least every one to two years, whichever comes first. Heavy or commercial use may require more frequent changes. Always refer to your specific Troy-Bilt Pony owner's manual for the most accurate and model-specific maintenance schedule and fluid type.

Can I use car engine oil as hydrostatic fluid in my Troy-Bilt Pony Tiller?

Absolutely not. Hydrostatic transmissions require specific hydraulic fluid, which is engineered with different viscosities and additives than standard car engine oil. Using the wrong type of fluid can lead to inadequate lubrication, overheating, seal damage, and ultimately, catastrophic failure of the hydrostatic unit. Always use the fluid type specified in your Troy-Bilt Pony's owner's manual to ensure proper function and longevity of your transmission.

When should I take my tiller to a professional mechanic?

While many common issues can be DIY fixed, it's best to consult a professional mechanic when facing complex problems like internal gear damage, persistent fluid leaks after seal replacement, or if you've tried basic troubleshooting steps without success. Also, if you're uncomfortable with mechanical repairs or your tiller is still under warranty, a professional service centre is the safest option. They possess the specialised tools and expertise to diagnose and repair intricate transmission issues correctly, safeguarding your investment.

Conclusion

A functional transmission is paramount to the efficiency and enjoyment of your Troy-Bilt Pony tiller. While transmission problems can seem daunting, many common issues are surprisingly simple to resolve with a bit of knowledge and the right approach. From ensuring adequate fluid levels and properly adjusted linkages to replacing worn drive belts and understanding correct operational procedures, you now have a comprehensive guide to troubleshoot your tiller's transmission. Remember, regular maintenance, including timely fluid checks and changes, is your best defence against unexpected breakdowns. By taking a proactive stance and addressing issues promptly, you can keep your Troy-Bilt Pony tiller running smoothly for many seasons to come, making your gardening tasks a breeze rather than a burden. Don't let a minor hiccup turn into a major headache; empower yourself with these solutions and get back to cultivating your garden with confidence.
