Mastering Your TB304S 4-Cycle Trimmer

Welcome to the world of effortless lawn care with your new TB304S 4-Cycle Trimmer. Designed for power, efficiency, and ease of use, this trimmer is your ultimate companion for tackling overgrown grass and weeds. This guide, inspired by the operator's manual, will walk you through everything you need to know to operate, maintain, and enjoy your TB304S to its fullest. Whether you're a seasoned gardener or new to the world of power tools, understanding the fundamentals is key to achieving pristine results and ensuring the longevity of your equipment.

Understanding Your TB304S Trimmer

The TB304S is a 4-cycle trimmer, which means it operates on a four-stroke engine. Unlike older 2-cycle engines that require a fuel-oil mixture, 4-cycle engines use straight gasoline and have a separate oil reservoir for lubrication. This design generally leads to quieter operation, reduced emissions, and often, better fuel efficiency. Familiarising yourself with the main components of your trimmer is the first step towards confident operation.

Key Components:

• Engine Unit: Houses the 4-cycle engine, throttle control, and start/stop switch.
• Shaft: Connects the engine unit to the cutting head.
• Cutting Head: Contains the trimmer line and mechanism for dispensing it.
• Handlebar: Provides a comfortable grip and control over the trimmer's direction.
• Shoulder Strap Attachment Point: For optional shoulder strap for reduced fatigue.

Getting Started: Fuel and Oil

Proper fuel and oil are crucial for the health and performance of your TB304S. Always use the correct types to avoid engine damage. For 4-cycle engines, it’s imperative to maintain the separate oil and fuel systems.

Fueling Your Trimmer:

Your TB304S requires unleaded gasoline. Always use fresh, clean gasoline. Do not use E15 or E85 gasoline, as these can damage the engine. Always refuel in a well-ventilated area, away from any open flames or sparks. Ensure the engine is off and cool before refueling.

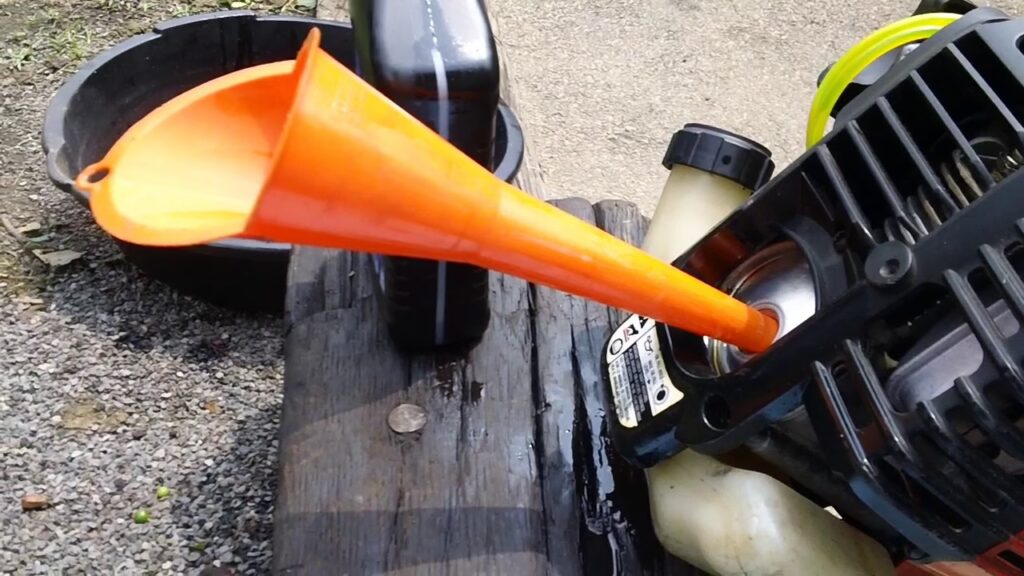

Checking and Adding Engine Oil:

The TB304S has a dedicated oil reservoir. The type of oil recommended is typically a high-quality SAE 30 or 10W-30 engine oil. Consult your operator's manual for the specific oil viscosity recommended for your operating temperature range. To check the oil level, locate the oil dipstick, unscrew it, wipe it clean, reinsert it without screwing it in, and then pull it out to check the level. The oil level should be between the "Add" and "Full" marks. If low, add the recommended oil until it reaches the "Full" mark. Never overfill the oil reservoir.

Starting Your TB304S Trimmer

Starting a 4-cycle trimmer is a straightforward process, but it's important to follow the correct sequence.

Step-by-Step Starting Procedure:

1. Ensure the trimmer is on a flat, clear surface.
2. Set the choke lever to the "Start" or "Closed" position.
3. Prime the engine by pressing the primer bulb (if equipped) several times until you see fuel in the bulb.
4. Set the throttle trigger to the "Fast" position.
5. Move the engine switch to the "On" or "Run" position.
6. Pull the starter cord firmly and smoothly. You may need to pull it several times until the engine begins to sputter or run briefly.
7. Once the engine sputters, move the choke lever to the "Run" or "Open" position.
8. Continue pulling the starter cord until the engine starts.
9. Allow the engine to warm up for a minute or two before engaging the cutting head.

Operating Your TB304S Trimmer

With the engine running, you're ready to start trimming. Proper technique will ensure efficiency and safety.

Trimming Technique:

• Hold the trimmer with both hands, maintaining a firm grip.
• Use a side-to-side sweeping motion. Avoid digging the cutting head into the grass.
• Allow the trimmer to do the work; don't force it.
• Maintain a comfortable stance, keeping your back straight.
• For thicker weeds, approach them at an angle and work through them gradually.
• Be mindful of your surroundings. Keep bystanders and pets at a safe distance.

Trimmer Line Advancement:

As the trimmer line wears down, you'll need to advance new line. Most trimmers, including the TB304S, feature an automatic line advancement system, often a bump-feed mechanism. To advance the line, simply tap the cutting head firmly on the ground while the engine is running at full throttle. This will release a fresh length of line. If the line breaks or becomes too short, you may need to manually feed it or replace the spool.

Maintenance for Longevity

Regular maintenance is key to keeping your TB304S in optimal condition and extending its lifespan. Neglecting maintenance can lead to poor performance and costly repairs.

Routine Checks:

• After Each Use: Clean the cutting head and surrounding areas of grass clippings and debris. Check the trimmer line for wear or damage.
• Regularly: Check the engine oil level and top up if necessary. Inspect the air filter for dirt and clean or replace it as needed. Check the spark plug for fouling or damage and clean or replace it.

Air Filter Cleaning/Replacement:

A clogged air filter restricts airflow to the engine, reducing power and efficiency. Locate the air filter cover, remove the filter, and clean it with compressed air or a mild detergent and water. Ensure the filter is completely dry before reinstalling it. If the filter is damaged, replace it with a new one.

Spark Plug Inspection:

The spark plug ignites the fuel-air mixture. Over time, it can become fouled with carbon deposits or wear out. Remove the spark plug using a spark plug wrench, inspect its condition, and clean any deposits with a wire brush. Check the gap between the electrodes and adjust it according to the manufacturer's specifications. If the plug is heavily fouled or damaged, it's best to replace it.

Trimmer Line Replacement:

When the trimmer line is depleted, you'll need to replace the spool. Consult your operator's manual for the specific procedure for your TB304S, as it may involve removing a cap or housing to access the spool. Ensure you use the correct gauge and type of trimmer line recommended for your model.

Safety First!

Operating a powerful tool like the TB304S requires strict adherence to safety guidelines. Your safety is paramount.

Personal Protective Equipment (PPE):

• Eye Protection: Always wear safety glasses or goggles to protect your eyes from flying debris.
• Hearing Protection: Use earplugs or earmuffs to protect your hearing from the engine noise.
• Footwear: Wear sturdy, closed-toe shoes or boots.
• Clothing: Wear long trousers and long-sleeved shirts to protect your skin. Avoid loose clothing that could get caught in the trimmer.

Operational Safety:

• Never operate the trimmer without all safety guards in place.
• Keep bystanders and pets at a safe distance (at least 15 metres).
• Be aware of hidden objects such as rocks, wires, or buried pipes.
• Do not operate the trimmer in wet conditions or during heavy rain.
• Never point the trimmer at people or animals.
• Ensure the engine is off and the cutting head has stopped rotating before making any adjustments or performing maintenance.

Troubleshooting Common Issues

Even with proper care, you might encounter minor issues. Here are some common problems and their solutions:

Frequently Asked Questions (FAQs)

Q1: Do I need to mix oil with the gasoline for my TB304S?

A1: No, the TB304S is a 4-cycle trimmer and uses straight unleaded gasoline. It has a separate oil reservoir for lubrication, so you do not mix oil with the fuel.

Q2: How often should I change the engine oil?

A2: It's generally recommended to change the engine oil after the first 20 hours of operation and then every 50 hours of operation thereafter, or at least once per season. Always refer to your specific operator's manual for the exact recommended interval.

Q3: What type of trimmer line should I use?

A3: Use the trimmer line size and type recommended in your operator's manual. Using the wrong type can affect performance and potentially damage the cutting head.

Q4: Can I use my trimmer in wet grass?

A4: While it's possible, it's best to avoid trimming in very wet conditions. Wet grass can clog the cutting head and make trimming less efficient. It also increases the risk of slipping and accidents.

Q5: How do I store my trimmer for the off-season?

A5: For long-term storage, it's recommended to run the engine dry of fuel to prevent fuel system issues. Clean the trimmer thoroughly, and store it in a dry, protected area. You may also want to remove the spark plug and add a small amount of clean engine oil into the cylinder, then pull the starter cord a few times to coat the cylinder walls, before reinstalling the spark plug.

By following these guidelines, you can ensure your TB304S 4-Cycle Trimmer operates safely and efficiently, providing you with excellent results for years to come. Happy trimming!
