Mastering Fuel Injection Diagnostics with an Oscilloscope
The world of automotive diagnostics often hinges on understanding the intricate signals that govern a vehicle's performance. Among the most crucial systems is the fuel injection, responsible for delivering the precise amount of fuel needed for optimal combustion. When dealing with a saturated switch fuel injection circuit, an oscilloscope, often referred to as a scope, emerges as an indispensable tool. While many variables can influence the waveform, such as injector specifications, fuel pressure, and other contributing factors, the ability of your scope to capture these transient events is paramount. This article delves into how a scope can effectively detect issues within a saturated switch fuel injection circuit, helping you confirm the health of the drivers and injectors.

Understanding Saturated Switch Fuel Injection
Before we dive into the diagnostic process, it's essential to grasp the fundamental operation of a saturated switch fuel injection system. In this type of system, the fuel injector is typically controlled by a driver circuit within the Engine Control Unit (ECU). This driver acts like a switch, rapidly turning the injector on and off. When the driver is 'on', it allows current to flow through the injector's coil, creating a magnetic field that opens the injector pintle, spraying fuel. When the driver is 'off', the current is interrupted, and the magnetic field collapses, allowing a spring to close the injector pintle. A 'saturated' switch implies that the driver is operating at its maximum capacity, either fully on or fully off, to control the injector.
The Role of the Oscilloscope in Diagnosis
An oscilloscope allows us to visualise the electrical signals that control the fuel injectors. By connecting the scope probes to the appropriate points in the circuit, we can observe the voltage and current patterns associated with the injector's operation. This visual representation, known as a waveform, provides a wealth of information that can be difficult or impossible to obtain through other diagnostic methods.
Capturing the Injector Waveform
To diagnose a saturated switch fuel injection circuit, you'll typically want to capture the waveform at the injector connector. You'll need to set up your scope with appropriate probes. A common method involves using a current clamp probe to measure the current flowing through the injector's circuit, and a voltage probe to measure the voltage at the injector connector. The ECU sends a signal to the driver, which then energizes the injector. The waveform will show a period of high current as the injector is activated, followed by a period of no current when it's deactivated. The shape, duration, and timing of these pulses are critical indicators of the system's health.
Interpreting the Waveform: What to Look For
When examining the injector waveform, several key characteristics can reveal potential problems:
- Pulse Width: This refers to the duration for which the injector is energized. An incorrect pulse width can lead to either too much or too little fuel being injected, affecting engine performance and fuel economy.
- Rise Time: This is the time it takes for the current to reach its peak when the injector is activated. A slow rise time might indicate a weak injector coil or a problem with the driver circuit.
- Fall Time: This is the time it takes for the current to drop to zero when the injector is deactivated. A slow fall time can suggest issues with the driver circuit's ability to de-energize the injector coil effectively.
- Saturation Voltage: In a saturated switch system, you'll typically see a voltage 'kickback' or 'flyback' spike as the injector coil's magnetic field collapses. This spike is a good indicator that the driver is effectively switching the current.
- Flat-topping: This occurs when the current reaches its maximum and stays there for the duration of the pulse. This is characteristic of a properly saturated switch.
- Noise or Instability: Excessive noise or erratic patterns in the waveform can point to electrical issues, such as poor connections, damaged wiring, or failing driver components.
Diagnosing a Saturated Switch Circuit with a Scope
A saturated switch fuel injection circuit is designed to deliver a strong, consistent current to the injector when it's active. When diagnosing a potential issue, the scope can help you pinpoint whether the circuit is functioning as intended.
Saturated vs. Non-Saturated Switching

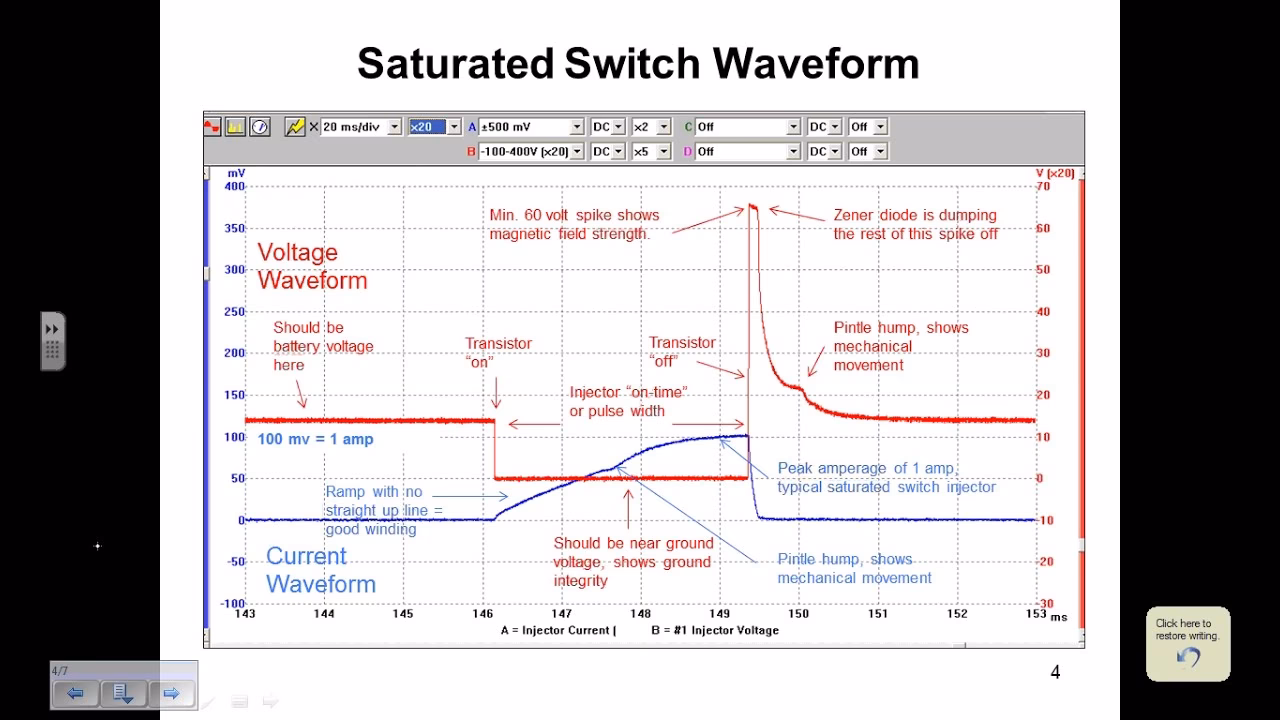

In a true saturated switch system, the driver circuit is designed to drive the injector coil to its magnetic saturation point. This means the current builds up rapidly and then stays at a high level until the driver switches off. On the oscilloscope, this typically manifests as a 'flat-top' on the current waveform during the 'on' phase. The voltage waveform will show a rapid rise when the injector is activated, a relatively stable voltage during the 'on' period, and then a significant voltage spike (flyback voltage) when the injector is deactivated.
If the system is not properly saturating the switch, you might observe a current waveform that doesn't reach its maximum potential or doesn't maintain a flat top. This could indicate a weak driver, a high-resistance connection, or even a partially failed injector coil. The voltage spike might also be less pronounced or distorted.
Common Issues Detected by a Scope
Here are some common problems that a scope can help identify in a saturated switch fuel injection circuit:
| Symptom on Waveform | Potential Cause | Diagnostic Action |
|---|---|---|
| Slow current rise time | Weak injector coil, high resistance in wiring, failing driver | Test injector resistance, check wiring continuity and resistance, test driver circuit |
| Low peak current | Low fuel pressure, restricted injector, weak driver | Check fuel pressure, test injector for blockage, check driver output |
| No current or erratic current | Open circuit in wiring, failed injector coil, failed driver | Check wiring for breaks, test injector continuity, test driver output |
| Distorted or weak voltage spike (flyback) | Failing driver, poor ground connection | Inspect driver connections and ground points, test driver functionality |
| Missing pulses | ECU internal fault, wiring intermittent fault, driver intermittent fault | Check all connections, monitor waveform for extended periods, consider ECU testing |
The Importance of Scope Speed
As mentioned, some scopes might not be fast enough to catch certain transient events. Fuel injection events happen very quickly, often in milliseconds. If your scope's sampling rate is too low, you might miss critical details in the waveform, leading to an inaccurate diagnosis. Ensure your scope has a sufficient bandwidth and sampling rate to accurately capture these high-speed signals. A scope with a sampling rate of at least 1 MS/s (Mega Samples per second) is generally recommended for injector diagnostics, with higher rates being even better.
Troubleshooting Steps
When faced with a potential fuel injection issue, follow these systematic steps:
- Identify the System: Confirm that the vehicle uses a saturated switch fuel injection system. This information is often found in service manuals.
- Gather Information: Consult the vehicle's service manual for expected waveform characteristics, resistance values, and operating parameters.
- Connect the Scope: Safely connect your oscilloscope's current clamp and voltage probes to the injector connector. Ensure proper grounding.
- Set Up the Scope: Configure your scope's settings (voltage scale, time base, trigger) to capture the injector pulses accurately. Start with a reasonable time base and adjust as needed.
- Observe the Waveform: Crank the engine or have it running (if safe to do so) and observe the injector waveforms.
- Analyse the Waveform: Compare the observed waveform to expected patterns. Look for the characteristics discussed earlier (rise time, fall time, saturation, flyback spike).
- Isolate the Fault: Based on your analysis, try to pinpoint whether the issue lies with the injector itself, the wiring, or the ECU driver circuit.
- Perform Further Tests: If necessary, conduct additional tests, such as injector resistance checks, wiring continuity tests, or driver circuit diagnostics, as per the service manual.
Tips for Accurate Diagnosis
- Use the Right Probes: A current clamp is essential for accurately measuring injector current. Using a voltage probe alone may not provide sufficient detail about the current flow.
- Proper Grounding: Ensure your scope and its probes are properly grounded to avoid introducing noise or false readings.
- Triggering: Setting up the scope's trigger correctly is crucial to capture the events you're interested in consistently. Triggering on the rising or falling edge of the signal can be effective.
- Compare Cylinders: If you suspect an issue with a specific injector, compare its waveform to those of other injectors on the same engine. This can help identify individual component failures.
- Environmental Factors: Be aware that extreme temperatures or other environmental conditions can sometimes affect component performance.
Frequently Asked Questions (FAQ)

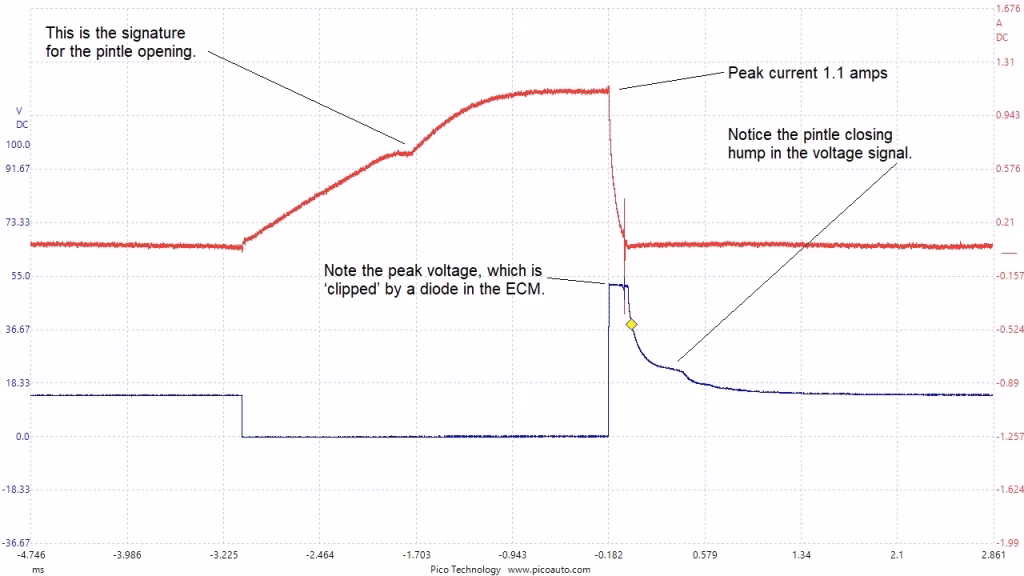

Can a scope detect a saturated switch fuel injection circuit?
Yes, an oscilloscope is an excellent tool for diagnosing saturated switch fuel injection circuits. It allows you to visualise the electrical signals and identify deviations from normal operation that indicate a problem.
What is the most common symptom of a failing injector?
Symptoms can vary, but on a scope, a failing injector might exhibit a slower current rise time, lower peak current, or an inconsistent pulse width. In some cases, it might not fire at all.
How do I know if the ECU driver is failing?
A failing ECU driver might result in a weak or distorted voltage spike (flyback), slow rise or fall times, or missing injector pulses. The current waveform might not reach saturation levels.
Is it safe to test fuel injectors while the engine is running?
It can be, but you must exercise extreme caution. Ensure your probes and connections are secure and do not interfere with moving engine parts. It's often safer to test with the engine off if possible, by cranking the engine.
What is 'flyback voltage' in fuel injection?
Flyback voltage, also known as voltage kickback or inductive kick, is the voltage generated when the current through an inductive coil (like an injector) is suddenly interrupted. This voltage spike is a diagnostic indicator of the driver's ability to switch the circuit.
Conclusion
Diagnosing a saturated switch fuel injection circuit with an oscilloscope is a powerful technique for automotive technicians. By understanding how to interpret injector waveforms, you can effectively identify issues with injectors, drivers, and associated wiring. The ability to visualise these rapid electrical events allows for precise troubleshooting, ensuring that your vehicle's fuel delivery system is operating at its peak. Remember to use the right equipment, follow proper procedures, and always prioritise safety when working with automotive electrical systems. With practice and a good understanding of oscilloscope diagnostics, you can confidently tackle even the most complex fuel injection problems.
