Triumph Sprag Clutch Issues

The iconic Triumph motorcycles, particularly those from the era of the Trident and Thunderbird models, are cherished by enthusiasts for their distinctive character and raw power. However, like any classic machine, they can present their own unique set of challenges. One component that can often be a source of starting problems is the sprag clutch. This crucial part plays a vital role in the starting mechanism, and when it malfunctions, it can leave you stranded. This article delves into the common reasons why a Triumph sprag clutch might prevent your motorcycle from starting, offering insights and potential solutions for owners.

Understanding the Sprag Clutch

Before we explore the problems, it's essential to understand what a sprag clutch is and how it functions within your Triumph's engine. The sprag clutch, also known as a one-way clutch, is a mechanical device that allows a shaft to rotate freely in one direction but locks up to transmit torque in the opposite direction. In a motorcycle's starting system, it typically connects the starter motor to the crankshaft. When you engage the starter, the starter motor spins, and through a series of gears and the sprag clutch, it cranks the engine. Once the engine starts and the crankshaft spins faster than the starter motor, the sprag clutch disengages, preventing the engine from driving the starter motor.

Common Causes of Sprag Clutch Failure

Several factors can lead to a Triumph sprag clutch failing to perform its intended function, resulting in a no-start situation. These issues can range from simple wear and tear to more complex internal problems.

1. Worn or Damaged Sprag Elements

The most common culprit is the gradual wear and tear of the sprag elements themselves. These are typically small, hardened steel ramps or rollers that press against an inner race. Over time and with countless starting cycles, these elements can become worn down, lose their sharp edges, or even develop flat spots. This wear reduces their ability to lock up effectively, meaning the starter motor spins but doesn't transmit enough torque to turn the engine over. In severe cases, the sprags can become chipped or broken, leading to complete failure and a distinct grinding or clicking noise during attempted starting.

2. Damaged or Worn Inner/Outer Race

The sprag clutch assembly relies on precisely machined inner and outer races. If either of these races becomes pitted, scored, or worn, it can prevent the sprags from engaging properly. Contamination from dirt, debris, or metal particles from other engine components can accelerate the wear on these surfaces. A damaged race can cause the sprags to slip or not seat correctly, leading to intermittent or complete failure of the starting system.

3. Weak or Broken Return Spring

As mentioned in the user's query, a critical component of the sprag clutch is the small, often delicate, return spring. This spring is responsible for pushing the sprags into their correct position, ensuring they are ready to engage when the starter motor activates. If this spring weakens with age or breaks entirely, the sprags may not be properly positioned, or they might not retract cleanly when the engine starts. A broken spring is a very common reason for a sprag clutch to fail to engage, as it's a small but vital part that can be susceptible to fatigue and breakage. The user's experience of needing a replacement spring highlights this vulnerability.

4. Contamination and Debris

The internal workings of a sprag clutch are sensitive to contamination. Metal shavings, dirt, old oil residue, or other debris can get into the assembly and interfere with the smooth operation of the sprags and races. This debris can prevent the sprags from moving freely, leading to either a failure to engage or premature wear. Regular oil changes and ensuring the cleanliness of the engine during rebuilds are crucial for preventing this.

5. Incorrect Assembly or Installation

While less common for experienced mechanics, incorrect assembly or installation of the sprag clutch can lead to immediate or eventual failure. This could involve fitting components in the wrong orientation, failing to lubricate parts adequately during assembly, or not torquing fasteners correctly. If the sprag clutch was recently serviced or replaced, this is a possibility to consider.

6. Oil Starvation or Poor Lubrication

The sprag clutch, like other engine components, relies on adequate lubrication to function correctly and prevent excessive wear. If there's an issue with the oil supply to the sprag clutch housing, or if the wrong type of oil is used, it can lead to increased friction and premature failure of the sprags and races. Ensuring the oil level is correct and the oil is circulating properly is paramount.

Troubleshooting a Non-Starting Triumph

When your Triumph refuses to start and you suspect the sprag clutch is the culprit, a systematic approach to diagnosis is necessary. Here's a breakdown of how to investigate:

Step 1: Assess the Symptoms

Listen carefully when you try to start the bike. Do you hear the starter motor engaging and spinning freely without turning the engine? This is a classic sign of a slipping sprag clutch. Do you hear any unusual grinding, clicking, or rattling noises? These could indicate broken sprags or damaged races.

Step 2: Check Electrical Components First

Before diving into the engine, rule out simpler issues. Ensure your battery is fully charged and the connections are clean and tight. Check the starter motor itself for any obvious damage or seized bearings. A weak battery or a faulty starter motor can mimic sprag clutch problems.

Step 3: Accessing the Sprag Clutch

On many Triumph models, accessing the sprag clutch requires removing the engine from the frame and splitting the crankcases, as the user's experience suggests. This is a significant undertaking and requires good mechanical knowledge and the right tools. Referring to a Haynes manual or a factory service manual for your specific model is highly recommended.

Step 4: Visual Inspection of the Sprag Clutch Assembly

Once you have the engine apart and can access the sprag clutch, perform a thorough visual inspection. Look for:

• Condition of the Sprags: Are they worn, chipped, or broken?
• Condition of the Races: Are the inner and outer races smooth and free from pitting or scoring?
• The Return Spring: Is it intact and showing good tension? If it looks weak or broken, this is a prime suspect.
• Debris: Is there any visible contamination within the assembly or the oil?

Step 5: Testing Engagement (If Possible)

With the assembly partially accessible (though often difficult without complete disassembly), you might be able to manually test the engagement. Try rotating the inner race relative to the outer. It should lock in one direction and spin freely in the other. If it slips in both directions or is seized, it's definitely faulty.

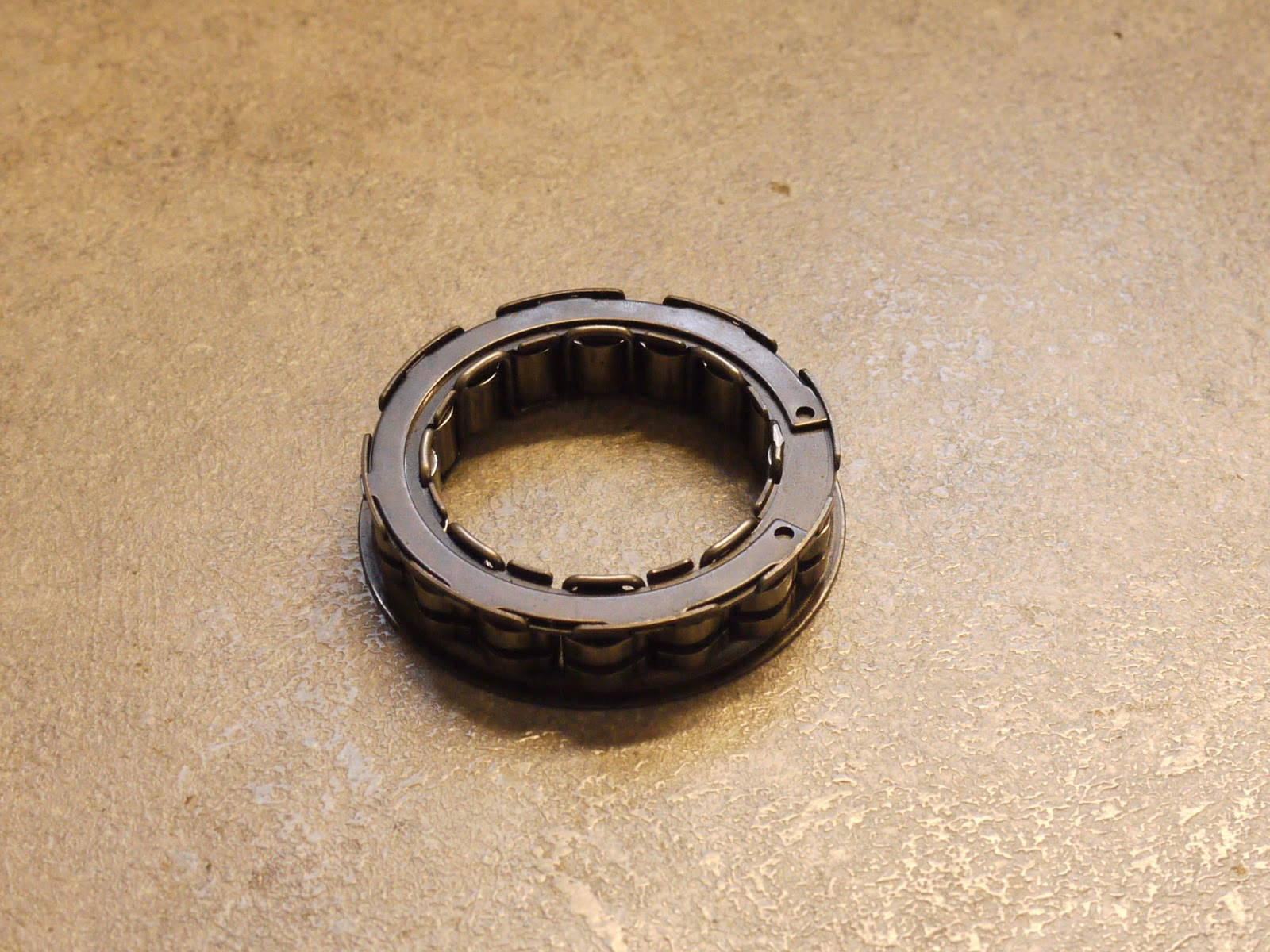

Can a Thunderbird Sprag Clutch be Used on a Trident?

The question of parts interchangeability between different Triumph models, like the Thunderbird and Trident, is a common one among owners. While both models might share some components, it's crucial to verify specific part numbers and compatibility before attempting a swap. The design and dimensions of the sprag clutch assembly, including the races and the number of sprags, can vary significantly even between models that appear similar. Using an incompatible sprag clutch could lead to improper function or even damage to the engine. As the user noted, they used a part that worked, but this was after careful consideration and likely confirmation of its suitability. Always consult your workshop manual or a Triumph specialist to confirm interchangeability.

Replacing the Sprag Clutch

If your inspection reveals a faulty sprag clutch, replacement is the only viable solution. This involves:

• Sourcing the correct replacement sprag clutch assembly or individual components (sprags and spring).
• Carefully cleaning the mating surfaces in the crankshaft or flywheel.
• Installing the new sprag clutch, ensuring it is correctly oriented and seated.
• Reassembling the engine, following the correct torque specifications and procedures.

As the user mentioned, sourcing parts for older models can be challenging. Triumph ceased production of many of these classic bikes decades ago, and original spare parts are often scarce. However, specialist suppliers and online forums dedicated to classic Triumphs are excellent resources for finding new old stock (NOS) parts or high-quality aftermarket replacements. The user's success in finding a suitable spring from an industrial seals supplier is a testament to the ingenuity of the classic bike community.

Maintenance Tips for Longevity

To prevent future sprag clutch issues and ensure the longevity of your Triumph's starting system, adhere to these maintenance practices:

• Regular Oil Changes: Use the correct grade of oil and change it at recommended intervals. This keeps the sprag clutch lubricated and free from contaminants.
• Cleanliness: Maintain a clean engine environment. During any engine work, ensure no dirt or debris enters the crankcases.
• Gentle Starting: Avoid prolonged cranking of the starter motor. If the engine doesn't fire up after a few seconds, stop and investigate potential fueling or ignition issues. Excessive cranking can put undue stress on the sprag clutch.
• Listen to Your Bike: Pay attention to any unusual noises during starting. Early detection of symptoms can prevent more significant damage.

Frequently Asked Questions

Q: My Triumph starter motor spins but doesn't turn the engine over. Is it definitely the sprag clutch?
While a slipping sprag clutch is a very common cause, it's not the only possibility. Check the starter motor itself, the battery voltage, and the starter solenoid for proper operation before concluding it's the sprag clutch.

Q: How difficult is it to replace a sprag clutch on a Triumph Trident?
Replacing a sprag clutch on most classic Triumphs, including the Trident, is a complex job that typically requires removing the engine from the frame and splitting the crankcases. It's a job best suited for experienced mechanics or those with a good workshop manual and the necessary tools.

Q: Where can I find parts for an old Triumph sprag clutch?
Specialist Triumph dealers, online classic motorcycle parts suppliers, and dedicated Triumph forums are your best bet. You might find NOS parts or good quality aftermarket replacements. Sometimes, parts from industrial suppliers can also be adapted, as the user experienced with the spring.

Q: Can I ride my Triumph if the sprag clutch is slipping?
No, you should not continue to ride your motorcycle if the sprag clutch is slipping. While it might not cause immediate catastrophic failure, it will prevent the bike from starting reliably, and continued slipping can lead to further damage to the sprag clutch assembly and potentially other engine components.

In conclusion, a malfunctioning sprag clutch can be a frustrating obstacle for Triumph owners. Understanding its function, common failure points, and the troubleshooting process is key to getting your classic British machine back on the road. While some repairs are complex, with the right knowledge and resources, these iconic motorcycles can be kept running for generations to come.
