Triumph Fork Oil: Your Complete Guide to Change

Maintaining the suspension on your Triumph motorcycle is paramount for a smooth, safe, and enjoyable riding experience. The fork oil, often overlooked, plays a critical role in damping, lubrication, and heat dissipation within your front forks. Over time, this oil degrades, losing its viscosity and effectiveness, leading to a noticeable decline in handling and comfort. Understanding how much oil your Triumph forks require and the correct procedure for replacement is a fundamental skill for any dedicated rider. This comprehensive guide will walk you through the specifics, ensuring your Triumph continues to handle like a dream.

Whether you're tackling a full fork strip-down or opting for a quicker, less intrusive method, getting the oil level precise is key. An incorrect oil level can lead to anything from harsh damping and a 'pogo stick' feel to excessive dive under braking. Let's delve into the details of keeping your Triumph's front end performing at its best.

Understanding Your Triumph's Forks: Key Terminology

Before we dive into the nitty-gritty of oil replacement, it's helpful to clarify some common terminology associated with motorcycle forks, as it can sometimes be a source of confusion. When discussing your Triumph's front suspension, you'll often hear about two main components:

• Fork Leg: This refers to the lower part of the fork assembly. It's the component where your brake caliper is typically mounted. It houses the damping mechanisms and slides up and down.
• Stanchion: This is the shiny, chrome-plated upper tube of the fork. It's the part that is held securely by the triple tree (or yoke) and bolted up. The stanchion slides into the fork leg, providing the suspension travel.

Getting these terms straight will make following any maintenance guide, including your Haynes manual, much clearer.

Determining the Correct Oil Level for Triumph Forks

For many Triumph models, particularly the Thunderbird mentioned in the original query, the precise fork oil level is measured from the top of the stanchion when the fork is fully compressed and the spring has been removed. The magic number, as per Triumph's specifications, is often 109 mm from the top.

The DIY Oil Level Tool: Crafting Your Own Precision Aid

While professional tools exist, a simple and effective oil level tool can be easily fashioned from readily available materials, ensuring you hit that precise 109 mm mark every time. Here's how to make one:

Materials Needed:

• A length of copper piping (or similar rigid tubing)
• A ruler or tape measure
• White electrical tape or a marker pen
• A piece of string (essential for safety!)

Construction Steps:

1. Take your copper piping.
2. Measure 109 mm from one end of the tubing. This will be the point where the oil will touch.
3. Mark this 109 mm point clearly with white electrical tape or a permanent marker. This mark should be considered the 'base' of your measurement.
4. Crucially, tie a piece of string securely to the opposite end of the copper tubing. This string is your safety net; it prevents you from accidentally dropping the tool into the fork stanchion during the measurement process, which would be a significant headache to retrieve!

Using Your DIY Tool:

1. Ensure the fork stanchion is upright and fully compressed (this means the fork leg is pushed all the way up into the stanchion).
2. Crucially, the fork spring must be removed from the stanchion before measuring.
3. Carefully insert your new DIY tool into the stanchion. The goal is to lower the tool until the base of your white tape mark (the 109 mm mark) is perfectly flush with the very top edge of the stanchion.
4. Once the tool is correctly positioned, begin pouring the new fork oil into the stanchion.
5. Continue pouring until the oil just touches the very bottom edge of your copper tubing. When the oil reaches this point, you have precisely 109 mm of air gap from the top of the stanchion, which is the specified level.
6. Remove the tool, replace the spring and cap, and then repeat the entire process for the other fork leg.

Method 1: Comprehensive Fork Oil Replacement (With Disassembly)

This method involves removing the fork legs from the motorcycle, providing the most thorough way to replace the oil and inspect internal components. It's recommended if you suspect internal issues, plan to replace seals, or simply want to ensure every drop of old oil is removed.

Tools and Materials You'll Likely Need:

• Haynes Manual (invaluable for model-specific torque settings and procedures)
• Appropriate sockets and wrenches
• Allen keys
• Piston rod holding tool (may be required for some models)
• New fork oil (specific weight/viscosity as per your Triumph manual)
• Measuring jug
• Drain pan
• Clean rags
• New crush washers (if applicable)
• Optional: New fork seals and dust seals if you plan to replace them
• Your DIY oil level tool

Step-by-Step Procedure:

1. Prepare the Bike: Securely support your Triumph on a paddock stand or centre stand, ensuring the front wheel is off the ground and stable. Loosen the top yoke pinch bolts and handlebar clamp bolts (if handlebars are mounted directly to the fork caps).
2. Loosen Fork Caps: Before completely removing the forks from the bike, it's often easier to loosen the fork caps while they are still held firmly by the yokes. Be cautious as the cap is under spring tension.
3. Remove Front Wheel and Calipers: Disconnect the brake calipers and secure them out of the way (do not let them hang by the brake lines). Remove the front wheel and mudguard.
4. Remove Forks from Yokes: Loosen the lower yoke pinch bolts. Carefully slide each fork leg downwards and out of the triple trees. Have a drain pan ready.

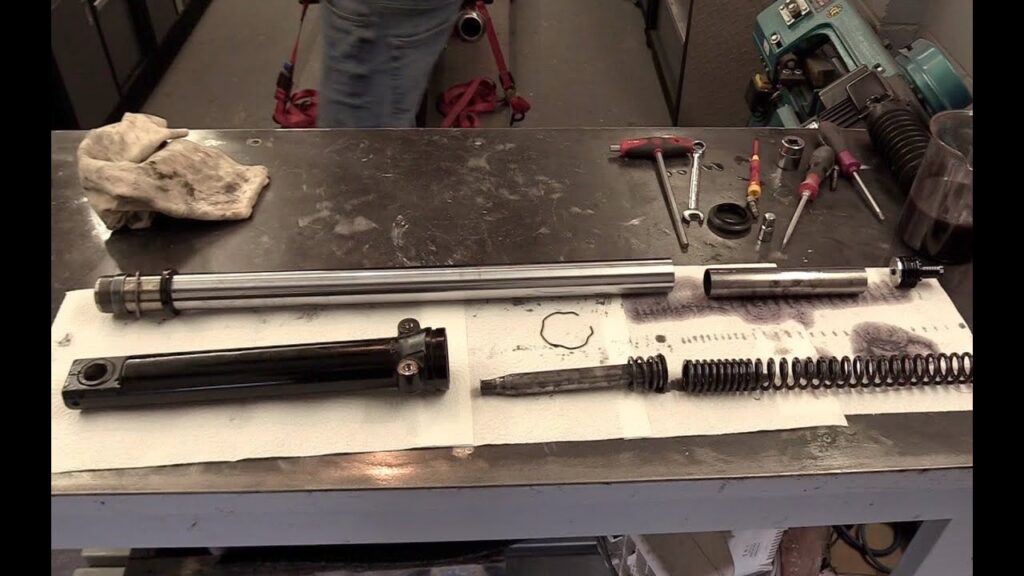

5. Disassemble and Drain: With the fork leg removed, carefully unscrew the fork cap completely. The spring will likely push it up. Remove the main fork spring, spacer, and any washers. Invert the fork leg over your drain pan and pump it several times to expel as much old oil as possible. For best results, allow the fork to drain overnight. This ensures all the old, contaminated oil is thoroughly removed.
6. Clean and Inspect: Once drained, clean the internal components. Inspect the stanchion for any pitting, scratches, or wear. If you are replacing fork seals, now is the time to do so (though the provided information indicates this guide won't cover seal replacement in detail).
7. Refill with New Oil: With the fork fully compressed and the spring removed, slowly pour in the new, recommended fork oil. Use your DIY oil level tool as described above to achieve the precise 109 mm level from the top of the stanchion. Ensure no air bubbles remain by slowly pumping the fork a few times after adding some oil, then re-check the level.
8. Reassemble the Fork: Reinsert the spring, spacer, and washers. Carefully screw the fork cap back on, ensuring the threads engage correctly. Do not overtighten yet.
9. Reinstall Forks on Bike: Slide the fork legs back into the triple trees. One crucial point of caution: ensure that both stanchions are at the correct, equal level when you reinsert them into the yoke. Uneven forks will lead to poor handling and potential frame twist. Measure from a fixed point (e.g., the top of the stanchion to the top of the upper yoke) to confirm they are symmetrical.
10. Tighten All Fasteners: Once everything is aligned, progressively tighten the upper and lower yoke pinch bolts, the fork caps, and the handlebar clamp bolts (if applicable) to the torque specifications provided in your Haynes manual.
11. Reinstall Components: Reattach the front wheel, brake calipers, and mudguard, ensuring all fasteners are torqued correctly.

Method 2: Changing Fork Oil Without Full Disassembly (The "Easy-Peasy" Method)

This method is perfect if your fork seals are in good condition and you primarily want to refresh the fork oil without the extensive work of removing the forks from the bike. It's quicker but might not remove every last drop of old oil.

Tools and Materials You'll Need:

• Spanner for the fork caps (check your specific Triumph model for size)
• Syringe with sufficient tubing attached to reach the full length of the fork leg
• Wire coat hanger (or similar hooked tool)
• Measuring jug (for collecting old oil and measuring new)
• New fork oil (specific weight/viscosity as per your Triumph manual)
• Clean rags
• Drain pan

Step-by-Step Procedure:

Work on one fork leg at a time to maintain stability and prevent errors.

1. Prepare the Bike: Securely support your Triumph on a stand. You may need to remove the handlebars and set them aside to gain access to the fork caps.
2. Carefully Remove Fork Cap: Using the appropriate spanner, carefully remove the fork leg top cap. Be aware that it's under spring tension, so apply downward pressure as you unscrew to control its release. Set the cap aside in a clean place.
3. Extract Internal Components: Now, using your straightened wire coat hanger (or a similar tool with a hook), gently fish out the top washer, the spacer, and the main fork spring. Allow these components to drip any old oil into your measuring jug to collect it.
4. Extract Old Oil: Insert the tubing from your syringe (or other suction device) deep into the fork leg. Begin to suck out the old oil, emptying it into your measuring jug. To ensure you get as much old oil out as possible, press the forks up and down a few times while the tubing is inside. This will help to dislodge any oil trapped in the shock absorber valves. Perform a final suck-out of old oil.
5. Measure and Refill: Note down the exact quantity of old oil you removed from that leg. This is crucial for determining how much new oil to put back in. Pour the exact same quantity of new, fresh fork oil into the fork leg. While this method doesn't use the 109mm air gap measurement directly, matching the quantity removed is the next best thing for this procedure.
6. Replace Components: Carefully replace the fork spring, spacer, and top washer back into the fork leg.
7. Replace Fork Leg Cap: Screw the fork leg cap back into place. Ensure it's threaded correctly and tighten it securely, but do not overtighten.
8. Repeat for Other Leg: Now, perform the exact same steps for the other fork leg.

Essential Tips for a Smooth Operation

• Consult Your Haynes Manual: Always, always refer to your specific Triumph model's Haynes manual for precise torque specifications, oil type/viscosity recommendations, and any model-specific procedures.
• Cleanliness is Key: Dirt and contaminants are the enemies of your forks. Work in a clean environment, and keep all components spotless. Wipe down the stanchions before reassembly.
• Proper Oil Disposal: Old fork oil is hazardous waste. Do not pour it down the drain. Collect it in sealed containers and take it to an authorised waste disposal facility or a garage that recycles used oil.
• Check for Wear: While you're working on the forks, take the opportunity to inspect dust seals and fork seals. Even if you're not replacing them, note any cracking or leaks.
• Gentle with Threads: Fork caps and drain bolts can be easily cross-threaded or stripped. Always start threading by hand to ensure proper engagement before using tools.
• Don't Rush: Take your time. Rushing leads to mistakes. If you're unsure about a step, pause and re-read your manual or this guide.

Common Pitfalls to Avoid

Even experienced DIY mechanics can fall victim to common errors during fork oil changes. Being aware of these can save you a lot of hassle:

• Incorrect Oil Level: Too much oil can lead to a harsh ride and potentially blow seals. Too little oil results in inadequate damping and excessive dive. The 109 mm measurement (or precise quantity replacement) is critical.
• Mixing Oil Types/Viscosities: Never mix different brands or weights of fork oil. Stick to the manufacturer's recommendation.
• Leaving Air Bubbles: Failing to pump the forks after adding oil can leave trapped air, leading to inconsistent damping.
• Overtightening Fasteners: Stripped threads, especially on aluminum components like fork caps or yoke bolts, are an expensive mistake. Always use a torque wrench.
• Uneven Stanchion Height: As mentioned, when reinstalling forks, ensure both stanchions are at precisely the same height within the yokes. This is vital for straight tracking and safe handling.
• Damaging Seals: Be extremely careful not to nick or damage fork seals during reassembly.

Comparative Table: Method 1 vs. Method 2

Frequently Asked Questions (FAQs)

Q: How often should I change my Triumph's fork oil?

A: This varies by model and riding style, but a good general guideline is every 20,000 to 30,000 miles, or every 2-3 years, whichever comes first. If you ride aggressively, track your bike, or notice a degradation in handling, consider more frequent changes.

Q: What type of fork oil should I use for my Triumph?

A: Always consult your Triumph owner's manual or Haynes manual for the exact recommended viscosity (e.g., 10W, 15W) and type of fork oil. Using the wrong viscosity can significantly alter your bike's damping characteristics.

Q: Can I mix different brands or weights of fork oil?

A: It is strongly advised against mixing different brands or weights of fork oil. Different brands may have incompatible additives, and mixing viscosities will lead to unpredictable damping performance. Always use a fresh, single type of oil.

Q: What happens if I put too much or too little oil in my forks?

A: Too much oil reduces the air gap, making the fork feel harsher and potentially causing excessive pressure buildup, which can blow seals. Too little oil results in insufficient damping, leading to a bouncy ride, excessive fork dive under braking, and reduced control.

Q: Do I need to replace my fork seals every time I change the oil?

A: Not necessarily. If your fork seals are not leaking and show no signs of cracking or damage, they don't strictly need to be replaced with every oil change. However, if you are doing a full fork strip-down (Method 1), it's often a good preventative measure to replace them while everything is apart.

Q: Is it possible to change the oil without lifting the front wheel off the ground?

A: While technically possible for Method 2, it's significantly more difficult and less safe. Lifting the front wheel and supporting the bike properly is highly recommended to allow full fork extension and compression, making the process much easier and safer.

With these instructions and tips, you're well-equipped to perform a fork oil change on your Triumph motorcycle. It's a rewarding maintenance task that directly impacts your bike's performance and your riding enjoyment. Ride safe and keep those forks feeling plush!
