Triumph Sprag Clutch & Older Bike Maintenance Guide

There's an undeniable charm to classic Triumph motorcycles, a blend of heritage, distinctive styling, and a raw mechanical feel that modern bikes often lack. Owning an older 'steamer' – be it a venerable Tiger, a stately Trophy, or any other model from the 90s era – brings immense satisfaction. However, with age comes the inevitable wear and tear, and sometimes, perplexing mechanical maladies that demand a bit of an investigative journey. Two common areas of concern for owners of these cherished machines often revolve around starting issues, particularly the dreaded sprag clutch failure, and the general deterioration of components over a decade or more of faithful service. This guide delves into these challenges, offering insights and practical advice to keep your classic Triumph roaring for years to come.

The Enigmatic Sprag Clutch: Diagnosing Starting Woes

Few sounds strike more fear into the heart of an older Triumph owner than the tell-tale 'bag of ball bearings in a cement mixer' noise emanating from the engine when attempting to start. This cacophony, often accompanied by a refusal to crank properly, is a strong indicator of a failing sprag clutch. But what exactly is a sprag clutch, and why is it such a common culprit?

Understanding the Sprag Clutch

At its core, the sprag clutch is a one-way bearing mechanism critical to your motorcycle's starting system. It’s located between the starter motor and the crankshaft. When you hit the starter button, the starter motor engages the sprag clutch, which then transmits power to the crankshaft, turning the engine over to initiate combustion. Once the engine starts and spins faster than the starter motor, the sprag clutch disengages, allowing the engine to run independently without back-driving the starter. It's a clever piece of engineering designed for seamless, one-directional power transfer.

Symptoms of Failure and Initial Diagnosis

The primary symptom, as vividly described by many owners, is that horrendous grinding, rattling, or clunking noise during startup attempts. It often sounds like metal-on-metal chaos, indicating that the sprags (small, wedge-shaped elements within the clutch) are no longer engaging reliably or are breaking apart. You might also notice the starter motor spinning freely without turning the engine, or a feeling of 'slipping' when the starter engages.

Before jumping to conclusions, it's wise to perform some initial checks. As one owner highlighted, verifying the starter motor's teeth and the meshing sprocket are intact is crucial. Any damage here would produce similar noises. Also, checking your oil for metallic particles is a good practice, though a failing sprag clutch might not always shed visible debris into the sump immediately. If these initial checks yield no obvious culprits, the focus inevitably shifts to the sprag clutch itself.

The Challenge of Access and the Elusive Spring

Here's where things can get tricky, particularly for models like the 1996 Tiger. Unlike some motorcycles that feature a convenient removable plate for sprag clutch access, many older Triumphs require significant disassembly. The unfortunate truth is that for these models, proper diagnosis and repair often necessitates engine removal from the frame. This is a substantial undertaking, requiring specialised tools, a workshop manual, and a good deal of mechanical aptitude. Without being able to visually inspect the clutch, confirming the diagnosis with 100% certainty can be difficult while the engine remains in situ.

Adding to the frustration, a common point of failure within the sprag clutch assembly is a small spring that loses its tension or breaks. This spring is vital for maintaining the correct pressure on the sprags, ensuring they engage effectively. Regrettably, this spring is often not available as a separate part from Triumph, meaning owners are typically faced with the expensive prospect of replacing the entire sprag clutch assembly, which can easily run into hundreds of pounds.

Navigating Engine Removal and Repair

If you've exhausted all other diagnostic avenues and the symptoms strongly point to the sprag clutch, preparing for engine removal is likely your next step. This is not a task for the faint-hearted or inexperienced, but it is certainly achievable with patience and the right resources.

• Preparation: Gather your workshop manual, appropriate tools (sockets, wrenches, torque wrench, engine stand or support), and plenty of space.
• Disconnection: Systematically disconnect all cables, hoses, electrical connectors, and mounts securing the engine to the frame. Documenting each step with photos can be invaluable during reassembly.
• Lifting: Securely lift or lower the engine from the frame. This often requires assistance due to the engine's weight and awkward shape.

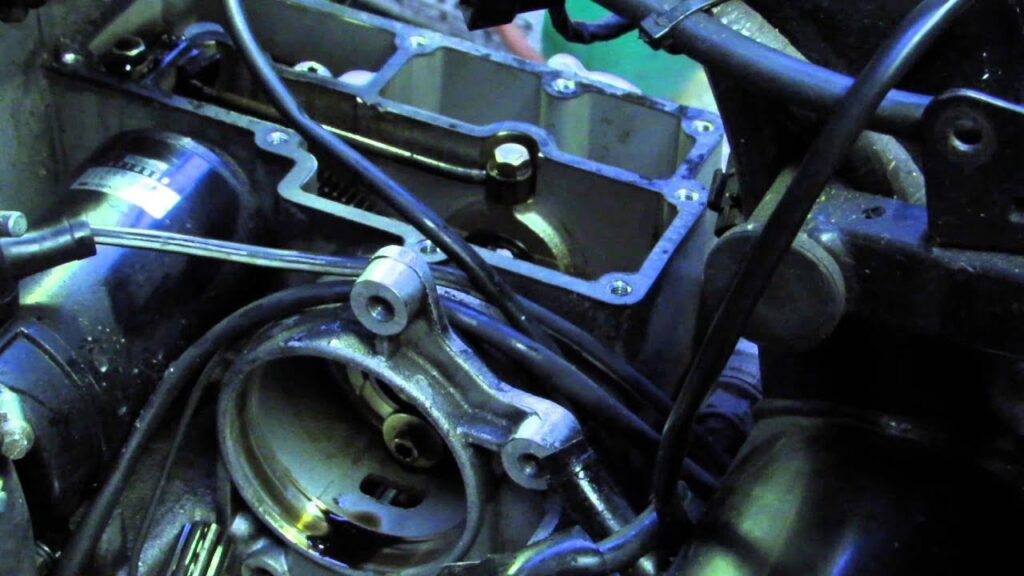

• Access: Once the engine is out, you can finally access the sprag clutch, typically located behind the alternator rotor or a side cover. Inspect the sprags for wear, damage, or breakage, and confirm the condition of the spring.

While the cost of a full assembly replacement can be daunting, consider the longevity and reliability it restores to your cherished motorcycle. Sometimes, the investment in a proper repair outweighs the ongoing frustration and potential for further damage.

Beyond the Sprag: Essential Maintenance for Vintage Triumphs

The sprag clutch issue, while specific, highlights a broader truth about older motorcycles: age-related component deterioration is inevitable. Proactive maintenance, as demonstrated by the experience of Trophy 1200 owners, is key to keeping these machines running optimally. Many of these classic Triumphs, thanks to John Bloor's foresight and 'over-engineered' engines, are capable of achieving high mileages, provided they receive the care they deserve.

Fuel and Vacuum Lines: The Perishing Rubber

After about a decade, the rubber and plastic components on any vehicle begin to show their age. This is particularly true for fuel and vacuum lines. These crucial hoses can harden, crack, or become brittle, leading to a host of problems:

• Fuel Leaks: Cracked fuel lines are a fire hazard and can lead to significant fuel loss and poor running.
• Vacuum Leaks: Deteriorating vacuum lines can cause erratic idle, poor throttle response, and general running issues, as the engine's control systems rely on accurate vacuum readings.

Recommendation: Consider replacing all fuel and vacuum lines as a matter of course on bikes 10 years or older. Use high-quality, fuel-resistant hose designed for automotive or motorcycle use. It's a relatively inexpensive job that can prevent much larger headaches down the line.

Ignition System Overhaul: Sparking New Life

The ignition system is another area prone to age-related failure, significantly impacting performance and reliability.

• Ignition Coils: Triumph's original Gill coils, while effective, are known to fail over time. Symptoms include misfires, rough running, and difficulty starting. Aftermarket alternatives, such as Nology coils, often offer comparable or superior performance at a fraction of the OEM cost. Replacing them can dramatically improve spark quality and combustion efficiency.
• Spark Plug Leads: Over time, spark plug leads can degrade internally, increasing resistance and weakening the spark. Replacing these alongside coils ensures the high-voltage spark reaches the plugs efficiently.
• Ignition Sensor: While not always a guaranteed failure point, replacing the ignition sensor (or 'pickup coil') during a broader ignition system overhaul is a sensible 'while you're there' job. It's a critical component for timing the spark, and a failing sensor can cause intermittent running issues or a complete non-start condition.

Air Filtration and Carburettor Health

Even seemingly innocuous components like the air filter can cause problems with age.

• Air Filter: Original paper air filters can disintegrate over time, allowing unfiltered air and debris into the engine, or worse, bits of the filter itself. Triumph often sells the entire airbox assembly when only the filter element is needed. Opting for a reusable, performance-oriented filter like a K&N can save money in the long run and provide better airflow, without needing to replace the whole airbox.
• Carburettor Floats: As one owner discovered, even a pinprick-sized hole in a carburettor float can lead to significant poor running problems. Floats regulate the fuel level in the carb bowls, and a compromised float can cause over-fuelling or under-fuelling. If you're experiencing running issues, a thorough carburettor inspection, including checking the floats for leaks, is essential. This might involve disassembling and cleaning the carbs, a common maintenance task for older, carburetted bikes.

Comparative Table: Common Age-Related Triumph Issues & Solutions

Frequently Asked Questions (FAQs)

Q: How do I know if my sprag clutch is truly failing?

A: The most definitive symptom is a loud grinding, rattling, or 'cement mixer' noise when trying to start, where the starter motor spins but doesn't effectively turn the engine over. If your starter motor and its meshing sprocket are visually fine, and there's no major metallic debris in your oil, a failing sprag clutch is highly probable.

Q: Is it always necessary to remove the engine for sprag clutch repair on older Triumphs?

A: For many 1990s Triumph models, particularly those without a specific access plate, yes, engine removal is typically required to gain sufficient access to the sprag clutch assembly. Consult your specific model's workshop manual to confirm the access procedure.

Q: What are the benefits of upgrading to aftermarket coils like Nology?

A: Aftermarket coils, such as Nology, often provide a stronger, more consistent spark than aged OEM units. This can lead to improved combustion, smoother running, better throttle response, and potentially better fuel economy. They can also be a more cost-effective replacement option compared to new OEM coils.

Q: How often should I inspect or replace fuel and vacuum lines on an older bike?

A: For motorcycles 10 years or older, it's highly recommended to inspect all fuel and vacuum lines annually for signs of cracking, hardening, or perishing. Proactive replacement every 10-15 years, or immediately if any signs of deterioration are found, is a wise proactive maintenance step to prevent leaks and running issues.

Q: Can a small carb issue cause significant running problems?

A: Absolutely. Even a tiny pinprick hole in a carburettor float or a partially blocked jet can upset the delicate balance of fuel-air mixture, leading to noticeable poor running, rough idle, hesitation, or even stalling. Thorough carburettor cleaning and inspection are crucial for carburetted bikes.

Conclusion

Owning and maintaining a classic Triumph is a rewarding experience, but it demands attention and a willingness to tackle the challenges that come with age. Whether it's the specific ordeal of a failing sprag clutch or the broader need for routine replacement of age-worn components, understanding these issues is the first step towards a lasting solution. By embracing proactive maintenance and addressing problems systematically, you can ensure your over-engineered Triumph engine continues to deliver that unique riding pleasure for many more years and countless miles. Don't let a bit of age or a mysterious noise deter you; with the right approach, your 'steamer' will remain a true road warrior.
