Unleashing the Tritec: Mini Engine Tuning Guide

The Mini Tritec engine, a product of a collaborative effort between Chrysler and Rover (under the BMW group), was initially conceived to power the new generation of MINI vehicles. Designed as a compact, straight-four block, this engine has proven to be remarkably robust and an excellent foundation for performance projects. Its inherent strength, particularly its cast-iron block, means it can surprisingly handle significant power increases, with whispers of highly modified versions pushing upwards of 600 bhp.

While the Tritec was eventually superseded by the Prince engine (N13 and N14), its legacy as a tunable and reliable unit continues. The supercharged setup in the MINI Cooper, in particular, offers a fantastic starting point for enthusiasts seeking to extract more performance. This comprehensive guide will delve into the world of Tritec tuning, outlining the most effective modifications and offering insights to help you maximise your driving opportunities.

History, Power & Specifications of the Tritec Engine

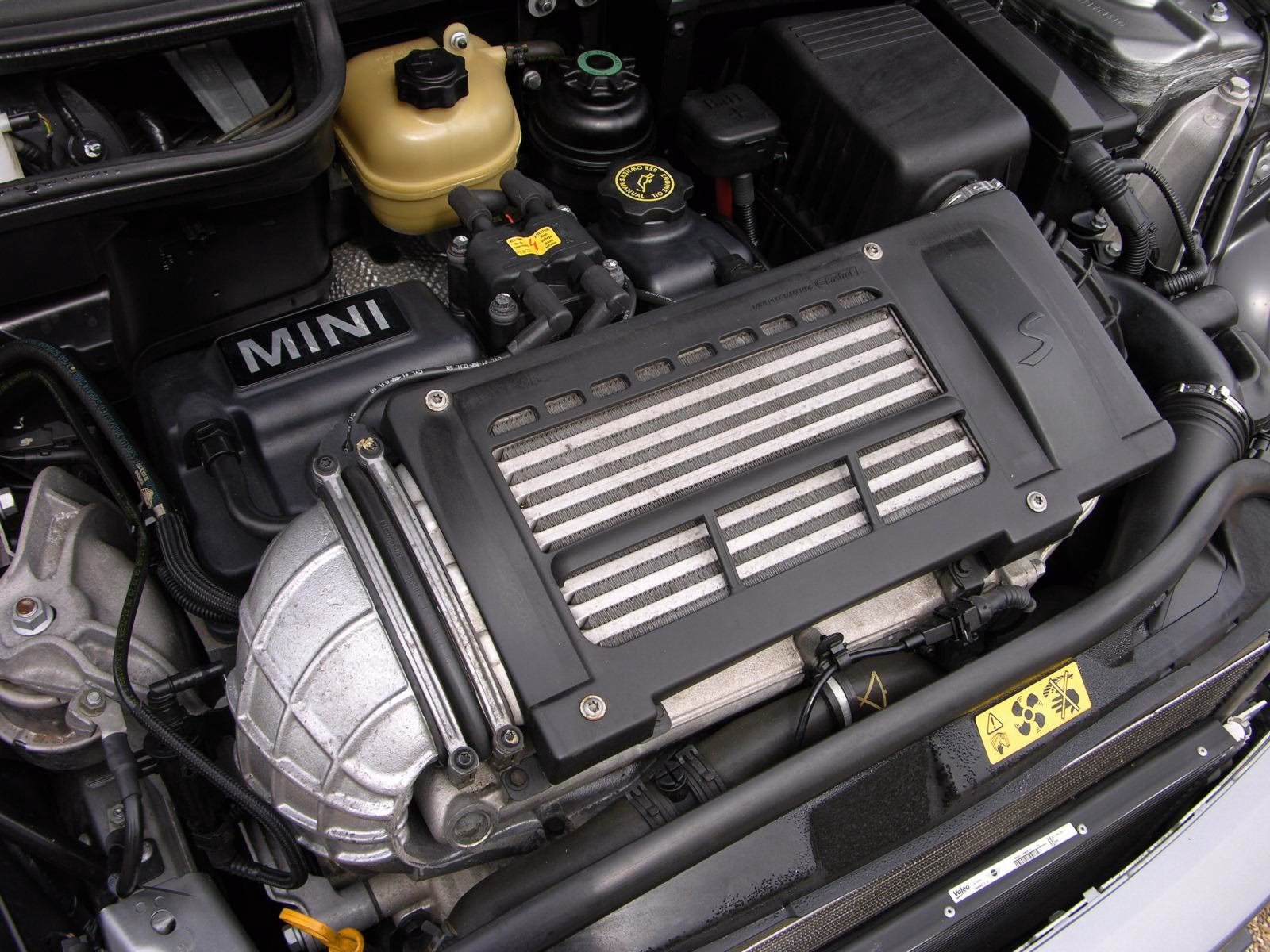

The Tritec engine was offered in two primary displacements: 1.4 litres and 1.6 litres. The 1.6-litre variant gained particular notoriety when fitted with a Roots Eaton M45 supercharger, significantly boosting its power output and character. Beyond the Mini, these engines also found their way into non-US market Chrysler Neon and PT Cruiser models.

Let's look at the standard power outputs for the various Tritec configurations:

These figures demonstrate the substantial difference the supercharger made, transforming the Tritec from a modest performer into a genuinely spirited engine, especially in its John Cooper Works (JCW) guise.

Understanding Tritec Tuning: The Best Modifications

Tuning an engine involves a systematic approach to improve its efficiency and power output. While many modifications are available, it's crucial to select those that offer the best power gain return for your investment. The goal is always to get more air into the engine, burn more fuel efficiently, and expel the exhaust gases effectively.

Camshaft Upgrades: Altering Engine Breath

Altering your Tritec's camshaft profile can dramatically change the engine's brake horsepower (bhp) characteristics. The camshaft dictates when the intake and exhaust valves open and close, directly affecting the engine's breathing efficiency at different RPMs.

• Fast Road Cams: These are designed to boost performance across the mid to upper rev range. While you might experience a slight sacrifice in very low-down bhp, the top-end power will be significantly improved. They offer a good balance for a spirited daily driver.
• Race Cams: These are extreme profiles designed for maximum top-end power, typically for track-only applications. The aggressive valve timing often results in a 'lumpy' idle, making smooth driving at low RPMs almost impossible and increasing the likelihood of stalling. For a track car, this isn't an issue as the engine operates primarily in its high RPM range.

The choice of camshaft should align with your typical driving style and the intended use of the car. It's highly recommended to have your engine checked on a rolling road after a cam change, as engine timing and fuelling will need adjustment to fully capitalise on the new profile. Furthermore, while most tuners use matched intake and exhaust durations, there can be advantages to extending one over the other depending on the specific engine's characteristics.

Engine Remapping & ECU Solutions: Unlocking Software Potential

Engine tuning, often referred to as remapping, is arguably the most cost-effective way to achieve significant power gains. A remap optimises the engine's software parameters, such as fuel delivery, ignition timing, and boost pressure (if applicable), to work in harmony with any hardware modifications.

For the Tritec, if the factory ECU is 'locked' and cannot be flashed, an aftermarket ECU or a 'piggyback' ECU becomes the preferred route. Many aftermarket ECUs offer superior control and performance compared to factory units, but it's paramount to ensure they include knock protection and are set up correctly by a professional tuner. A poorly tuned engine can lead to catastrophic failure.

Typically, you can expect around a 15% power increase on naturally aspirated (NA) Tritec engines from a good remap. For supercharged versions, gains can be even more substantial, often around 30%, depending on other fitted parts and the engine's overall condition.

Optimising Airflow: Intake Manifolds & Head Work

To make more power, the engine needs to ingest more air. The air intake manifold plays a crucial role in delivering this air from the filter to the engine cylinders. The design, bore size, and internal shape of the manifold significantly impact fuel mixing and overall power output. While some factory manifolds are reasonably good, many can benefit greatly from motorsport-inspired upgrades.

Further improvements in airflow come from 'head work', which involves porting and flowing the cylinder head. The primary goals here are to smooth the internal passages, remove restrictions, and reduce turbulence, allowing air to flow more freely into the combustion chambers. Fitting larger valve kits also contributes to this goal, enabling the engine to 'breathe' more deeply. These modifications not only boost bhp and torque on their own but also amplify the gains from other upgrades.

Forced Induction: Turbochargers & Superchargers

Forced induction is, without a doubt, the most efficient way to dramatically increase an engine's air supply, allowing it to burn significantly more fuel and thus produce much greater power. It's often the most costly upgrade but delivers the best gains.

• Superchargers: The Tritec, especially in the Cooper S, came with a supercharger, which works excellently. Superchargers are belt-driven, providing instant boost with minimal lag, making for a very responsive power delivery.
• Turbochargers: Adding a turbocharger to a naturally aspirated Tritec requires substantial work, including strengthening internal components. Turbocharged engines are generally built with stronger components from the factory to withstand the increased pressures.

It's crucial to understand the reliable limits of your engine. Pushing past these without upgrading internal components like pistons and crankshafts can lead to engine failure. Tuners have sometimes invested heavily in turbo upgrades only to see the engine block fail shortly after completion.

Turbochargers come in various sizes and designs:

• Larger Turbos: Tend to suffer from 'bottom-end lag', meaning they take longer to spool up and deliver boost at lower RPMs.
• Smaller Turbos: Spool up quickly, offering immediate response, but may not have the top-end power potential of larger units.
• Variable Vane Turbos: Modern designs that allow the vane angle to be altered according to engine speed. This reduces lag at low RPMs and enhances top-end performance.
• Twin Scroll Turbos: Divert exhaust gases into two separate channels, feeding them to differently designed vanes within the turbocharger. This improves the scavenging effect of the engine and reduces lag.

When significantly increasing airflow with forced induction, it's common for the original air flow sensor (AFM/MAP) to become a restriction. Upgrading to a 4-bar air sensor, for example, can accommodate much larger power gains, whereas the OEM sensor would limit torque at a lower level.

For ultimate power, a 'twincharging' setup, combining both a supercharger and a turbocharger, can deliver massive gains, though it is more challenging to configure due to the complexity of managing both systems.

Fuel Delivery: Ensuring Adequate Supply

With increased power comes the critical need for increased fuel delivery. More bhp means the engine demands more fuel to maintain the correct air-fuel ratio and prevent harmful lean conditions. It is strongly recommended to over-specify your fuel injectors' flow rate. A general rule of thumb is to add 20% capacity when purchasing injectors. This accounts for potential injector deterioration over time and provides some spare capacity should the engine require more fuel under specific conditions.

Always match your fuel injector type to the fuel your car uses. The following tables provide general guidelines for injector sizing based on flywheel power targets, assuming an injector duty cycle of 80% and a base fuel pressure of 58 psi at idle:

4-Cylinder Turbocharged Engines

4-Cylinder Naturally Aspirated (NA) Engines

4-Cylinder Supercharged Engines

Beyond injectors, consider fuel pump upgrades, especially for higher power targets, to ensure consistent fuel pressure and flow.

Exhaust System Upgrades: Breathing Freely

The exhaust system is the final stage in the engine's breathing process. If your current exhaust creates a flow restriction, replacing it will yield power gains. While most factory exhausts are adequate for modest power increases, pushing higher power levels necessitates a better-flowing exhaust.

Sports exhausts are designed to increase the flow of exhaust gases out of the engine. However, size matters. An exhaust that is too large, for example, over 2.5 inches in bore diameter for most Tritec applications, can actually lead to a significant loss of exhaust gas velocity, resulting in a reduction of power and torque, particularly at lower RPMs due to reduced scavenging effect.

The most common restriction in a factory exhaust system is the catalytic converter. Adding a higher-flowing sports catalyst is an excellent solution. It significantly improves flow due to its larger internal surface area and optimised design, while crucially keeping your car road legal. Decat pipes, which remove the catalyst entirely, should strictly be considered an off-road or track-only modification, as removing a catalyst is illegal for road-registered vehicles in most territories.

Weak Spots, Issues & Problem Areas on the Tritec

The Tritec engines are generally known for their reliability and solid construction. As long as you adhere to the manufacturer's service schedules and use high-quality oil, they are designed for longevity. Few significant problems should arise with regular servicing and maintenance.

• Carbon Build-Up: While more prevalent in direct injection engines, carbon build-up around the valves can still occur in Tritec engines. This can sap power, create flat spots in the power delivery, and generally hinder performance. Regular maintenance and specific cleaning procedures can help mitigate this.
• Flat Spots or Glitches After Modifications: Some owners report flat spots or glitches after applying tuning modifications. This is usually not an inherent design flaw of the Tritec engine itself but often relates to incorrect tuning parameters or component incompatibility. Diagnosing these issues typically involves checking sensor readings, fuel trims, and ensuring the ECU map is correctly optimised for all installed hardware.

The Tritec's cast iron block and relatively simple design contribute significantly to its robustness, allowing it to withstand considerable tuning efforts. However, regular oil changes are absolutely vital for the Tritec, even more so when the engine is tuned. Fresh, high-quality oil ensures optimal lubrication and cooling, which directly contributes to the engine's long-term life and reliability, especially under increased stress from performance modifications.

Frequently Asked Questions About Tritec Tuning

How much power can a Tritec engine handle?

The Tritec's cast iron block is surprisingly strong. While stock engines vary from 74 hp to 215 hp (JCW GP), highly modified versions have been known to achieve figures as high as 600 bhp. However, reaching such extreme numbers requires extensive internal engine upgrades, including stronger pistons, connecting rods, and crankshaft, along with significant forced induction.

What is the best first modification for a Tritec?

For naturally aspirated Tritecs, a fast road camshaft and a custom remap often provide the most noticeable and cost-effective gains. For supercharged models, a smaller supercharger pulley to increase boost, coupled with a remap and upgraded injectors, is a popular first step. In both cases, a remap is crucial to maximise the benefits of any hardware changes.

Is the supercharged Tritec better for tuning than the naturally aspirated version?

Generally, yes. The supercharged Tritec (T16b4) already has a forced induction system, making it easier and often less expensive to increase power significantly. Adding more boost is a straightforward path to more power, whereas adding a turbocharger to an NA Tritec requires extensive modifications to the engine's internals and fuel system.

Are Tritec engines reliable when tuned?

Yes, the Tritec is generally considered a reliable engine, even with modifications, thanks to its robust cast iron block. However, reliability depends heavily on the quality of the tuning, the components used, and consistent maintenance. Regular oil changes with high-quality oil are paramount, especially for tuned engines, to ensure longevity.

What are the signs of carbon build-up in a Tritec?

While less severe than in direct injection engines, carbon build-up can manifest as a loss of power, hesitation during acceleration (flat spots), reduced fuel economy, or a rough idle. Regular maintenance and occasional cleaning procedures can help prevent or mitigate this.

Do I need to upgrade my fuel pump when tuning my Tritec?

For mild tunes or stage 1 modifications, the stock fuel pump might suffice. However, as you move to stage 2 or 3 modifications, especially with forced induction or significant power increases, upgrading your fuel pump is highly recommended to ensure adequate fuel delivery and prevent lean conditions which can damage the engine.

Can I use a race cam for daily driving?

While technically possible, using a race cam for daily driving is generally not recommended. Race cams are designed for peak power at high RPMs, leading to a very lumpy idle, poor low-end power, and increased likelihood of stalling. This makes for a very unpleasant and impractical driving experience in traffic or at low speeds.

What is twincharging?

Twincharging is a forced induction setup that combines both a supercharger and a turbocharger. The supercharger provides instant boost at low RPMs, overcoming turbo lag, while the turbocharger takes over at higher RPMs to provide significant top-end power. This setup aims to deliver power across the entire rev range but is complex and costly to implement and tune effectively.
