When it comes to vehicle safety, few components are as critical as the braking system. Without reliable brakes, even the shortest journey becomes a perilous undertaking. Among the various types of braking systems, disc brakes stand out for their exceptional performance, particularly in challenging conditions. Understanding how they operate and, crucially, how to maintain them, is paramount for every driver. This comprehensive guide will delve into the mechanics of disc brakes, offer vital maintenance advice, and address common issues to help you keep your vehicle stopping safely and effectively.
While disc brakes are renowned for their efficiency and stopping power, even in extreme conditions, their optimal performance hinges on meticulous care and regular inspection. It's imperative to keep them in tip-top shape, as neglect can compromise your safety and the longevity of your braking system. The suggestions outlined here provide a foundational understanding; however, be aware that different types of disc systems may necessitate specific maintenance procedures not covered in exhaustive detail here. Always consult your vehicle's owner's manual for precise instructions tailored to your model.
How Disc Brakes Work: The Mechanics of Stopping Power
At its core, a disc brake system operates on a simple yet highly effective principle: friction. When you engage the brake pedal, you initiate a chain of events that translates the force from your foot into immense stopping power at the wheels. Let's break down the key components and their interaction:
- Brake Pedal and Master Cylinder: Your foot pressing the brake pedal activates a piston within the master cylinder. This cylinder contains hydraulic brake fluid.
- Hydraulic Lines: As the master cylinder piston moves, it pressurises the brake fluid, sending it through robust hydraulic lines (hoses and pipes) to each wheel.
- Brake Caliper: At each wheel, a component called the brake caliper is mounted over the brake disc (rotor). The caliper houses one or more pistons.
- Brake Pads: Inside the caliper, positioned on either side of the disc, are the brake pads. These are typically made from a friction material designed to withstand high temperatures and provide consistent grip.
- Brake Disc (Rotor): This is a flat, circular metal disc, usually made of cast iron, which rotates with the wheel.
When the pressurised brake fluid reaches the caliper, it forces the caliper's pistons outwards. These pistons, in turn, push the brake pads against both sides of the spinning brake disc. The resulting friction between the pads and the disc generates heat and converts the kinetic energy of the moving vehicle into thermal energy, slowing down and eventually stopping the wheel. When you release the brake pedal, the fluid pressure drops, the pistons retract, and the pads move away from the disc, allowing the wheel to spin freely again.
The efficiency of disc brakes, particularly when compared to older drum brake systems, lies in their superior heat dissipation, less susceptibility to 'brake fade' (loss of braking power due to overheating), and better performance in wet conditions. The open design of disc brakes allows heat to escape more readily, and water is easily thrown off the spinning disc, maintaining consistent friction.
Essential Maintenance: Keeping Your Brakes in Peak Condition
Regular inspection and timely maintenance are crucial for the safety and longevity of your disc braking system. Here are the fundamental steps:
Inspecting and Cleaning the Rotors
The brake rotors are the workhorses of your disc brake system. They are constantly subjected to immense heat and friction, making them prone to wear and damage. Dirty, warped, cracked, or otherwise damaged rotors are a common culprit behind brake failure or reduced performance. While rotors are rarely 'perfect', any significant signs of distress warrant immediate attention.
Begin by visually inspecting your rotors. Look for:
- Excessive Wobbling: Spin the wheel and observe the rotor as it passes the brake pads. A slight lateral movement is acceptable as long as the rotor doesn't rub the pad. However, if you detect excessive wobbling, typically more than 1mm, it suggests a warped rotor.
- Cracks or Gouges: Deep cracks or significant gouges on the rotor surface are serious indicators of damage. These compromise the structural integrity and braking effectiveness.
- Surface Contamination: A significant loss of braking power can often be traced back to dirty or oily rotors or pads. Contaminants like grease, oil, or even finger oils can drastically reduce friction.
If you find excessive wobbling, cracks, or gouges in your rotors, replace them immediately. For surface contamination, clean rotors and pads exclusively using isopropyl alcohol. It's crucial to understand that other cleaners or degreasers can leave residues that contaminate and permanently damage the friction material of the pads or the rotor surface. If cleaning does not restore your braking power to acceptable levels, replace the pads immediately, as they may be irreversibly contaminated.
When inspecting for warping, if the rotor rubs the pad in a specific spot, you might be able to correct minor warps. Gently tap the affected area lightly with a rubber or plastic hammer. Alternatively, place a clean rag over the rotor and carefully bend it slightly with an adjustable wrench. Remember, it doesn't take much force to adjust, so don't overdo it! And critically: Never touch the braking surface of the rotor or pads with your bare hands. The natural oils from your fingers can transfer to the braking surfaces, significantly decreasing braking power and potentially leading to noise.

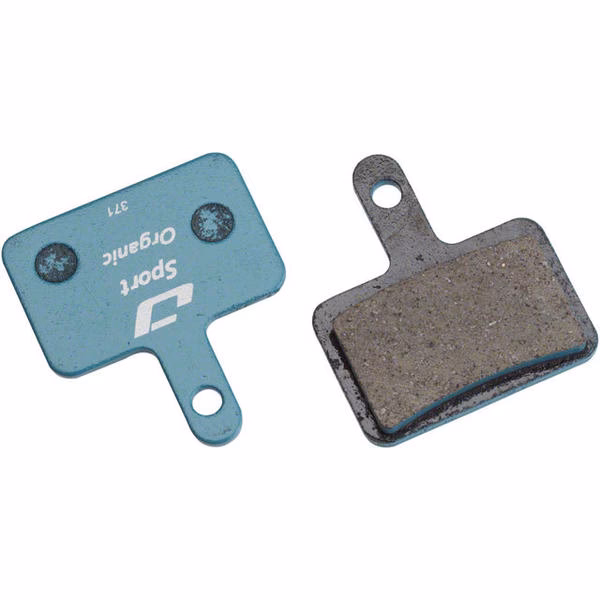

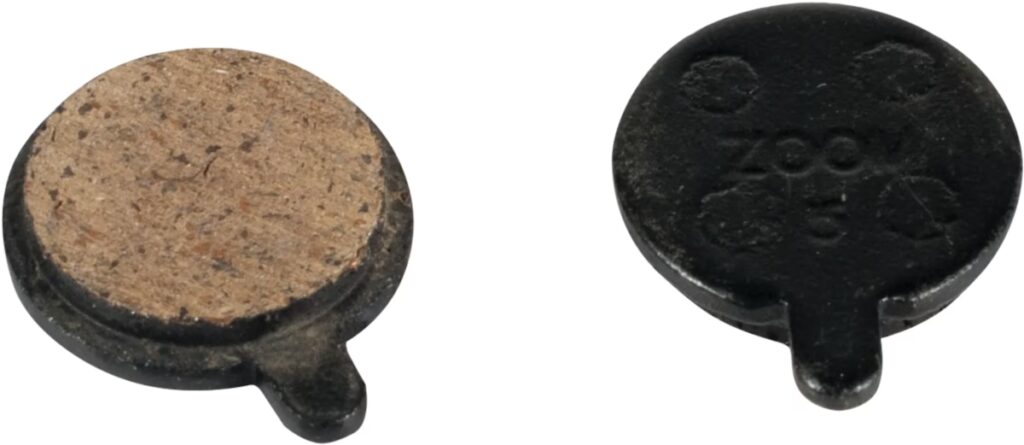

Checking Brake Pad Wear
Brake pads are designed to wear down over time as they provide friction. Regular inspection of their thickness is vital for safety.
Removal: To inspect the pads, you'll typically need to remove the wheel. Once the wheel is off, you can often use your fingers or needle-nose pliers to grasp the removal tabs that extend below the inner brake pad. Depending on your specific brake system, you might pull one or both pads straight out and towards the centre of the caliper body until they are completely removed. Be aware that pads often have retaining springs or magnets holding them in place, which may also come out during removal. Keep track of these small components.
Inspection: Once removed, inspect the remaining padding material. A common guideline is to compare the pad thickness to coinage. If the remaining padding is thinner than the thickness of a UK nickel (approx. 1.7mm), you'll need new pads very soon, after a few more rides at most. If the pads are thinner than a UK dime (which is an American coin, typically referring to 1.35mm, so a more common UK equivalent for 'very thin' might be thinner than a 1p coin, which is 1.65mm), change them immediately. Worn-out pads not only reduce braking efficiency but can also damage your rotors.
Installation: Insert the new pads into the caliper body the same way they were removed, ensuring that they sit fully inside the caliper body. Remember the warning: Do not touch or spill any fluids on the pads as skin oils or other fluids can cause a significant loss of braking power and lead to irritating squealing noises.
Centering the Calipers (Preventing Brake Drag)
For maximum braking power, to eliminate annoying drag, and to minimise noise, the brake rotors need to be perfectly centred within the calipers. Improper alignment can lead to constant rubbing, premature wear, and reduced efficiency.
There are generally two common methods for centering calipers:
- Shim-Based Systems: Some brake systems utilise shims or thin washers on the caliper mounting bolts. For these brakes, you adjust the caliper position by adding or removing these shims until the caliper is perfectly centred over the rotor.
- Two-Part Bracket Systems: Another popular mounting system uses a two-part bracket. To adjust the caliper position on these brakes, loosen the two centering bolts that attach the caliper to the mounting bracket. Once loose, apply the brake lever firmly. This action naturally pulls the caliper into a centred position relative to the rotor. While holding the lever, carefully tighten the two mounting bolts.
Helpful Hint: For two-part bracket systems, a neat trick is to slip a business card (or two, one on each side) between the rotor and the pads before applying the brakes. This can provide a precise gap and help achieve perfect centering when you tighten the bolts. While applying the brake, it may also help to gently shake the caliper body so it comes to rest in a truly centred position before tightening the mounting bolts. Finally, spin the wheel and visually check if the rotor is perfectly centred and not rubbing. Repeat the adjustments if necessary until you achieve a smooth, rub-free rotation.
Adjusting Lever Reach and Addressing Sponginess
Many modern brake systems feature adjustable-reach levers, allowing you to customise the distance from the handlebar grip to the brake lever. This is typically done by turning a screw or bolt that connects the brake lever to its body. This adjustment is primarily for rider comfort and ergonomics.
However, if the reach distance to each lever is uneven, or if one lever pulls significantly farther than the other, it could indicate an issue beyond simple reach adjustment. Try to equalise the travel by carefully dialling the lever limit screws in or out (consult your owner's manual for specific instructions on these screws, as their location and function can vary). If, after these adjustments, the lever still feels 'spongy' or pulls all the way to the bar with little resistance, it's a strong indication that there may be air trapped within the hydraulic system. Air in the lines compresses, reducing the hydraulic pressure that should be applied to the pads. This is a serious issue that will severely compromise braking power. If this occurs, it's time to consult a professional mechanic to have the system bled. Bleeding involves purging the air from the hydraulic lines and replacing it with fresh brake fluid.
Finally, always inspect all hydraulic hoses and fittings for any signs of leaks. A leak indicates a breach in the system, which will lead to a loss of fluid pressure and ultimately, brake failure. If you discover any leaks, seek professional assistance immediately; do not drive the vehicle.
Common Disc Brake Issues and Troubleshooting
Squealing or Noisy Brakes
A common and often irritating problem is squealing or noisy brakes. While it can be alarming, it's often a fixable issue:
- Loose Bolts: Start by checking all the bolts on the rotors and those attaching the calipers to the vehicle. Loose components can vibrate and cause noise.
- Dirty Pads/Rotors: As mentioned, contaminated pads or rotors are a frequent cause of noise. Clean them thoroughly with isopropyl alcohol. If the noise persists after cleaning, the pads may be contaminated beyond repair and require replacement.
- Caliper Alignment: If still squealing, check the alignment of the calipers over the rotors (refer to 'Centering the Calipers' section). Misaligned calipers can cause uneven contact and noise.
- Pad Glazing: Sometimes, the pad material can become 'glazed' (hardened and shiny) due to excessive heat, leading to squealing. Lightly sanding the pad surface can sometimes resolve this, but replacement is often the best solution.
Loss of Braking Power
Beyond dirty components or air in the lines, a sudden loss of braking power can also be due to severely worn pads (metal-on-metal contact), damaged rotors, or critically low brake fluid levels from a leak. Always investigate immediately.
Pre-Ride Check List: Your Daily Safety Routine
Before every journey, a quick check of your braking system can prevent major issues down the road:
- Inspect the brake rotors for any dirt, debris, or fluids. Clean with isopropyl alcohol if necessary.
- Spin both wheels and make sure the brake rotors are straight and not rubbing on the pads.
- Squeeze both brake levers (or depress the brake pedal) to check for proper lever/pedal travel and solid pad contact with the rotors. The lever/pedal should feel firm, not spongy.
- Inspect all hydraulic hoses and fittings for leaks at least once a week, and ideally before each significant ride.
Remember, your safety on the road relies heavily on your brakes. While disc brakes are incredibly robust, they are not maintenance-free. Regular checks and timely intervention for any issues will ensure they perform optimally when you need them most. If you ever feel uncertain about performing any brake maintenance or adjustment, it is always best to consult a professional mechanic. Their expertise can ensure your braking system is safe and reliable. Now, with your brakes in top condition, go and enjoy your drive!
Frequently Asked Questions (FAQs)
Here are some common questions drivers have about disc brakes:
| Question | Answer |
|---|---|
| What is brake bleeding? | Brake bleeding is the process of removing air bubbles from the hydraulic brake lines and replacing old brake fluid with new. Air in the lines can cause a spongy brake pedal/lever and reduce braking effectiveness. It's a critical maintenance task, usually best performed by a professional. |
| Why shouldn't I touch rotors or pads with bare hands? | The natural oils from your fingers can transfer to the braking surfaces. These oils reduce the friction coefficient between the pads and rotor, leading to decreased braking power and potentially causing annoying squealing noises. Always use clean gloves or handle components by their edges. |
| How often should I clean my rotors? | It's a good practice to visually inspect your rotors before every significant journey. If you notice any visible dirt, debris, or oil, clean them immediately with isopropyl alcohol. Regular cleaning helps maintain consistent braking performance and prevents contamination. |
| When should I replace brake pads? | Brake pads should be replaced when the friction material wears down to a critical thickness. A general rule of thumb is to replace them if the padding is thinner than a UK 1p coin (approx. 1.65mm). Always check your vehicle's specific guidelines in the owner's manual. Ignoring worn pads can lead to rotor damage and dangerous braking conditions. |
| Can I use any cleaner on my brakes? | Absolutely not. Only use isopropyl alcohol for cleaning brake rotors and pads. Other cleaners, degreasers, or solvents can leave residues that contaminate the friction materials, leading to reduced braking power, squealing, and premature wear. |
| What causes brake squeal? | Brake squeal can be caused by several factors: loose caliper or rotor bolts, contaminated pads or rotors (oil, dirt), misaligned calipers, excessively worn pads (metal-on-metal), or glazed pad surfaces. Often, cleaning or realigning components can resolve it, but sometimes pad replacement is necessary. |
| What does a spongy brake lever/pedal mean? | A spongy lever or pedal that pulls/depresses too far indicates that there is likely air trapped within the hydraulic brake lines. Air is compressible, unlike brake fluid, which leads to a loss of firm pressure on the pads. This condition requires immediate professional attention to bleed the system. |
