Mastering Ford Transit Diagnostics: A Complete Guide

Keeping your Ford Transit in peak condition is paramount, whether it's the backbone of your business or a vital part of your daily life. Modern vans are complex machines, and understanding their inner workings through diagnostic tools is no longer just for professional mechanics. With the right equipment, you can monitor your Transit's health, identify potential issues before they escalate, and ultimately save significant time and money on maintenance and repairs. This guide will delve into the world of Ford Transit diagnostics, exploring the tools available and how they empower you to take control of your vehicle's well-being.

Understanding OBD2 Scanners for Your Ford Transit

For many seeking to access their Ford Transit’s diagnostics, live data, or even code their van, an OBD2 scanner is the indispensable tool. OBD stands for “onboard diagnostics,” and OBD2 represents the most advanced iteration of this technology. It grants you access to your vehicle’s internal information and, in some cases, even allows for control through coding. With an OBD2 scanner, you can gain comprehensive insight into your Ford Transit's health state at all times.

Types of OBD2 Scanners

There are primarily two types of OBD2 scanners, each suited for different uses, though both can offer similar functionalities:

• OBD2 Scanners with a Physical Screen: Often referred to as dedicated diagnostic devices, these typically provide basic functionalities like diagnostics and live parameters. However, they usually display raw data, requiring you to interpret the information yourself. Their cost can vary widely, and their bulkiness makes them less convenient for portability.

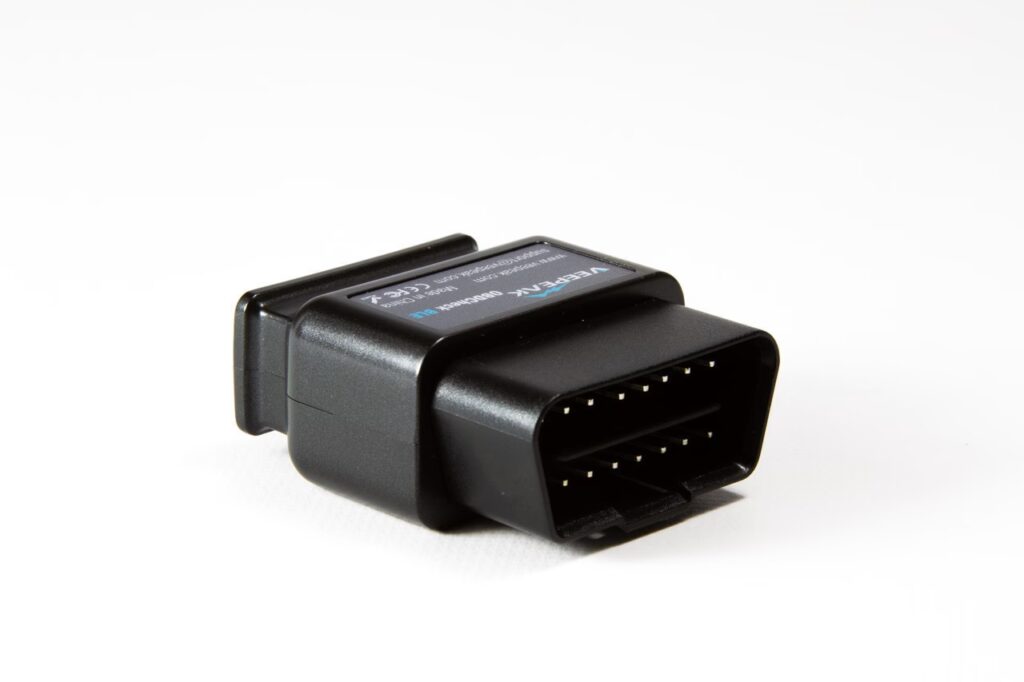

• OBD2 Scanners with an App: These are compact, pocket-sized devices that plug directly into your vehicle. They operate in conjunction with mobile applications, allowing you to access all your vehicle’s data directly from your smartphone. While potentially slightly pricier due to integrated Bluetooth connectivity and separate app purchases, their biggest advantage lies in their ability to provide more in-depth, manufacturer-level diagnostics and even coding capabilities. They don't just present data; they often interpret it, providing deeper insights into your Ford Transit’s condition, especially valuable for older models where not all data is easily accessible via onboard electronics.

Why Opt for a Bluetooth OBD2 Scanner?

Bluetooth OBD2 scanners offer unparalleled convenience. They are small, highly portable, often budget-friendly, and completely wireless, eliminating the need for cumbersome cables. When choosing one, remember that functionalities, compatibility with specific car brands (like Ford Transit), and smartphone operating systems (iPhone & Android) can vary significantly. The best scanners offer broad compatibility across both iOS and Android devices, ensuring flexibility if you change phones.

Advanced Features of OBD2 Scanners for Ford Transit

While basic OBD2 scanners might only offer generic engine-related diagnostics, advanced models provide a wealth of features that can genuinely transform how you manage your Ford Transit’s maintenance. These advanced capabilities don't necessarily equate to exorbitant costs.

Diagnostics for Ford Transit

The diagnostics feature allows you to read and clear fault codes present in your Ford Transit. It’s crucial to differentiate between:

• OBD Diagnostics: These relate to generic trouble codes, typically illuminating the 'check engine' light and pertaining only to the engine.
• Manufacturer-Level Diagnostics: This provides access to trouble codes across all other vehicle systems, including airbags, transmissions, brakes, ABS, and more. Having access to both generic and manufacturer-specific codes gives you a comprehensive overview of your vehicle's health, helping identify potential critical issues early.

Live Data for Ford Transit

Access to live data allows you to monitor your vehicle's real-time parameters, such as engine load percentage or sensor readings. Similar to diagnostics, some scanners offer only OBD live data (engine-related), while advanced ones provide manufacturer-level live data for other systems, offering a more complete picture of your van's performance under various conditions.

Used Car Check for Ford Transit

This is an incredibly useful feature for both buyers and sellers of a second-hand Ford Transit. It helps detect car scams by uncovering mileage fraud or identifying stolen vehicles. For sellers, it provides verifiable proof of the vehicle's true internal state and value. For buyers, it offers confidence that they are making a sound purchase.

Digital Garage for Ford Transit

Having a digital record of your Ford Transit’s health reports is invaluable. This functionality stores all your diagnostic reports on your phone, often allowing you to save them as PDFs to send directly to your mechanic. This provides technicians with crucial background details and helps you track your vehicle's history, especially if issues arise after a service.

Cost and Value of OBD2 Scanners

The cost of an OBD2 scanner varies significantly based on performance, analysis speed, and diagnostic accuracy. While many cheaper scanners only provide basic engine-level fault codes, advanced scanners offer deeper insights into various systems of your Ford Transit. Professional software with such in-depth data can typically cost thousands of pounds. However, some solutions, like Carly, offer advanced features in an OBD2 scanner and app package for a fraction of that cost, making professional-level diagnostics accessible.

Be cautious of budget scanners. While tempting, they are often unreliable or require expensive control software and paid updates for additional functions, ultimately costing you more in the long run. The true value lies in a scanner that offers comprehensive features and reliability for a reasonable price.

What to Look For When Buying an OBD2 Scanner

Your ideal OBD2 scanner depends on your specific needs, but here's a checklist of recommendations:

• Lifetime Warranty: A good OBD2 scanner should last for many years. Ensure it comes with a lifetime warranty for peace of mind.
• Wireless (Bluetooth) Connectivity: For convenience and portability, a Bluetooth scanner is highly recommended. It’s compact and doesn't clutter your vehicle with cables.
• Vehicle and Phone Compatibility: This is crucial. Verify that the scanner is compatible with your Ford Transit model and that its corresponding app works on both your iPhone and Android device.
• Ease of Use and User Ratings: Look at user reviews. A good diagnostic app should be intuitive and easy to navigate, providing clear, understandable information about fault codes. Some apps, for instance, use colour-coding to indicate the criticality of a fault, making it easier to grasp your van's overall health at a glance.

Ford Transit ECU Testing: Ensuring Optimal Performance

Beyond general diagnostics, the Engine Control Unit (ECU) is a critical component in your Ford Transit. It acts as the van's brain, monitoring and controlling various aspects of the engine, transmission, and other key systems by processing data from numerous sensors. Regular testing and maintenance of the ECU are essential for ensuring optimal performance and reliability.

The Importance of ECU Testing

Over time, wear and tear, exposure to extreme conditions, or software glitches can affect the ECU’s functionality, leading to performance degradation or even complete system failure. Regular ECU testing helps diagnose potential issues early, allowing for timely repairs or replacements. By addressing problems promptly, technicians can prevent more extensive damage and costly repairs to the engine or transmission. Proper ECU testing ensures your Ford Transit operates at its full potential, delivering optimal fuel economy, power, and emissions control.

The ECU Testing Process

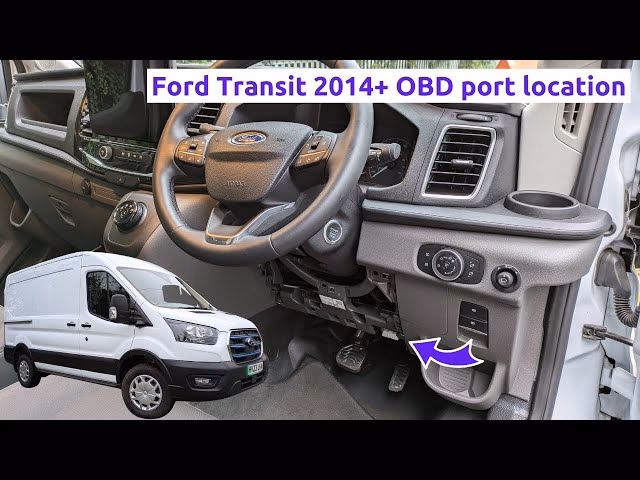

ECU testing involves a comprehensive assessment of the unit’s hardware and software. This typically begins by connecting specialised diagnostic equipment to the vehicle’s OBD-II port to retrieve stored data, including error codes and performance parameters. The diagnostic tool communicates with the ECU, running a series of tests to check for anomalies in fuel injection, ignition timing, emission control, and overall system functionality. This data helps identify any deviations from manufacturer specifications.

Benefits of ECU Testing

• Improved Performance: Rectifying ECU issues leads to better acceleration, enhanced fuel efficiency, and smoother gear shifting.
• Cost Savings: Early detection prevents major breakdowns and expensive repairs.
• Enhanced Safety: Ensures critical safety systems like ABS and stability control function optimally.
• Reduced Emissions: A healthy ECU helps your Transit meet required emissions standards, reducing environmental impact.
• Extended Lifespan: Proper ECU maintenance contributes to the overall longevity of your Ford Transit.

Diagnosing Ford Transit Diesel Pump Problems

For Ford Transit 2.4 diesel engine owners, understanding the symptoms and consequences of diesel pump problems is crucial. The fuel pump system is vital for performance and safety, and malfunctions can lead to significant issues if left unaddressed.

Symptoms of Diesel Pump Issues

When the fuel pump system starts to malfunction, you might notice several symptoms:

• Hard Starting: Insufficient fuel pressure or air in the system can make the van difficult to start.
• Rough Idling: This could be due to clogged filters or worn-out components.
• Loss of Power: The engine may not receive enough fuel, or there could be leaks or blockages in the lines, potentially leading to engine stalling.

Neglecting these symptoms can lead to severe consequences, including poor fuel economy, increased emissions, and a reduced lifespan of engine components. A faulty diesel pump causing sudden power loss can also pose a significant safety risk.

Factors Worsening Diesel Pump Problems

• Poor Maintenance: Neglecting regular servicing, such as changing filters and fluids, can lead to contamination, wear, and damage to the fuel system.
• Low-Quality Fuel: Using substandard or contaminated diesel can introduce harmful particles, causing corrosion or clogging.
• Extreme Driving Conditions: Frequent stop-and-go traffic, heavy loads, or high altitudes can strain the fuel system, affecting fuel supply and pressure.

Consequences of Neglecting Diesel Pump Problems

• Engine Damage: Insufficient or contaminated fuel can cause premature wear or overheating, leading to costly repairs or total engine failure.
• Fuel System Contamination: A failing or leaking pump can introduce dirt or water into fuel lines and injectors, reducing efficiency or even causing fires.
• Increased Emissions: An improperly fuelled engine emits more pollutants, violating emission standards and contributing to air pollution.

Diagnosing Diesel Pump Problems

Diagnosing these issues can be complex, often requiring specialised equipment:

• Fuel Pressure Test: Connect a gauge to the fuel system and measure pressure while the engine runs. Deviations from the recommended range indicate a problem.
• Fuel Filter Inspection: Check for signs of contamination or blockages in the fuel filter, as a clogged filter restricts fuel flow.
• Fault Code Check: Scan the vehicle’s computer for fault codes related to sensors or other parts of the fuel system.

If you suspect diesel pump issues, consult a qualified mechanic for proper diagnosis and repair to prevent more serious damage or safety concerns.

Comparative Overview of Diagnostic Approaches

Understanding the different levels of diagnostic tools can help you choose the best approach for your Ford Transit.

Frequently Asked Questions

How can I tell if my Ford Transit has diesel pump problems?

Common symptoms include hard starting, rough idling, loss of power, or the engine stalling. If you observe any of these signs, it's advisable to have your vehicle inspected by a qualified mechanic.

What causes diesel pump failures in Ford Transit engines?

Diesel pump failures can be caused by wear and tear, contamination, corrosion, or electrical faults. Poor maintenance, using low-quality fuel, or operating in extreme driving conditions can also exacerbate these issues.

What are the consequences of neglecting diesel pump failures in Ford Transit engines?

Ignoring these problems can lead to engine damage, fuel system contamination, reduced fuel efficiency, increased emissions, and potentially even accidents due to sudden loss of power or control.

How can I prevent diesel pump problems in my Ford Transit?

Regular maintenance of the fuel pump system is key. This includes using high-quality fuel, replacing filters and other components as recommended, and addressing any warning signs or issues promptly.

Can an OBD2 scanner diagnose all problems in my Ford Transit?

While an advanced OBD2 scanner can diagnose a wide range of issues, particularly those related to the engine and other major systems (with manufacturer-level access), it may not cover every single mechanical problem. For highly complex or intermittent issues, a professional mechanic with specialist tools might still be necessary.

Is it difficult to use an OBD2 scanner?

Modern app-based OBD2 scanners are designed to be user-friendly. Many apps provide clear explanations of fault codes and their implications, often using simple visual cues like colour-coding to indicate severity. Basic code reading is straightforward, while advanced features like coding might require a bit more understanding or guidance.

Conclusion

Investing in the right diagnostic tools for your Ford Transit is a smart move for any owner. Whether it's a versatile OBD2 scanner that provides comprehensive insights into your van's health, or understanding the critical role of ECU and diesel pump diagnostics, being proactive about your vehicle's maintenance can save you from unexpected breakdowns and costly repair bills. By regularly monitoring your Transit's systems, you ensure its optimal performance, enhance safety, and extend its lifespan, keeping your reliable workhorse on the road where it belongs.
