Transformer Oil Testing Explained

The reliable operation of electrical transformers hinges critically on the condition of their insulating oil. This vital fluid not only serves as a coolant but also provides essential electrical insulation, safeguarding the intricate windings from catastrophic failure. Neglecting the health of this oil is akin to ignoring the heartbeat of your transformer. Therefore, understanding how to properly test transformer oil is not merely a procedural step; it's a fundamental aspect of ensuring the longevity and performance of your valuable electrical assets. This article will delve into the essential procedures and tests required to maintain the integrity of transformer oil, covering everything from initial filling to ongoing diagnostics.

The Importance of Transformer Oil

Transformer oil, often referred to as insulating oil, plays a multifaceted role within a transformer. Its primary functions include:

• Cooling: It dissipates the heat generated by the windings during operation, preventing overheating.
• Insulation: It provides a high dielectric strength, preventing electrical arcing between live components and the transformer tank or other parts.
• Protection: It helps to prevent oxidation and moisture ingress, which can degrade the paper insulation on the windings.

Over time, transformer oil can degrade due to factors such as heat, oxidation, moisture contamination, and electrical stress. This degradation can lead to a reduction in its dielectric strength, increased acidity, and the formation of sludge, all of which can compromise the transformer's performance and lead to premature failure. Regular testing is the key to identifying these issues before they become critical.

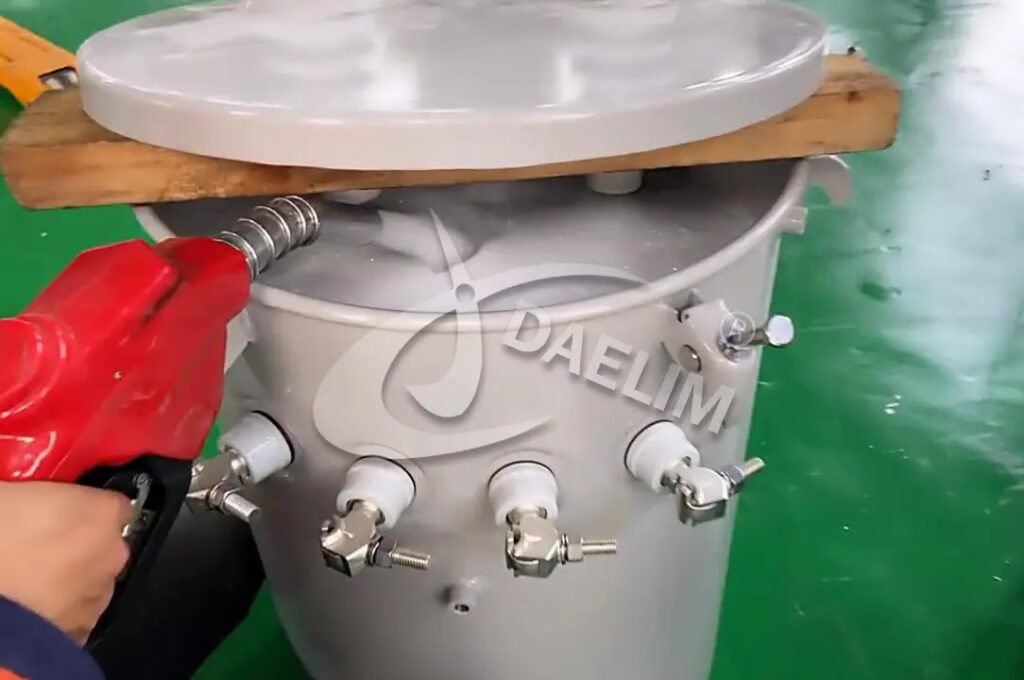

Transformer Oil Filling Procedure: A Foundation for Testing

Before delving into the specific tests, it's crucial to understand the proper procedure for filling a transformer with new insulating oil. This ensures that the oil is in optimal condition from the outset. The process typically involves:

Flushing and Vacuuming

The transformer tank must be thoroughly flushed and subjected to a vacuum according to the manufacturer's specific recommendations. This process removes any residual contaminants, moisture, and air from the tank, creating a clean and dry environment for the new oil. A proper vacuum helps to ensure that the oil permeates all parts of the transformer, including the internal insulation.

Heating and Filtering

New insulating transformer oil is often heated and filtered before being introduced into the transformer tank. Heating the oil to a specific temperature (as per manufacturer's guidelines) reduces its viscosity, allowing for easier filtration and better penetration into the transformer's core and coils. Filtration removes any particulate matter or moisture that may be present in the new oil. This step is critical for ensuring the oil meets the required purity standards.

Essential Transformer Oil Tests

Once the transformer has been filled with oil, or as part of a routine maintenance schedule, a series of tests are performed to assess the oil's condition. These tests are typically carried out in a laboratory setting, using samples collected according to specific standards. The most common and important tests include:

1. Dielectric Breakdown Voltage (BDV)

The Dielectric Breakdown Voltage (BDV) is arguably the most critical test for transformer oil. It measures the voltage at which the insulating oil can withstand electrical stress before it breaks down and conducts electricity. A low BDV indicates that the oil has been contaminated with moisture or conductive particles, significantly reducing its insulating capability.

Procedure: A sample of transformer oil is placed in a testing cell between two electrodes. A voltage is gradually increased until the oil breaks down. The voltage at which this occurs is the BDV. This test is performed in accordance with standards such as ASTM D-923.

Expected Results: For new oil, the BDV should be very high (typically above 30 kV for a standard gap). For in-service oil, a significant drop in BDV is a warning sign of contamination or degradation.

2. Acid Neutralization Number

This test determines the amount of acids present in the transformer oil. Acids are formed as a by-product of oil oxidation, which is accelerated by heat and the presence of oxygen. Acids can corrode the metal parts of the transformer, including the windings and tank, and can also degrade the paper insulation.

Procedure: A known volume of transformer oil is titrated with a standard solution of potassium hydroxide (KOH). The amount of KOH required to neutralize the acids in the oil is measured and expressed as the Acid Neutralization Number, typically in milligrams of KOH per gram of oil (mg KOH/g).

Expected Results: For new oil, the Acid Neutralization Number should be very low, close to zero. An increasing value over time indicates oil oxidation and a need for further investigation or oil treatment.

3. Specific Gravity

Specific gravity is the ratio of the density of the transformer oil to the density of water at a specified temperature. While not directly indicative of degradation, it helps to identify if the wrong type of oil has been used or if there has been significant contamination with other fluids.

Procedure: This is typically measured using a hydrometer or a density meter. The oil sample is brought to a standard temperature, and its density is measured relative to water.

Expected Results: Transformer oils typically have a specific gravity slightly less than 1 (e.g., around 0.85-0.90), meaning they are less dense than water. Significant deviations could indicate a problem.

4. Interfacial Tension (IFT)

Interfacial tension measures the attraction between the oil and the water interface. A high interfacial tension indicates that the oil is relatively clean and free from polar contaminants, such as oxidation products. A low IFT suggests the presence of these contaminants, which can contribute to sludge formation and corrosion.

Procedure: The test involves measuring the force required to pull a ring (or a specific type of disc) from the interface between the oil sample and distilled water. This is performed at a controlled temperature.

Expected Results: A higher interfacial tension value is desirable. A significant drop in IFT from the new oil value indicates degradation and the presence of polar contaminants.

5. Colour

The colour of transformer oil can provide a quick visual indication of its condition. New oil is typically light yellow or clear. As the oil degrades and becomes oxidized, it tends to darken, becoming brown or even black. While colour alone is not a definitive diagnostic tool, a significant change in colour can suggest that the oil requires further testing or treatment.

Procedure: The oil sample is compared against a set of standard colour scales (e.g., ASTM colour scale). This is a visual assessment.

Expected Results: New oil is typically ASTM colour 1-3. An increase in colour number indicates oxidation.

6. Visual Condition

A simple visual inspection of the oil sample can reveal gross contamination such as suspended solids, sludge, or visible water droplets. While not a quantitative test, it can provide an immediate alert to severe problems.

Procedure: Observe the oil sample in a clear container against a white background. Look for cloudiness, sediment, or any unusual particles.

Expected Results: The oil should appear clear and free from sediment or cloudiness.

7. Water Content (Karl Fischer Titration)

Moisture is one of the most detrimental contaminants for transformer oil. Even small amounts of water can significantly reduce the dielectric strength of the oil and accelerate the degradation of the paper insulation. The Karl Fischer titration method is a precise way to determine the exact water content.

Procedure: A known amount of oil is titrated with a Karl Fischer reagent, which reacts specifically with water. The amount of reagent consumed indicates the water content, typically expressed in parts per million (ppm).

Expected Results: For new oil, water content should be very low (typically under 10 ppm). In-service oil should ideally be kept below 20-30 ppm, depending on the transformer's voltage rating and operating conditions.

8. Dissipation Factor (Power Factor)

The dissipation factor, also known as the power factor, is a measure of the energy lost as heat in the oil when subjected to an alternating electric field. A high dissipation factor indicates that the oil contains conductive impurities, such as moisture, acids, or sludge, which are causing energy loss and reducing the insulating properties.

Procedure: This test is performed using a specialized instrument that applies an alternating voltage to the oil sample and measures the resulting current. The dissipation factor is calculated from the phase difference between the voltage and current. This is performed in accordance with standards like ANSI/IEEE C57.106.

Expected Results: New oil typically has a very low dissipation factor (e.g., less than 0.001 or 0.1%). An increasing value indicates contamination or degradation.

9. Dissolved Gas Analysis (DGA)

Dissolved Gas Analysis (DGA) is a highly sensitive diagnostic technique that identifies and quantifies the gases dissolved in the transformer oil. Under electrical or thermal stress, the insulating oil and paper insulation can decompose, releasing specific gases. The types and amounts of these gases can provide invaluable insights into the nature and location of developing faults within the transformer, such as overheating, arcing, or partial discharge. This test is performed on samples taken according to ASTM D-3613 and analysed using methods like ASTM D3612 or NETA ATS-Sec.7.2.2.2.11.

Common Dissolved Gases and Their Significance:

Analyzing the ratios of these gases (e.g., the Rogers Ratio or Doernenburg Ratio) allows experienced technicians to pinpoint the type of fault occurring within the transformer, enabling proactive maintenance and preventing catastrophic failures.

Temperature Devices and Monitoring

While not a direct oil test, the proper installation and verification of temperature devices (like thermometers and winding temperature indicators) are crucial. These devices provide real-time information about the transformer's operating temperature, which is a key factor influencing oil degradation. Ensuring these devices are calibrated and functioning correctly is an integral part of overall transformer health monitoring.

Interpreting the Results and Taking Action

The results from these various tests must be interpreted in conjunction with the transformer's history, operating conditions, and manufacturer's specifications. A single test result may not tell the whole story, but trends over time are often more revealing. If test results indicate a decline in oil quality, several actions may be considered:

• Oil Reconditioning: The oil can sometimes be reconditioned by filtering out moisture and particulate matter, and by processing it to remove acids and sludge.
• Oil Filtration: A simpler process to remove suspended particles and moisture.
• Oil Replacement: If the oil is severely degraded, it may need to be completely replaced.
• Transformer Repair: If the oil condition points to internal faults, further investigation and repair of the transformer itself may be necessary.

Frequently Asked Questions (FAQs)

Q1: How often should transformer oil be tested?

The frequency of testing depends on the transformer's age, criticality, operating load, and past test results. Generally, critical transformers are tested annually, while less critical ones might be tested every two to three years. However, if any unusual operating conditions occur, or if initial tests show a decline in quality, more frequent testing is recommended.

Q2: What is the most important test for transformer oil?

While all tests are important for a comprehensive assessment, the Dielectric Breakdown Voltage (BDV) is often considered the most critical as it directly relates to the oil's ability to prevent electrical arcing.

Q3: Can I test transformer oil myself?

While basic visual checks can be done by anyone, sophisticated tests like BDV, DGA, and Karl Fischer titration require specialized laboratory equipment and trained personnel to perform accurately and safely. It is highly recommended to send samples to a reputable electrical testing laboratory.

Q4: What is a 'good' BDV for transformer oil?

For new, unused transformer oil, a BDV of 30 kV or higher (using a 2.5mm gap) is generally considered good. For in-service oil, acceptable levels can vary, but a value below 20-25 kV may indicate a problem requiring attention.

Q5: What does a high Acid Neutralization Number indicate?

A high Acid Neutralization Number signifies that the oil has undergone oxidation and is forming acidic by-products. These acids can corrode internal transformer components and degrade the paper insulation, necessitating oil treatment or replacement.

In conclusion, maintaining the health of transformer oil through regular and thorough testing is paramount to the reliable and safe operation of electrical power systems. By understanding and implementing these testing procedures, you can proactively identify potential issues, prevent costly failures, and extend the operational life of your valuable transformer assets.
