The intricate world of public transportation relies heavily on the safety and efficiency of its components. Among the most critical are the braking systems of trams. These systems are responsible for bringing these heavy vehicles to a smooth and timely halt, ensuring passenger safety and operational reliability. A key question that often arises in discussions surrounding these systems is whether they require formal type approval. Furthermore, understanding the specific types of brake pads employed in rail vehicles provides valuable insight into the technology that underpins this vital function.
Do Tram Braking Systems Need Type Approval?
In most jurisdictions, particularly within the European Union and other regions with stringent safety regulations, type approval is a mandatory process for critical vehicle components, and braking systems are no exception. Type approval is a certification process that verifies a product’s compliance with specific technical, safety, and environmental standards. For tram braking systems, this means that the entire system, or its significant sub-components, must undergo rigorous testing and evaluation by an authorized body before it can be legally used in service.
The purpose of type approval is to ensure a baseline level of safety and performance. It confirms that the braking system is capable of meeting demanding operational requirements, such as emergency stops, consistent performance under various weather conditions, and long-term durability. This process typically involves extensive documentation, laboratory testing, and sometimes even on-track performance trials. The specific requirements and the extent of the testing can vary depending on national or regional legislation, such as the Technical Specifications for Interoperability (TSIs) within the EU, which aim to ensure the interoperability and safety of the European rail system.
The implications of not obtaining type approval can be severe, ranging from the inability to legally operate the tram to significant financial penalties and reputational damage. Therefore, manufacturers and operators alike place a high premium on ensuring that their tram braking systems meet all necessary approval mandates. This often involves close collaboration between component suppliers, vehicle manufacturers, and regulatory bodies throughout the design and development phases.

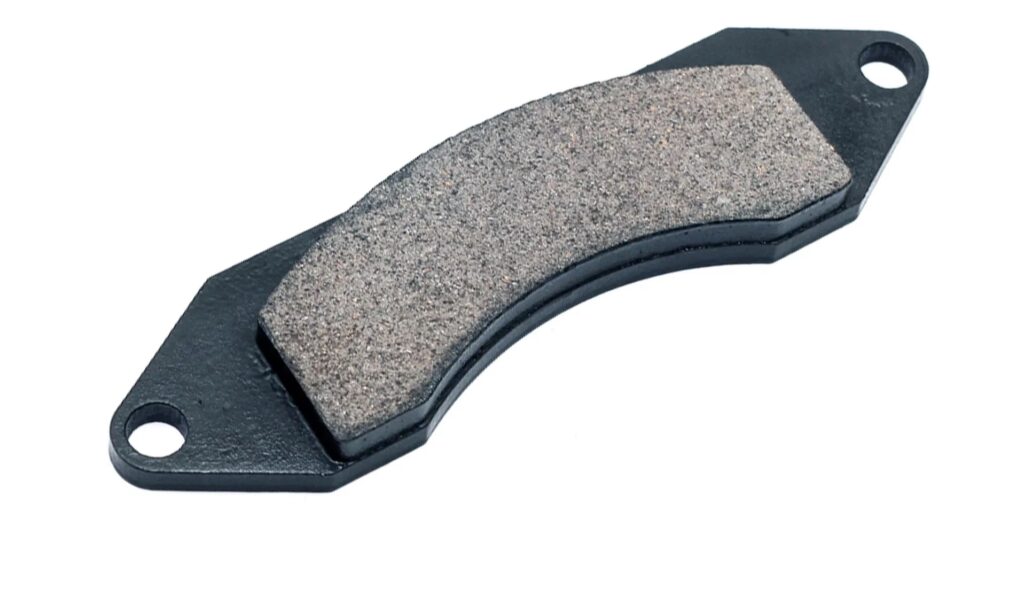

What Kind of Brake Pads Are Used in Rail Vehicles?
The selection of brake pads for rail vehicles, including trams, is a highly specialized field. Unlike the brake pads found in typical passenger cars, rail vehicle brake pads are designed to withstand far greater forces, higher operating temperatures, and extended service intervals. The primary goal is to achieve reliable and consistent braking performance while minimising wear on both the pads and the braking surface (usually the wheel tread or a separate disc).
A prominent player in this niche market is Dellner Frimatrail Frenoplast S.A. This company, with a strong focus on the railway sector, specialises in the design, development, and manufacturing of friction materials. Located near Warsaw, Poland, Dellner Frimatrail Frenoplast S.A. employs a dedicated team of 60 individuals and boasts a global reach, supplying its products worldwide. Their commitment to quality is underscored by several key industry certifications, including IRIS (International Railway Industry Standard), ISO 9001 (Quality Management Systems), ISO 14001 (Environmental Management Systems), and UIC (International Union of Railways) standards. These certifications are a testament to their adherence to rigorous quality control and industry best practices.
The types of brake pads used can vary depending on the specific braking system design, the tram's operational profile, and regulatory requirements. However, common materials include:
Common Brake Pad Materials and Types:
- Composite Materials: These are widely used and comprise a carefully formulated blend of various materials such as resins, fillers, reinforcing fibres (like aramid or glass fibres), and friction modifiers. The specific composition is proprietary and tailored to achieve desired friction coefficients, wear rates, and thermal stability.
- Sintered Materials: For more demanding applications, sintered brake pads are employed. These are produced by compacting powdered materials and then heating them to a high temperature below their melting point, causing them to bond together. Sintered materials often offer superior performance at high temperatures and longer service life.
- Friction Linings: These are the actual friction-generating surfaces of the brake pad. They are typically made from advanced composite materials designed to offer optimal friction properties across a wide range of operating conditions.
Factors Influencing Brake Pad Selection:
Several factors influence the choice of brake pad material for a specific tram application:
| Factor | Description | Impact on Brake Pad Selection |
|---|---|---|
| Friction Coefficient | The ratio of the frictional force to the normal force. A higher coefficient generally means stronger braking. | Critical for achieving required stopping distances. Material composition is optimised for a stable friction coefficient under varying speeds and temperatures. |
| Wear Rate | How quickly the brake pad material wears down during use. | Lower wear rates are desirable for extended service intervals and reduced maintenance costs. This is often a trade-off with friction performance. |
| Thermal Stability | The ability of the material to maintain its performance and integrity at high temperatures generated during braking. | Essential for preventing brake fade (loss of braking effectiveness due to heat) and ensuring consistent performance, especially during heavy braking or long descents. |
| Environmental Conditions | Exposure to moisture, dust, salt, and temperature fluctuations. | Materials must be resistant to degradation from environmental factors and maintain performance in diverse climates. |
| Noise and Vibration | Braking can generate noise and vibration, which affects passenger comfort. | Pad formulation can be adjusted to minimise undesirable noise and vibration levels. |
| Compatibility with Braking System | The interaction between the brake pad material and the braking surface (disc or wheel tread). | Materials are chosen to prevent excessive wear or damage to the mating component. |
The Importance of Quality and Certification
As highlighted by the certifications held by companies like Dellner Frimatrail Frenoplast S.A., the railway industry places immense importance on quality assurance and adherence to standards. IRIS certification, for example, is specifically tailored for the railway sector and goes beyond general quality management to encompass aspects like product safety, reliability, and traceability throughout the supply chain.
Achieving and maintaining these certifications requires a robust quality management system, continuous improvement processes, and a deep understanding of the specific needs and challenges of railway operations. For brake pads, this translates to meticulous control over raw material sourcing, manufacturing processes, and final product testing to ensure that every batch meets the stringent performance and safety criteria demanded by the industry.
Frequently Asked Questions
Q1: What is the primary function of tram brake pads?
Tram brake pads, also known as brake blocks or friction linings, are designed to create friction against a rotating surface (typically a brake disc or the wheel tread) to convert the kinetic energy of the moving tram into heat, thereby slowing it down or bringing it to a complete stop.
Q2: Why are rail vehicle brake pads different from car brake pads?
Rail vehicle brake pads must handle significantly higher forces, operate under a wider range of temperatures, and have a much longer service life due to the weight of the trams and the demanding operational cycles. They are engineered with advanced composite materials for enhanced durability and performance.
Q3: What does IRIS certification mean for a brake pad manufacturer?
IRIS certification indicates that a manufacturer adheres to the highest standards of quality and safety specifically within the international railway industry. It signifies a commitment to excellence in design, production, and customer service, crucial for critical components like braking systems.
Q4: Are there specific regulations governing tram braking systems?
Yes, in many regions, tram braking systems are subject to strict regulations and standards, such as the Technical Specifications for Interoperability (TSIs) in Europe, which mandate safety and performance requirements. Type approval is often a part of these regulatory frameworks.
In conclusion, the world of tram braking systems is governed by rigorous safety standards, including the necessity for type approval for critical components. The selection and manufacturing of appropriate brake pads, often utilising advanced composite materials and supported by stringent quality certifications, are paramount to ensuring the safe and efficient operation of these essential public transport vehicles.
