Understanding Trailer Disc Brakes
When it comes to safely towing a trailer, effective braking is paramount. While drum brakes have been a long-standing option, trailer disc brakes are increasingly becoming the preferred choice for many due to their superior performance and reliability. But what exactly are trailer disc brakes, and how do they differ from their drum brake counterparts? This article will delve into the mechanics of trailer disc brakes, explore different types, and highlight their advantages.
Hydraulic Disc Brakes for Trailers: The Core Technology
At their heart, most trailer disc brake systems operate on a hydraulic principle, often utilising a hydraulic surge brake system. This ingenious setup harnesses the trailer's own momentum to activate the brakes. When the towing vehicle decelerates, the trailer, due to inertia, surges forward slightly. This forward motion pushes an actuator assembly, which in turn generates hydraulic pressure. This pressure is then transmitted through brake lines to the calipers mounted on the wheel hubs. The calipers, containing brake pads, squeeze a rotating disc (rotor) attached to the hub, effectively slowing and stopping the trailer.
Rotor and Caliper: The Stopping Powerhouse
Unlike drum brakes, where brake shoes press outwards against the inside of a drum, disc brakes work by applying pressure to the exterior of a disc. The key components are:
- Rotor: This is a circular metal disc that rotates with the wheel hub.

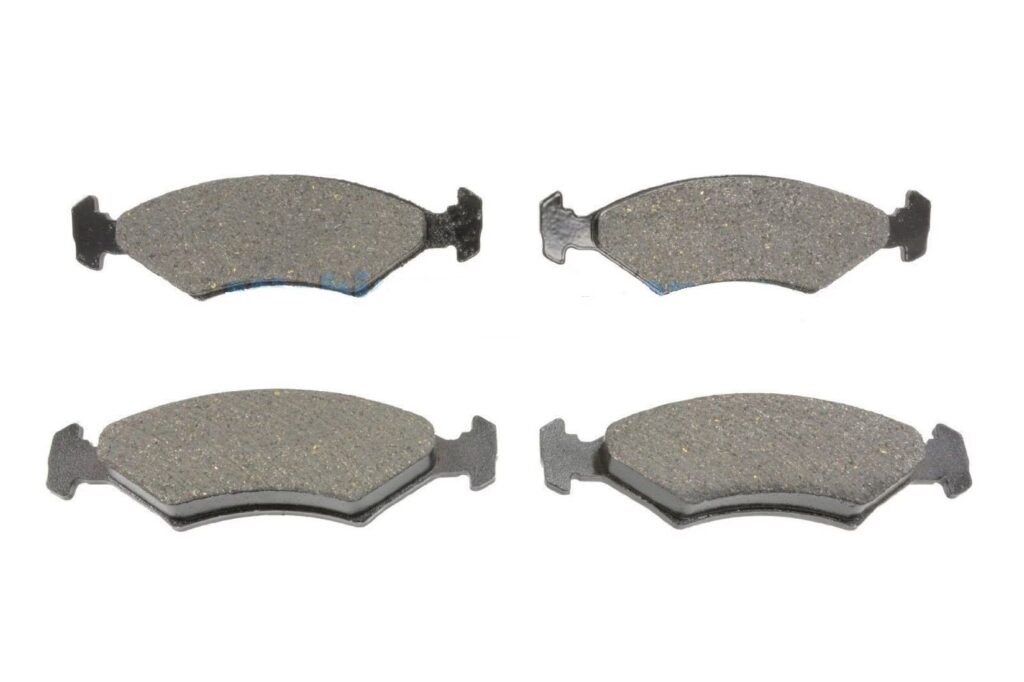

- Caliper: This housing contains one or more pistons and brake pads. When hydraulic pressure is applied, the pistons push the brake pads against the rotor, creating friction that slows the wheel.
The friction generated by the brake pads on the rotor is what converts the trailer's kinetic energy into heat, thereby stopping its motion. This direct application of force to the rotor generally results in more consistent and powerful braking compared to drum brakes, especially in wet conditions.
Slip-On vs. Integral Style Rotors
When choosing a disc brake kit for your trailer, you'll often encounter two primary styles for the rotor and hub assembly, particularly from manufacturers like Kodiak:
Slip-On Style
In the slip-on style, the rotor is a standalone component that is designed to slide directly over an existing idler hub (a hub without any braking mechanism). This is a popular option for trailer owners who currently have idler hubs and want to upgrade to disc brakes without replacing the entire hub assembly. It offers a relatively straightforward conversion process.
Integral Style
The integral style features a hub and rotor that are cast as a single, unified piece. This design is often considered more robust and can simplify installation if you are replacing your existing hubs anyway. If you have idler hubs currently, opting for the integral style means you'll be replacing your hubs with new ones that have the rotor built-in. The old hubs can then be kept as spares, which can be a prudent choice for long-distance travellers.
Both styles offer comparable braking performance. The decision between slip-on and integral often comes down to the trailer's current setup and the owner's preference for installation and future maintenance.
The BPW ECO Disc Brake Caliper: A European Standard
In the European market, the BPW ECO disc brake caliper has established itself as a leading and highly respected braking solution. With over two million units produced, its enduring popularity is a testament to its design and performance. What sets the BPW ECO disc caliper apart is its specific development for the demanding requirements of the trailer industry, moving away from merely adapting truck brake components.
Key Features of the BPW ECO Disc Caliper (including TS2):
- Designed for Trailers: Unlike older systems that repurposed truck brake calipers, BPW's ECO series is engineered from the ground up for trailer applications, ensuring optimal performance and longevity.
- Single-Tappet Technology: This modern offset single-tappet mechanism is crucial for consistent braking force application and efficient pad retraction.
- TS2 Advancement: The latest TS2 version builds upon the robust foundation of the original ECO caliper. It features a lighter construction while retaining the core strengths.
- Active Pad Backplate Reinforcement: This feature ensures that braking force is distributed evenly across the brake pads and the rotor. This even distribution minimises uneven wear, enhances braking efficiency, and significantly extends the service life of the brake pads and rotor.
The BPW ECO disc brake caliper represents a sophisticated and purpose-built solution for trailer braking, prioritising durability and consistent performance.
Disc Brake Conversion Kits and Axle Support
When considering a disc brake conversion, it's vital to ensure the kit is designed for your trailer's axle capacity. Many reputable manufacturers offer comprehensive disc brake conversion kits specifically designed to support common axle ratings, such as 4.4k axles (4,400 pounds).
What to Expect in a Complete Conversion Kit:
- All Components from a Single Manufacturer: High-quality kits comprise all parts manufactured by the same company. This ensures that every component has been rigorously tested and is proven to work harmoniously with the others, unlike systems pieced together from various sources.
- Comprehensive Package: A true conversion kit will include absolutely everything you need to complete the job. This means not just the essential discs and actuator, but also every screw, fitting, bracket, cable, and length of wire required for a full installation.
- Dedicated Technical Support: Many suppliers of complete disc brake kits offer invaluable technical support, often available seven days a week via telephone. This assistance can be critical during installation or if any issues arise.
Choosing a complete, well-supported kit simplifies the conversion process and provides peace of mind, knowing you have a reliable braking system designed for your trailer.
Advantages of Trailer Disc Brakes
Trailer disc brakes offer several distinct advantages over traditional drum brakes:
- Superior Stopping Power: Disc brakes generally provide more consistent and powerful braking, especially under heavy loads or in demanding conditions.
- Better Performance in Wet Conditions: The open design of disc brakes allows water and debris to be shed more easily, leading to more reliable braking when wet. Drum brakes can trap water, significantly reducing their effectiveness.
- Less Maintenance: Disc brake systems often require less frequent adjustment and maintenance compared to drum brakes.
- Improved Heat Dissipation: Rotors are more efficient at dissipating heat generated during braking, reducing the risk of brake fade.
- Easier Inspection: Checking the wear on brake pads and rotors is typically simpler with disc brakes.
Frequently Asked Questions
Q1: Can I convert my trailer from drum brakes to disc brakes?
Yes, you can convert most trailers from drum brakes to disc brakes. This typically involves replacing the hubs with ones designed for disc brakes (either slip-on rotor style or integral hub/rotor units) and installing a new actuator and brake lines.
Q2: Are trailer disc brakes worth the upgrade?
For many users, the enhanced safety, improved performance in various conditions, and reduced maintenance make trailer disc brakes a worthwhile upgrade, especially for heavier trailers or those that are frequently towed.
Q3: What is a surge brake actuator?
A surge brake actuator is the device that senses the trailer's forward surge when the tow vehicle brakes. It converts this surge into hydraulic pressure to activate the trailer's brakes.
Q4: How do I know if my trailer needs disc brakes?
Consider upgrading if you frequently tow heavy loads, experience brake fade with your current drum brakes, tow in hilly or mountainous terrain, or tow in conditions where water submersion is common (like boat trailers).
In conclusion, trailer disc brakes represent a significant advancement in towing safety and performance. Understanding the different types of systems and components will help you make an informed decision for your trailer's braking needs.
