Wheel alignment is a critical aspect of vehicle maintenance, directly impacting handling, tyre longevity, fuel efficiency, and ultimately, safety. For garages and automotive workshops, investing in the right wheel alignment equipment isn't just about offering a service; it's about delivering precision, speed, and reliability. But with a plethora of options available on the market, how does one determine what constitutes the 'best' wheel alignment equipment? The answer isn't always straightforward, as 'best' often depends on specific needs, budget, and the types of vehicles being serviced.
Understanding the different technologies and their capabilities is the first step towards making an informed decision. From traditional optical systems to cutting-edge 3D imaging, each type offers distinct advantages and disadvantages.
Understanding Wheel Alignment Systems
Modern wheel alignment equipment has evolved significantly over the years, moving from simple mechanical tools to sophisticated computerised systems. Here's a breakdown of the primary types you'll encounter:
1. Manual/Optical Systems
These are the oldest and most basic forms of alignment equipment. They typically involve using strings, mirrors, or optical scopes to measure angles. While inexpensive, they are often time-consuming and rely heavily on the technician's skill and meticulous setup. Their accuracy can be inconsistent, making them less suitable for modern vehicles with precise alignment specifications.
2. CCD (Charge-Coupled Device) / Laser Systems
Representing a significant leap forward from manual methods, CCD or laser alignment systems use sensors attached to each wheel. These sensors communicate wirelessly or via cables with a central computer. Lasers project beams onto targets, and the CCD cameras measure the angles. These systems are much faster and more accurate than optical methods, providing real-time measurements. They are a popular choice for many workshops due to their balance of cost and performance.
3. 3D Imaging Systems
Considered the pinnacle of wheel alignment technology, 3D imaging systems utilise advanced cameras and reflective targets attached to the wheels. These cameras capture multiple images of the targets, creating a precise 3D model of the vehicle's suspension and wheel angles. The data is then processed by powerful software to provide highly accurate and comprehensive measurements. Key advantages include extreme precision, incredible speed, and user-friendliness, as they typically require minimal setup time and compensation for lift run-out. They are particularly effective for high-volume workshops and for servicing a wide range of vehicles, from passenger cars to light commercial vehicles.

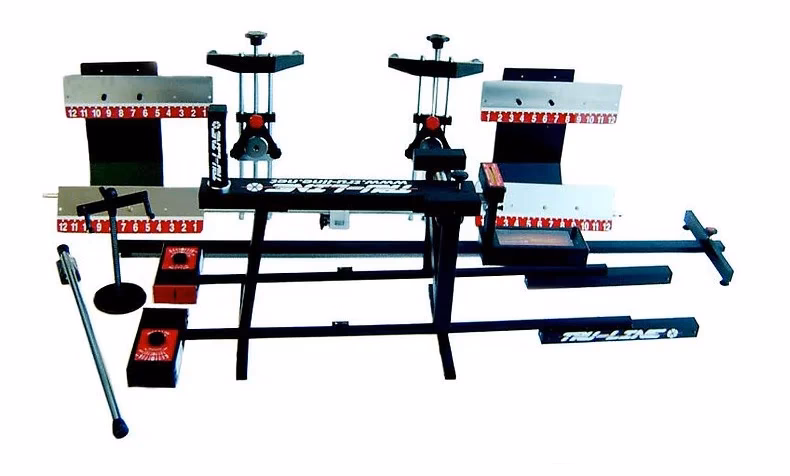

4. Heavy-Duty and Commercial Vehicle Systems
For workshops specialising in trucks, buses, and other large commercial vehicles, dedicated heavy-duty alignment equipment is essential. These systems are designed to accommodate the larger dimensions, heavier weights, and often multi-axle configurations of these vehicles. They typically employ robust sensors and larger targets, sometimes incorporating laser or 3D technology adapted for heavy-duty applications. The software is also tailored to handle the complexities of commercial vehicle alignments, including tracking and steering axle adjustments.
Factors Defining the 'Best' Equipment
Determining the 'best' equipment isn't about finding a single universal answer, but rather identifying what suits a specific business model. Here are crucial factors to consider:
- Accuracy: The primary function of alignment equipment is to provide precise measurements. 3D imaging systems generally offer the highest accuracy, followed by CCD/laser systems.
- Speed and Efficiency: Time is money in a workshop. Systems that offer quick setup, rapid measurement, and intuitive software significantly boost efficiency. 3D imagers excel here, often providing results in minutes.
- Ease of Use: User-friendly interfaces and automated processes reduce training time and the potential for human error.
- Vehicle Compatibility: Does the equipment handle the range of vehicles you service, from small cars to SUVs, vans, or even multi-axle commercial vehicles?
- Software Features: Modern software often includes comprehensive vehicle databases, diagnostic tools, animated adjustment guides, print-outs for customers, and the ability to save customer history.
- Space Requirements: Some systems, particularly those with fixed camera towers, require a dedicated bay with ample space. Portable systems offer more flexibility.
- Cost and ROI: While 3D systems have a higher upfront cost, their speed and accuracy can lead to a faster return on investment through increased throughput and customer satisfaction.
- Durability and Support: Look for equipment from reputable manufacturers known for robust build quality and excellent after-sales support, including training and calibration services.
How Long Does a 3-Axle Wheel Alignment Take?
The duration of a 3-axle wheel alignment is a common question, particularly for those operating or maintaining commercial vehicles. Unlike a standard two-axle passenger car, aligning a vehicle with three or more axles (common in trucks, buses, and some trailers) is inherently more complex and time-consuming. However, providing an exact figure is difficult as it depends on several critical factors:
- Type of Equipment Used: Modern, dedicated heavy-duty alignment systems, especially those utilising laser or 3D technology, can significantly reduce the time required compared to older, less sophisticated methods. Advanced software with clear, guided adjustments also speeds up the process.
- Condition of the Vehicle: A vehicle with seized adjustment points, worn suspension components, or damaged steering linkages will inevitably take longer. The technician might need to free up rusted bolts or identify and recommend repairs before accurate alignment can even begin.
- Technician's Skill and Experience: An experienced technician familiar with the specific equipment and the intricacies of multi-axle alignments will complete the job much faster and more accurately than someone less familiar.
- Number of Axles Requiring Adjustment: While it's a '3-axle' alignment, the actual work might involve adjusting all three axles for proper tracking and thrust angle, or perhaps just the steering axles. The more adjustments needed, the longer the process.
- Pre-Alignment Checks: A thorough pre-alignment inspection (checking tyre pressure, suspension components, steering play) is crucial but adds to the overall time. Skipping these steps can lead to an inaccurate alignment that won't last.
Considering these variables, a 3-axle wheel alignment can range from approximately 1 to 3 hours or even longer in more challenging cases. For instance, a well-maintained truck on a modern 3D heavy-duty alignment rack might be completed closer to the lower end of that spectrum, while an older vehicle with issues requiring component freeing could push it towards the higher end.
Benefits of Proper Wheel Alignment
Regardless of the equipment used, the outcome of a good alignment is invaluable:
- Extends Tyre Life: Misaligned wheels cause uneven tyre wear, leading to premature replacement. Proper alignment ensures tyres wear evenly.
- Improves Fuel Efficiency: When wheels are misaligned, tyres drag, increasing rolling resistance and leading to higher fuel consumption.
- Enhances Driving Safety and Handling: A properly aligned vehicle handles predictably, steers straight, and reduces driver fatigue, significantly improving safety.
- Reduces Component Wear: Correct alignment reduces stress on steering and suspension components, extending their lifespan.
Comparative Table: Wheel Alignment Systems
| Feature | Manual/Optical Systems | CCD/Laser Systems | 3D Imaging Systems | |
|---|---|---|---|---|
| Accuracy | Low to Moderate | Good to High | Very High (Exceptional) | |
| Speed | Slowest | Moderate to Fast | Fastest | |
| Ease of Use | Requires High Skill | Moderate | Very High | |
| Cost (Initial) | Lowest | Medium | Highest | |
| Space Required | Minimal | Moderate | Moderate to High (Fixed Towers) | |
| Technology | Mechanical, Visual | Infrared/Laser, Sensors | High-Res Cameras, Reflective Targets | |
| Ideal For | Low Volume, Basic Needs | Mid-Volume, General Workshops | High-Volume, Premium Service, Precision |
Frequently Asked Questions (FAQs)
Why is wheel alignment important?
Wheel alignment ensures your vehicle's wheels are set to the manufacturer's specifications. This prevents uneven tyre wear, improves fuel economy, enhances vehicle handling and stability, and contributes significantly to overall driving safety. It's a crucial part of preventative maintenance.
How often should I get a wheel alignment?
It's generally recommended to have your wheel alignment checked annually or every 10,000-12,000 miles, whichever comes first. However, you should get it checked immediately if you hit a large pothole, curb, or have been in an accident, or if you notice signs of misalignment like uneven tyre wear, your vehicle pulling to one side, or a crooked steering wheel.
Can I do a wheel alignment at home?
While basic DIY methods exist for measuring toe, achieving a precise and comprehensive wheel alignment (including camber and caster) requires specialised, calibrated equipment and expertise. Attempting a full alignment at home without the proper tools can lead to further issues and is not recommended for achieving optimal results or ensuring safety.
What are the signs of bad wheel alignment?
Common signs include uneven or rapid tyre wear, the vehicle pulling or drifting to one side, a steering wheel that isn't centred when driving straight, and squealing tyres. You might also notice a loose or vibrating steering wheel.
What's the difference between 2-wheel and 4-wheel alignment?
A 2-wheel alignment typically refers to adjusting only the front wheels, which is suitable for vehicles with solid rear axles where the rear wheels are not adjustable. A 4-wheel alignment involves adjusting all four wheels to ensure they are parallel to each other and perpendicular to the ground, which is necessary for vehicles with independent rear suspension or adjustable rear axles. Many modern vehicles require a 4-wheel alignment for optimal performance and tracking. A 3-axle alignment extends this concept to commercial vehicles, focusing on ensuring all axles track correctly to prevent scrubbing and ensure stability.
Conclusion
The 'best' wheel alignment equipment is ultimately the one that meets the specific demands of your workshop, balancing investment with capabilities. For high-volume businesses aiming for maximum precision and efficiency, 3D imaging systems are undoubtedly the leading choice. For smaller operations or those with budget constraints, a high-quality CCD/laser system offers an excellent balance of accuracy and affordability. Regardless of the technology, the goal remains the same: to provide accurate, reliable alignment services that ensure vehicle performance, extend tyre life, and enhance driver safety. Investing wisely in this essential equipment is a commitment to quality and customer satisfaction.
