DIY Guide: Dual Axle Trailer Alignment Checks

Ensuring your dual axle trailer is properly aligned isn't just about preserving your tyres; it's fundamental to towing safety, fuel efficiency, and the overall longevity of your rig. A misaligned trailer can lead to a host of problems, from uneven tyre wear to dangerous handling characteristics, often without immediate obvious signs. Understanding how to perform basic checks yourself can save you time, money, and potential headaches down the road.

Why Trailer Alignment Matters So Much

You might think alignment is just for your tow vehicle, but it's equally, if not more, critical for your trailer. Here’s why:

• Tyre Wear: This is often the first and most visible symptom of misalignment. Tyres can wear unevenly, feathering on one side, or showing excessive wear on the inner or outer edges. This drastically reduces tyre life, forcing premature and costly replacements.
• Towing Stability: A misaligned trailer can 'crab' or 'dog track', meaning it doesn't follow directly behind your tow vehicle. This creates unnecessary drag, increases fuel consumption, and can lead to dangerous swaying or instability, especially at higher speeds or in crosswinds. This significantly impacts your towing stability.
• Fuel Efficiency: When a trailer is crabbing, it's constantly fighting against the direction of travel, creating more resistance. This added drag translates directly into increased fuel consumption, hitting your wallet harder on every journey.
• Component Strain: Misalignment places undue stress on the trailer's suspension components, bearings, and even the tow vehicle's hitch. Over time, this can accelerate wear and tear, leading to costly repairs.
• Safety: Ultimately, all these factors converge on safety. A trailer that doesn't track correctly is unpredictable and can contribute to loss of control, especially during emergency manoeuvres. Your safety, and that of others on the road, depends on a well-maintained and aligned trailer.

Common Causes of Trailer Misalignment

Several factors can throw your trailer's alignment out of whack:

• Impacts: Hitting potholes, kerbs, or other road debris can bend axles or damage suspension components.
• Overloading: Consistently exceeding your trailer's weight capacity can stress and deform axles and springs over time.
• Worn Components: Worn leaf springs, shackle bushes, or bent spring hangers can all contribute to misalignment. Regular inspection of these components is crucial.
• Manufacturing Defects: While rare, a trailer could leave the factory with slight alignment issues.
• Corrosion: Over years of exposure to the elements, particularly in coastal areas or during winter with road salt, rust can weaken and warp components.

Preparing for Your Alignment Check

Before you even pick up a tape measure, proper preparation is key to accurate results. Without these steps, your measurements might be misleading:

• Flat, Level Surface: This is absolutely critical. Park your trailer on a concrete slab, a garage floor, or any surface that is demonstrably flat and level. Even a slight incline can skew your measurements significantly.
• Tyre Inflation: Ensure all tyres are inflated to the manufacturer's recommended pressure. Incorrect tyre pressure can alter the tyre's shape and contact patch, leading to inaccurate readings. Use a reliable tyre pressure gauge.
• Loaded Condition: The most crucial tip from the experts: pack your trailer as if you are going to travel. You want the weight distribution to be the same as if you were towing. This simulates the real-world conditions under which your trailer operates, allowing for the most accurate assessment of its alignment under load. An empty trailer will behave differently than a loaded one.

The Measurement Method: A Step-by-Step Guide

This method focuses on checking for 'toe' on each axle and 'tracking' between the two axles, which are the most common issues on dual axle trailers.

Tools You'll Need:

• A long, accurate measuring tape (preferably a steel one that won't stretch).
• Chalk or a permanent marker.
• A jack and jack stands (for safety, if you need to rotate tyres or get under the trailer, but not strictly for the measurement itself).

Step 1: Mark Your Tyres Precisely

With the trailer prepared as above, take your chalk or marker. Go to each tyre and make a clear, precise mark on the very centre of the tyre tread at the front (the part facing forwards) and the rear (the part facing backwards). Try to keep these marks as close to the ground as possible without being obscured. For consistency, you might want to mark the same spot on the inner and outer sidewalls if possible, but the tread centre is paramount.

Step 2: Measuring Individual Axle Toe (Front-to-Back)

This step checks if the wheels on a single axle are parallel to each other. Too much 'toe-in' (wheels pointing inwards) or 'toe-out' (wheels pointing outwards) will cause significant tyre wear.

1. For the front axle, measure the distance between the front marks you made on the left and right tyres. Note this measurement down carefully.
2. Now, measure the distance between the rear marks on the same left and right tyres of the front axle.
3. Compare these two measurements. Ideally, they should be identical. A difference of more than 3mm-5mm (1/8 to 3/16 inch) could indicate a toe issue.
4. Repeat this exact process for the rear axle.

If the front measurement is smaller than the rear, you have toe-in. If the front measurement is larger, you have toe-out. Both are problematic.

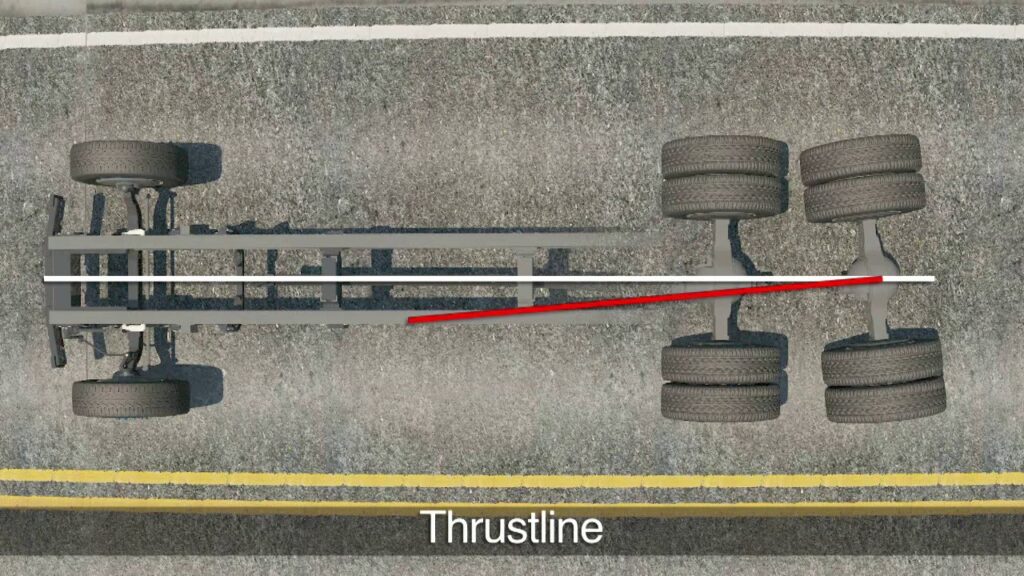

Step 3: Checking for Crabbing / Dog Tracking (Axle Parallelism)

This is where the 'dual axle' aspect becomes crucial. You need to ensure both axles are perfectly parallel to each other and perpendicular to the trailer's centreline. A trailer that 'crabs' will drag one set of tyres sideways, leading to severe wear and poor handling.

There are a couple of ways to do this:

Method A: Diagonal Measurement

1. Pick a consistent point on the outer edge of the front tyre on one side (e.g., the front-most part of the tread).
2. Measure diagonally from this point to the *corresponding* point on the *opposite side* of the *rear axle's tyre*. For example, from the front-left tyre's front mark to the rear-right tyre's front mark.
3. Note this measurement.
4. Now, measure the other diagonal: from the front-right tyre's front mark to the rear-left tyre's front mark.
5. These two diagonal measurements should be identical. Any significant difference (more than 5mm) indicates that your axles are not parallel, and your trailer will 'crab'. This is a strong indicator of an alignment issue that needs professional attention.

Method B: Frame to Hub Measurement (More precise, but requires getting under)

If you can safely access the underside of your trailer, this method can be very accurate.

1. Choose a fixed, easily identifiable point on the trailer's chassis or frame that runs parallel to the centreline of the trailer. This point must be solid and not prone to flexing.
2. From this fixed point, measure the distance to the centre of the hub on each wheel.
3. Compare the measurements for the left and right wheels on the front axle. They should be identical.
4. Repeat for the rear axle.
5. Then, compare the distance from your fixed frame point to the front-left hub versus the rear-left hub. And the front-right hub versus the rear-right hub. These sets of measurements should also be identical if the axles are perfectly parallel to the frame and each other.

Step 4: Visual Inspection

While measurements are key, a thorough visual inspection can reveal obvious problems:

• Tyre Wear Patterns: Look closely at all four tyres. Feathering, excessive wear on one edge (inner or outer), or bald spots can all signal alignment problems. Refer to tyre wear charts online to diagnose specific patterns.
• Bent Axles: Stand back and look along the length of each axle. Are they straight? Any obvious bends or bows?
• Suspension Components: Check leaf springs for cracks or signs of sagging. Look at shackle bushes for excessive wear or degradation. Are the spring hangers bent or twisted?

Interpreting Your Measurements & What to Do Next

So, you've taken your measurements. What do they mean?

Can You Adjust Trailer Alignment Yourself?

For most recreational and commercial trailers, particularly those with solid axles, DIY alignment adjustments are generally not feasible or recommended. Unlike a car, where suspension components are designed for adjustment, trailer axles are often welded directly to spring seats or torsion axle mounts. Adjusting toe or correcting crabbing typically involves:

• Bending the axle (specialised equipment required).
• Re-positioning spring seats or torsion axle mounts (requires cutting and re-welding).
• Replacing damaged components (e.g., a bent axle, worn springs or bushes).

Attempting these without the proper tools, knowledge, and experience can lead to further damage, unsafe towing conditions, and could void warranties. If your measurements indicate a significant problem, your best course of action is to consult a reputable trailer repair shop or a specialist truck/trailer alignment centre. They have the sophisticated equipment (like laser alignment systems) to accurately diagnose and correct even subtle issues.

Preventative Measures and Regular Checks

Prevention is always better than cure. Incorporate these habits into your trailer maintenance routine:

• Regular Visual Inspections: Before and after every significant trip, walk around your trailer. Look at the tyres for unusual wear patterns, check the springs and hangers for damage, and quickly eyeball the axles for any obvious bends.
• Proper Loading: Always distribute your load evenly and ensure you stay within your trailer's Gross Vehicle Weight Rating (GVWR) and Gross Axle Weight Rating (GAWR). Overloading is a primary cause of axle and suspension damage.
• Tyre Pressure: Make checking tyre pressure a habit before every trip. Correct pressure not only aids alignment but also prevents blowouts.
• Avoid Impacts: Drive carefully, avoiding large potholes, kerbs, and other road hazards that can inflict sudden, severe damage to your trailer's running gear.
• Service Intervals: Adhere to manufacturer-recommended service intervals for bearing checks, brake servicing, and general suspension inspections.

Frequently Asked Questions (FAQs)

How often should I check my dual axle trailer's alignment?

It's advisable to perform a basic visual inspection and quick measurement check at least once a year, or after any significant impact (like hitting a large pothole). If you tow frequently, over rough terrain, or carry heavy loads, consider checking more often, perhaps every 6-12 months or every 10,000 miles.

What are the most common signs of bad alignment on a trailer?

The most common signs include uneven or premature tyre wear (feathering, wear on one edge), the trailer 'crabbing' or 'dog tracking' behind the tow vehicle, increased fuel consumption, and general instability or swaying during towing.

Does tyre pressure affect trailer alignment?

While incorrect tyre pressure doesn't *cause* misalignment of the axle itself, it can mimic alignment issues by causing uneven tyre wear. More importantly, it can lead to inaccurate alignment measurements if not properly inflated during the check. Always ensure tyres are at the correct pressure before measuring.

Is checking alignment different for single axle vs. dual axle trailers?

The principles of checking toe on an individual axle are the same. However, for dual axle trailers, the crucial additional step is checking the parallelism of the two axles to each other (the 'crabbing' check). This isn't a concern for single axle trailers.

My trailer seems to track fine, but my tyres are wearing unevenly. What could be wrong?

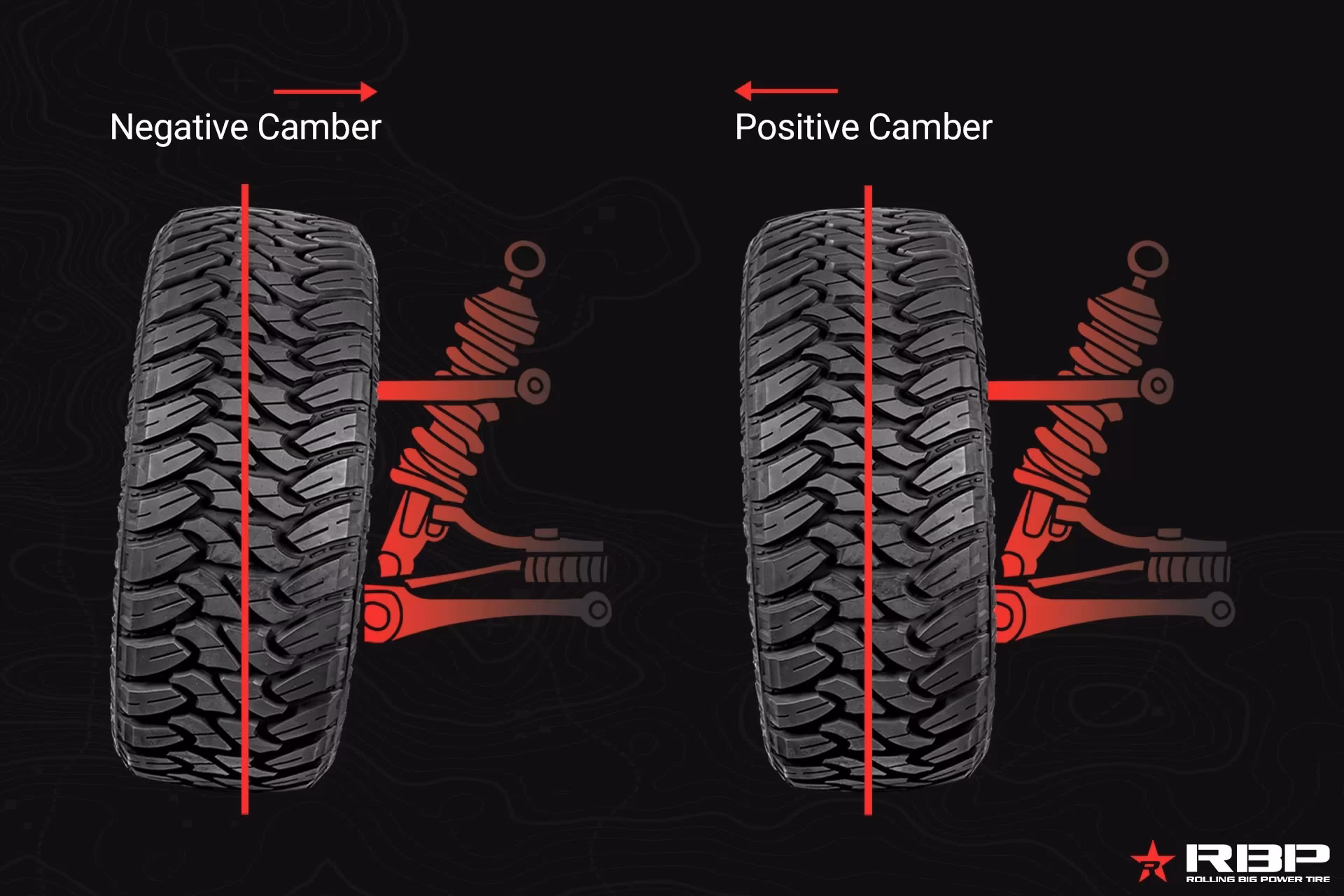

If the trailer tracks straight but you have uneven tyre wear, it often points to a toe or camber issue on an individual axle that isn't severe enough to cause visible crabbing. It could also be related to worn wheel bearings, suspension components, or consistent overloading. A professional alignment shop can precisely diagnose these issues.

Conclusion

Taking the time to understand and regularly check the alignment of your dual axle trailer is a small investment that yields significant returns in safety, economy, and peace of mind. While the DIY measurement method provides a valuable diagnostic tool, remember that correcting significant alignment issues almost always requires the expertise and specialised equipment of a professional trailer repair centre. Stay vigilant, keep your tyres properly inflated, and your trailer will reward you with many years of reliable service on the road.
