TR7 EFI: Bosch L-Jetronic Explained

Understanding the TR7's Electronic Fuel Injection System

The Triumph TR7, a classic sports car known for its distinctive styling, often features a sophisticated Electronic Fuel Injection (EFI) system. For many TR7 models, this system is the well-regarded Bosch L-Jetronic. This system represents a significant advancement over carburettor setups, offering improved fuel efficiency, smoother power delivery, and better emissions control. This article delves into the intricacies of the Bosch L-Jetronic EFI system as implemented on the TR7, explaining its core components and how they work in harmony to manage your engine's fuel supply.

The Heart of the System: Bosch L-Jetronic

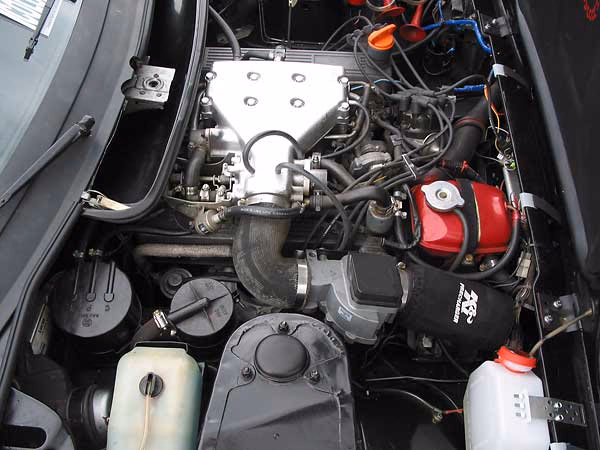

The EFI system on the TR7 is primarily built around the Bosch L-Jetronic technology, with most components bearing Bosch part numbers. This system's primary function is to precisely meter fuel into the engine's intake manifold, ensuring an optimal air-fuel mixture for various operating conditions. Unlike older carburettor systems which rely on vacuum and mechanical linkages, EFI uses electronic signals from various sensors to precisely control fuel delivery.

Fuel Delivery: From Tank to Injector

The journey of fuel begins in the fuel tank. Fuel is drawn from the tank by a high-pressure electric fuel pump. This pump is a vital component, designed with a two-stage operation. Initially, a low-pressure vane-type pump draws fuel, capable of picking up even when the tank is nearly empty. This primes a high-pressure roller-type pump, which cannot handle air. The high-pressure pump then forces the fuel through a fine 2-micron filter, designed to remove any contaminants that could damage the sensitive injectors or engine internals. The filter, typically mounted forward of the fuel tank on the chassis, should be replaced every 40,000 miles and has an arrow indicating the correct flow direction.

After filtration, the fuel reaches the fuel pressure regulator. This crucial device maintains a constant fuel pressure relative to the manifold pressure. It works by using a diaphragm that is sensitive to manifold vacuum. Under high vacuum (like idling or deceleration), the diaphragm pulls a valve against a spring, opening a return line to the tank, thus reducing fuel pressure. Conversely, under low vacuum or positive pressure (like full throttle), the spring overcomes the diaphragm's pull, closing the return line and maintaining higher fuel pressure. This regulation ensures that the amount of fuel injected is primarily controlled by the injector's opening time, rather than fluctuating fuel pressure.

The regulated fuel is then distributed through a fuel rail to the individual fuel injectors and the cold start injector. It is imperative to avoid creating a vacuum in the fuel tank, as the powerful fuel pump can potentially draw the tank walls inwards.

The Air Intake and Measurement

As the engine demands air, it is drawn through the air filter. The critical component here is the Air Flow Meter. This device incorporates a flap that is deflected by the incoming air. The degree of deflection is directly proportional to the volume of air entering the engine. This information is then transmitted to the Engine Control Unit (ECU). Modern TR7s often have the adjustment screw on the air flow meter disabled or removed to comply with emissions regulations, preventing manual tampering with the CO mixture.

Within the air flow meter, a temperature sensor also measures the incoming air temperature. This data, along with the measured air volume, is fed to the ECU. From the air flow meter, the air passes through the plenum chamber and into the engine cylinders.

The Electronic Control Unit (ECU): The Brains of the Operation

The ECU, often referred to as the 'brains' of the system, is typically located under the glove box. It receives data from all the sensors, including the air flow meter, coolant temperature sensor, throttle position sensor, and distributor. Using this information, the ECU calculates the precise amount of fuel required for optimal combustion. It then commands the fuel injectors to open for a specific duration, injecting the calculated fuel quantity.

The duration for which each injector remains open is determined by several factors:

• Air flow measured by the air flow sensor.
• Air temperature.
• Engine temperature, measured by the coolant temperature sensor.
• Throttle butterfly position, indicated by the throttle position potentiometer.

Fuel Injectors: Precise Fuel Delivery

The TR7's engine is equipped with multiple fuel injectors, typically eight for a V8 engine, though the principle applies to 4-cylinder variants as well. These are electrically operated solenoid valves. When the ECU sends an electrical pulse, the solenoid opens the injector, allowing fuel to spray into the intake manifold. The injectors operate in banks, with all injectors in one bank firing simultaneously. For example, on a V8, cylinders 1, 3, 5, and 7 might fire together, followed by cylinders 2, 4, 6, and 8.

Connected in series with each injector are resistors. These components reduce the system voltage from 12V to approximately 3V across the injector terminals when they are energised. This ensures the injectors operate correctly within their designed parameters. It's important to be cautious when disconnecting injector connectors, as they can become brittle with age.

Cold Start and Idle Control

Starting a cold engine requires a richer fuel mixture. This is where the Cold Start Injector comes into play. Located at the top of the plenum chamber, it injects a continuous stream of fuel during cranking when the engine is cold. Its operation is managed by a Thermo Time Switch, not directly by the ECU.

The Thermo Time Switch is a clever device. When the ignition is turned to the 'crank' position, a heating coil within the switch warms a bi-metal strip. If the engine is cold, the bi-metal strip keeps contacts closed, activating the cold start injector. As the engine cranks, the heating coil also warms the strip. After a short period (up to 12 seconds, depending on ambient temperature), the bi-metal strip bends, opening the contacts and stopping the cold start injector. If the engine is already warm, the bi-metal strip will prevent the injector from operating.

The Extra Air Valve is another component that aids in cold running. It allows extra air to bypass the throttle butterfly, increasing idle speed when the engine is cold. This prevents the engine from stalling. When the fuel pump is running, current flows through a heating coil in this valve, causing a bi-metal spring to slowly close the valve as the engine warms up. Oil residues can sometimes cause this valve to stick, leading to poor idling and starting issues.

The Idle Screw controls a bypass passage around the throttle butterfly, allowing for manual adjustment of the idle speed. Adjusting this screw affects the engine's idle RPM but does not impact the CO emissions setting.

Sensors: Providing Crucial Data

Several sensors are critical to the EFI system's operation:

• Coolant Temperature Sensor: Located in the coolant gallery of the inlet manifold, this sensor provides the ECU with information about the engine's temperature. This allows the ECU to adjust the fuel mixture accordingly – enriching it when cold and leaning it out as the engine warms up. It's distinct from the Thermo Time Switch and is less bulky.
• Throttle Position Potentiometer: Connected to the throttle butterfly's pivot, this potentiometer signals the ECU about the throttle opening angle and its rate of movement. This is a key input for determining the required fuel delivery. The potentiometer's position is adjustable. To set it correctly, ignition should be on, and a voltmeter connected between the red and green leads should read 325 +/- 35 mV.

The Distributor's Role

The distributor plays a vital role in timing the fuel injection. It sends a signal to the ECU, allowing it to determine the engine's speed. The distributor's internal reluctor, designed for an 8-cylinder engine, has eight 'points', though only four are used to signal injection events. Since the injectors fire in banks, and the distributor rotates at half the engine speed, each injector effectively fires once per crankshaft revolution. This precise timing ensures fuel is delivered at the optimal moment.

The Importance of the Battery

A healthy battery is paramount for any EFI system. The ECU compensates for voltage drops by increasing injector pulse width, but extreme voltage fluctuations can still impact performance. Keeping your battery in good condition ensures stable operation of the entire electronic system, including the crucial fuel injection components.

Troubleshooting Common Issues

Given the complexity of EFI systems, some common issues can arise:

Frequently Asked Questions

Q1: Can I convert my carburetted TR7 to EFI?

A1: While technically possible, it is a complex conversion requiring significant mechanical and electrical expertise, including sourcing all the necessary EFI components, wiring, and ECU. It is generally not a straightforward modification.

Q2: How often should the fuel filter be replaced?

A2: The fuel filter should be replaced approximately every 40,000 miles to ensure optimal fuel delivery and protect the injectors.

Q3: What does the ECU do?

A3: The ECU, or Electronic Control Unit, is the central computer that processes data from various sensors and controls the fuel injectors and ignition timing to optimise engine performance and efficiency.

Q4: Is the Bosch L-Jetronic system reliable?

A4: The Bosch L-Jetronic system is generally very reliable, but like any complex system, components can wear out over time. Regular maintenance and prompt attention to any symptoms are key to ensuring its longevity.

Conclusion

The Bosch L-Jetronic EFI system on the TR7 is a testament to automotive engineering of its era. By precisely managing fuel delivery based on sensor inputs, it provides a more efficient, responsive, and cleaner-running engine compared to traditional carburettor systems. Understanding its components and how they interact is crucial for any TR7 owner aiming to maintain their vehicle in peak condition. With proper care and attention, the EFI system will continue to serve your TR7 reliably for years to come.
