Subaru TR690 CVT Fluid: Capacity, Checks, and Care

Maintaining your Subaru's Continuously Variable Transmission (CVT), particularly the TR690 model, is paramount for its longevity and your driving enjoyment. Often misunderstood, the TR690 demands precise attention to its fluid, from the exact quantity required to the correct procedure for checking its level. Neglecting these details can lead to significant performance issues or even costly transmission failure. This guide delves deep into the specific requirements for your Subaru TR690 CVT, drawing on real-world experiences and expert advice to ensure your vehicle remains in top condition.

The Subaru TR690 CVT is a sophisticated piece of engineering designed to provide smooth, efficient power delivery. Unlike traditional automatic transmissions with fixed gears, a CVT uses a system of pulleys and a steel belt to offer an infinite number of gear ratios. This allows the engine to operate at its most efficient RPM for any given speed, contributing to better fuel economy and a seamless driving experience. However, this complex mechanism relies heavily on the correct type and level of its dedicated transmission fluid. This fluid not only lubricates moving parts but also transmits power, cools the system, and helps to maintain the delicate friction characteristics essential for the belt and pulleys to function correctly. Understanding its unique needs is the first step towards proper maintenance.

Crucial Fluid Capacity: The Numbers You Need for Your TR690

One of the most frequently asked questions regarding the Subaru TR690 CVT revolves around its fluid capacity. Getting this figure right is absolutely critical, especially when undertaking a full transmission replacement or a comprehensive fluid exchange. For a completely drained Subaru TR690 transmission, such as one being installed into a 2010 Legacy 2.5i as a replacement unit, the required fluid volume is precisely 13.1 quarts (12.4 litres). This figure represents a total fill, meaning the transmission has been thoroughly emptied of all previous fluid, including what might reside in the cooler lines and torque converter.

It's important to differentiate this full capacity from a simple 'drain and fill' procedure. During a standard drain and fill, only a portion of the total fluid will be removed from the transmission pan, typically around 4-6 quarts, depending on the model and how thoroughly it drains. The remaining fluid stays within the torque converter and other internal components. Therefore, if you're only performing a partial fluid change, you won't be adding the full 13.1 quarts. Always consult your vehicle's specific service manual for the exact procedure and estimated volume for a partial change, as overfilling or underfilling can lead to severe transmission damage. An overfilled transmission can cause aeration of the fluid, leading to reduced lubrication and overheating, while an underfilled transmission can starve components of vital lubrication, causing excessive wear.

The Great Debate: Engine Running for Fluid Checks?

This is perhaps one of the most contentious and critical points when it comes to TR690 CVT maintenance: should the engine be running when checking or topping up the fluid level? The short answer, unequivocally, is yes. Your Subaru service manual explicitly states that fluid levels should be checked with the engine running. This isn't a mere suggestion; it's a fundamental requirement for an accurate reading.

Consider the experience of a 2014 FXT owner with 112,000 miles on the clock. After performing a drain and fill, levelling the car, and bringing the transmission fluid up to the specified temperature of 100°F (38°C) before topping off until weeping, they encountered a significant issue. Upon shutting off the engine, a substantial amount of fluid – 1 to 2 quarts – began to pour out of the fill port. This alarming incident highlights the critical difference between checking the fluid with the engine running versus off.

When the engine is running, the transmission pump circulates fluid throughout the entire system, including the torque converter and cooler lines. This ensures that all components are filled, and the fluid is at its operational level. When the engine is switched off, the pump stops, and fluid drains back from various parts of the transmission into the pan, causing the fluid level in the pan to rise significantly. Therefore, if you check the fluid level with the engine off, you will get a falsely high reading. If you then proceed to drain fluid until it weeps at this incorrect "engine off" level, you will severely underfill the transmission once the engine is started again and the fluid is properly circulated. This underfilling can lead to inadequate lubrication, overheating, and premature wear of the delicate CVT components.

Despite some anecdotal advice, even from a Subaru dealer in one instance, suggesting it doesn't matter whether the engine is running or not, the technical specifications and real-world consequences demonstrate that it absolutely does matter for the TR690. Always adhere to the service manual's directive: engine running, vehicle level, and fluid at the specified operating temperature for an accurate fluid level check. For a factory fill check, approximately 6 ounces of fluid may flow out when the car is running, shifted through all gears, and left in park with the fill hole opened. This is a normal indication of proper filling when the system is fully pressurised and circulated.

CVT Fluid Condition and Maintenance Intervals

The condition of your CVT fluid is a direct indicator of your transmission's health. Over time, even the best fluid degrades due to heat, friction, and contamination. During a fluid exchange, a user observed their old fluid was "pretty brown," though not shiny (indicating no significant metal particles) nor containing carbon. Despite its colour, the fluid still felt tacky and not "splashy" or mechanically worn. This suggests that while brown, it hadn't completely lost its lubricating properties but was certainly past its prime. The benefit of changing this fluid was immediately noticeable, with the transmission downshifts becoming "way smoother."

Regarding maintenance intervals, the general consensus, supported by experience, suggests a balanced approach. Unless your vehicle qualifies for "severe service" conditions (which might include heavy towing, frequent short trips, driving in extreme temperatures, or dusty environments), a CVT fluid change before 60,000 miles might be considered premature by some. However, waiting until 100,000 miles could be pushing it too far, especially given the observation of significantly brown fluid at lower mileages. A prudent approach would likely fall within the 60,000 to 80,000-mile range for regular service, with earlier changes for severe conditions. Always refer to your Subaru's specific maintenance schedule, which often has different recommendations for normal versus severe service.

Fluid Temperature During Checks and Changes

Fluid temperature is a critical factor in both checking levels and performing exchanges. The fluid expands and contracts with temperature, affecting its volume and thus the accuracy of level readings. One user noted that after a 5-minute drive and 30 minutes of cooling, the transmission pan was 122°F (50°C) and the fluid around 117°F (47°C). After letting it sit for 2 hours and then warming it up again, the pan was around 105°F (41°C) and the exiting fluid around 100°F (38°C). These observations highlight that the pan temperature is a reasonably close proxy for the fluid temperature, which is useful when aiming for specific temperature ranges for fluid level checks as stipulated in the service manual.

Drain and Fill vs. Full Flush: What's Best for Your TR690?

When it comes to replacing your CVT fluid, you generally have two main options: a 'drain and fill' or a 'full flush' (also known as a fluid exchange). Each method has its pros and cons, and the best choice often depends on your vehicle's history and the condition of the existing fluid.

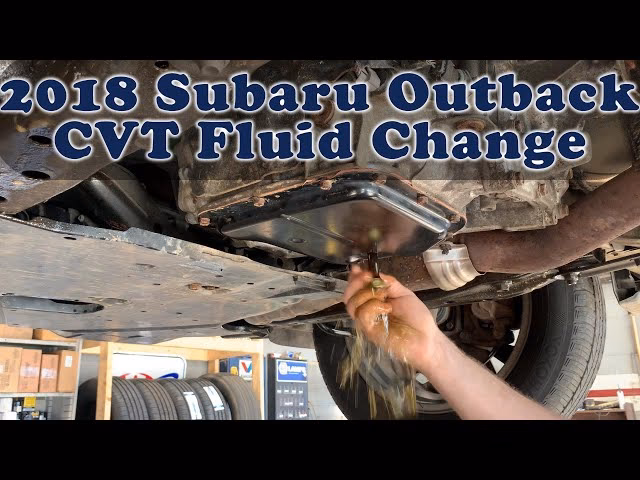

• Drain and Fill: This involves simply draining the fluid from the transmission pan and refilling it. As mentioned, this only replaces a portion of the total fluid, leaving a significant amount of older, potentially degraded fluid mixed with the new. While simpler and less expensive, it's more of a dilution than a complete change. For a TR690, this might replace around 4-6 quarts.
• Full Flush/Fluid Exchange: This method actively circulates new fluid through the transmission, often using dedicated equipment, to push out as much of the old fluid as possible. One user successfully flushed their TR690 fluid through the cooler lines, exchanging approximately 9 quarts of fluid. This is a more comprehensive service that ensures a higher percentage of new, clean fluid is in the system. While the provided data indicates 9 quarts were exchanged, a complete replacement capacity is 13.1 quarts, showing even a flush might not get 100% of the old fluid out, but it's significantly better than a simple drain and fill.

The choice between these methods can be influenced by the fluid's condition. If the fluid is extremely dark, smells burnt, or contains significant metallic particles, a full flush might be recommended to remove as much contamination as possible. However, if the fluid is merely discoloured but otherwise healthy, a series of drain and fills over time can also gradually refresh the fluid, though this requires more frequent service.

The Impact of Correct Fluid on Driving Experience

The immediate improvement in driving dynamics after a proper CVT fluid change is often quite noticeable. The user who performed the flush reported that their "Transmission downshifts way smoother now imo." This anecdotal evidence underscores the importance of fresh, correct-specification fluid. Old, degraded fluid loses its ability to lubricate effectively, manage heat, and maintain the precise friction required for the CVT's internal components. This can manifest as hesitant acceleration, rougher "shifts" (simulated or otherwise), or a general feeling of sluggishness. Fresh fluid restores these critical properties, leading to a smoother, more responsive, and efficient driving experience.

While the user also mentioned a comparison to using 110w oil in differentials for smoothness, it's crucial to note that this is an analogy for the feeling of smoothness and not a recommendation for CVT fluid. Always use genuine Subaru Continuously Variable Transmission Fluid (CVTF) or an approved equivalent that meets Subaru's specifications for the TR690. Using incorrect fluid types can lead to irreversible damage to the transmission.

Common Misconceptions and Best Practices

To summarise and reinforce the key takeaways for your Subaru TR690 CVT:

• Always check fluid level with the engine running: This is non-negotiable for an accurate reading and to prevent underfilling.
• Know your capacity: A full replacement requires 13.1 quarts (12.4 litres). A drain and fill will require less.
• Monitor fluid condition: Even if not shiny with metal, brown fluid indicates degradation and warrants consideration for a change.
• Adhere to maintenance schedules: While 60,000-100,000 miles is a general range, severe service conditions demand earlier attention.
• Use the correct fluid: Only use genuine Subaru CVTF or an approved equivalent.
• Prioritise safety: Ensure the vehicle is level and secure when working underneath it.

By following these guidelines, you can significantly extend the life and maintain the optimal performance of your Subaru TR690 CVT.

Frequently Asked Questions (FAQs)

Here are some common questions regarding the Subaru TR690 CVT fluid:

How much fluid does it take to fill a Subaru CVT TR690?

For a completely drained Subaru TR690 transmission, such as a replacement unit, it takes 13.1 quarts (12.4 litres) of fluid to fill. For a standard 'drain and fill', you will typically replace less, often around 4-6 quarts.

Does it matter if a Subaru TR690 is running when checking the fluid level?

Yes, it absolutely matters. The Subaru service manual specifies that the fluid level for the TR690 must be checked with the engine running, the vehicle level, and the fluid at the specified operating temperature. Checking with the engine off will result in a falsely high reading and lead to severe underfilling if fluid is added or removed based on that incorrect measurement.

When should I change the fluid in my Subaru TR690 CVT?

While opinions vary, a common recommendation for the TR690 CVT fluid change is between 60,000 to 80,000 miles under normal driving conditions. If your vehicle is subjected to 'severe service' (e.g., heavy towing, frequent short trips, extreme temperatures), an earlier change might be prudent. It's generally advised not to wait until 100,000 miles, as the fluid can become significantly degraded by then.

What are the signs that my TR690 CVT fluid needs changing?

Key indicators include the fluid appearing significantly brown or dark (though not necessarily shiny with metal particles), a burnt smell, or a noticeable decrease in transmission smoothness and responsiveness. The user experience noted a significant improvement in 'downshift' smoothness after changing brown fluid.

What kind of fluid should I use for my Subaru TR690 CVT?

You must use genuine Subaru Continuously Variable Transmission Fluid (CVTF) or an aftermarket fluid that is explicitly approved and meets Subaru's specifications for the TR690 transmission. Using incorrect fluid types can cause severe and irreversible damage to your CVT.
