TR6 Throttle Body Upgrade: Ditching Lucas for EFI

The Triumph TR6, a quintessential British roadster, holds a special place in the hearts of classic car enthusiasts. Its distinctive styling, robust engine, and engaging driving experience make it a timeless icon. However, for many owners, the original Lucas mechanical fuel injection (PI) system often presents a formidable challenge. While revolutionary in its era, maintaining and optimising this system in the 21st century can be a source of frustration, leading to poor fuel economy, erratic performance, and significant expenditure on rare parts. Fortunately, there's a compelling modern solution that marries classic aesthetics with contemporary reliability and efficiency: an Electronic Fuel Injection (EFI) conversion.

For years, TR6 owners have grappled with the quirks of the Lucas PI system. Designed in the 1960s, it was a marvel of engineering, offering a significant performance boost over carburetted counterparts. However, its mechanical nature, reliant on a complex metering unit, delicate injectors, and precise linkages, makes it notoriously difficult to set up correctly and keep in tune. Owners frequently report issues such as inconsistent idling, poor cold starting, and a general lack of smoothness, not to mention fuel consumption figures that can make even the most dedicated enthusiast wince. A typical TR6 with the Lucas system might see fuel economy around 14 litres per 100 kilometres, a figure that is increasingly unsustainable in today's driving environment.

The Lucas PI System: A Fading Glory

The original Lucas mechanical fuel injection system, while innovative for its time, has become an Achilles' heel for many TR6 owners. Its core components – the metering unit, individual throttle bodies, and mechanical injectors – require meticulous calibration and are prone to wear and tear. Finding skilled technicians proficient in its nuances is challenging, and spare parts, especially genuine Lucas components, are becoming increasingly scarce and expensive. A complete set of throttle bodies with injectors and the metering unit alone can set you back approximately £650 (US$800) or more, with the total cost for a comprehensive overhaul potentially exceeding £1,600 (US$2,000) once all the ancillary components are factored in. Furthermore, the system's outdated technique means it struggles to adapt to varying conditions, leading to compromises in performance and efficiency.

Why Modernise? The Case for EFI

The decision to convert to Electronic Fuel Injection is often driven by a desire for a more reliable, efficient, and enjoyable driving experience. Modern EFI systems offer a host of advantages that directly address the Lucas system's shortcomings:

• Improved Fuel Economy: As demonstrated by real-world conversions, a significant reduction in fuel consumption is achievable. For instance, moving from 14 l/100km to 8.5 l/100km represents a substantial saving.
• Enhanced Reliability: Electronic systems are generally more robust and less prone to the mechanical failures that plague older setups.
• Consistent Performance: An ECU (Engine Control Unit) constantly monitors engine parameters, ensuring optimal fuel delivery and ignition timing, leading to smoother power delivery and better throttle response.
• Easier Tuning and Diagnostics: Modern EFI systems are tunable via software, allowing for precise adjustments and easier troubleshooting with diagnostic tools.
• Better Cold Starts and Driveability: Gone are the days of temperamental cold starts and lumpy idling. EFI provides consistent, smooth operation in all conditions.

A Practical Approach: The "Stock Look" EFI Conversion

For those who cherish the classic aesthetics of their TR6 but crave modern performance, a carefully executed EFI conversion can offer the best of both worlds. One particularly elegant solution involves repurposing existing Triumph components to maintain a factory-like appearance. This approach was recently undertaken during a comprehensive body-off restoration of a 1973 TR6, yielding truly impressive results.

The Conversion Process: A Step-by-Step Insight

The core philosophy behind this specific conversion was to achieve modern EFI benefits without visually deviating too much from the original Triumph design. This meant utilising Triumph's own 2.5 PI saloon car throttle bodies, albeit with significant modifications, to house modern electronic injectors. Here’s a breakdown of the key components and process:

1. Removal of the Lucas System: The first step involves carefully removing the entire original Lucas PI system, including the metering unit, injectors, and associated plumbing. These components can then be stored, allowing for a potential future return to stock if desired.

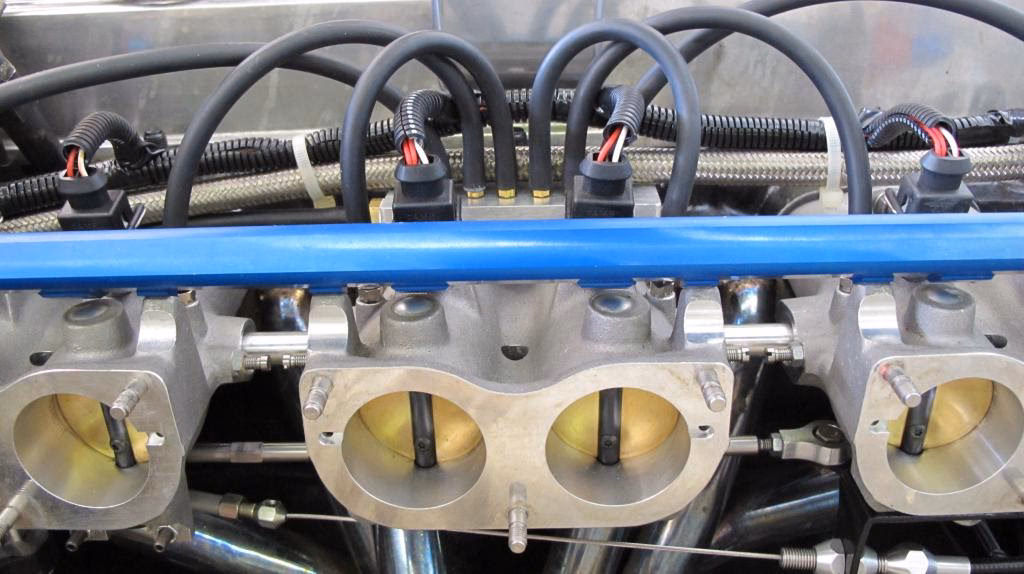

2. Sourcing and Modifying 2.5 PI Saloon Car Throttle Bodies: Instead of fabricating entirely new components, throttle bodies from a 2.5 PI saloon car were acquired. These were then meticulously modified. The original spindles and butterflies, which controlled airflow in the Lucas system, were removed. The holes left behind were carefully plugged. The purpose of this modification is crucial: these throttle bodies no longer control the engine's air intake directly; they now serve purely as housings for the new electronic injectors, maintaining the visual integrity of the original setup.
3. Integrating BMW 325i Bosch Electronic Fuel Injectors: Modern, reliable, and readily available BMW 325i Bosch electronic fuel injectors were then installed into the modified Triumph throttle bodies. These injectors provide precise, electronically controlled fuel delivery, a vast improvement over the mechanical Lucas units.

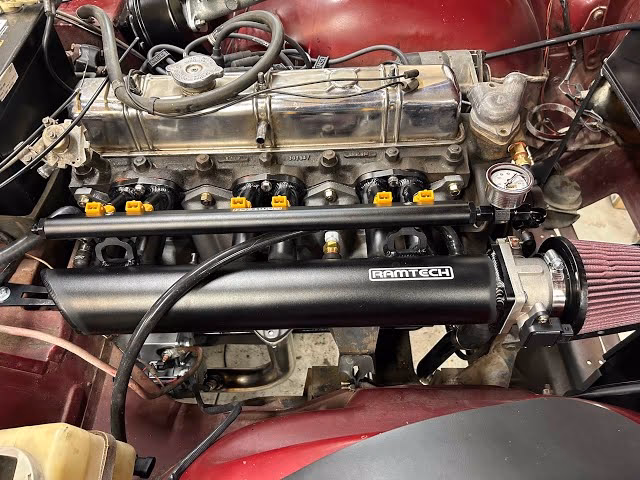

4. Single Throttle Body Control: To simplify the air intake and throttle control, a single throttle body from a BMW 525i (or an aftermarket equivalent, though often more expensive) was installed in front of the air intake manifold. This single unit now regulates the overall airflow into the engine, replacing the need for individual throttle control on each cylinder. This design significantly streamlines the system and eliminates the complexities of balancing multiple mechanical throttles.
5. The Brain: Spitronic Fuel Management System: The entire electronic fuel injection system is governed by a sophisticated Engine Control Unit (ECU). In this case, a Spitronic Fuel management system was chosen. The ECU is the 'brain' of the EFI, constantly monitoring various engine sensors (e.g., throttle position, engine speed, air temperature, manifold pressure) and calculating the precise amount of fuel to inject and when to ignite it for optimal performance and efficiency.

The result of this meticulous conversion is a TR6 that looks remarkably standard, avoiding anything that might be "offensive to the purist eye." Major components retain a stock PI appearance, yet under the skin lies a thoroughly modern and efficient fuel system. The effect is, as one owner described, "incredible."

Beyond the "Stock Look": Other EFI Conversion Paths

While the described method offers an excellent way to preserve the original aesthetic, there are plenty of other routes to go EFI with a TR6. Many aftermarket companies offer complete EFI conversion kits specifically designed for the TR6, often featuring all-new components. These systems can range from simpler throttle body injection (TBI) setups to more advanced multi-point fuel injection (MPFI) systems. A quick online search for "TR6 EFI conversion" will reveal a wealth of options, catering to different budgets and performance goals. The choice often comes down to balancing cost, ease of installation, desired performance, and the importance of maintaining a period-correct appearance.

Performance and Economy Gains: A Tangible Difference

The most compelling argument for an EFI conversion lies in the tangible improvements it delivers. The personal experience shared highlights a dramatic shift in fuel economy, from a thirsty 14 l/100km with the Lucas system down to an impressive 8.5 l/100km with the electronic setup. This isn't just a minor improvement; it's a game-changer for regular driving, making the classic TR6 far more economical and enjoyable to use. Beyond the fuel savings, owners typically report a smoother, more responsive engine, consistent power delivery across the rev range, and a significant reduction in maintenance headaches associated with the old mechanical system.

Cost Considerations for EFI Conversions

While the initial outlay for an EFI conversion can be significant, it's crucial to view it as an investment in the longevity and usability of your classic car. The cost of sourcing and maintaining original Lucas PI components can quickly add up, easily reaching into the thousands of pounds for a comprehensive rebuild or replacement. An EFI conversion, while potentially having a similar initial cost depending on the chosen components (new vs. salvaged, professional installation vs. DIY), offers long-term savings in fuel, reduced maintenance, and increased driving pleasure. The value proposition shifts from constantly repairing an unreliable and inefficient system to investing in a robust, modern solution that enhances the overall ownership experience. It's about future-proofing your classic.

Comparative Analysis: Lucas PI vs. Modern EFI

To help illustrate the differences, here's a comparative table:

Frequently Asked Questions (FAQs)

Q: Is an EFI conversion a difficult DIY project for a TR6 owner?

A: It depends on your mechanical and electrical expertise. While some aspects, like mounting components, are mechanical, the wiring and tuning of the ECU require a good understanding of automotive electronics. Many kits offer comprehensive instructions, but for those less experienced, professional installation or guidance is highly recommended to ensure optimal performance and safety.

Q: Will converting to EFI affect my TR6's classic value?

A: This is a common concern. A well-executed EFI conversion that is reversible and maintains a near-stock appearance (like the one described) is often viewed positively, especially by those who drive their classics regularly. It enhances usability without detracting from the car's heritage. A poorly done or overly modern-looking conversion might be less appealing to strict purists, but the improved driveability and reliability often outweigh this for many buyers.

Q: What are the absolute crucial components I'll need for a basic EFI conversion?

A: At a minimum, you'll need an ECU (Engine Control Unit), electronic fuel injectors, a fuel pump capable of higher pressure, a fuel pressure regulator, a throttle body (if converting from multi-carb/PI to a single-point system), and various sensors (e.g., throttle position sensor, manifold absolute pressure sensor, coolant temperature sensor).

Q: Can I revert my TR6 to the original Lucas system if I change my mind?

A: If the conversion is done thoughtfully, with minimal irreversible modifications to the original chassis or engine components, it is often possible to revert to the Lucas system. Storing your original components carefully is key. The described method, using modified PI throttle bodies as injector housings, allows the original Lucas system to remain largely intact and storable.

Q: How much does a typical TR6 EFI conversion cost?

A: The cost can vary significantly. A basic DIY kit might start from around £1,200-£2,000, while a comprehensive, professionally installed system using higher-end components could easily exceed £4,000-£6,000. These figures are estimates and depend heavily on component choice, labour costs, and any custom fabrication required.

Conclusion

For the classic Triumph TR6 owner, the decision to move from the venerable Lucas PI system to modern Electronic Fuel Injection represents a significant leap forward. It’s a choice that promises not just better fuel economy and enhanced reliability, but a fundamentally more enjoyable and consistent driving experience. Whether you opt for a 'stock look' conversion, cleverly repurposing original components, or embrace a fully aftermarket solution, the benefits are clear. An EFI upgrade is more than just a modification; it's an investment in your TR6's future, ensuring it remains a cherished and driveable classic for many years to come. Embrace the modern, and give your TR6 the smooth, efficient heart it deserves.
