Your Car's TPS: The Unsung Hero of Performance

In the intricate symphony of your vehicle's engine, countless components work in harmony to ensure a smooth, efficient, and powerful drive. Among these, often overlooked yet critically vital, is the Throttle Position Sensor (TPS). This small but mighty sensor plays a crucial role in your car's engine management system, acting as a direct line of communication between your accelerator pedal and the engine's brain. Without accurate information from the TPS, your engine simply wouldn't know how much air and fuel it needs, leading to a cascade of performance issues. This comprehensive guide will delve into the world of the TPS, exploring its fundamental function, its profound impact on engine performance, common issues, and how to diagnose and address them.

What is a Throttle Position Sensor (TPS)?

At its core, the Throttle Position Sensor (TPS) is an electronic device mounted on the throttle body of your vehicle's engine. Its primary function is to continuously monitor and report the precise position of the throttle valve (often referred to as the butterfly valve) to the Engine Control Unit (ECU), which is the central computer managing most of your car's electronic components.

When you press your accelerator pedal, you are not directly opening the throttle valve in modern vehicles. Instead, you're instructing the TPS. The engine's computer initiates this process by sending a set amount of voltage to the TPS. As the throttle valve opens or closes in response to your pedal input, the TPS applies a specific amount of resistance to this voltage, which varies depending on how open the throttle valve is. This altered voltage is then sent back to the ECU. The greater the throttle opening, the more the voltage changes, providing the ECU with real-time data on your driving demands.

Beyond engine control, the TPS also relays critical information to your car's anti-lock braking system (ABS). This allows the ABS to supply the necessary traction aids your car might need at a given speed, ensuring stability and safety, especially during challenging driving conditions. While most engines utilise a single TPS, more complex or high-performance engines may incorporate multiple sensors for even greater precision.

The TPS and Engine Performance: A Deep Dive

The information gathered by the TPS is indispensable for the ECU to make real-time, critical decisions regarding your engine's operation. The ECU relies heavily on TPS data to calculate various parameters, ensuring optimal performance, fuel efficiency, and reduced emissions.

Throttle Valve Control and Airflow Management

The throttle valve, located within the throttle body, is responsible for regulating the amount of air entering the engine. When you press the accelerator, the throttle valve opens, allowing more air in. Releasing the pedal causes it to close, reducing airflow. The TPS precisely monitors this movement, providing the ECU with the exact angle or position of the throttle plate.

Informing the Engine Control Unit (ECU)

The ECU, often considered the 'brain' of your vehicle, uses the real-time data from the TPS to make crucial adjustments. These adjustments include fuel injection volume, ignition timing, and even gear selection in automatic transmissions. The accuracy of the TPS directly impacts how well the ECU can manage these parameters.

Impact on Engine Parameters

• Air-Fuel Mixture: The ECU uses TPS data to determine the appropriate air-fuel mixture for the engine's operating conditions. When the throttle is opened wide, indicating a demand for more power, the ECU commands more fuel to be injected to match the increased airflow. Conversely, during deceleration or idling, fuel injection is reduced to maintain efficiency. This dynamic adjustment is vital for both performance and fuel economy.
• Engine Load Calculation: The TPS helps the ECU calculate the engine's load. A wide-open throttle, for instance, indicates high engine load, which may prompt the ECU to downshift for increased power, especially in vehicles with automatic transmissions.
• Idle Control: The TPS plays a significant role in maintaining a consistent engine idle speed. When the throttle is closed and the engine is idling, the ECU uses TPS data to precisely adjust the air and fuel mixture, preventing stalling and ensuring a smooth idle.

Improved Performance and Efficiency

A properly functioning TPS contributes significantly to an enhanced driving experience:

• Responsiveness: The TPS enables rapid and precise throttle response. When you press the accelerator pedal, the immediate feedback from the TPS allows the ECU to react swiftly, delivering the right amount of fuel and air for optimal acceleration.
• Smooth Transitions: By providing accurate throttle control, the TPS helps ensure seamless transitions between various driving conditions, such as accelerating, cruising, and decelerating.
• Fuel Efficiency: Continuous monitoring of the throttle position and corresponding adjustments to the air-fuel mixture ensure that the engine operates as efficiently as possible under diverse loads and driving scenarios, ultimately saving you money at the pump.

Types of Throttle Position Sensors

Over the years, TPS technology has evolved, leading to different designs. Understanding these types can be helpful for diagnosis and replacement.

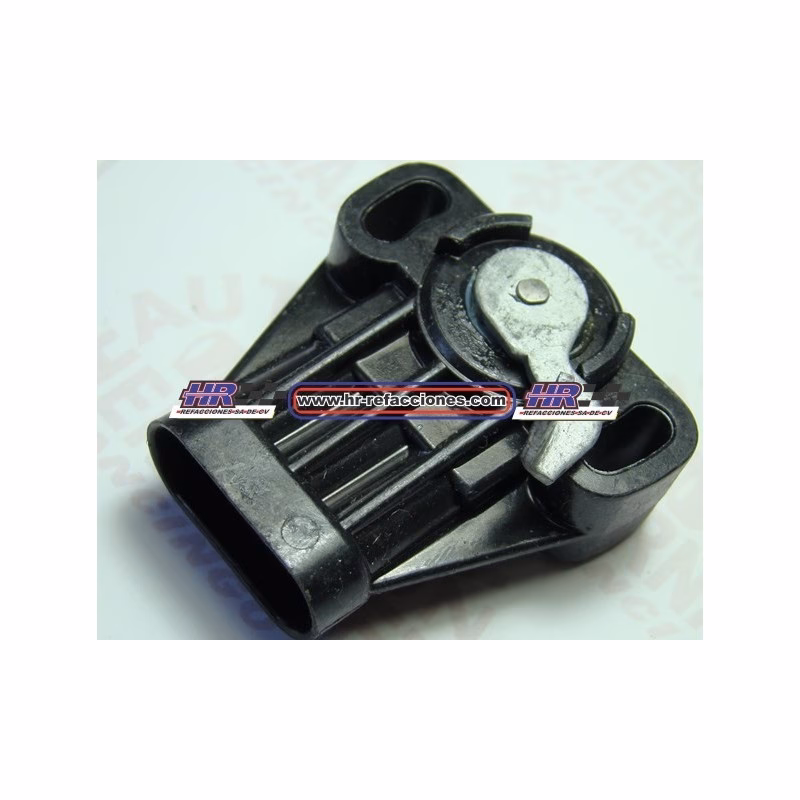

Potentiometer-Based TPS

This is a more traditional type of TPS. It functions as a variable resistor connected to the throttle shaft. As the throttle opens, the shaft rotates, changing the resistance of the potentiometer. This change in resistance generates a varying voltage signal that is sent to the ECU. The ECU then interprets this voltage to determine the throttle's exact position and adjust fuel injection and ignition timing accordingly.

Non-Contact TPS (Hall Effect, Magnetoresistive, Inductive)

Modern vehicles often employ non-contact TPS designs, such as Hall effect or inductive sensors. These types are generally more durable and precise as they lack mechanical contact points that can wear out over time. In a Hall effect sensor, a small magnet is mounted on the throttle shaft. As the shaft rotates, the magnet moves over a stationary Hall effect sensor, which produces a voltage signal based on the magnetic field's strength. Similarly, inductive sensors use magnetic or inductive loops. The ECU uses this voltage signal to determine the throttle position.

Here's a quick comparison:

Common Symptoms and Diagnostic Fault Codes

Because the TPS is so integral to engine operation, a faulty sensor can manifest in a variety of noticeable symptoms. Recognising these signs early can prevent further damage and costly repairs.

Signs of a Faulty TPS

• Rough or Slow Idle: If the TPS is sending incorrect signals, the ECU may struggle to maintain a consistent idle speed, leading to a rough or unusually slow engine idle.
• Lacking Power When Accelerating / Hesitation: The engine may feel sluggish or hesitate when you press the accelerator pedal, as the ECU isn't receiving accurate information about your demand for power. You might experience a 'jerk' during acceleration.
• Inability to Shift Up (Automatic Transmissions): Incorrect TPS signals can confuse the transmission control unit, leading to delayed or improper gear shifts.
• Poor Fuel Economy: If the ECU is constantly receiving inaccurate throttle position data, it might inject too much or too little fuel, leading to inefficient combustion and reduced miles per gallon.
• Stalling: In severe cases, a faulty TPS can cause the engine to stall, especially when coming to a stop or during rapid deceleration.
• Check Engine Light (CEL): The most common indicator of a TPS issue is the illumination of your 'Check Engine' or 'Service Engine Soon' light on the dashboard. This alerts the driver to a detected fault within the engine management system.

Diagnostic Fault Codes

When the ECU detects a discrepancy in the TPS signal, it will log a diagnostic trouble code (DTC). The most common code associated with a faulty TPS is P0121, which typically signifies a "TPS 'A' Circuit Range Performance Problem." This means the ECU is detecting a throttle angle that doesn't align with what it expects for a specific engine RPM or other sensor readings (like vehicle speed).

Understanding Limp Mode

A particularly significant symptom that can arise from a faulty TPS is the activation of 'limp mode'. This is a crucial security function designed to protect your engine and transmission from severe damage. If the ECU detects a serious faulty value from the TPS – for example, if the TPS reports the pedal is all the way to the floor, but the throttle is actually closed and the vehicle speed sensor indicates a low or no speed – it identifies a major discrepancy.

As soon as this error is spotted, the computer will command the transmission to go into limp mode. In limp mode, the car significantly reduces engine power and limits the engine's RPM. This allows you to drive your car to a workshop or a safe location without causing catastrophic damage to the engine or transmission. While inconvenient, limp mode serves as a vital safeguard.

Troubleshooting and Diagnosis

Before rushing to replace your TPS, it's essential to perform some basic diagnostic checks. Many TPS-related issues stem from simpler problems than a completely failed sensor.

Initial Inspections

• Wiring and Connections: Always start by inspecting the sensor's wiring for any signs of damage, fraying, or loose connections. Given that the TPS contains both electrical and mechanical parts, a bad electrical connection or corroded contacts on the connector can easily mimic a faulty sensor.
• Sensor Mounting: Ensure the sensor itself isn't loose on the throttle body. A loose sensor can lead to inaccurate readings.
• Contamination: Look for any water or excessive dirt/oil within the connector or on the sensor's contacts. Cleaning the throttle body and sensor surface can sometimes resolve issues caused by carbon deposits or dust particles affecting accuracy. However, be cautious as not all sensors are designed for cleaning, and improper techniques can cause damage.

Using a Multimeter for Diagnosis

A multimeter is an invaluable tool for accurately diagnosing TPS issues. Here's a general approach:

1. Check 5-Volt Reference: The powertrain control module (PCM) typically supplies a 5-volt reference signal to the TPS. Use your multimeter to check for this 5-volt reference at the connector. If it's absent, the problem might lie with the PCM or the wiring leading to it.
2. Check Ground Circuit: If the 5-volt reference is present, verify the ground circuit for any open circuits or shorts. A poor ground connection can lead to erratic readings.
3. Check Signal Circuit: Crucially, ensure the signal circuit isn't receiving 12 volts (battery voltage). The TPS signal should never have battery voltage. If it does, trace the circuit for a short to voltage and repair it immediately.
4. Measure Voltage Output: Connect your multimeter to the signal wire and ground. With the ignition on (engine off), slowly open the throttle valve by hand.
• At idle (throttle closed), a general measurement should be around 0.5 volts.
• At full throttle (throttle wide open), the reading should be approximately 4.5 volts.
• As you slowly open the throttle, the voltage reading should increase smoothly and uniformly without any sudden drops, spikes, or dead spots. Any erratic or non-linear readings indicate a faulty TPS.
5. Measure Resistance (Potentiometer Types): For potentiometer-based sensors, you can also measure resistance. Set the multimeter to the kilohm range. Connect probes to two TPS pins (you might need to experiment to find the signal and ground pins). Slowly move the throttle from closed to open. The resistance value should change smoothly and uniformly throughout the TPS movement.

If, after these checks, the sensor's readings are consistently out of spec or erratic, and you've ruled out wiring issues, then replacing the throttle position sensor is likely the necessary next step.

Installation, Adjustment, and Reset

The TPS is directly connected to the throttle body. As the throttle opening changes and the throttle shaft rotates, the sensor moves, converting this angle into an electrical signal for the ECU. Vehicles with automatic transmissions often utilise a linear output TPS to aid in gear selection.

TPS Adjustment Techniques (Older/Specific Models)

Some older or specific TPS models may require manual adjustment after installation to ensure accurate readings, typically involving a multimeter and feeler gauges:

1. Loosen the two fixing screws of the throttle position sensor.
2. Insert a thickness gauge (e.g., 0.35 mm) between the throttle limit screw and the limit rod.
3. Use a multimeter to measure the idle switch continuity (if applicable).
4. Carefully move the TPS anticlockwise to disconnect the idle switch contact, then turn it clockwise until the idle switch closes.
5. Tighten the two fixing screws securely.
6. Verify the adjustment using different thickness gauges (e.g., 0.30 mm and 0.40 mm) to ensure the idle switch activates and deactivates at the correct throttle positions.

Reset Process for Throttle Position Sensor

After replacing or adjusting a TPS, a reset or recalibration process is often necessary to ensure the ECU learns the new sensor's parameters:

• Basic Reset: For many vehicles, simply unhooking the negative battery cable for about 5 minutes, or removing the fuse for the engine control module (ECM), can reset the sensor's learned values.
• Manual Recalibration: Some modern vehicles have a specific manual recalibration procedure, which might involve turning the ignition key on/off in a sequence while pressing the accelerator pedal to the floor.
• Diagnostic Tool Reset: For more complex systems, a professional diagnostic device may be required to interface with the onboard computer and perform a sensor reset or recalibration. This ensures the ECU accurately integrates the new TPS data.

Applications Across Vehicles

The Throttle Position Sensor's importance spans a wide range of vehicle types, each benefiting from its precise data:

• Gasoline Vehicles: These are the most common users, where the TPS is crucial for controlling fuel injection and ignition timing, ensuring efficient combustion and responsive engine behaviour under varying conditions.
• Diesel Vehicles: While diesel engines do not rely on a throttle valve in the same way gasoline engines do for air intake control, the TPS is still used to monitor intake volume. This data helps control fuel injection and ignition timing in modern diesel engines, contributing to performance and emissions control.
• Motorcycles: Modern fuel-injected motorcycles also employ TPS technology to enhance engine performance, improve responsiveness, and achieve better fuel efficiency.
• Racing Cars: In high-performance and racing applications, extreme accuracy and rapid response from the TPS are paramount for maximising power output and achieving competitive performance.
• Hybrid Vehicles: In hybrid systems, the TPS works in conjunction with the overall control system to ensure smooth transitions between the internal combustion engine and electric motors, optimising efficiency and power delivery.

Frequently Asked Questions (FAQs)

What happens if the throttle position sensor goes bad?

If the TPS malfunctions, the throttle body of the car will not operate correctly. It may struggle to open or close accurately, leading to issues like a rough idle, hesitation or lack of power during acceleration, poor fuel economy, or even the engine stalling. In severe cases, it can trigger 'limp mode' to prevent engine damage.

Can I drive my car with a bad throttle position sensor?

It is generally not safe to drive a car with a faulty TPS. While your car might still move, its performance will be severely compromised, and it could stall unexpectedly, especially in traffic. Driving with a faulty TPS can also lead to increased fuel consumption and potentially cause further damage to other engine components due to incorrect air-fuel mixtures.

How do I know if my TPS is bad?

Common signs include the 'Check Engine' light illuminating, the engine hesitating or jerking during acceleration, a rough or erratic idle, poor fuel economy, or delayed and harsh gear shifts in automatic transmissions. Using a diagnostic scan tool to check for fault codes like P0121 is the most definitive way.

Can a car move without a throttle position sensor?

Technically, a car might be able to move without a TPS, but its engine management system would operate in a 'default' or 'limp home' mode. The ECU would rely on predefined settings for fuel injection and ignition timing, leading to significantly reduced performance, poor fuel efficiency, and a potentially unreliable drive. It is not recommended to operate a vehicle without a functioning TPS.

What is the main function of the throttle position sensor?

The primary function of the TPS is to provide the ECU with precise, real-time information about the exact position or angle of the throttle valve (gas pedal opening). This data is crucial for the ECU to accurately calculate and control the engine's air-fuel mixture, ignition timing, and overall power output.

Can the throttle sensor be cleaned?

In some cases, if the TPS is experiencing issues due to dirt, dust, or carbon buildup affecting its contacts or movement, careful cleaning of the throttle body and sensor area might resolve the problem. However, it depends on the sensor's design and location. Not all sensors are suitable for cleaning, and improper cleaning techniques can cause irreparable damage. Always consult your vehicle's service manual or a professional.

What causes a throttle control sensor to go bad?

Common causes include general wear and tear over time, especially in potentiometer-based sensors due to mechanical contact. Accumulation of dust particles, dirt, or oil on the sensor can affect its accuracy. Electrical issues such as loose connections, damaged wiring, or corrosion on the connector pins can also disrupt the signal flow between the TPS and the ECU, leading to malfunctions.

In conclusion, the Throttle Position Sensor is a truly critical component within your car's engine management system. Its accurate operation is fundamental to ensuring proper engine performance, optimal fuel efficiency, and a smooth driving experience. By understanding its function, recognising the signs of failure, and knowing how to approach diagnosis and repair, you can help keep your vehicle running at its best and avoid being left stranded by a seemingly minor, but ultimately vital, part.
