Unleashing the Might: The Astonishing Horsepower of Top Fuel Engines
When the conversation turns to raw, unadulterated automotive power, few things can rival the sheer ferocity of a Top Fuel drag racing engine. These aren't your average V8s; they are highly specialised, purpose-built behemoths designed for one thing and one thing only: to propel a dragster to speeds that defy belief in a matter of seconds. But just how much horsepower are we talking about when it comes to these titans of the drag strip? The answer is as mind-boggling as the spectacle itself.
According to insights gained from working with Don Schumacher Racing, a leading team in the sport, a Top Fuel engine can produce an astonishing 11,000 horsepower. To put that into perspective, that's roughly 110 times the power of a typical family car. This incredible output is what allows these machines to achieve the fastest acceleration figures on the planet, reaching speeds exceeding 330 miles per hour (over 530 km/h) in under four seconds.
The Science Behind the Staggering Power
It's crucial to understand that these horsepower figures are not measured on a conventional dynamometer. The extreme conditions and astronomical power output of a Top Fuel engine mean that no existing dynamometer on Earth is capable of safely and accurately verifying these numbers. Instead, the 11,000-horsepower figure is an extrapolation, calculated based on a complex interplay of factors including the car's time, speed, distance covered, and weight. It's a testament to the sheer force these engines unleash.
A significant contributor to this immense power is the fuel used: 90 percent nitromethane. Nitromethane possesses approximately seven times the potential energy of standard pump gasoline. "Every team is trying to dump the maximum fuel it can into its motor," explains Davin Reckow, a mechanic who has worked on these engines. "But there's a very fine line between burning and hydrolocking." This delicate balance means engineers are constantly pushing the limits, flirting with disaster to extract every ounce of performance.
Construction: Built for Extreme Performance

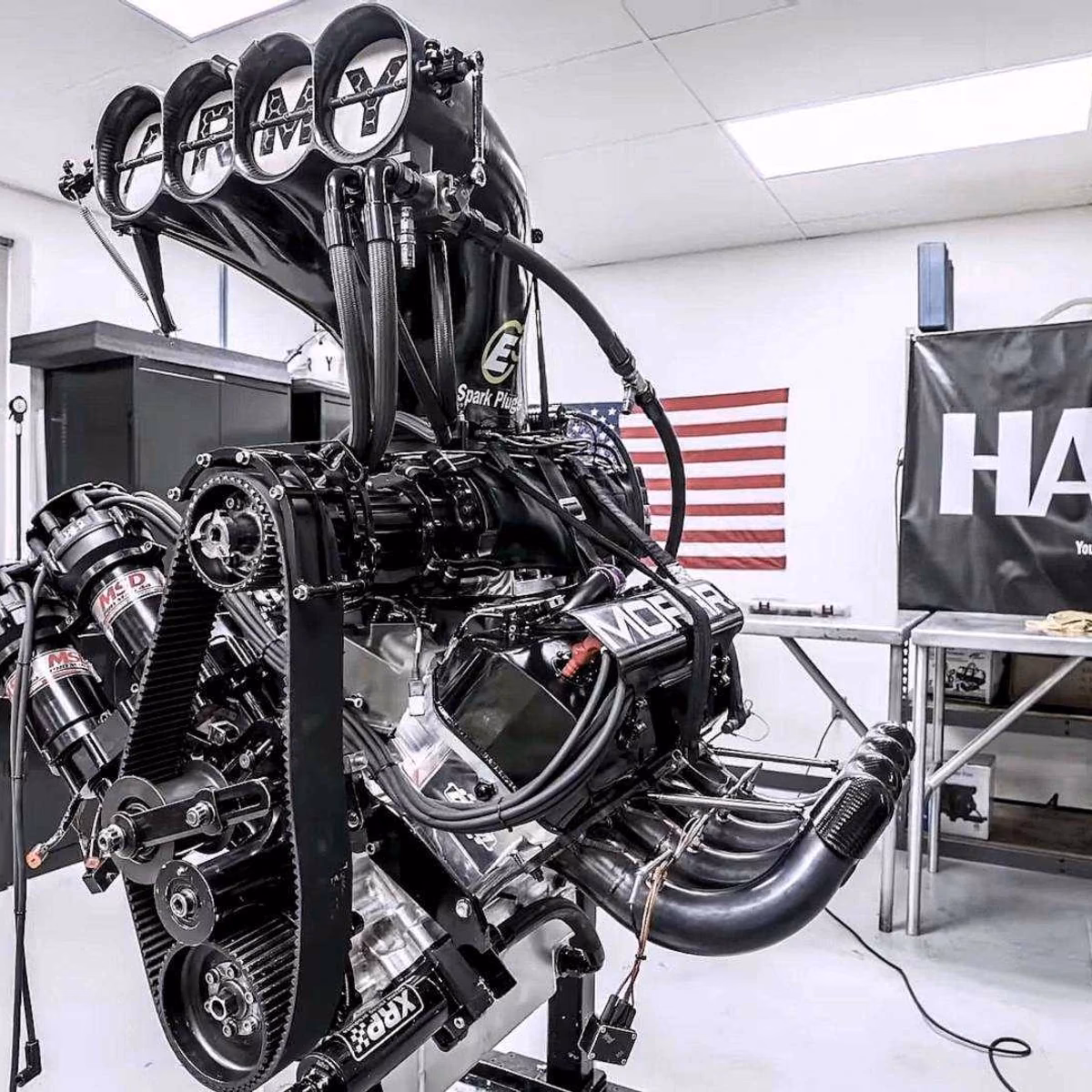

Despite their overwhelming power, the fundamental architecture of a Top Fuel engine is surprisingly straightforward, albeit built with incredibly robust components. The engines are typically based on a 426 Hemi design but are vastly different in their construction and materials. The engine block, supercharger, massive cylinder heads, and connecting rods are all crafted from lightweight yet incredibly strong aluminum.

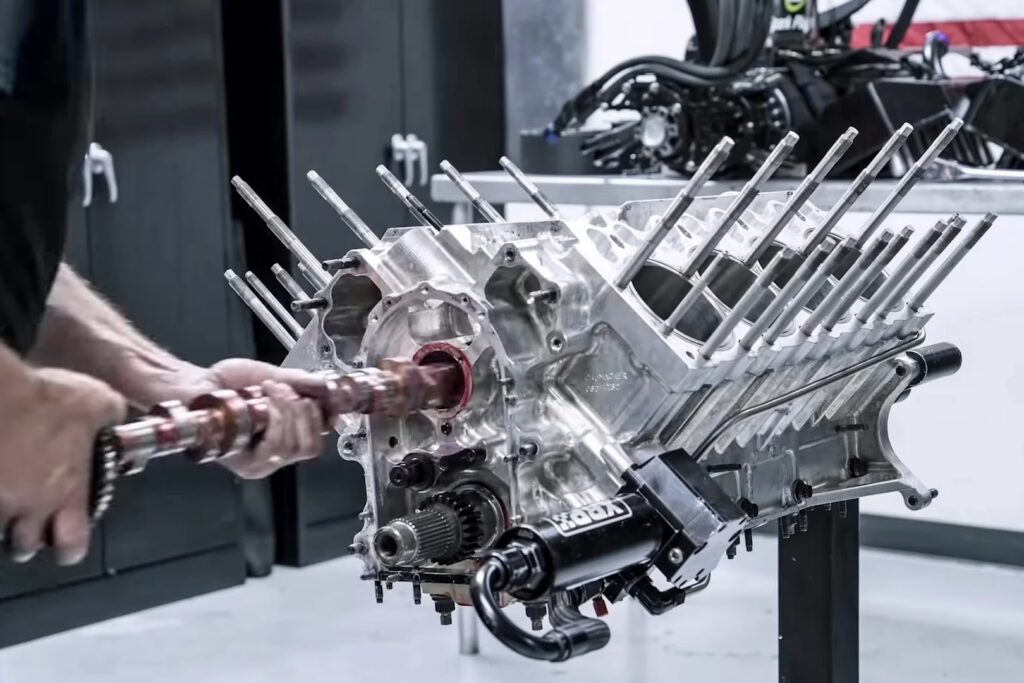

Internally, the crankshaft and camshaft are forged from billet steel, designed to withstand immense stresses. A key design element, noted during teardowns, is the use of oversized studs rather than long bolts for critical components. This is a practical consideration for the rapid rebuilds required between rounds. When an engine is hot, studs minimise thread damage during multiple disassemblies, a crucial advantage when time is of the essence.
The torque specifications for the internal components are also significantly higher than in a stock engine. For instance, cylinder heads are torqued down to 140 lb-ft, a stark contrast to the 85 lb-ft typically seen on a regular Hemi. This ensures that every component remains securely in place under the extreme pressures and vibrations experienced during a run.
Efficiency and Precision in the Pit
The relentless pursuit of efficiency is paramount in Top Fuel racing. Teams like Don Schumacher Racing employ specialised tools and rigorous strategies to streamline every task, especially during the crucial minutes between elimination rounds. "The team is always looking for efficiency," Davin observes. "The tools aren’t expensive, but they are purpose-built by the team for one job only." This focus on specialised, job-specific tooling allows for faster and more reliable rebuilds.
With only around 35 minutes between rounds, any time saved through improved efficiency translates directly into a better-prepared car for the next pass. This dedication to process optimisation is as critical to success as the raw power of the engine itself.
Engine Lifespan and Rebuilds

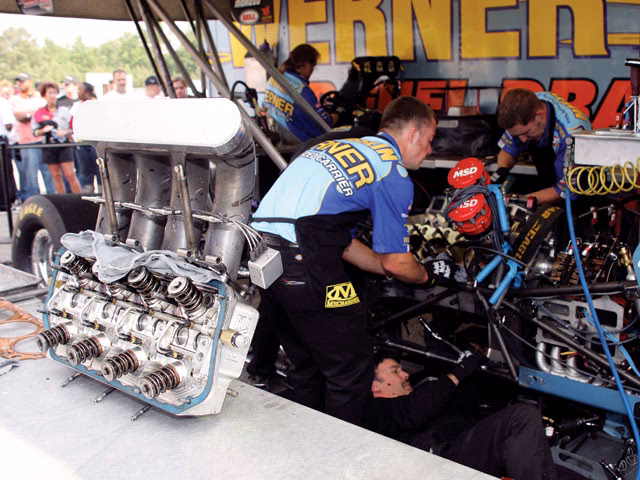

The life of a Top Fuel engine is measured in runs, not miles. Typically, an engine will complete 11 to 12 full passes before it is completely replaced. However, this doesn't mean the engine is simply discarded after a dozen runs. After each individual pass, the engine is meticulously torn down and rebuilt. This intensive maintenance cycle ensures that the engine is always in peak condition.
While many components may appear virtually new when reassembled, a rebuild often involves a strategic balance of refurbished and brand-new parts. This approach optimises both performance and cost-effectiveness.
From Rebuild to the Race Track
A rebuilt Top Fuel engine doesn't sit idle for long. Once reassembled and tested, it's fitted back into a dragster chassis, ready for competition. The performance on the track is the ultimate validation of the team's work. A well-rebuilt engine can contribute significantly to qualifying positions and race wins. For example, an engine rebuilt by Davin found its way into Tony Schumacher's dragster, helping him secure the #1 qualifier spot at Richmond, a feat that brought immense pride.
Between each race run, a comprehensive refresh is performed. This includes replacing pistons, cylinder heads, the supercharger belt, and replenishing the specially formulated oil, which is not available for purchase by the public. This meticulous attention to detail ensures the engine is ready for its next onslaught.
Key Components and Considerations
To better understand the sheer force and complexity, let's look at some key aspects:
| Component | Material | Significance |
|---|---|---|
| Engine Block | Aluminum | Lightweight and strong, crucial for reducing overall weight. |
| Supercharger | Aluminum | Forces massive amounts of air into the cylinders for increased combustion. |
| Cylinder Heads | Aluminum | Massive in size to accommodate large valves and airflow. |
| Connecting Rods | Aluminum | Must withstand extreme explosive forces. |
| Crankshaft | Billet Steel | Provides the backbone of the rotating assembly, engineered for extreme durability. |
| Camshaft | Billet Steel | Controls valve timing with extreme precision at high RPMs. |
| Fasteners (Studs) | Steel Alloy | Oversized studs replace bolts for easier and less damaging reassembly of hot components. |
Frequently Asked Questions
Q1: What is the typical lifespan of a Top Fuel engine?
A Top Fuel engine typically lasts for 11-12 full passes (runs) before being completely replaced. However, it undergoes a complete teardown and rebuild after every single pass.
Q2: How is the horsepower of a Top Fuel engine measured?
The horsepower is not measured directly on a dynamometer due to the extreme power levels. It is an extrapolated figure calculated based on the car's performance metrics like time, speed, distance, and weight.
Q3: What type of fuel do Top Fuel engines use?
Top Fuel engines run on a mixture that is approximately 90 percent nitromethane, a highly energetic fuel source.
Q4: Why do Top Fuel teams use studs instead of bolts for some components?
Studs are used for certain critical components because they mitigate thread damage when the engine is disassembled and reassembled multiple times, especially when hot, which is common in the rapid turnaround between race rounds.
Q5: How often is a Top Fuel engine rebuilt?
A Top Fuel engine is rebuilt after every single pass made on the drag strip, ensuring it is always in optimal condition.
The Pinnacle of Automotive Power
In conclusion, the 11,000 horsepower generated by a Top Fuel engine is not just a number; it's a symbol of extreme engineering, relentless innovation, and the pursuit of ultimate speed. These engines represent the very pinnacle of internal combustion power, offering a mesmerizing glimpse into what's possible when performance is the sole objective. Their construction, the fuel they consume, and the meticulous rebuilds they undergo all contribute to their legendary status in the world of motorsport.
