Choosing Brake Pads for Your Porsche 996

The Porsche 996, the first water-cooled iteration of the iconic 911, might have divided opinions on its design when new, but its formidable engine and exceptional braking performance were always beyond reproach. Across its diverse range, Porsche meticulously engineered and fitted three distinct brake packages, progressively increasing in size and capability to match the escalating power and performance of each variant. Regardless of the specific setup, the stock brakes on the 996 chassis are remarkably competent performers, instilling unwavering confidence in their stopping ability under all conditions. Furthermore, for the enthusiast keen on saving money and expanding their mechanical prowess, a brake service on the 996 is a surprisingly friendly DIY candidate. However, navigating the specific parts that fit each model can be a tad perplexing, making a clear understanding of your vehicle's requirements absolutely crucial. This comprehensive guide aims to arm you with all the essential knowledge needed to make informed decisions about your 996's braking system.

Porsche 996 Brake System Overview

Almost every 996 that rolled out of Stuttgart was equipped with fixed-piston calipers gripping over drilled steel rotors. The sole exception to this rule was the formidable GT2, which came standard with Porsche Ceramic-Composite Brakes, affectionately known as PCCBs. These revolutionary brakes were also available as an optional upgrade for the Carrera 4S, Turbo, Turbo S, and GT3 models. The PCCB system represented a significant leap forward in braking technology for a street-driven vehicle, featuring lightweight carbon-ceramic three-piece rotors, distinctive yellow brake calipers, and specially formulated, performance-oriented brake pads designed to complement the ceramic material.

Beyond the expensive PCCB option, the 996 utilised a more traditional braking package, with many of its components finding their way into later Carrera, Boxster, and Cayman models. This commonality significantly eases parts acquisition and even allows for OE upgrades across various 996 variants. The size of the calipers and rotors was, predictably, dependent on the trim level of the car; smaller brakes were generally found on lower trim levels with corresponding lower horsepower figures. Despite this differentiation, it's important to stress that none of the 996 models were ever considered "under-braked." Even the variants with the smallest brake setups are remarkably competent on the track when paired with the correct supporting components.

Aiding in the quick identification of your 996's brake system is the colour of its calipers. Porsche employs a specific colour coding for their calipers, which serves as a handy visual identifier for the model they are fitted to.

How To Identify Porsche 996 Calipers by Colour

Porsche 996 Brake Specifications

The various braking systems fitted to the Porsche 996 can be broadly categorised into three main groups based on their specifications. Understanding these specifics is key to sourcing the correct replacement or upgrade parts.

Carrera, Carrera 4, Targa

These models typically feature the foundational brake setup, designed for excellent road performance and capable light track use.

Carrera 4S, Turbo, Turbo S

These higher-performance models benefit from larger, more robust braking systems to match their increased power output.

GT3

The GT3, a track-focused variant, sports an even more aggressive braking setup, particularly at the front.

Porsche Ceramic Composite Brakes (PCCB)

The Porsche Ceramic Composite Brake package made its pioneering debut on the 996 chassis. Regardless of the model it was optioned on, the PCCB system remains consistent, easily identifiable by its large yellow 6-piston front and 4-piston rear brake calipers that distinctively stand out through the wheel spokes.

By the time the GT2 was introduced, ceramic composite brake rotors were a well-established technology in the demanding worlds of Formula 1 and endurance racing, though they had not yet transitioned to mainstream road vehicles. The GT2’s extreme performance capabilities necessitated a braking system of similar calibre, prompting Porsche to adapt this racing technology for street use. Even in their modified state, PCCBs represent the absolute pinnacle of braking technology, far more adept for high-performance driving than traditional steel rotors.

While the primary benefit of PCCBs can be debated, the general consensus points to their significantly reduced weight. These ceramic-composite rotors are approximately half the weight of their steel counterparts, leading to a substantial reduction in unsprung weight. Lower unsprung weight translates directly into improved steering and handling dynamics, a noticeable increase in throttle response, and, crucially, shorter braking distances. Beyond weight, the ceramic composition also endows PCCBs with markedly superior thermal performance compared to steel. Even after repeated, hard braking events on a demanding track, PCCBs are far less likely to experience the brake fade that can plague traditional steel rotors.

However, as one might anticipate, such cutting-edge technology comes with a significant financial implication. A replacement set of front or rear PCCB rotors can cost nearly £4000 for a pair. In many instances, this figure can be less than a full brake job performed by a dealer or independent specialist on a steel-braked Porsche, but it is still a considerable expense. Using PCCBs on the track, as they are intended, will inevitably reduce their lifespan. When the time eventually comes for replacement, the cost can be equivalent to purchasing an older Boxster. For this reason, it has become a popular modification among owners of heavily-tracked 911s to convert their PCCB systems to traditional steel rotors for more cost-effective track use.

Porsche 996 Brake Service & Repair

Servicing Porsche’s steel brakes is a straightforward affair, much like working on any other car. There’s no exotic complexity involved. The 996 employs pad wear sensors on each wheel, which will trigger a warning light on your dashboard once the brake pads have worn past a specified point. While this light indicates the need for replacement, it doesn't demand immediate action; you typically have about 1,000 miles of pad life remaining to safely plan for the service.

Interestingly, unlike many manufacturers who fit just two pad wear sensors per vehicle (one front, one rear), Porsche fits two sensors to each caliper, with one on each individual pad. This dual-sensor setup provides a more precise indication of whether the pads are wearing evenly and can alert you to a potentially damaged caliper if one pad wears significantly faster than its counterpart. At around £5 apiece, these sensors are an inexpensive item to replace during a routine brake service.

Porsche’s original equipment (OE) brake pads for the 996 are 12mm thick upfront and 10.5mm in the rear when new. Porsche specifies that pads should be replaced when their remaining thickness reaches 3mm. When you replace the pads, you’ll notice small dampers fitted to their backs. Porsche included these dampers to reduce noise and vibration emanating from the brakes during everyday driving. These dampers fit snugly into the caliper’s piston and feature a flat, circular backing plate that uses an adhesive to stick to the rear of the brake pad. Their necessity is a hotly debated topic among enthusiasts, with many finding success and quiet operation even without using them.

Judging when it’s time to replace the brake discs is a little more nuanced than with the pads. While pads wear down visibly over time, Porsche specifies disc replacement after just 2mm of material has been worn off. While this might not sound like a significant amount, a set of OE-type discs should typically last through at least two sets of pads before reaching this replacement limit. To get a general idea of your rotors' remaining lifespan, examine their surface. The brake pads do not make contact with the disc’s extreme outer edge, so the formation of a pronounced lip on the rotor's perimeter is a clear indicator that replacement is due.

In more extreme circumstances, a brake rotor can become warped. This phenomenon occurs when the rotor is exposed to excessive heat, causing the disc to lose its perfectly flat shape ever so slightly. It can also happen if too much pad material becomes unevenly embedded into the rotor's surface. You’ll typically recognise warped rotors by a distinct shuddering or pulsation through the brake pedal and sometimes the entire car when the brakes are applied at certain speeds. In most cases, a warped rotor isn’t a catastrophic failure; rather, it’s an annoying reminder that the discs need changing. There are two common approaches to resolving a warped rotor: replacement or resurfacing. Depending on the severity of the warping, a machine shop might be able to skim off the top layer of material to re-flatten the surface. However, for most DIYers and for optimal performance, it’s often easiest and most effective to simply replace them altogether.

The brake fluid in your 996 also requires periodic replacement. All brake fluid is hygroscopic, meaning it absorbs water over time from the atmosphere. Water contamination in brake fluid significantly reduces its boiling point, thereby weakening its effectiveness for its intended purpose. As the fluid weakens, the brake pedal can become soft and spongy, leading to a poor and unresponsive feel. Porsche specifies a brake fluid flush every two years, though we recommend even more frequent flushes if your brakes are regularly subjected to high-performance driving or track use.

Finally, Porsche explicitly specifies that the caliper mounting bolts must be replaced every single time the caliper is removed. While this might seem like an unnecessary expense or a trivial detail, the engineers in Stuttgart require it for a crucial safety reason. Each caliper uses two of these bolts, which typically cost around £5 each, making them a small but vital investment in safety.

Porsche 996 OE Brake Alternatives

Genuine Porsche parts are rarely inexpensive, and this holds true for their replacement brake components. While their genuine parts are guaranteed to fit perfectly and are manufactured to Porsche's exacting standards, there's good news for your wallet. Many of the reputable companies that produce these parts for Porsche also sell them directly to consumers at a reduced rate. These aftermarket components typically boast the same high quality as Porsche’s genuine parts and, in many cases, are precisely the same items, simply without the Porsche branding stamped on them.

When it comes to brake discs, there are several quality alternatives to genuine Porsche parts that we are familiar with and trust implicitly. We confidently recommend rotors offered by Sebro, Zimmermann, Pagid, SHW Performance, and Ate. Both Ate and Sebro are considered OEM (Original Equipment Manufacturer) choices, meaning they are the very companies that produce the discs Porsche uses for their genuine parts. Zimmermann rotors, while not strictly OEM, perform just as well on a 996. We have personal experience using off-the-shelf Zimmermann rotors on our championship-winning TCR VW GTI race car. If they can withstand the rigours of competitive motorsport, they are more than capable of handling anything your 996 can throw at them.

Choosing the right brake pad is the next critical step in acquiring your brake service components. Understanding which pad compound is best suited for your specific driving style can be challenging, but we can certainly help illuminate the options. If you stick with an OE-style pad, you’ll typically be using a semi-metallic compound. These semi-metallic pads are known for providing a firm and consistent pedal feel across all braking conditions. Their high metallic content combined with a resin mixture gives them a strong initial bite and the inherent ability to withstand extreme temperatures generated from repeated aggressive braking.

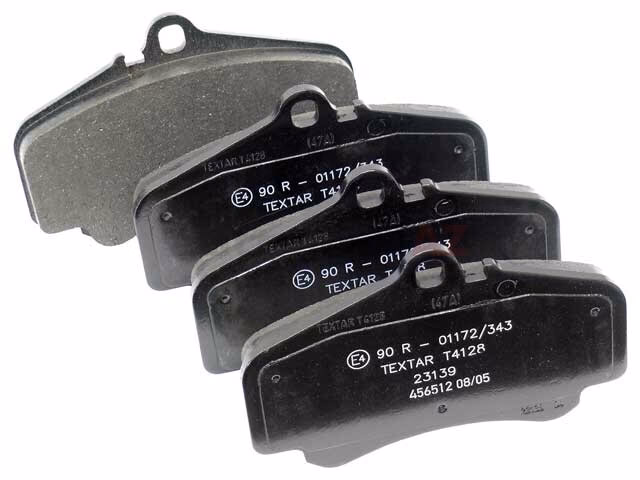

Ate, Textar, and Pagid all offer semi-metallic pads that align with Porsche’s current design principles, but at a more palatable cost than genuine Porsche pads. These are direct replacements, offering comparable performance without the premium price tag. However, other options exist if you're looking to address specific characteristics. While very effective, semi-metallic pads do tend to produce a noticeable amount of brake dust as a side effect. If you find yourself constantly cleaning your wheels, you might want to consider a ceramic compound pad, such as those from Akebono. Akebono is an OE producer for manufacturers like Audi and VW, among others, and their ceramic pads offer excellent quality with significantly reduced dust production.

The rubber brake hoses are often overlooked when it comes to routine brake servicing, but they are just as crucial to the system's integrity as any other component. Like all rubber parts, they degrade and wear over time, potentially cracking and fraying in extreme cases, which can compromise braking performance and safety. We offer a comprehensive hose replacement kit for the 996, featuring high-quality Corteco hoses and Pentosin Super DOT4 fluid. The hoses are manufactured to Porsche’s precise specifications, and the fluid also meets their stringent requirements.

Porsche 996 Brake Upgrades

The Porsche 996’s enduring popularity as a spirited backroad barnstormer or a capable autocross contender is well-supported by the wealth of aftermarket and OE parts designed to improve upon the already excellent stock components. When contemplating quicker stopping, larger brakes are often the first thing that springs to mind. The logic seems simple: a bigger turbo means more horsepower, so bigger brakes must mean better braking, right? Not necessarily. For spirited street driving with the occasional autocross outing, a fresh set of high-quality pads and rotors is often all that's genuinely needed. However, upgrading to stainless steel-braided brake hoses is also a highly recommended and beneficial addition.

Porsche fits all of its cars with drilled brake rotors. These work exceptionally well in street applications and for light use on an autocross course. However, when subjected to intense and prolonged heat, such as during dedicated track days, these drilled holes can develop small cracks. As a performance upgrade, Sebro offers a set of slotted rotors with a high carbon content. The slots, in contrast to drilled holes, provide a superior initial bite on the disc and are more effective at evacuating gasses that build up between the rotor and pad during hard braking. The higher carbon content in the alloy of these rotors helps the disc withstand more heat for a longer duration, significantly reducing the likelihood of warping or cracking.

Moving on to brake pads, the options for upgrades become even more diverse. Reputable manufacturers like Hawk, Ferodo, and Pagid all offer pads specifically for the 996 with compounds better suited for aggressive driving and track use. These pads, designed for spirited driving and autocross, typically feature a higher metallic content. This increased metallic content translates to a more aggressive bite on the disc and enhanced heat resistance, which is vital for sustained performance under demanding conditions. However, it's important to note the trade-offs: this higher metallic content will wear through your brake discs more quickly, produce more brake dust, and often emit more noise during operation.

To round out your light brake upgrades, a set of Goodridge stainless steel braided hoses offers a cheap and remarkably effective improvement. Regular rubber brake lines can expand under repeated hard braking, leading to a spongy pedal feel that diminishes confidence. When driving fast, the last thing you want is to lose confidence in your brakes due to a suddenly soft pedal. The braided shielding of stainless steel lines prevents this expansion, providing a consistently firm and reassuring pedal feel under all conditions.

Porsche 996 Track Ready Brake Parts

Engaging in more aggressive driving, particularly on a racetrack, demands not just greater stopping power but also superior braking ability. Maintaining the brakes within their optimal effective temperature range is just as critical as having a suitable pad compound. For a truly high-quality braking system designed for the track, very aggressive pads, larger rotors, and increased cooling are paramount. The key objective here is the ability to stop hard and consistently over a significant amount of time, lap after lap.

Porsche foresightedly fitted all 996 models with brake cooling scoops. These scoops utilise plastic fins to direct air from underneath the car directly up to the brakes. While all 996s had these, the GT3 and GT2 variants were equipped with larger fins, designed to channel an even greater volume of air. The GT scoops are a popular and effective upgrade, as they fit any 996 without modification and simply clip into place of the original pieces. For maximum cooling efficiency, the GT2 scoops are recommended as they feature the largest fins. Several aftermarket companies also offer more extensive ducting solutions that directly channel air to the brakes, but these kits can be quite expensive and often require some modification to install.

Unless your 996 was originally equipped with the PCCBs, it uses a steel one-piece rotor. As mentioned, these are excellent for street use and light track days. However, dedicated track cars should ideally utilise rotors better suited for the extreme abuse encountered on circuit. The standard upgrade in this scenario is to transition to a two-piece rotor design, which incorporates a lightweight aluminium rotor hat. This design offers two primary benefits: firstly, the aluminium hat significantly cuts down on unsprung weight, which contributes to quicker acceleration and stopping. Secondly, aftermarket two-piece disc designs often feature optimised internal vanes that promote maximum cooling efficiency. Girodisc is one of the most popular and respected options for the 996, as they produce rotors compatible with both common caliper sizes.

For a genuine dual-purpose pad, suitable for both spirited road driving and light track days, the Ferodo 2500 is an option we are very familiar with and highly recommend. When paired with a good set of rotors, sufficient cooling, and high-temperature fluid, these pads will confidently handle light track days and leisurely drives to the beach. More aggressive pads exist that can withstand the rigours of wheel-to-wheel racing action, but these come with significant trade-offs. Generally, such pads are more expensive, have a shorter lifespan, and produce considerably more noise and dust. They are typically not recommended for regular street use due to these compromises.

Lastly, without the right brake fluid, you won’t be stopping effectively anytime soon, especially on track. Repeated aggressive braking generates a significant amount of heat, and brake fluid, like any fluid, has a boiling point. Not all brake fluids are created equal, so you’ll want to select one with a very high boiling point for performance applications. Any of the choices we offer – the LIQUI MOLY 20156, Motul RBF660, or the Castrol SRF – will perform admirably both on the street and in a dedicated track car, providing the necessary thermal stability.

Porsche 996 Big Brake Kits

Increasing the surface area of the brake rotor is a highly effective method for improving a braking system's thermal durability. A larger rotor typically necessitates a larger caliper and corresponding pad, making a comprehensive "big brake kit" an easy way to achieve this upgrade. Kits offered by renowned manufacturers such as Brembo and AP Racing include larger calipers, pads, and rotors, providing a complete solution. However, there are a few notable drawbacks to consider. Firstly, not all big brake kits allow you to choose the specific pad compound included; they often come with a compound best suited for spirited road driving rather than dedicated track use. The next, and arguably biggest, drawback is the cost. The cheapest Brembo kit, for instance, utilising a 345mm rotor, will set you back around £3400 for the front axle alone.

For C4S and Turbo models, utilising larger calipers from a newer Porsche can be a viable upgrade path, though it requires significantly more effort for the C2/C4 variants. This is because the C4S and Turbo share the same brake system design, including common wheel carriers. These carriers feature a wider bolt spacing than the smaller brakes found on the C2/C4, rendering the larger calipers incompatible without the costly and labour-intensive process of swapping the entire steering knuckles. Consequently, the narrow-bodied 996s (C2/C4) are generally limited to their stock brake size unless an aftermarket Big Brake Kit (BBK) is installed. Conversely, the C4S and Turbo models are in a much better position to utilise larger Porsche calipers, as they share the same size bolt spacing as the GT3, GT2, and later 997 models, allowing for a more straightforward caliper swap.

Special Tools Needed For Porsche 996 Brake Repair/Service

Porsche does not demand any truly special or esoteric tools for routine brake service on the 996. The same common tools you would typically use for any other brake job will suffice for this application. Replacing the pads and rotors on a 996 is a surprisingly simple DIY job that almost any owner can competently complete at home with the right instructions and a basic toolkit. To ensure your brake service is quick and smooth, have the following tools readily available:

• Torque wrench (essential for correct bolt tension)
• 10mm hex bit socket (for caliper bolts)
• Breaker bar (for initial loosening of stubborn bolts)
• Caliper piston compressor tool (makes pushing pistons back much easier)
• Wire brush (for cleaning caliper mounting points)
• Brake cleaner
• Gloves and safety glasses

Porsche 996 Brake Torque Specifications

Accurate torque application is crucial for safety and performance when working on your brakes. Pay close attention to these specifications:

Brake Caliper Torque Spec

It is vital to remember that the brake caliper mounting bolts are designed for one-time use only and absolutely must be replaced every single time the brake caliper is removed. Use a 10mm hex bit socket for both removing and correctly installing these bolts.

• Brake Caliper Mounting Bolts: 63 ft/lbs (85 Nm)

With all of this detailed information at your disposal, you are now well-equipped to confidently tackle your Porsche 996’s brakes. Whether you’re performing routine maintenance, seeking OE alternatives, or planning performance upgrades, understanding these specifics will ensure your iconic 911 continues to stop with the precision and power it's renowned for.
