Brake Replacement Tools: The Essential Kit

Undertaking a brake replacement on your vehicle is a significant maintenance task that, when done correctly, can save you a considerable amount of money and provide invaluable peace of mind. However, attempting this job without the proper equipment is not only inefficient but also incredibly dangerous. Having the right tools at your disposal ensures the job is completed safely, efficiently, and to a professional standard. This comprehensive guide will walk you through every piece of equipment you'll need, from the absolute essentials to helpful extras that make the process smoother.

Why Proper Tools are Non-Negotiable for Brake Work

Brakes are arguably the most critical safety system on your car. Their proper function is paramount for your safety and the safety of others on the road. Using inadequate tools can lead to stripped bolts, damaged components, or, worst of all, an incorrectly assembled brake system that could fail. Investing in the right tools is an investment in your safety and the longevity of your vehicle's braking system.

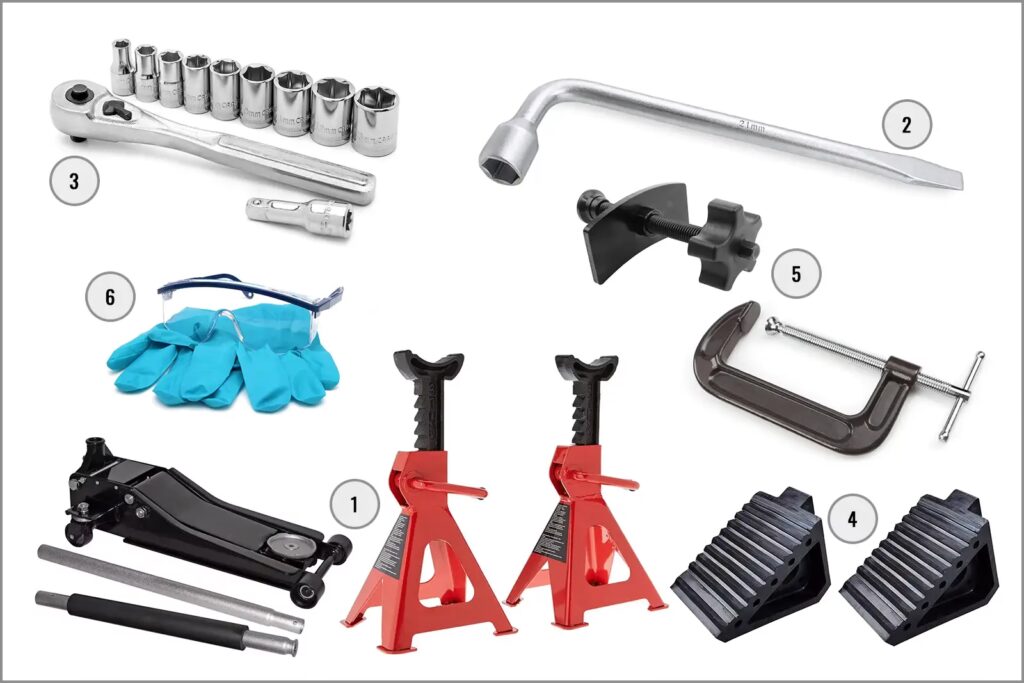

The Absolute Essential Tools for Brake Replacement

Before you even think about lifting your vehicle, ensure you have these fundamental items ready. These are the backbone of any successful brake job.

1. Jack and Jack Stands

• Purpose: To safely lift your vehicle off the ground and support it while you work.
• Detail: A sturdy hydraulic floor jack is ideal for lifting, but never rely on it alone. Jack stands are critical for supporting the vehicle's weight once it's lifted. Always use two jack stands per axle you're working on, placed on sturdy frame points, and give the car a gentle shake to confirm stability before getting underneath.

2. Lug Wrench or Breaker Bar with Sockets

• Purpose: To remove the wheel nuts that secure your wheels.
• Detail: Your car's standard lug wrench might suffice, but a long breaker bar combined with a correctly sized socket (typically 17mm, 19mm, or 21mm for most cars) provides much greater leverage, especially for stubborn, overtightened nuts.

3. Socket and Ratchet Set

• Purpose: For loosening and tightening the various bolts associated with the brake caliper and caliper bracket.
• Detail: You'll likely need a range of metric sockets (common sizes include 12mm, 13mm, 14mm, 15mm, 17mm, and 18mm), along with a sturdy ratchet. Extensions can be incredibly useful for reaching recessed bolts.

4. C-Clamp or Brake Caliper Compression Tool

• Purpose: To compress the brake caliper piston back into its bore, creating space for the new, thicker brake pads.
• Detail: A large C-clamp can often work, but a dedicated caliper compression tool is far more effective and less likely to damage the piston or boot. Some vehicles, particularly those with electronic parking brakes or specific rear calipers, require a special wind-back tool that rotates and pushes the piston simultaneously. Check your vehicle's requirements before starting.

5. Wire Brush

• Purpose: To clean rust, dirt, and old brake dust from the caliper bracket, hub, and other mating surfaces.
• Detail: A clean surface is crucial for proper seating of new components and to prevent future sticking or noise. A wire brush helps remove stubborn debris.

6. Brake Cleaner

• Purpose: To remove grease, oil, and brake dust from brake components.
• Detail: This aerosol spray quickly evaporates, leaving no residue. It's essential for cleaning new rotors before installation (they often come with a protective oil coating) and for general clean-up. Always use in a well-ventilated area.

7. Torque Wrench

• Purpose: To tighten bolts to their precise specifications, preventing overtightening (which can strip threads or warp components) or undertightening (which can lead to components coming loose).
• Detail: A torque wrench is absolutely vital for safety. Wheel nuts and caliper bolts have specific torque settings that must be adhered to. Don't skip this tool; guessing torque can have serious consequences. A click-type torque wrench is commonly used for its ease of use.

8. Personal Protective Equipment (PPE)

• Purpose: To protect yourself from injury.
• Detail: Always wear safety glasses to protect your eyes from debris, rust, and brake cleaner spray. Good quality work gloves protect your hands from grease, sharp edges, and brake dust (which can contain asbestos in older vehicles, though less common now).

Helpful but Not Strictly Essential Tools

While you might manage without these, they significantly improve the experience and outcome of your brake job.

1. Bungee Cords or Strong Wire

• Purpose: To hang the brake caliper securely after removing it from the bracket, preventing it from dangling by the brake hose.
• Detail: Letting the caliper hang by the hose can damage the hose internally, leading to a catastrophic brake failure. Loop a bungee cord through the caliper and attach it to a suspension component or spring.

2. Rubber Mallet or Dead Blow Hammer

• Purpose: To gently persuade stuck rotors off the hub.
• Detail: Rotors can often seize to the hub due to rust. A few firm but controlled taps with a rubber mallet around the edge of the rotor can help free it without damage.

3. Anti-Seize Compound

• Purpose: To lubricate and protect metal-to-metal contact points, preventing rust and seizing.
• Detail: Apply a thin layer to the hub face (where the rotor sits) and the threads of lug nuts (though some manufacturers advise against this for lug nuts, always check your car's manual). This makes future disassembly much easier.

4. Brake Lubricant (Silicone-based)

• Purpose: To lubricate the caliper slide pins and the contact points between the brake pads and caliper bracket, preventing squealing and ensuring smooth operation.
• Detail: Use a high-temperature, silicone-based brake lubricant. Never use petroleum-based grease, as it can swell rubber components. Apply sparingly to the slide pins and the ears of the brake pads where they slide in the caliper bracket.

5. Bleeder Wrench or Brake Bleeder Kit

• Purpose: If you need to open the brake lines (e.g., if you replace a caliper or the brake fluid is old), you'll need to bleed the brakes to remove air from the system.
• Detail: A small spanner (typically 8mm, 10mm, or 11mm) to open the bleeder screw. A one-person brake bleeder kit (with a check valve or vacuum pump) makes the process much easier, otherwise, you'll need a helper.

6. Rags or Shop Towels

• Purpose: For general clean-up, wiping away old grease, brake fluid, and dirt.
• Detail: Always useful for keeping your workspace tidy and for absorbing any spills.

Specialised Tools (Depending on Vehicle/Job)

Some vehicles or specific tasks might require additional, less common tools.

• Torx or Hex Bit Sockets: Some caliper bolts or retaining screws use Torx or Hex (Allen) heads instead of standard sockets.
• Impact Wrench: While not strictly necessary, an electric or air impact wrench can make quick work of removing stubborn lug nuts, though a torque wrench is still needed for tightening.
• Brake Line Wrench (Flare Nut Wrench): If you need to disconnect brake lines, a flare nut wrench grips the nuts more securely than an open-end spanner, reducing the risk of rounding them off.
• Disc Brake Spreader: Similar to a caliper compression tool but designed to push both pistons back simultaneously on multi-piston calipers.

Comparative Table: Essential vs. Helpful Tools

Common Mistakes and Tips for Tool Usage

• Overtightening: The most common mistake without a torque wrench. Always use the specified torque settings.
• Stripping Bolts: Use the correct size socket and ensure it's fully seated before applying force.
• Damaging Brake Hoses: Never let the caliper hang by the brake hose. Always support it.
• Contaminating Brake Components: Keep brake fluid, grease, and other contaminants away from brake pads and rotor surfaces.
• Rust: Don't underestimate the power of rust. Have penetrating oil handy for stubborn bolts, but avoid getting it on brake surfaces.
• Cleanliness: A clean workspace and clean components are vital for a successful and safe brake job.

Frequently Asked Questions (FAQs)

Q1: Can I do a brake replacement without a torque wrench?

While it's technically possible to loosen and tighten bolts without a torque wrench, it is strongly advised against. A torque wrench ensures that critical fasteners (like lug nuts and caliper bolts) are tightened to the manufacturer's exact specifications. Undertightening can lead to components falling off, while overtightening can strip threads, warp rotors, or even snap bolts. For safety, it's an essential tool.

Q2: Are all brake caliper compression tools universal?

No. Most front brake calipers use a simple push-back piston design, for which a basic C-clamp or push-type compression tool works. However, many rear calipers, especially those integrated with an electronic parking brake, require a ‘wind-back’ tool that rotates the piston as it pushes it back. Always check your vehicle's specific requirements.

Q3: Do I need to bleed my brakes after replacing pads and rotors?

Typically, no, not if you're only replacing pads and rotors and haven't opened any hydraulic lines. However, if you replace a caliper, disconnect a brake line, or find that your brake pedal feels spongy after the job, then bleeding the brake system to remove any air is absolutely necessary. It's also good practice to bleed your brakes every few years as part of general maintenance to replace old fluid.

Q4: How do I know what size sockets I need for my car's brakes?

Socket sizes can vary significantly between car manufacturers and models. Common sizes for caliper bolts range from 12mm to 19mm. The best way to know for sure is to either consult your vehicle's service manual or, if you're buying a set, ensure it includes a good range of metric sizes. A quick visual inspection of the bolt heads can also give you a clue.

Q5: Is it safe to use an impact wrench for brake components?

An impact wrench can be a great time-saver for removing stubborn lug nuts, but it should generally not be used for tightening critical brake components like caliper bolts due to the risk of overtightening. Always use a hand ratchet and finish tightening with a torque wrench for precision and safety.

Conclusion

Performing your own brake replacement is a rewarding and cost-effective endeavour, but it's one that demands respect for safety and precision. By equipping yourself with the essential tools discussed here, you're not just buying wrenches and sockets; you're investing in your ability to perform a critical maintenance task safely and effectively. Always prioritise safety, follow manufacturer specifications, and ensure your tools are in good working order. With the right kit, you'll have the confidence to keep your vehicle stopping reliably for miles to come.
