Welcome to the exciting world of kart racing, where every millimetre of chassis adjustment can make a significant difference to your lap times and overall performance. Understanding how to tune your kart is a crucial skill for any aspiring or seasoned racer. This guide will delve into the key adjustments you can make to your kart's chassis to optimise its handling characteristics, ensuring you extract the maximum potential from your machine and conquer the track.
The Importance of Chassis Tuning
A well-tuned kart is a fast kart. It's not just about driver skill; the mechanical setup plays an equally vital role. Chassis tuning allows you to adapt your kart to different track conditions, tyre wear, and even your driving style. By making precise adjustments, you can influence how your kart behaves under acceleration, braking, and cornering, ultimately leading to faster and more consistent results. Ignoring these adjustments is akin to leaving performance on the table.
Key Chassis Adjustment Areas
There are several fundamental areas on a kart chassis that can be adjusted to influence its handling. We'll explore the most common and impactful ones:

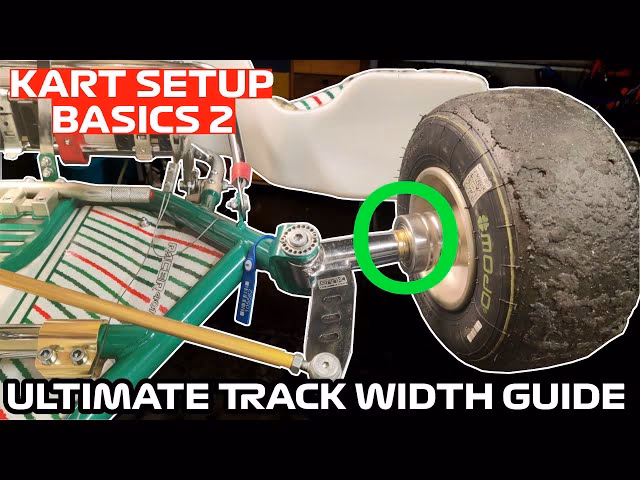

Front Width (Track)
The front width, often referred to as the front track, is a relatively simple yet effective adjustment. It dictates the distance between the centre lines of the front wheels. By altering the width, you can change how the front of the kart responds to steering inputs and how it grips in corners.
How it affects handling:
- Narrower Front Track: Generally leads to a kart that is more responsive to steering inputs, making it feel sharper and quicker to turn. However, it can also make the kart more prone to sliding and less stable, especially on entry into a corner.
- Wider Front Track: Tends to make the kart feel more stable and planted, especially at higher speeds and on corner entry. It can reduce twitchiness and improve predictability. However, a wider track can also reduce the kart's agility and make it slower to change direction, potentially leading to understeer in tighter corners.
Making the adjustment:Front width is typically adjusted by changing the position of the front stub axles on the spindles, or by using different stub axle lengths. Many chassis utilise shims or spacer washers between the spindle and the steering upright. Adding spacers effectively widens the track, while removing them narrows it. Always ensure that the track width remains legal and within the regulations of your racing series.
Rear Width (Track)
Similar to the front track, the rear track is the distance between the centre lines of the rear wheels. Adjusting the rear track has a significant impact on the kart's overall balance and how it rotates through corners.
How it affects handling:
- Narrower Rear Track: Typically makes the kart more prone to oversteer, meaning the rear end will want to slide out more easily. This can be beneficial in helping the kart rotate through tight corners, but too much can lead to instability.
- Wider Rear Track: Generally makes the kart more stable and reduces the tendency for oversteer. It can improve rear-end grip, especially under acceleration out of corners. However, a wider rear track can also hinder rotation and contribute to understeer in slower turns.
Making the adjustment:Rear track width is usually adjusted by moving the rear wheels inwards or outwards on the rear axle. The wheels are typically secured by axle nuts. Moving the wheels outwards widens the track, and moving them inwards narrows it. Again, be mindful of regulations and ensure the wheels do not rub against the chassis or bodywork.
Rear Torsion Bar
Many karts feature a rear torsion bar, which is a solid or hollow bar that connects the two rear halves of the chassis. This bar plays a crucial role in controlling the chassis's flex and how it behaves when one rear wheel lifts off the ground, a common occurrence in karting, especially when cornering.
How it affects handling:
- Stiff Torsion Bar (or no torsion bar): Allows the chassis to flex more. When one rear wheel lifts, the chassis flexes, allowing the opposite rear wheel to remain planted on the ground. This can improve rear-end grip and help the kart rotate through corners. However, too much flex can lead to unpredictable handling and a loss of rear stability. The information you provided mentions that when track grip increases, removing the rear torsion bar can free up the kart through the corner. This is because the torsion bar resists chassis flex, and by removing it, the chassis can twist more easily, allowing the rear to slide slightly and help the kart turn.
- Flexible Torsion Bar (or a thicker torsion bar): Resists chassis flex more. When one rear wheel lifts, the torsion bar transmits some of the load to the opposite rear wheel, keeping both rear wheels more firmly planted. This increases rear-end stability and grip, making the kart feel more planted and less prone to sliding. However, it can also make the kart feel like it 'hangs up' or is slower to rotate in tighter corners.
Making the adjustment:Rear torsion bars are typically held in place by clamps. To change a torsion bar, you usually loosen the clamps, remove the existing bar, and install a different one (often with varying degrees of stiffness or diameter). Some systems allow for partial engagement or different mounting points to fine-tune stiffness.
Axle Stiffness
The rear axle is another critical component that influences chassis flex and handling. Rear axles come in various stiffness ratings, commonly referred to by their diameter and material (e.g., 30mm, 32mm, 40mm, and made of different steel alloys).
How it affects handling:
- Softer Axle: Allows for more chassis flex. This can help the kart rotate more easily and feel more agile. It's often preferred on lower-grip tracks or for drivers who prefer a more 'loose' feeling kart.
- Stiffer Axle: Resists flex more, making the chassis more rigid. This generally improves stability and rear-end grip, especially under acceleration. It can be beneficial on higher-grip tracks or for drivers who want a more predictable and planted rear end.
Making the adjustment:Changing the rear axle is a more involved process than adjusting the track width or torsion bar. It typically requires removing the rear wheels, loosening the axle bearings, and sliding the axle out of the bearing carriers. You then install the new axle, re-secure the bearings, and re-mount the wheels.
Seat Position and Angle
The driver's position in the kart significantly affects weight distribution and, consequently, handling. Adjusting the seat's fore-aft position and its angle can have a noticeable impact.
How it affects handling:
- Moving the Seat Forward: Shifts more weight to the front of the kart. This can improve front-end grip and make the kart more responsive to steering. However, it can also lead to understeer if too much weight is biased forward.
- Moving the Seat Backward: Shifts more weight to the rear of the kart. This can improve rear-end grip and help the kart rotate more easily. However, it can also lead to oversteer if too much weight is biased rearward.
- Angling the Seat: Tilting the seat can also influence weight distribution. A slight tilt backward can sometimes help a driver feel more 'connected' to the kart and improve their ability to transfer weight.
Making the adjustment:Seats are usually mounted to the chassis using adjustable mounting plates or brackets. By loosening the bolts securing the seat and repositioning it on these mounts, you can alter its position. Angling is achieved by using different thickness shims or by adjusting the angle of the mounting brackets themselves.
Ride Height
Ride height refers to the distance between the chassis and the ground. While not as commonly adjusted as other factors on many racing karts, it can still play a role, especially on different track surfaces or when dealing with aerodynamic considerations.
How it affects handling:
- Lowering the Ride Height: Reduces the kart's centre of gravity, which can improve stability and reduce body roll. However, it also reduces ground clearance, increasing the risk of the chassis bottoming out on bumps or kerbs.
- Raising the Ride Height: Increases ground clearance, reducing the risk of chassis contact. It can also allow for more chassis flex and potentially improve grip on uneven surfaces. However, a higher centre of gravity can lead to more body roll and reduced stability.
Making the adjustment:Ride height is typically adjusted by altering the mounting points of the front spindles and rear axle bearings. This often involves using different height bearing hangers or spindle carriers.
Common Kart Handling Issues and Solutions
Here's a table to help you diagnose and address common kart handling problems:
| Problem | Likely Cause | Adjustments to Try |
|---|---|---|
| Understeer (Kart won't turn in) | Too much front grip, too little rear grip, stiff rear axle, narrow front track. | Widen front track, narrow rear track, softer rear axle, remove rear torsion bar (if applicable), move seat forward slightly, increase caster (if adjustable). |
| Oversteer (Rear slides out) | Too much rear grip, too little front grip, soft rear axle, wide rear track, too stiff torsion bar. | Narrow front track, widen rear track, stiffer rear axle, install or use a stiffer rear torsion bar, move seat backward slightly, decrease caster (if adjustable). |
| Skittish / Twitchy Handling | Too sensitive steering, narrow front track, too stiff front end. | Slightly widen front track, check tyre pressures, ensure front end components are not binding. |
| Lack of Rear Grip | Too stiff rear axle, narrow rear track, too much front grip, tight chassis. | Softer rear axle, widen rear track, narrow front track, check for chassis binding, consider removing rear torsion bar. |
| Bumpy Ride / Chassis Bottoming Out | Ride height too low, worn tyres, suspension issues (if applicable). | Increase ride height, check tyre pressures, inspect chassis for damage. |
Putting it all Together: The Tuning Process
Tuning a kart is an iterative process. It's rarely a case of making one adjustment and being done. The best approach is to:
- Start with a baseline setup: Use a recommended setup for your kart model and track conditions.
- Identify the problem: During practice or a race, note down how the kart feels and where it's losing time.
- Make one adjustment at a time: This is crucial. If you make multiple changes, you won't know which one had the desired effect.
- Test the adjustment: Go back out on track and assess the impact of your change.
- Repeat: Continue this process until you are happy with the kart's handling.
Frequently Asked Questions (FAQ)
Q1: How often should I check my kart's setup?
A1: It's good practice to check your kart's setup before every session. Tyre pressures, bearing tightness, and general component security are essential for consistent performance and safety.
Q2: What's the most important adjustment?
A2: This is subjective and depends on the specific issue, but tyre pressure and front track width are often considered fundamental for initial handling characteristics.
Q3: Can I adjust my kart for different weather conditions?
A3: Absolutely. On a wet track, you'll generally want a kart that is more stable and less prone to sliding. This might mean a wider rear track, a stiffer rear axle, and potentially a narrower front track to improve turn-in. On a hot, high-grip track, you might want to free up the kart by removing the rear torsion bar or using a softer axle.
Q4: Where can I find more specific setup information?
A4: Consult your kart manufacturer's manual, speak to experienced tuners, or join online karting forums. Many racing series also have recommended baseline setups available.
Conclusion
Mastering kart chassis tuning is a rewarding journey that will undoubtedly improve your performance on the track. By understanding the impact of each adjustment and adopting a systematic approach, you can transform your kart's handling and gain a competitive edge. Remember, practice, patience, and a keen eye for detail are your greatest allies in the pursuit of the perfect kart setup. Happy tuning!
