Tiptronic Transmission Fluid Service for Audi C5 Models

As your cherished Audi C5, particularly those equipped with the 01V Tiptronic 5-speed automatic transmission, continues to age, you might notice a decline in its performance. While Audi, in their wisdom, declared the transmission fluid to be of a "lifetime" nature, meaning it requires no regular servicing, this assertion is, frankly, a rather optimistic perspective. The reality is that transmission fluid, like any other vital automotive fluid, degrades over time. Its lubricating properties diminish, leading to increased wear and tear on sensitive internal components. If your Audi C5 has clocked over 60,000 miles, or if you're experiencing less-than-smooth gear changes, hesitation, or a general reluctance from your transmission, it might be time to consider a fluid service. This can be a DIY project, but be warned: some stages are significantly easier, and safer, with an extra pair of hands.

Why Service "Lifetime" Fluid?

The term "lifetime" in automotive terms is often a marketing concept rather than a literal guarantee of perpetual operation without maintenance. Transmission fluid is subjected to extreme heat and pressure, which breaks down its chemical structure. This degradation leads to reduced viscosity, decreased lubricating capabilities, and an accumulation of microscopic metallic particles from normal wear. Over time, this contaminated and broken-down fluid can cause:

• Harsh shifting: The transmission's hydraulic system relies on clean, properly viscous fluid to operate the clutch packs and valve body smoothly.
• Hesitation: Degraded fluid can lead to slower hydraulic response times, causing delays when engaging gears.
• Increased wear: Without adequate lubrication, metal-on-metal contact increases, accelerating wear on gears, bearings, and clutch plates.
• Overheating: The transmission fluid also plays a role in cooling. Degraded fluid is less efficient at dissipating heat, potentially leading to transmission overheating.

When to Consider a Fluid Service

While the manufacturer's recommendation might be to leave it be, practical experience suggests otherwise. We recommend considering a transmission fluid service if your vehicle meets any of the following criteria:

• Odometer reading of 60,000 miles or more.
• Noticed any of the following symptoms:
• Hard or jerky shifts
• Delayed gear engagement
• Slipping between gears
• Unusual noises during gear changes
• Purchased a used vehicle and the service history is unknown.

Important Considerations Before You Start

Before diving into this job, there are a few critical points to keep in mind:

Power Flushing vs. Fluid Change

Note 1: Powerflush or Transmission flushes of any kind are NOT recommended. There's a prevalent theory, supported by many experienced mechanics, that these aggressive flushing methods can dislodge accumulated debris from the valve body and internal passages. This debris can then recirculate and potentially block critical channels or damage sensitive components, leading to more significant problems or even complete transmission failure. A simple drain and fill is a much safer approach.

Timing Belt and Water Pump Service

Note 2: At around 60,000 to 100,000 miles (check your specific model's service schedule), the timing belt and water pump service is typically due for your Audi C5. It is highly advisable to perform the transmission fluid service after the timing belt and water pump have been replaced. The reason for this is that the transmission cooler lines need to be disconnected to access the crankshaft lock pin for the timing belt service. Disconnecting these lines will inevitably result in a small loss of transmission fluid. By completing the timing belt service first, you'll have already accounted for this minor fluid loss, and you can then top up the transmission fluid as part of this service, ensuring the correct level is achieved.

Parts and Tools Required

Gathering the correct parts and tools beforehand will make the process smoother and more efficient.

Parts Required:

• Transmission Fluid: Specifically, approximately 4-5 litres of high-quality Pentosin ATF 1 or an equivalent G 052 162 A1/A2 specification fluid. Always double-check your owner's manual or consult with a reputable Audi specialist for the exact specification.
• Transmission Filter Kit: This typically includes a new filter and a new gasket for the transmission pan.
• New Pan Bolts: While not always strictly necessary, it's good practice to have a few new bolts on hand in case any of the old ones are damaged during removal.

Tools Required:

• Jack and Jack Stands or Automotive Lift: Essential for safely raising the vehicle. Ensure you have at least four sturdy jack stands rated for your vehicle's weight. Note: Using ramps is NOT advisable for this procedure, as you will need to have the engine running and cycle through the gears while the car is elevated, which is inherently unsafe on ramps.
• Fluid Pump: A hand-operated or electric fluid pump is necessary to refill the transmission.
• Flat Head Screwdriver: For removing the plastic dowel pins securing the belly pan.
• Small Level: Crucial for ensuring the vehicle is perfectly level during the fluid level check.
• 8 mm Allen Head Socket: For the transmission drain plug.
• 17 mm Allen Head Socket: For the transmission fill plug.
• T-25 Torx Head Socket: For any other fasteners on the underbody panels.
• Ratchet Set with Extensions: To access various bolts and plugs.
• Torque Wrench: For tightening the drain and fill plugs to the correct specifications.
• Waste Catch Basin: A sufficiently large container to catch the old transmission fluid.
• Disposable Ground Cover: To protect your workspace, as this job can be messy.
• Ross-Tech VAG-COM Cable and Software: Absolutely essential for monitoring transmission fluid temperature and performing the final level check.
• Lint-Free Disposable Shop Towels: For cleaning up spills and ensuring a clean work environment.
• Hyperactive/Insomniac Bulgarian Elevator Repairman (Optional, but recommended): For moral support and an extra pair of hands.

The Step-by-Step Guide to Your Audi C5 Tiptronic Fluid Service

With your vehicle safely elevated and perfectly level, the process involves draining the old fluid, removing the transmission pan, cleaning it thoroughly, and then refilling it with fresh fluid and a new filter. The critical part of achieving the correct fluid level relies on using a VAG-COM cable to monitor the transmission fluid temperature. You'll also need to cycle through the gears with the engine running during the filling process. Remember, transmission fluid expands when hot, so taking precautions against burns is vital. The hotter the fluid, the more will drain out, and consequently, the more fresh fluid you can replenish.

Step 1: Safely Elevate the Vehicle

Using your floor jack and jack stands, or an automotive lift, raise the vehicle to a height that allows comfortable access to the underside. Ensure all wheels are at least four inches off the ground. For Audi allroad models, it is imperative to engage JACK MODE before lifting. This is typically done by turning the ignition key to the 'on' position (without starting the engine) and simultaneously pressing and holding both the 'up' and 'down' buttons for the suspension until the relevant icon appears on the dashboard display. This prevents the self-levelling suspension from interfering with the jacking process.

Step 2: Remove the Rear Splash Guard

Locate the rear splash guard that covers the transmission's belly pan. You'll find several plastic dowel pins securing it in place. Using a flat-head screwdriver, carefully twist each dowel pin counterclockwise to release it. Once all pins are loosened, the splash guard can be removed.

Step 3: Ensure the Vehicle is Level

This step is paramount for an accurate fluid level reading later. Use your small level to check the vehicle's levelness both side-to-side and front-to-back. If the car is not perfectly level, make the necessary adjustments to your jack stands or lift to achieve a perfectly horizontal position. An unlevel vehicle will result in an inaccurate fluid level, potentially leading to underfilling or overfilling, both of which can damage the transmission.

Step 4: Locate Drain and Fill Plugs

Position your disposable ground cover and waste catch basin underneath the transmission. Locate the transmission's belly pan. You will find two key plugs: the 8 mm Allen head drain plug and the 17 mm Allen head fill plug. Ensure your catch basin is positioned to capture the fluid from both.

Step 5: Drain the Old Fluid

Carefully loosen and remove the 8 mm Allen head drain plug. Be prepared for the fluid to flow out. Allow the fluid to drain completely. Once the flow has slowed to a drip, reinstall the drain plug and tighten it to the manufacturer's specified torque (typically around 20-30 Nm, but always verify). Be cautious, as the fluid may still be warm.

Step 6: Remove the Transmission Pan

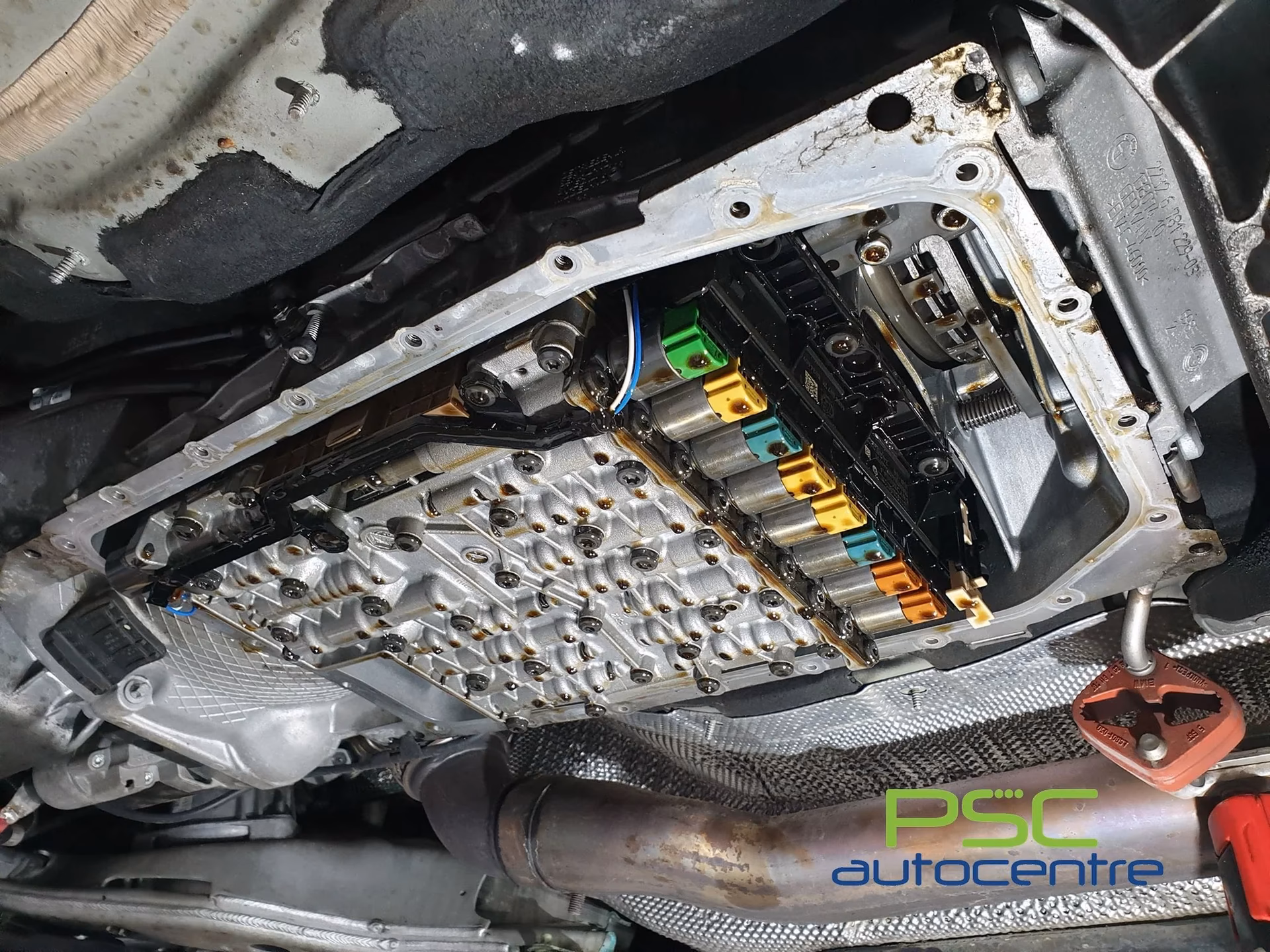

With the old fluid drained, you can now remove the transmission pan. The pan is held in place by numerous bolts, typically requiring a T-25 Torx or a standard socket. Loosen these bolts gradually and evenly, working your way around the pan. As you get to the last few bolts, support the pan to prevent it from dropping suddenly, as it will still contain some residual fluid. Carefully lower the pan and empty any remaining fluid into your catch basin.

Step 7: Clean the Pan and Replace the Filter

Thoroughly clean the inside of the transmission pan. Remove all traces of old fluid and any metallic debris or sludge that may have accumulated. Use lint-free towels for cleaning. Inspect the magnets in the pan (if present) for excessive metal particles, which could indicate internal wear. Remove the old transmission filter, which is usually held in place by a retaining clip or a bolt. Install the new filter, ensuring it is properly seated. Clean the mating surface on the transmission where the pan gasket seals.

Step 8: Reinstall the Transmission Pan

Fit the new transmission pan gasket. Carefully reinstall the transmission pan, ensuring the new filter is correctly positioned. Tighten the pan bolts in a criss-cross pattern to the manufacturer's specified torque. This is crucial to ensure a proper seal and prevent leaks. Again, consult your service manual for the exact torque values.

Step 9: Refill with New Fluid (The Critical Step)

This is where the VAG-COM cable becomes indispensable. Connect the cable and start the engine. With the engine running, and while the car is still in Park (or Neutral, depending on preference, but Park is common), begin refilling the transmission with the new fluid using your fluid pump. The fill plug is typically the 17 mm Allen head plug located on the transmission casing itself (not on the pan). You'll need to fill the transmission until fluid begins to seep out of the fill plug opening. However, this is only the initial fill. The crucial part is achieving the correct level at the specified temperature.

Step 10: The VAG-COM Level Check

With the engine running and the transmission in Park, use your VAG-COM software to monitor the transmission fluid temperature. The target temperature for checking the fluid level is typically between 35°C and 45°C (95°F and 113°F). As the fluid heats up, it will expand. You will need to cycle through all the gears (P, R, N, D, and manual modes) with the engine running, pausing for a few seconds in each gear, to ensure the fluid circulates properly. Once the transmission fluid reaches the target temperature range, remove the fill plug again. If fluid drains out, you have overfilled it. If no fluid drains out, you need to add more fluid, a little at a time, until it just begins to seep out. Once the correct level is achieved at the specified temperature, reinstall the fill plug and torque it to the specified value.

Step 11: Final Checks and Reassembly

Lower the vehicle safely. Start the engine again and allow it to reach normal operating temperature. Cycle through the gears once more. Check underneath for any signs of leaks around the transmission pan or fill plug. If everything appears dry and the transmission shifts smoothly, you have successfully completed the service. Reinstall the rear splash guard.

Common Questions (FAQ)

Q1: How much transmission fluid does my Audi C5 Tiptronic typically need?

A: A standard drain and fill usually requires around 4 to 5 litres of fluid. However, the exact amount can vary, and it's essential to fill to the correct level using the temperature-based method described above.

Q2: Can I use a generic automatic transmission fluid?

A: It is strongly recommended to use only fluids that meet the specific Audi/VW specifications (e.g., G 052 162 A1/A2 or Pentosin ATF 1). Using the wrong type of fluid can cause significant damage to the transmission.

Q3: How often should I perform this service?

A: While Audi claims it's lifetime fluid, many enthusiasts and independent specialists recommend a fluid change every 40,000 to 60,000 miles, or every 3 to 5 years, to ensure longevity and optimal performance.

Q4: My transmission is already slipping. Will a fluid change fix it?

A: A fluid change can sometimes help with minor slipping caused by degraded fluid. However, if the transmission has suffered significant internal damage due to prolonged use of old fluid, a fluid change may not resolve the issue, and a more extensive repair might be necessary.

Q5: Is it safe to drive with low transmission fluid?

A: No, driving with low transmission fluid can lead to overheating, increased wear, and potential transmission failure. It's crucial to maintain the correct fluid level.

By following these steps and taking the necessary precautions, you can help ensure your Audi C5's Tiptronic transmission continues to provide smooth and reliable performance for many miles to come. Regular, albeit non-manufacturer-recommended, maintenance is key to the longevity of these complex transmissions.
