Cummins B Series Timing: A Comprehensive Guide

Mastering the Cummins B Series Engine Timing: A Detailed Walkthrough

The precise timing of fuel injection is paramount to the optimal performance, efficiency, and longevity of any diesel engine, and the venerable Cummins B series is no exception. Whether you're working on a robust 3.9L B series engine equipped with a Bosch VE rotary pump, or simply looking to understand the intricacies of injection timing, this guide will provide you with a comprehensive understanding. We'll delve into the process of setting the timing, deciphering timing codes, and the essential tools and techniques required for accurate adjustments.

Understanding Injection Timing

At its core, injection timing refers to the exact moment fuel is introduced into the combustion chamber relative to the piston's position. For Cummins B series engines, this is typically measured in degrees before Top Dead Centre (TDC) on the compression stroke. The provided information specifies that injection timing is the distance remaining between the injector plunger and the injector cup when the piston is 5.161 mm [0.2032-inch] or 19 degrees before TDC. This measurement is often expressed by the amount of push tube travel remaining.

An advanced timing means fuel is injected earlier in the compression stroke, while a retarded timing means injection occurs closer to TDC. The amount of push rod travel remaining is a direct indicator: a lower numerical value signifies advanced timing, and a higher value indicates retarded timing. These adjustments are crucial for optimising combustion, power delivery, and emissions.

Finding Your Engine's Injection Timing Code

Every Cummins engine has a specific timing specification dictated by its design and intended application. You can locate your engine's unique injection timing code on the engine dataplate. These codes are typically alphabetic letters that correspond to numerical specifications found within the Control Parts List (CPL) Manual, specifically referencing Bulletin No. 3379133. Knowing this code is the first step in ensuring you are adhering to the manufacturer's intended settings.

The Timing Pin and Initial Setup (Bosch VE Pump)

For Cummins B 3.9 engines fitted with a Bosch VE rotary pump, a specific timing pin is used to locate a key position on the camshaft. The location of this pin is on the fuel pump side of the engine, attached to the gear housing. The procedure involves pushing this pin in and then slowly rotating the engine until the pin engages with the back of the camshaft. This action locks the camshaft in a predetermined position, crucial for accurate timing measurements.

Essential Timing Tools and Their Installation

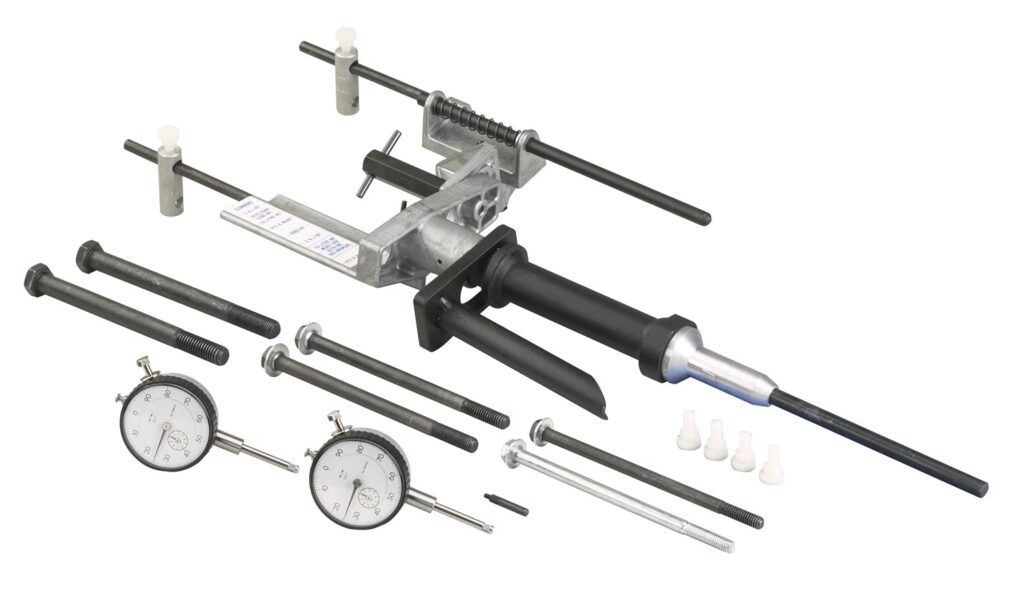

To accurately set the injection timing, specialised tools are required. The process involves using a timing tool kit, which typically includes a piston plunger rod, swivel brackets, and dial indicators.

Timing Tool Installation Steps:

1. Install the Piston Plunger Rod: Insert the piston plunger rod into the injector bore of the No. 1 cylinder. Ensure the plunger is centred and resting on top of the piston.
2. Align the Swivel Bracket: Position the swivel bracket to align with the capscrew hole on the injector clamp. Install the 6-inch swivel bracket capscrew and tighten it finger-tight.
3. Position the Push Rod: Place the push rod plunger rod in proximity to the injector push rod.
4. Secure the Swivel Bracket: Tighten the swivel bracket capscrew sufficiently to hold the timing tool firmly. It's vital that the piston plunger post is clamped squarely against the cylinder head.
5. Align Rods: Ensure the plunger rod (1) and the injector push rod (3) are aligned with each other and parallel to the plunger rod. Tighten the clamp handle (2) once alignment is achieved.
6. Engage the Injector Push Rod: Loosen the support bracket (4) and slide it downwards until the plunger rod (1) makes contact with the injector push rod (3). The support bracket should be aligned with the vertical line on the clamp handle bracket, and the push rod must be vertically aligned with the plunger rod.
7. Compress and Tighten: Compress the plunger rod tension spring by approximately 12.7 mm [0.50-inch] and then tighten the support bracket.

Determining Top Dead Centre (TDC)

Accurate TDC determination is fundamental. This is achieved by rotating the crankshaft in the direction of engine rotation (clockwise) until the piston plunger reaches its uppermost position. It is critical to use only the crankshaft for this rotation to avoid false measurements due to gear lash. Ensure any gear lash is taken up in the direction of normal rotation (clockwise).

Important Note: If the cylinder is on its compression stroke, both needles on the timing tool indicator will begin to move in the same direction as the piston approaches TDC. If this isn't the case, rotate the engine one full revolution in the same direction.

Setting and Reading Dial Indicators

The timing tool kit utilises two dial indicators: one for piston travel and one for push rod travel.

Piston Travel Dial Indicator Setup:

1. Place the piston travel dial indicator over the plunger rod, with its contact tip centred on the rod.
2. Lower the indicator until it's within 0.63 mm [0.025-inch] of its fully compressed position.
3. Tighten the thumbscrew to secure the gauge.
4. Rotate the crankshaft back and forth to confirm the piston is precisely at TDC on the compression stroke.
5. Crucial Step: Always set the piston travel dial indicator to '0' (zero) at TDC with the crankshaft rotated in the direction of normal rotation (clockwise). This minimises timing errors caused by gear backlash. TDC is indicated by the maximum clockwise position of the piston travel indicator pointer.
6. Lock the indicator face with the thumbscrew.
7. Rotate the crankshaft clockwise to 90 degrees After Top Dead Centre (ATDC). The piston travel plunger should be at the 'NH/NT 90-degree' mark on the timing tool.

Push Rod Travel Dial Indicator Setup:

1. Insert the push rod travel dial indicator into the centre of the injector push rod plunger. Lower it to within 0.63 mm [0.025-inch] of the fully compressed position and tighten the thumbscrew.
2. Set this indicator to '0' (zero) and lock its face.
3. Rotate the crankshaft in the opposite direction of engine rotation (counterclockwise) through TDC to 45 degrees Before Top Dead Centre (BTDC). This step is vital for eliminating gear train lash and ensuring accurate readings.
4. Observe the dial indicator readings before rotating the crankshaft further to help determine the BTDC piston setting and timing reading later. If the crankshaft is rotated beyond the -5.161 mm [-0.2032-inch] position, you must rotate it back counterclockwise to 45 degrees BTDC and repeat the step.
5. Slowly rotate the crankshaft clockwise until the piston travel dial indicator shows a reading of -5.161 mm [-0.2032-inch] BTDC.
6. Compare the reading on the injector push rod travel indicator to the specified value for your engine's timing code. The push rod travel indicator is read in a counterclockwise direction from '0'. The total travel amount represents the injection timing value.

Interpreting the Readings and Adjusting Timing

Once you have taken your readings, compare the push rod travel indicator value against the specification for your engine's timing code. A reading higher than the specification indicates retarded timing, while a reading lower than the specification means the timing is advanced.

Troubleshooting Common Timing Issues:

• Is the timing tool correctly installed?
• Are the dial indicators properly calibrated and adjusted?
• Was the crankshaft rotated in the correct sequence and direction?
• Are the cam follower housing capscrews tightened correctly?
• Is the crankshaft and camshaft gear alignment correct?

If the injection timing is outside the specified limits, adjustments are necessary. This is primarily achieved by altering the thickness of the cam follower housing gaskets.

Adjusting Timing via Gasket Thickness:

The thickness of the cam follower housing gaskets directly influences injection timing. Each 0.18 mm [0.007-inch] change in gasket thickness alters the injection timing by approximately 0.05 mm [0.002-inch] of indicator travel.

Available Gasket Thicknesses (Nominal):

*Note: One Print-O-Seal gasket is required per cam follower housing.

• To advance timing: Increase gasket thickness (Add = Advance).
• To retard timing: Decrease gasket thickness (Remove = Retard).

The minimum allowable gasket stack-up thickness is 0.43 mm [0.017-inch] (one Print-O-Seal gasket), and the maximum is 2.03 mm [0.080-inch]. The Print-O-Seal gasket must be placed against the cylinder block with its sealing bead facing the cam follower housing.

Offset Camshaft Key:

If adjusting gasket thickness does not achieve the desired timing, an offset camshaft key may be required. The timing code on your engine dataplate will specify the correct type of offset key, or if one is needed initially. Installing an offset key alters the camshaft's orientation relative to the crankshaft.

Verifying and Final Checks

After performing any timing adjustments, it is essential to re-check the timing on cylinders No. 5 and No. 3 to ensure consistency across the engine. Always refer back to your engine's dataplate for the correct injection timing code and consult the CPL Manual (Bulletin No. 3379133) for precise specifications. Proper engine timing is a cornerstone of reliable Cummins B series operation, ensuring you get the best performance and efficiency from your diesel powerplant.

Frequently Asked Questions (FAQ)

Q1: How do I know if my Cummins B series timing is correct?
You can determine if your timing is correct by using a specialised timing tool kit to measure the injector push rod travel at a specific piston position (19 degrees BTDC or 5.161mm before TDC) and comparing it to the specification listed for your engine's timing code on the dataplate.

Q2: Can I adjust the timing without the special tools?
While basic engine rotation might be possible, accurately setting the injection timing without the correct dial indicators and timing tools is extremely difficult and not recommended. Precision is key.

Q3: What happens if the injection timing is too advanced?
Too advanced timing can lead to increased cylinder pressures, potential engine knock, higher operating temperatures, and in severe cases, damage to pistons and valves.

Q4: What happens if the injection timing is too retarded?
Too retarded timing can result in poor engine performance, reduced power, increased fuel consumption, excessive smoke, and higher exhaust gas temperatures.

Q5: Where can I find the correct timing specifications for my engine?
The definitive source for your engine's timing specifications is the engine dataplate, which contains the injection timing code. This code corresponds to specifications found in the Control Parts List (CPL) Manual, specifically Bulletin No. 3379133.
