Vauxhall Corsa: Rattling Chain & Oil in Coolant

Hearing an unusual rattling noise from your car's engine can be unsettling, often signalling an underlying issue that demands immediate attention. When that rattle is accompanied by the equally alarming sight of oil mixing with your engine's coolant, it's natural to feel a surge of panic. For many Vauxhall Corsa owners, this perplexing combination has led to significant concern. While these two symptoms might seem disparate, a recent case highlighted a surprising and critical connection: a failed gasket behind the timing chain cover, leading to both a stretched timing chain and coolant contamination.

Understanding the intricate workings of your engine is key to appreciating the severity of such problems. The timing chain is a vital component, synchronising the rotation of the crankshaft and camshafts to ensure the engine's valves open and close at the precise moments required for combustion. When this chain becomes stretched or worn, its precise timing is compromised, often manifesting as a distinct rattling noise, especially noticeable on startup or at idle. Simultaneously, the cooling system, responsible for regulating engine temperature, should remain completely separate from the lubrication system. Any breach, such as a compromised gasket, allows these fluids to intermingle, leading to a host of other serious complications.

This article delves into the specifics of this dual Vauxhall Corsa predicament, exploring why a seemingly unrelated gasket failure can trigger both a noisy timing chain and oil contamination in your coolant. We'll discuss the diagnostic process, the critical repairs required, and offer advice on how to prevent such issues from turning into catastrophic engine damage. If your Corsa is exhibiting these worrying symptoms, read on to understand the mechanics behind the problem and the path to a quieter, cleaner engine.

The Critical Role of Your Timing Chain

Before diving into the issues, it's essential to grasp what a timing chain does. Unlike a timing belt, which is made of rubber and requires periodic replacement, a timing chain is a metal chain, much like a bicycle chain, designed to last the lifetime of the engine. Its primary function is to maintain the precise synchronisation between the crankshaft (which drives the pistons) and the camshafts (which operate the engine's valves). This synchronisation ensures that the intake and exhaust valves open and close exactly when they should, allowing the engine to breathe efficiently and perform optimally. Without correct timing, the engine would run poorly, if at all, and severe damage could occur if pistons were to strike valves.

While timing chains are generally robust, they are not immune to wear. Over extended periods, or due to inadequate lubrication, the chain can stretch. This stretching introduces 'slack' into the system, which can cause the chain to flap or vibrate against its guides, leading to the characteristic rattling noise. Furthermore, the stretched chain can throw off the engine's timing, even by a fraction of a degree, leading to reduced performance, increased fuel consumption, and in severe cases, triggering engine warning lights or causing misfires. The guides and tensioners that keep the chain taut and aligned can also wear down, exacerbating the problem and contributing to the noise.

Oil in Coolant: A Grave Warning Sign

The presence of oil in your coolant reservoir is a clear indicator of an internal engine problem. Under normal circumstances, these two fluids operate in completely separate circuits. Coolant circulates through the engine block, cylinder head, and radiator to dissipate heat, while engine oil lubricates moving parts. When they mix, it's a sign that a barrier has been breached. Common causes include a failed head gasket, a cracked engine block or cylinder head, or a faulty oil cooler. However, as the Vauxhall Corsa case illustrates, the culprit can sometimes be less obvious, like a specific gasket within the timing chain cover assembly.

The consequences of oil contaminating the coolant are severe. Oil in the cooling system can form a sludge that clogs radiator passages, heater cores, and other vital components, significantly reducing the cooling system's efficiency. This can lead to engine overheating, which in turn can cause further damage, such as warping the cylinder head or cracking the engine block – far more expensive repairs than the initial issue. The oil can also degrade rubber hoses and seals within the cooling system, leading to leaks and further fluid loss. Conversely, coolant in the oil can dilute the lubricant, reducing its effectiveness and leading to premature wear of engine components.

The Vauxhall Corsa Conundrum: A Shared Culprit

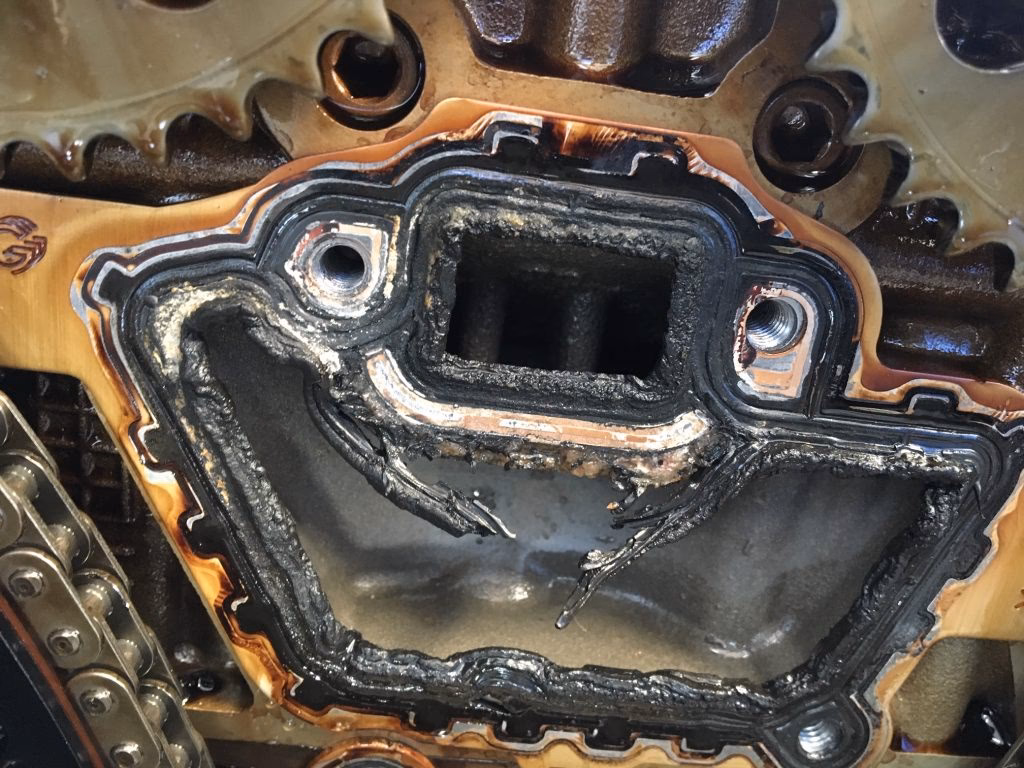

The specific case of the Vauxhall Corsa highlights a fascinating, yet concerning, design vulnerability. When a particular Corsa arrived at the garage with both a noisy timing chain and oil contaminating the coolant, initial thoughts might have drifted towards separate issues. However, upon stripping down the timing side of the engine, the root cause for both problems became evident: a failed gasket located directly behind the timing chain cover.

This gasket, often made of rubber or composite material, is designed to create a seal between different compartments within the engine, some of which contain oil and others coolant, even in this seemingly isolated area behind the timing chain. When this gasket degrades or fails, it allows the oil and coolant to mix. This breach not only leads to the visible contamination but can also contribute to the timing chain's issues. For instance, if the gasket failure leads to a loss of oil pressure or allows coolant to ingress into areas meant for pure oil lubrication, the timing chain and its hydraulic tensioner (which uses oil pressure to keep the chain taut) can suffer. In this specific Corsa, the timing chain was found to be significantly stretched, a direct consequence of either prolonged wear or compromised lubrication due to the gasket failure, causing the pronounced rattling noise.

Why Gaskets Fail

Gaskets, while seemingly simple components, are crucial for maintaining fluid separation and pressure within an engine. They can fail for several reasons:

• Material Degradation: Over time, heat cycles, exposure to chemicals, and general wear can cause the gasket material to become brittle, crack, or compress excessively.
• Overheating: Prolonged engine overheating can put immense stress on gaskets, causing them to warp or blow out.
• Improper Installation: If a gasket is not installed correctly, or if bolts are not torqued to the manufacturer's specifications, it can lead to an uneven seal and premature failure.
• Corrosion: Contaminated fluids or lack of proper coolant maintenance can lead to corrosion that degrades gasket material.
• Manufacturing Defects: Rarely, a gasket may have an inherent flaw from manufacturing.

Diagnosis and Repair: The Professional Approach

Diagnosing these combined issues requires a meticulous approach. The initial symptoms – the rattling noise and the 'mayonnaise' like substance in the coolant expansion tank or on the dipstick – are strong indicators. However, pinpointing the exact cause, especially the specific gasket failure behind the timing chain cover, necessitates further investigation. This often involves:

• Visual Inspection: Checking the coolant reservoir for oil, and the oil dipstick/filler cap for coolant contamination.
• Listening to the Engine: Identifying the source and nature of the rattling noise.
• Pressure Tests: Testing the cooling system for leaks and the engine for cylinder compression issues.
• Dismantling: The most definitive step, requiring the removal of components to expose the timing chain and the crucial gasket behind its cover. This allows technicians to visually inspect the gasket for failure and assess the timing chain's tension and wear using specialised timing tools. When timing tools are inserted, they lock the camshafts and crankshaft in their correct positions. If the timing chain is stretched, there will be excessive play or difficulty fitting the tools, confirming the chain's wear.

Once diagnosed, the repair involves a comprehensive approach to address both issues simultaneously. For the Vauxhall Corsa discussed, the repair involved:

1. Draining Fluids: Both engine oil and coolant were drained.
2. Disassembly: Removing the timing chain cover and associated components to gain access to the chain, guides, sprockets, and the failed gasket.
3. Component Replacement: The stretched timing chain was replaced, along with its guides and sprockets. Critically, the failed gasket separating the oil from the coolant behind the timing chain cover was also renewed.
4. System Flushing: The cooling system underwent a thorough flush to remove all traces of oil contamination. This is a vital step, as residual oil can continue to cause problems. Multiple flushes may be required.
5. Refilling and Servicing: The engine was refilled with fresh engine oil (often accompanied by an interim service to ensure proper lubrication after major work) and new antifreeze.
6. Testing: Post-repair, the engine was run and thoroughly tested to ensure the rattling noise had ceased, and no further oil contamination was occurring in the coolant.

This comprehensive repair ensures that both symptoms are addressed at their source, restoring the engine to its proper function and preventing future, potentially more damaging, issues. The result is a quieter engine and a clean, efficient cooling system, giving the owner peace of mind.

Preventative Maintenance and Early Detection

While some failures are unpredictable, regular maintenance can significantly reduce the likelihood of encountering such complex issues. Here’s how you can help protect your Vauxhall Corsa:

• Regular Oil Changes: Adhere strictly to your vehicle's recommended oil change intervals and use the correct specification of engine oil. Clean, high-quality oil is paramount for the longevity of the timing chain and its tensioner. Dirty or degraded oil can accelerate chain wear and lead to tensioner malfunction.
• Check Fluid Levels Regularly: Periodically inspect your coolant reservoir and engine oil dipstick. Look for any signs of contamination – milky or frothy oil, or an oily film in the coolant. Early detection can prevent minor issues from escalating.
• Listen to Your Engine: Pay attention to any new or unusual noises, especially a rattling sound from the engine's front end (where the timing chain is usually located) upon startup or at idle.
• Maintain Coolant: Ensure your coolant is at the correct level and strength. Old or incorrect coolant can lead to corrosion, which can degrade gaskets and other components.

Ignoring a rattling timing chain or oil in your coolant is a recipe for disaster. A stretched timing chain can lead to severe engine damage if it jumps a tooth or breaks entirely, potentially causing pistons to collide with valves. Oil in the coolant will inevitably lead to overheating and catastrophic failure of the cooling system and ultimately the engine itself. Addressing these issues promptly is not just about fixing a noise or a leak; it's about safeguarding the very heart of your vehicle.

Comparative Table: Timing Chain vs. Gasket Failure Symptoms

Frequently Asked Questions (FAQs)

Q1: Can a noisy timing chain fix itself?

No, a noisy timing chain, especially one caused by stretching, will not fix itself. The issue will only worsen over time, leading to more pronounced rattling, reduced engine performance, and eventually, potentially catastrophic engine failure if the chain jumps or breaks. It requires professional diagnosis and replacement.

Q2: How much does it cost to replace a timing chain on a Vauxhall Corsa?

The cost can vary significantly depending on the specific Corsa model, engine type, garage labour rates, and whether other components (like guides, tensioners, sprockets, and critical gaskets) also need replacing. It's a labour-intensive job, often requiring several hours of work. You can expect costs to be in the hundreds, if not over a thousand pounds, especially if associated gasket failures and cooling system flushes are required as in the described case. Always get a detailed quote from a reputable mechanic.

Q3: What are the long-term effects of oil in coolant if not addressed?

If not addressed, oil in coolant will lead to severe degradation of your cooling system. The oil will create sludge that clogs the radiator, heater core, and coolant passages, leading to a severely compromised cooling capacity. This will cause persistent engine overheating, which can warp the cylinder head, crack the engine block, blow head gaskets, and lead to complete engine failure. It can also degrade rubber hoses and seals, causing further leaks.

Q4: Is it safe to drive with a rattling timing chain?

Driving with a rattling timing chain is highly risky. The rattling indicates that the chain is stretched or that its tensioning system is failing, which means the engine's timing is compromised. This can lead to reduced performance, increased fuel consumption, and, critically, the risk of the chain jumping a tooth or breaking entirely. If the chain breaks or jumps significantly, it can cause pistons to collide with valves, resulting in severe and extremely costly engine damage. It is advisable to have it checked immediately.

Q5: How often should I change my Vauxhall Corsa's engine oil to prevent timing chain issues?

Always follow your Vauxhall Corsa's manufacturer-recommended service intervals, which are typically found in your owner's manual. These usually range from 10,000 to 20,000 miles or annually, whichever comes first. However, if you do a lot of short journeys, stop-start driving, or heavy towing, it's often wise to change your oil more frequently, perhaps every 6,000-8,000 miles, as these conditions are considered 'severe' and can accelerate oil degradation and engine wear.

The intricate relationship between a rattling timing chain and oil contaminating the coolant, as exemplified by the Vauxhall Corsa case, underscores the complexity of modern automotive engines. While seemingly distinct, these issues can, in fact, stem from a common point of failure – often a critical, yet overlooked, gasket. Recognising the symptoms early, seeking professional diagnosis, and undertaking comprehensive repairs are paramount to preventing minor inconveniences from escalating into significant engine damage. Regular maintenance, including adherence to oil change schedules and vigilant fluid checks, remains your best defence against such perplexing and costly problems, ensuring your Vauxhall Corsa remains a reliable and quiet companion on the road.
