VW Golf Timing Belt Service: A Comprehensive Guide

For any Volkswagen Golf owner, understanding the nuances of your vehicle's maintenance schedule is paramount, especially when it comes to the timing belt. This often-overlooked component is the heart of your engine's precise operation, synchronising the crankshaft and camshafts to ensure valves open and close at precisely the right moments. A failure here can lead to devastating and costly engine damage. This comprehensive guide will delve into everything you need to know about servicing the timing belt on a VW Golf, with a particular focus on the popular 1.6 FSI model, and why neglecting this vital service is a risk you simply cannot afford to take.

Timing Belt or Timing Chain: Know Your Engine

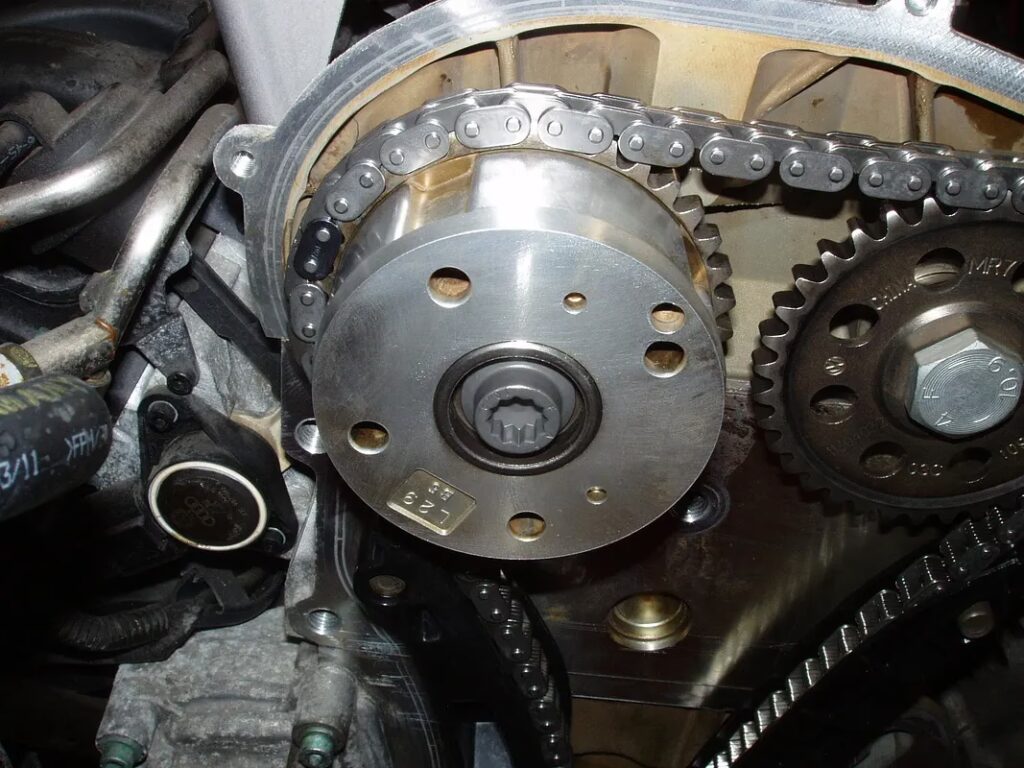

One of the first questions many Golf owners have, particularly concerning models like the 2006 or 2007 1.6 FSI, is whether their engine uses a timing belt or a timing chain. This distinction is crucial as it dictates the maintenance requirements.

While some modern VW engines, particularly those with engine codes such as BAG, BGP, BGQ, BKG, BLN, BLF, BLG, BLP, BMY, BUB, CAVD, CAWB, CAXA, CBFA, CBTA, CBUA, and CCTA, are fitted with a chain drive that is generally considered maintenance-free, the 1.6 FSI engine, specifically the 1.6L 16V variant, typically relies on a timing belt. This means that unlike a chain, which is designed to last the lifetime of the engine (though not without its own potential issues), a timing belt is a wear item that requires periodic replacement. Failing to identify whether your specific engine has a belt or a chain can lead to incorrect maintenance assumptions, with potentially disastrous consequences for belt-driven engines.

Why Timely Timing Belt Replacement is Crucial

The timing belt is a ribbed belt made of durable rubber and composite materials. Its job is to maintain perfect synchronisation between the crankshaft (which drives the pistons) and the camshafts (which operate the engine's valves). If this belt breaks or slips, the pistons can collide with the open valves, leading to severe internal engine damage. This is often referred to as a 'catastrophic rattle of death' and can result in the need for a complete engine rebuild or replacement, a repair that far outweighs the cost of preventative maintenance.

Over time, the timing belt can stretch, fray, or even crack due to constant tension, heat, and wear. These issues compromise its integrity and increase the risk of failure. This is why adhering to the manufacturer's recommended service intervals is not merely a suggestion but a critical aspect of responsible vehicle ownership and preventative maintenance.

Recommended Service Intervals for the VW Golf 1.6 FSI (1.6L 16V)

For the 1.6L 16V engine, commonly found in many Volkswagen vehicles, including the Golf, the manufacturer's recommendations for timing belt service can be quite specific. It is generally advised to check and, if necessary, replace the timing belt at approximately 55,000 miles. Following this initial intervention, subsequent checks and potential replacements are then recommended every 18,000 miles thereafter. This more frequent interval after the initial replacement underscores the importance of ongoing vigilance with this critical component.

It's vital to remember that these are general guidelines. Driving conditions, age of the vehicle, and even extreme temperatures can influence the lifespan of the belt. Always consult your vehicle's service manual or a qualified Volkswagen specialist for the most accurate and up-to-date recommendations for your specific model and engine code.

The Non-Negotiable Water Pump Replacement

When servicing the timing belt on a VW Golf, particularly models where the water pump is driven by the timing belt, it is absolutely imperative to replace the water pump simultaneously. This is not an optional extra; it is a standard and highly recommended part of the timing belt service for several key reasons:

• Accessibility: The water pump on these Golf models is located behind the timing belt. To replace the water pump at a later date, much of the labour involved in a timing belt replacement would need to be repeated. Doing both at once saves significant labour costs in the long run.
• Wear and Tear: The water pump has a similar lifespan to the timing belt and its associated components. If the water pump fails after a new timing belt has been installed, you'll face another major repair bill.
• Preventative Measure: A failing water pump can leak coolant, leading to engine overheating, or its bearings can seize, which can put undue stress on the new timing belt, potentially causing it to snap.

Therefore, any professional timing belt service for a VW Golf where the water pump is timing belt-driven will always include its replacement. This comprehensive approach ensures peace of mind and significantly reduces the risk of future, more expensive repairs.

The Timing Belt Service Procedure: A Detailed Insight

Replacing a timing belt is a complex and precise procedure that typically takes around 2.5 hours for a skilled mechanic. It requires specific tools, technical knowledge, and meticulous attention to detail. Attempting this without the necessary expertise can lead to severe engine damage. The process involves replacing not only the belt but also the tension pulley, idler pulley, and tensioner, alongside the water pump.

Preparatory Work

1. Vehicle Identification: Always begin by accurately identifying the vehicle using its engine code. This ensures the correct parts and specifications are used.
2. Battery Disconnection: Disconnect the vehicle’s battery to prevent accidental starting or electrical shorts during the procedure.
3. Engine Position: Crucially, once the timing belts have been removed, do not turn the crankshaft or camshaft. Any movement could cause internal engine damage.
4. Spark Plugs Removal: Remove the spark plugs to allow the engine to turn more easily by hand.
5. Crankshaft Rotation: Turn the engine ONLY at the crankshaft sprocket, ensuring it rotates in the normal direction (clockwise).
6. Torque Compliance: Strict adherence to all recommended tightening torques is absolutely essential for safety and correct component function.

Removing the Camshaft Belt

1. Vehicle Elevation: Jack up the front of the vehicle and securely support it on axle stands.
2. Cover Removal: Remove the upper engine cover, the complete air filter assembly, and the upper timing belt cover.
3. Steering Oil Tank: Carefully remove the steering oil storage tank, but DO NOT detach the hoses. Position it out of the way.
4. Crankshaft to TDC: Turn the crankshaft to the right until the first cylinder is at Top Dead Centre (TDC). The control markings on the crankshaft belt pulley must be perfectly aligned.
5. Camshaft Alignment Check: Verify whether the locating holes on the camshaft sprockets are aligned. If they are not, turn the crankshaft to the right a further complete turn and re-check.
6. Camshaft Locking Tool: Select the appropriate locking tool specific to the vehicle's engine code and insert it into the camshaft sprockets to hold them in position.
7. Engine Mount Removal: Remove the right-hand engine mount and its corresponding holder, followed by the lower engine cover on the right side.
8. Engine Lowering: Carefully lower the engine until the crankshaft belt pulley screw becomes accessible.
9. Auxiliary Drive Belts: Remove all drive belts for auxiliaries (V-ribbed belts).
10. Crankshaft Pulley Screw Removal: Insert the appropriate arrester tool for the crankshaft belt pulley to hold it steady. Unscrew the crankshaft belt pulley screw. Remove the arrester and then remove the crankshaft belt pulley itself.
11. Temporary Screw Setup: Place two washers onto the fastening screw of the crankshaft belt pulley. Screw in the crankshaft belt pulley screw and tighten it slightly. This is often done to secure a component or allow for further steps without fully removing the screw.
12. Lower Timing Belt Cover: Remove the lower timing belt cover. Note: On some models equipped with air conditioning, it may also be necessary to remove the tension pulley and idler pulley of the V-ribbed belt for easier access.
13. Belt Tension Release: Unscrew the tension pulley screw. Turn the tension pulley to the left to release the tension on the camshaft belt.
14. Camshaft Locking Tool (Temporary Removal): Carefully remove the camshaft locking tool.
15. Timing Belt Removal: Remove the timing belt from the engine.
16. Camshaft Locking Tool (Re-insertion): Immediately re-insert the camshaft locking tool to maintain camshaft alignment.

Removing the Drive Belts for the Exhaust Camshaft (if applicable)

Some engines may have a separate belt for the exhaust camshaft, requiring a similar removal process:

1. Tension Pulley Screw: Unscrew the tension pulley screw for the exhaust camshaft drive belt.
2. Tension Release: Turn the tension pulley to the right to release the tension on this timing belt.
3. Belt Removal: Remove the tension pulley screw, the drive belt tension pulley, and the drive belt itself.

Installing the Drive Belts for the Exhaust Camshaft

Precise installation is key to prevent timing errors:

1. Locking Tool Check: Ensure the locking tool is still inserted at the camshaft sprockets.
2. Belt Positioning: Position the timing belt in a clockwise direction, starting at the top of the intake camshaft sprocket.
3. Belt Tightness: Make sure the timing belt is tight between the camshaft sprockets.
4. Tension Pulley Positioning: Hold the tension pulley in the correct installation position.
5. Eccentric Rotation: Rotate the tension pulley’s eccentric so that the Allen screw points in the 3 o’clock direction.
6. Installation: Install the tension pulley and its screw. Tighten the tension pulley screw until it is finger-tight.
7. Retaining Lug: Ensure the retaining lug on the mounting board sits correctly in the cylinder head hole.
8. Tension Adjustment: Turn the tension pulley’s eccentric to the left until the pointer is flush with the marking for the mounting board’s clamp.
9. Final Torque: Tighten the tension pulley screw to 20 Nm.

Installing the Camshaft Belt (Main Timing Belt)

1. Locking Tool Check: Confirm the locking tool is still attached to the camshaft sprockets.
2. Crankshaft Alignment: Ensure the control marking on the crankshaft sprocket is perfectly aligned.
3. Tension Pulley Insertion: Insert the main tension pulley. The fork of the base plate must be correctly placed around the screw on the crankshaft housing.
4. Eccentric Initial Position: Using an Allen key, place the tension pulley’s eccentric in an anti-clockwise direction into the 10 o’clock position. Counter-tighten the screw by hand.
5. Belt Routing: Carefully place the new timing belt onto the water pump, then the tension pulley, followed by the crankshaft sprocket, the idler pulley, and finally the intake camshaft sprocket, ensuring this precise order is followed.
6. Tensioning: Turn the Allen key clockwise to apply tension to the belt.
7. Pointer Alignment: The pointer must be flush with the recess (to the right of the fork) of the mounting board. This indicates correct tension.
8. Final Torque: Tighten the tension pulley to 20 Nm.

Post-Service Checks and Reassembly

After the new timing belt is installed, several critical steps ensure everything is correctly aligned and tensioned:

1. Arrester Removal: Remove all arrester tools.
2. Engine Revolutions: Turn the engine twice in the direction of engine rotation by hand at the crankshaft. This allows the belt to settle and confirms correct operation.
3. TDC Repositioning: Position the engine back at Top Dead Centre of cylinder 1.
4. Camshaft Arrester Re-insertion: Re-insert the camshaft’s arrester tool.
5. Locking Pins Check: Insert the locking pins. The ends of the locking pins must be at the same height, confirming perfect alignment. If the arrester cannot be inserted, the control times (timing) are incorrect and must be rectified immediately. This is a crucial validation step.
6. Tension Re-check: Check the timing belt tension again to ensure it remains within specifications after the engine revolutions.
7. Crankshaft Pulley Screw Reinstallation: Remove the temporary crankshaft belt pulley screw. Install the lower timing belt cover, the crankshaft belt pulley, and the newly oiled screw for the crankshaft belt pulley.
8. Crankshaft Pulley Tightening: Insert the appropriate arrester for the crankshaft belt pulley (as per engine code). Tighten the crankshaft belt pulley screw to its specific tightening torque: 90 Nm + an additional 90° turn. This angle tightening ensures precise clamping force.
9. Final Arrester Removal: Remove the crankshaft belt pulley arrester.
10. Reassembly: Install all remaining components in the reverse order of their removal, ensuring all bolts are tightened to their correct specifications.

Documentation and Test Drive

Once the physical work is complete, two final steps are essential:

1. Service Record: Record the replacement of the original ContiTech timing belt (or equivalent quality part) on the sticker provided with the new belt kit. Affix this sticker in a visible location in the engine compartment, usually near the timing belt cover. This provides a clear record for future maintenance.
2. Test Run/Drive: Start the engine and listen for any unusual noises. Check for smooth operation. Ideally, take the car for a short test drive to ensure everything is functioning correctly under load and that there are no leaks or warning lights.

Summary of Components Replaced

Frequently Asked Questions (FAQs)

Q: Does a 2007 Golf 1.6 FSI need to have its timing belt changed?

A: Yes, the 2007 Golf 1.6 FSI (which typically features the 1.6L 16V engine) uses a timing belt and requires regular replacement as part of its scheduled maintenance. It is not fitted with a maintenance-free timing chain like some other VW engines.

Q: How often should a Volkswagen timing belt be replaced on a 1.6 FSI?

A: For the 1.6L 16V engine, the manufacturer generally recommends an initial check and potential replacement at approximately 55,000 miles, with subsequent checks and replacements advised every 18,000 miles thereafter. Always consult your specific vehicle's service manual.

Q: Why is the water pump always replaced with the timing belt on a VW Golf?

A: On many VW Golf models, including those with the 1.6 FSI engine, the water pump is driven by the timing belt. Replacing it simultaneously prevents future labour costs (as the timing belt would need to be removed again) and avoids potential water pump failure, which could damage the new timing belt or cause engine overheating.

Q: What happens if I don't change my timing belt?

A: If the timing belt breaks or slips, the engine's pistons will likely collide with the valves, causing severe internal engine damage. This often necessitates an expensive engine rebuild or complete engine replacement, making preventative timing belt service a far more economical choice.

Q: Can I replace the timing belt myself?

A: Replacing a timing belt is a highly complex procedure that requires specific tools, precise timing knowledge, and significant mechanical expertise. Mistakes can lead to catastrophic engine failure. It is strongly recommended that this service be performed by a qualified and experienced mechanic or a Volkswagen specialist.

Servicing the timing belt on your VW Golf is a critical investment in your vehicle's longevity and reliability. By understanding the importance of this procedure, adhering to recommended intervals, and ensuring all associated components like the water pump are replaced, you can safeguard your engine against severe damage and ensure many more miles of trouble-free driving.
